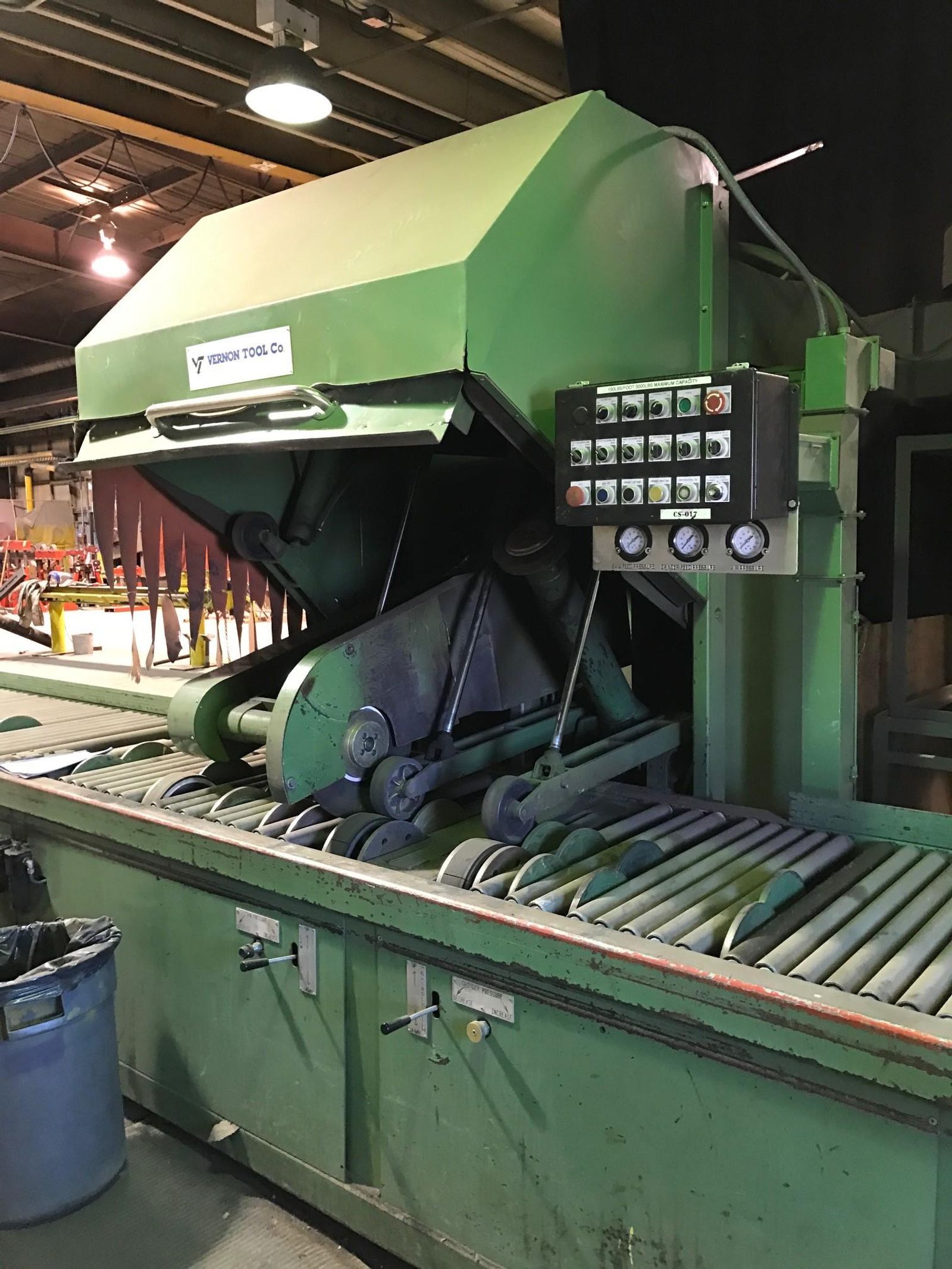

24" VERNON MODEL VAS-0124 ABRASIVE PIPE SAW & BEVELING: STOCK #10056

Stock #: 10056

Equipped With

Model VAS-0124

Capacity 24" Diameter Pipe
15 HP Abrasive Wheel
Hydraulic Operated Pipe Rollers
(3) Pneumatic Pipe Hold Downs
Auxiliary Bevel Grinding Spindle
40' Length Capacity

Abrasive wheels can cut, bevel, and groove materials including carbon steel, black iron, ductile, alloy, stainless steel, ceramic, cement-lined, glass-lined and plastic pipe.
Straight cuts and bevels with or without a land on diameters from 1" to 24" O.D.

Pipe Diameter 1"- 24" (25-610 mm)
O.D. Structural Shapes Up to 6" (150 mm)
Bed Length (Std./Opt.) 60'
Min.-Max. Cut Length (Std/Opt) 1/2"- 40'
Min. Length w/ Beveled Ends 1/2"
Weight per Foot 150 lbs/ft (3000 lbs. MAXIMUM)
Cutting Method Abrasive Wheel
Max. Rotation Speed 360 surface inches per minute
Average Material Removal 0.0328 cubic inches per second

Motors: Cutter 15 HP
Motor Pipe Rotation Drive 1 HP
Motor Hydraulic Power Unit 5 HP
Motor Dust Collection 7-1/2 HP
