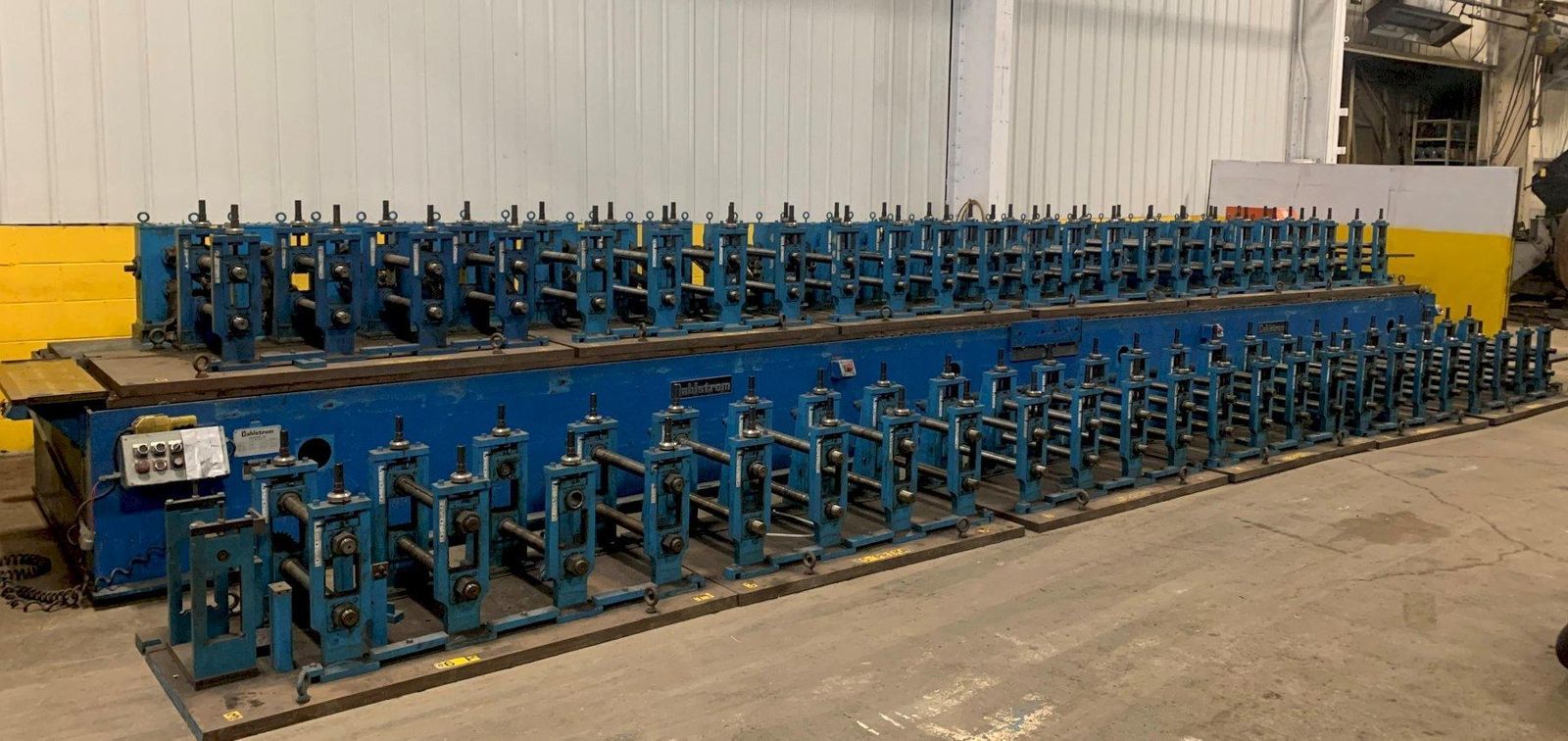

24 STAND X 2" X 18" DAHLSTROM RAFTED U-JOINT DRIVE ROLLFORMER WITH 24 ADDITIONAL RAFTED HEADS (48 TOTAL): STOCK #10331

Stock #: 10331

Equipped With

SERIAL ..................... 1369
MODEL ...................... 400-24 UD
NUMBER OF STANDS ........... 24
ARBOR DIAMETER ............. 2"
MAX ROLL WIDTH ............. 18"
VERTICAL ADJUSTMENT ........ 4" TO 9"
KEYWAY ..................... 3/8" X 3/16"
HORIZONTAL CENTERS ......... 15-3/4"
STATIONS 1-16 .............. EQUAL GEARING
STATIONS 17-24 ............. UNEQUAL GEARING
PASSLINE ................... 40" FLOOR TO UNDER SIDE OF SECTION LAST STATION
SPEEDS ..................... 10 TO 40 FPM
MOTOR ...................... 20 HP AC VECTOR DRIVE

24 RAFTED STATIONS WITH 24 ADDITIONAL RAFTED STATIONS (ON CARTS)
U JOINT DRIVE GEAR BOXES
MICROMETER DIAL TYPE ADJUSTMENT OF UPPER SHAFT

Buy Machines

24 STAND X 2" X 18" DAHLSTROM RAFTED U-JOINT DRIVE ROLLFORMER WITH 24 ADDITIONAL RAFTED HEADS (48 TOTAL): STOCK #10331

Stock # 10331

Share Machine
Print Details

Machine Specifications

SERIAL ..................... 1369
MODEL ...................... 400-24 UD
NUMBER OF STANDS ........... 24
ARBOR DIAMETER ............. 2"
MAX ROLL WIDTH ............. 18"
VERTICAL ADJUSTMENT ........ 4" TO 9"
KEYWAY ..................... 3/8" X 3/16"
HORIZONTAL CENTERS ......... 15-3/4"
STATIONS 1-16 .............. EQUAL GEARING
STATIONS 17-24 ............. UNEQUAL GEARING
PASSLINE ................... 40" FLOOR TO UNDER SIDE OF SECTION LAST STATION
SPEEDS ..................... 10 TO 40 FPM
MOTOR ...................... 20 HP AC VECTOR DRIVE

24 RAFTED STATIONS WITH 24 ADDITIONAL RAFTED STATIONS (ON CARTS)
U JOINT DRIVE GEAR BOXES
MICROMETER DIAL TYPE ADJUSTMENT OF UPPER SHAFT

Specifications
Number of Stands 24
Diameter of Arbor 2 inches
Power 20 horsepower
Horiz Centers 15.75 inches
Vert Centers 9 inches
