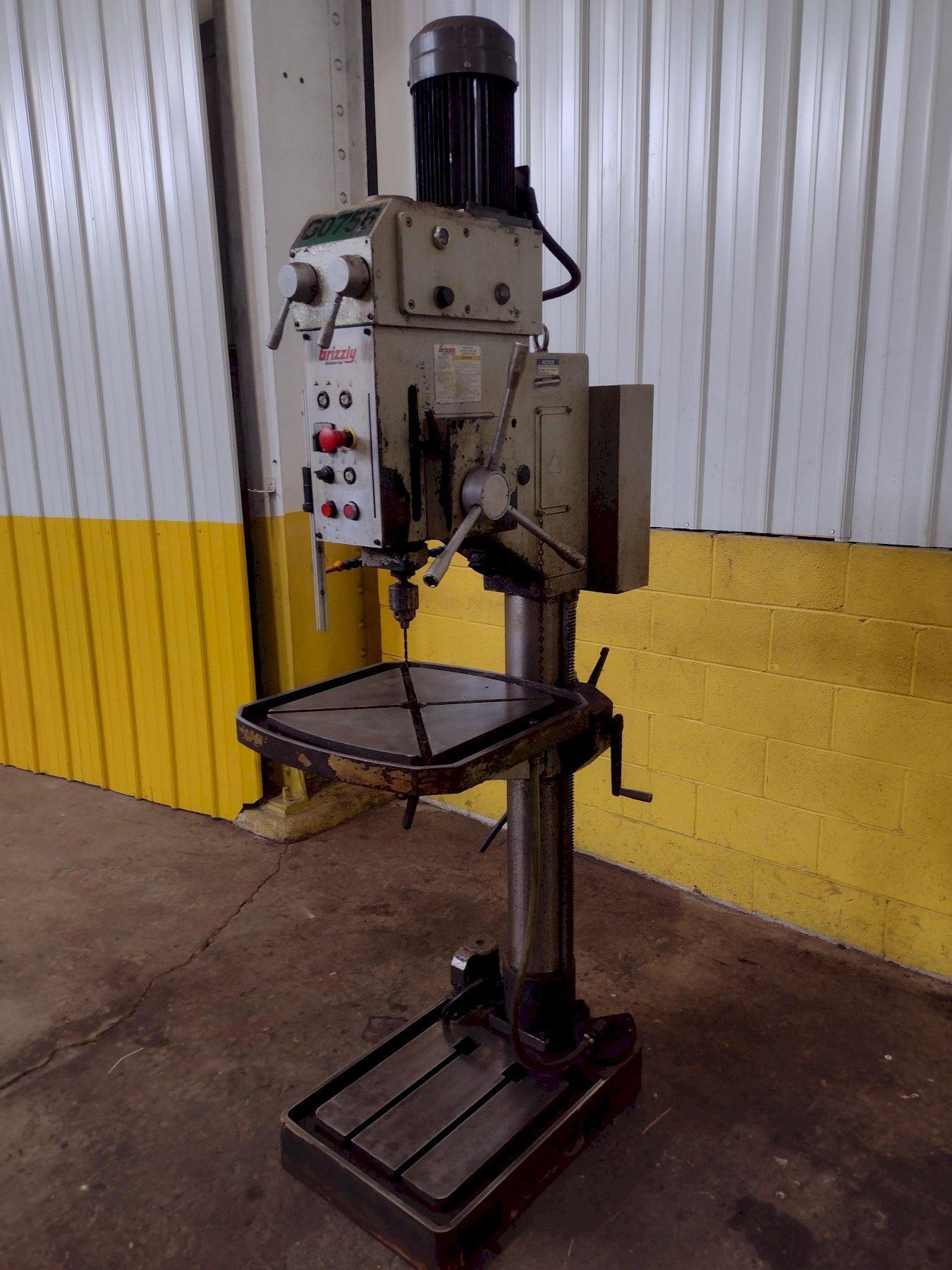

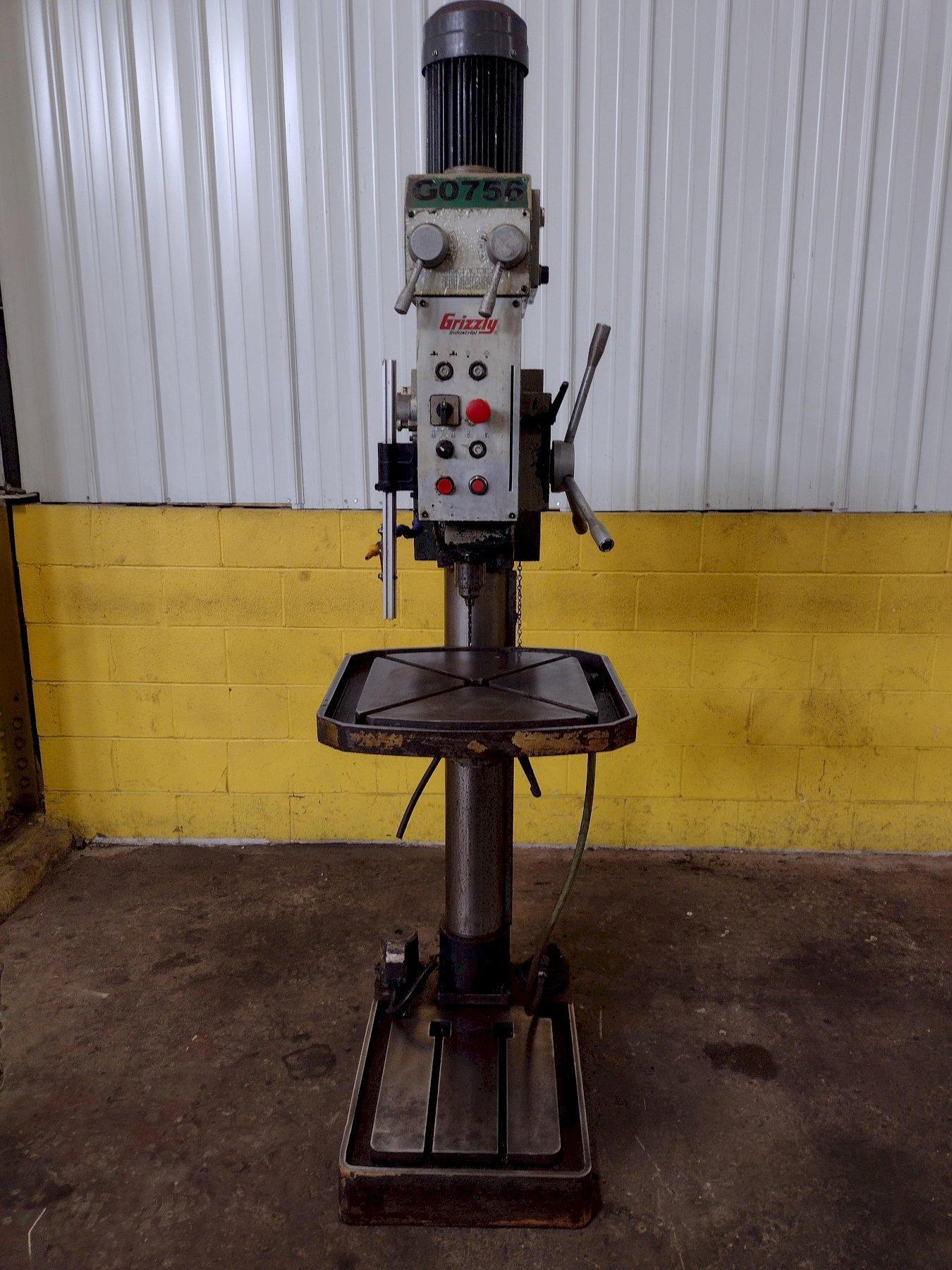

27" GRIZZLY MODEL #G0756 HEAVY DUTY DRILLING & TAPPING SINGLE SPINDLE DRILL: STOCK #16261

Stock #: 16261

Equipped With

SERIAL .............. 460034
NEW ................. 2014.04
MODEL ............... G0756 HEAVY DUTY
TYPE ................ DRILLING & TAPPING
SPINDLE TO COLUMN ... 13.75"
SWING ............... 27.5"
TABLE SIZE .......... 22" X 22"
SPINDLE TO TABLE .... 30.75" MAX
TABLE TRAVEL ........ 20" VERTICAL
TABLE SWING ......... 360 DEGREES
SPINDLE SPEEDS ...... (18) 16 TO 1740 RPM
SPINDLE TAPER ....... #4 MT
SPINDLE TRAVEL ...... 7"
QUILL DIAMETER ...... 3"
QUILL FEED RATE ..... 0.004, 0.008 in./rev.
COOLANT PUMP ........ IN BASE

MOTOR ............... 1.8/2 HP

Buy Machines

27" GRIZZLY MODEL #G0756 HEAVY DUTY DRILLING & TAPPING SINGLE SPINDLE DRILL: STOCK #16261

Stock # 16261

Share Machine
Print Details

Machine Specifications

SERIAL .............. 460034
NEW ................. 2014.04
MODEL ............... G0756 HEAVY DUTY
TYPE ................ DRILLING & TAPPING
SPINDLE TO COLUMN ... 13.75"
SWING ............... 27.5"
TABLE SIZE .......... 22" X 22"
SPINDLE TO TABLE .... 30.75" MAX
TABLE TRAVEL ........ 20" VERTICAL
TABLE SWING ......... 360 DEGREES
SPINDLE SPEEDS ...... (18) 16 TO 1740 RPM
SPINDLE TAPER ....... #4 MT
SPINDLE TRAVEL ...... 7"
QUILL DIAMETER ...... 3"
QUILL FEED RATE ..... 0.004, 0.008 in./rev.
COOLANT PUMP ........ IN BASE

MOTOR ............... 1.8/2 HP

Specifications
Dimensions 22" W x 37" D x 89-1/2" H
Weight 1860 pounds
