Machine Information

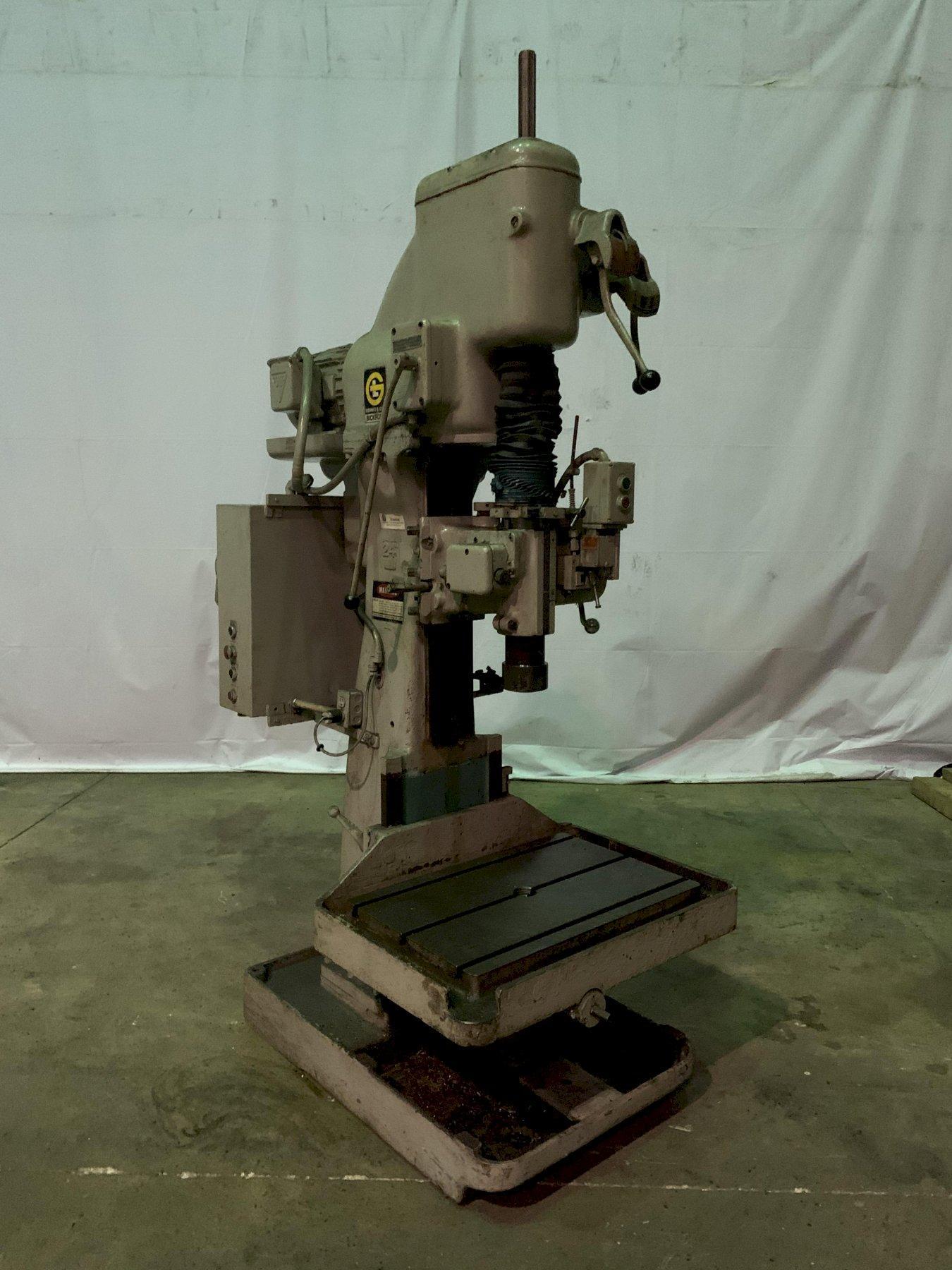

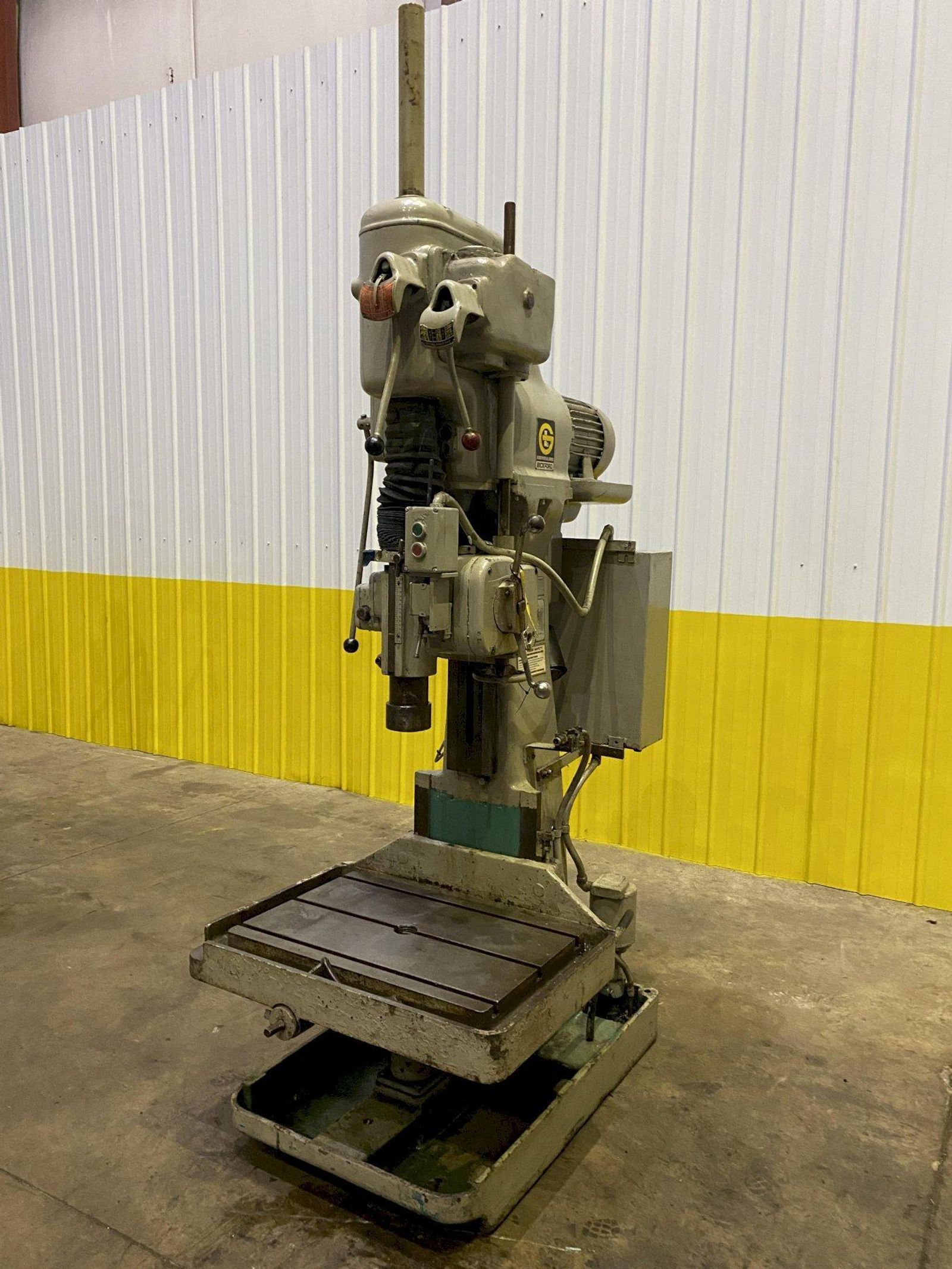

24" GIDDINGS & LEWIS BICKFORD MODEL 25A-64346 SINGLE SPINDLE VERTICAL DRILL: STOCK #11435

Stock #: 11435

Equipped With

SERIAL .................................. 972-04179-80

MODEL ................................... 972 BOX COLUMN
SPINDLE CENTER TO LOWER COLUMN .......... 12-1/2"
SPINDLE CETER TO UPPER COLUMN ........... 11-1/2"
AREA OF TABLE ........................... 24" X 19"
SPINDLE SPEEDS .......................... 90 TO 1500 RPM
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE .. 32-3/4"
VERTICAL ADJUSTMENT OF TABLE ............ 10-3/4"
VERTICAL ADJUSTMENT OF SLIDING HEAD ..... 17-1/2"
SPINDLE TRAVEL .......................... 10-1/2"
POWER FEEDS ............................. (9) .05 TO .043 IPR
SPINDLE TAPER ........................... #4 MT
FORWARD & REVERSING ..................... YES
COOLANT ................................. YES
MOTOR ................................... 5 HORSEPOWER
