Machine Information

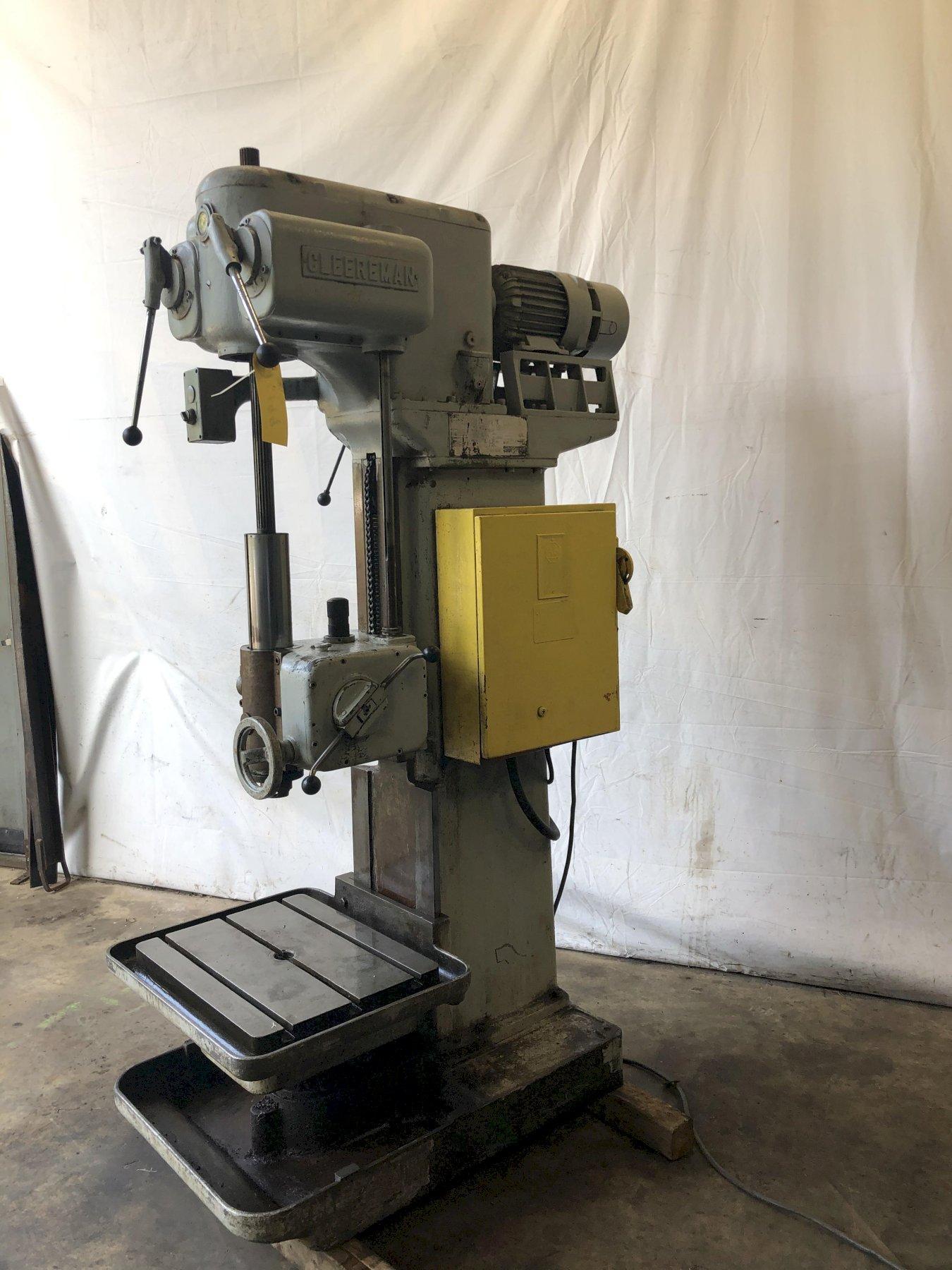

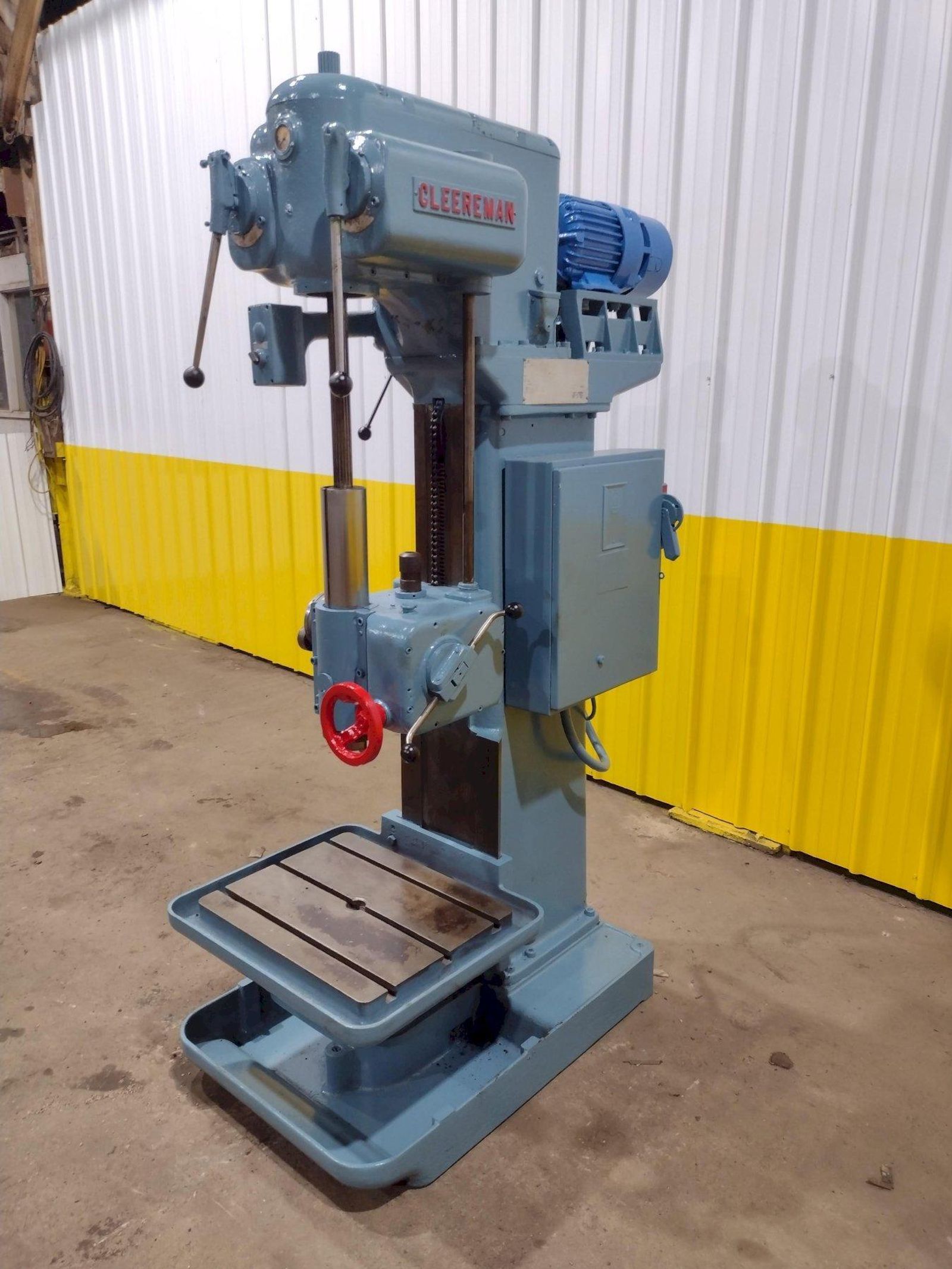

24" CLEEREMAN SINGLE SPINDLE DRILL: STOCK #13199

Stock #: 13199

Equipped With

SERIAL ....................................
MODEL ..................................... BOX COLUMN
SPINDLE CENTER TO LOWER COLUMN ............ 12-1/2"
SPINDLE CENTER TO UPPER COLUMN ............ 11-1/2"
AREA OF WORK TABLE ........................ 19" X 24"
VERTICAL TABLE TRAVEL ..................... 12"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE .... 27"
VERTICAL ADJUSTMENT OF SLIDING HEAD ....... 18"
POWER FEED SPINDLE TRAVEL ................. 12"
SPINDLE SPEEDS ............................ (12) 75 TO 1500 RPM
SPINDLE FEEDS ............................. (9) .005 TO .045 IPR
SPINDLE TAPER ............................. #4 MT
POWER DOWNFEED ............................ YES
MOTOR ..................................... 5 HORSEPOWER


Buy Machines

24" CLEEREMAN SINGLE SPINDLE DRILL: STOCK #13199

Stock # 13199

Share Machine
Print Details

Machine Specifications

SERIAL ....................................
MODEL ..................................... BOX COLUMN
SPINDLE CENTER TO LOWER COLUMN ............ 12-1/2"
SPINDLE CENTER TO UPPER COLUMN ............ 11-1/2"
AREA OF WORK TABLE ........................ 19" X 24"
VERTICAL TABLE TRAVEL ..................... 12"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE .... 27"
VERTICAL ADJUSTMENT OF SLIDING HEAD ....... 18"
POWER FEED SPINDLE TRAVEL ................. 12"
SPINDLE SPEEDS ............................ (12) 75 TO 1500 RPM
SPINDLE FEEDS ............................. (9) .005 TO .045 IPR
SPINDLE TAPER ............................. #4 MT
POWER DOWNFEED ............................ YES
MOTOR ..................................... 5 HORSEPOWER
