Machine Information

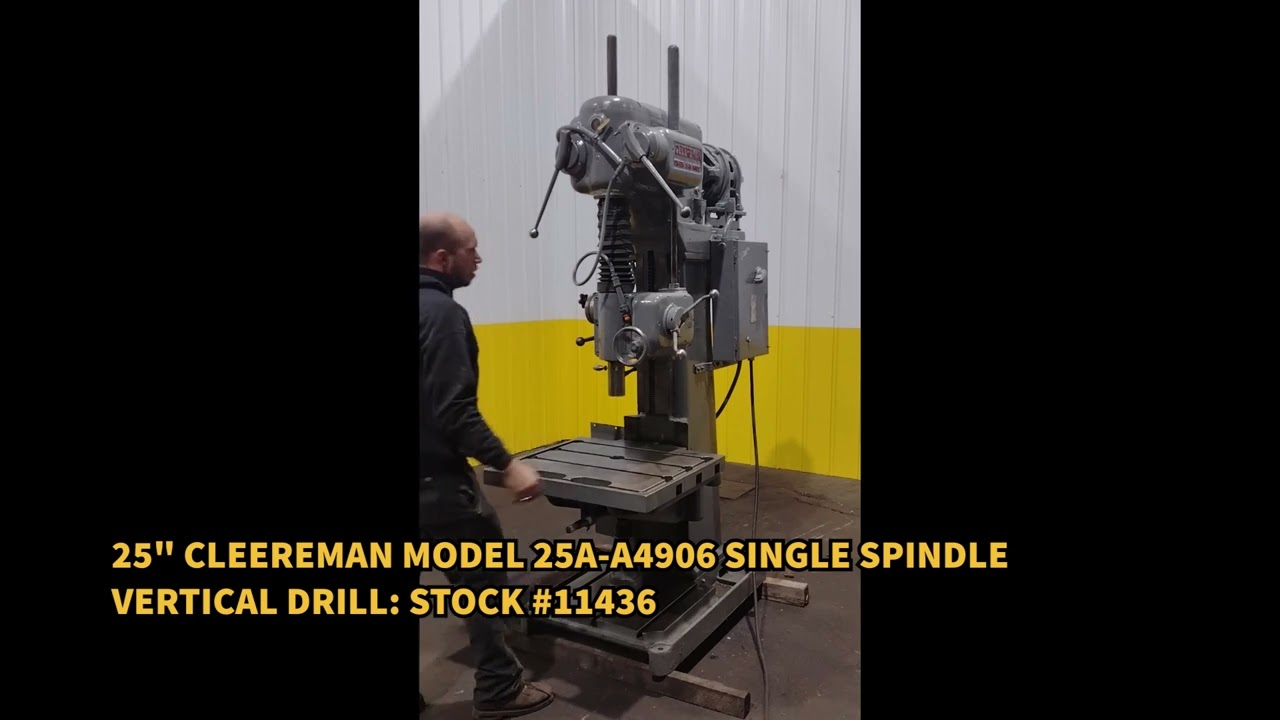

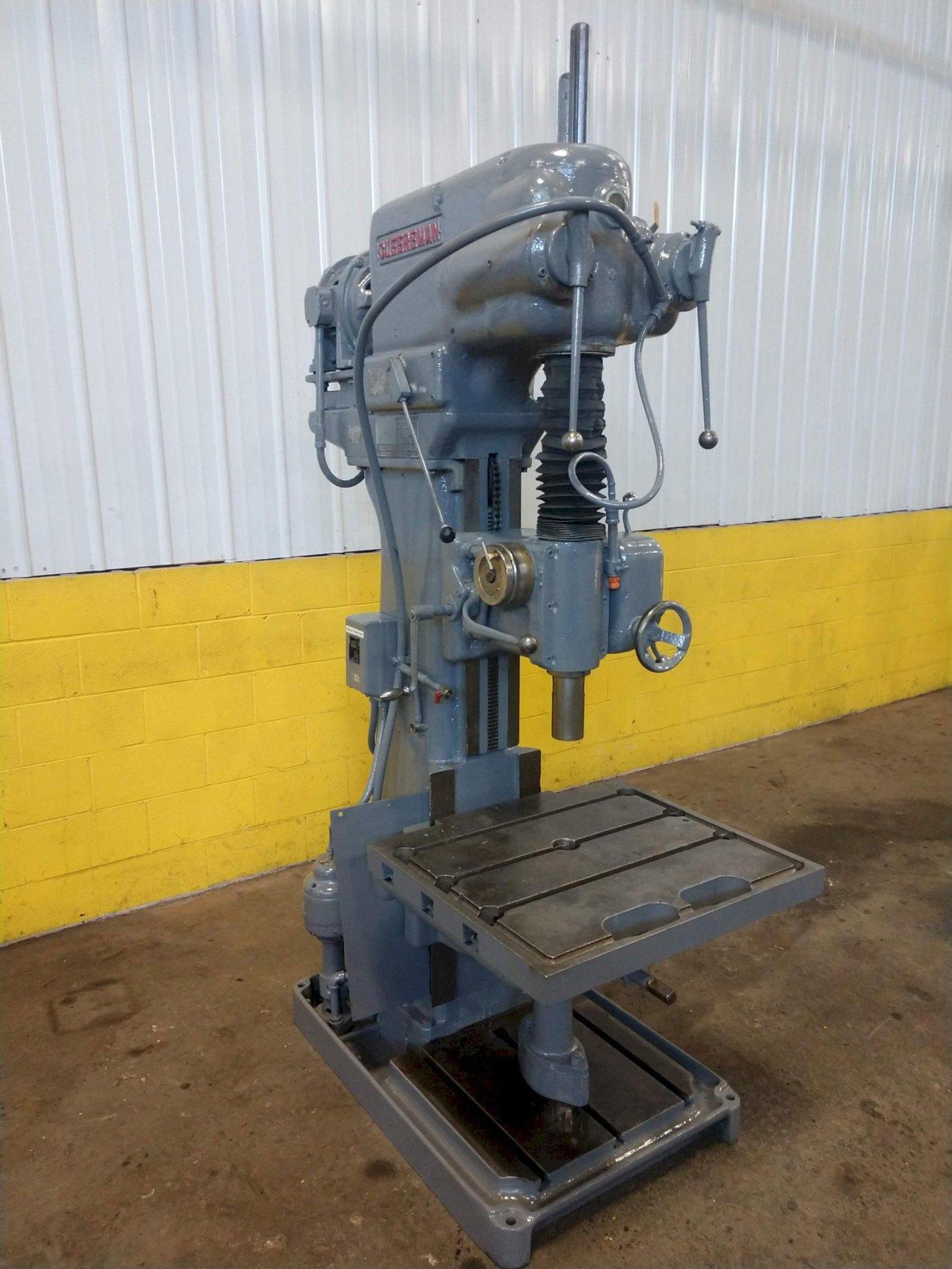

25" CLEEREMAN MODEL 25A-A4906 SINGLE SPINDLE VERTICAL DRILL: STOCK #11436

Stock #: 11436

Equipped With

SERIAL .................................... 241917
MODEL ..................................... BOX COLUMN
SPINDLE CENTER TO LOWER COLUMN ............ 12-1/2"
SPINDLE CENTER TO UPPER COLUMN ............ 11-1/2"
AREA OF WORK TABLE (T-SLOTTED) ............ 30" X 16"
VERTICAL TABLE TRAVEL ..................... 12"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE .... 27"
VERTICAL ADJUSTMENT OF SLIDING HEAD ....... 18"
POWER FEED SPINDLE TRAVEL ................. 12"
SPINDLE SPEEDS ............................ (12) 50 TO 1000 RPM
SPINDLE FEEDS ............................. (9) .005 TO .045 IPR
SPINDLE TAPER ............................. #4 MT
POWER DOWNFEED ............................ YES
MOTOR ..................................... 5 HORSEPOWER
