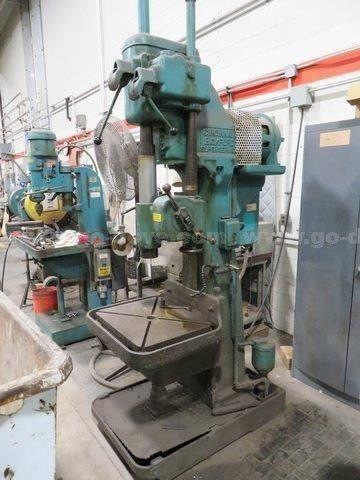

24" CINCINNATI MODEL #2L SINGLE SPINDLE POWER DRILL: STOCK 13314

Stock #: 13314

Equipped With

SERIAL ................................ 2L2304
MODEL ................................. 24" BOX COLUMN
SPINDLE TO LOWER COLUMN ............... 12-1/2"
SPINDLE TO UPPER COLUMN ............... 11-1/2"
SPINDLE TO TABLE MAXIMUM .............. 32-3/4"
VERTICAL TABLE ADJUSTMENT ............. 10-3/4"
VERTICAL SLIDING HEAD ADJUSTMENT ...... 17-1/2"
POWER SPINDLE TRAVEL .................. 10-1/2"
TABLE AREA (T-SLOTTED) ................ 24" X 19"
SPINDLE SPEEDS ........................ (12) 60 TO 1000 RPM
SPINDLE FEEDS ......................... (9) .005 TO .043 IPR
SPINDLE DIAMETER ...................... 3-15/16"
SPINDLE TAPER ......................... #4 MT
COOLANT ............................... YES
HORSEPOWER SPINDLE MOTOR .............. 5


Buy Machines

24" CINCINNATI MODEL #2L SINGLE SPINDLE POWER DRILL: STOCK 13314

Stock # 13314

Share Machine
Print Details

Machine Specifications

SERIAL ................................ 2L2304
MODEL ................................. 24" BOX COLUMN
SPINDLE TO LOWER COLUMN ............... 12-1/2"
SPINDLE TO UPPER COLUMN ............... 11-1/2"
SPINDLE TO TABLE MAXIMUM .............. 32-3/4"
VERTICAL TABLE ADJUSTMENT ............. 10-3/4"
VERTICAL SLIDING HEAD ADJUSTMENT ...... 17-1/2"
POWER SPINDLE TRAVEL .................. 10-1/2"
TABLE AREA (T-SLOTTED) ................ 24" X 19"
SPINDLE SPEEDS ........................ (12) 60 TO 1000 RPM
SPINDLE FEEDS ......................... (9) .005 TO .043 IPR
SPINDLE DIAMETER ...................... 3-15/16"
SPINDLE TAPER ......................... #4 MT
COOLANT ............................... YES
HORSEPOWER SPINDLE MOTOR .............. 5


Specifications
Swing 24 inches
