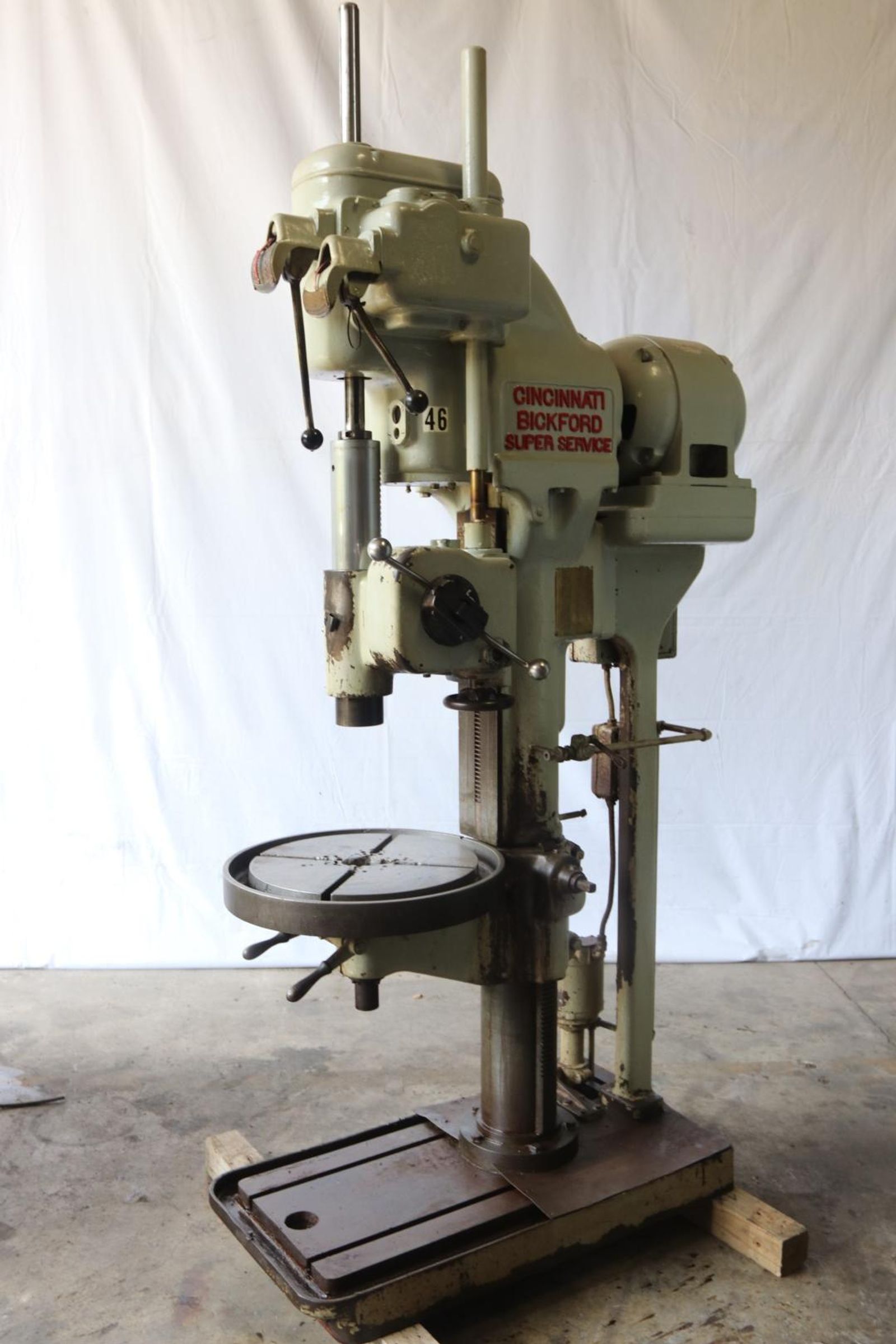

24" CINCINNATI BICKFORD SUPER SERVICE SINGLE SPINDLE DRILL: STOCK #10374

Stock #: 10374

Equipped With

SERIAL ............................. 2L-2466
MODEL .............................. 2L
ROUND COLUMN ....................... 24"
DEPTH OF THROAT .................... 12-1/2"
DIAMETER OF TABLE .................. 22"
AREA OF BASE ....................... 17-1/2" X 20-1/2"
SPINDLE SPEEDS ..................... (9) 60 TO 1000 RPM
FEEDS .............................. (9) .005 TO .043 IPR
DISTANCE SPINDLE TO BASE ........... 36"
VERTICAL TRAVEL OF HEAD ON COLUMN .. 17"
VERTICAL TRAVEL OF TABLE ON COLUMN . 12"
SPINDLE TRAVEL ..................... 11"
DIAMETER OF SPINDLE ................ 3-3/4"
TAPER IN SPINDLE ................... #4 MT
MOTOR .............................. 5 HORSEPOWER


Buy Machines

24" CINCINNATI BICKFORD SUPER SERVICE SINGLE SPINDLE DRILL: STOCK #10374

Stock # 10374

Sold
Share Machine
Print Details

Machine Specifications

SERIAL ............................. 2L-2466
MODEL .............................. 2L
ROUND COLUMN ....................... 24"
DEPTH OF THROAT .................... 12-1/2"
DIAMETER OF TABLE .................. 22"
AREA OF BASE ....................... 17-1/2" X 20-1/2"
SPINDLE SPEEDS ..................... (9) 60 TO 1000 RPM
FEEDS .............................. (9) .005 TO .043 IPR
DISTANCE SPINDLE TO BASE ........... 36"
VERTICAL TRAVEL OF HEAD ON COLUMN .. 17"
VERTICAL TRAVEL OF TABLE ON COLUMN . 12"
SPINDLE TRAVEL ..................... 11"
DIAMETER OF SPINDLE ................ 3-3/4"
TAPER IN SPINDLE ................... #4 MT
MOTOR .............................. 5 HORSEPOWER


Specifications
Capacity (Mild Steel) 3 inches
Capacity (Cast Iron) 3 inches
Power 5 horsepower
Weight 2700 ounces
Swing 24 inches
RPM 1000
