Machine Information

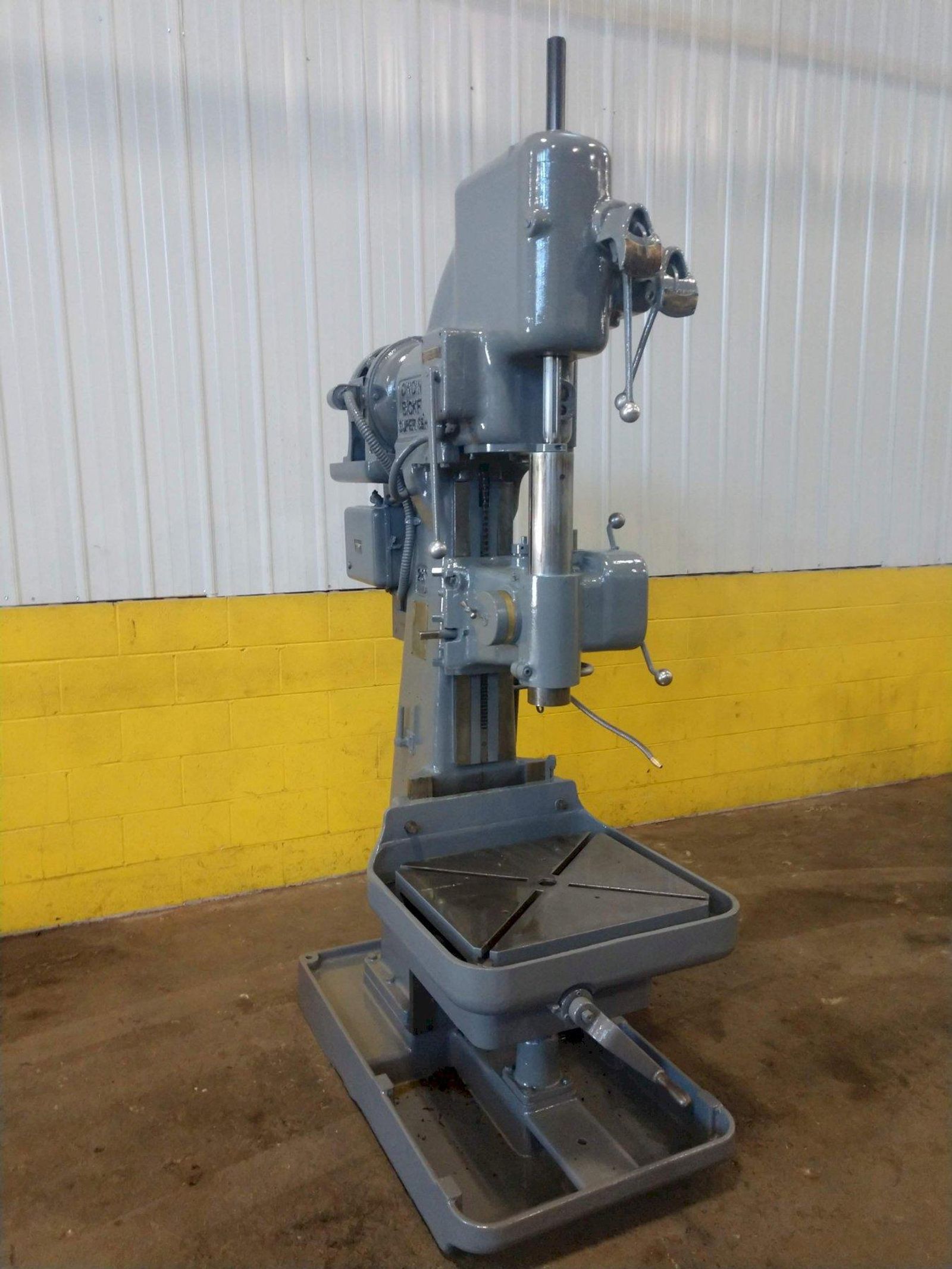

28" CINCINNATI BICKFORD MODEL #28 SINGLE SPINDLE DRILL: STOCK #12081

Stock #: 12081

Equipped With

SERIAL ........................ 3L-138
MODEL ......................... 28
DEPTH OF THROAT ............... 14"
AREA OF TABLE ................. 30" X 20"
SPINDLE SPEEDS ................ (12) 50 TO 1000 PRM
POWER SPINDLE FEEDS ........... (9) .005 TO .043 IPR
SPINDLE TRAVEL ................ 10-1/8"
TAPER IN SPINDLE .............. #5 MT
DIAMETER OF SPINDLE ........... 3-15/16"
TRAVEL OF HEAD ON COLUMN ...... 16"
TRAVEL OF TABLE ON COLUMN ..... 12"
DISTANCE SPINDLE TO TABLE ..... 0" MINIMUM TO 32" MAXIMUM
SPINDLE FORWARD & REVERSING ... YES
MOTOR ......................... 7-1/2 HORSEPOWER
