Machine Information

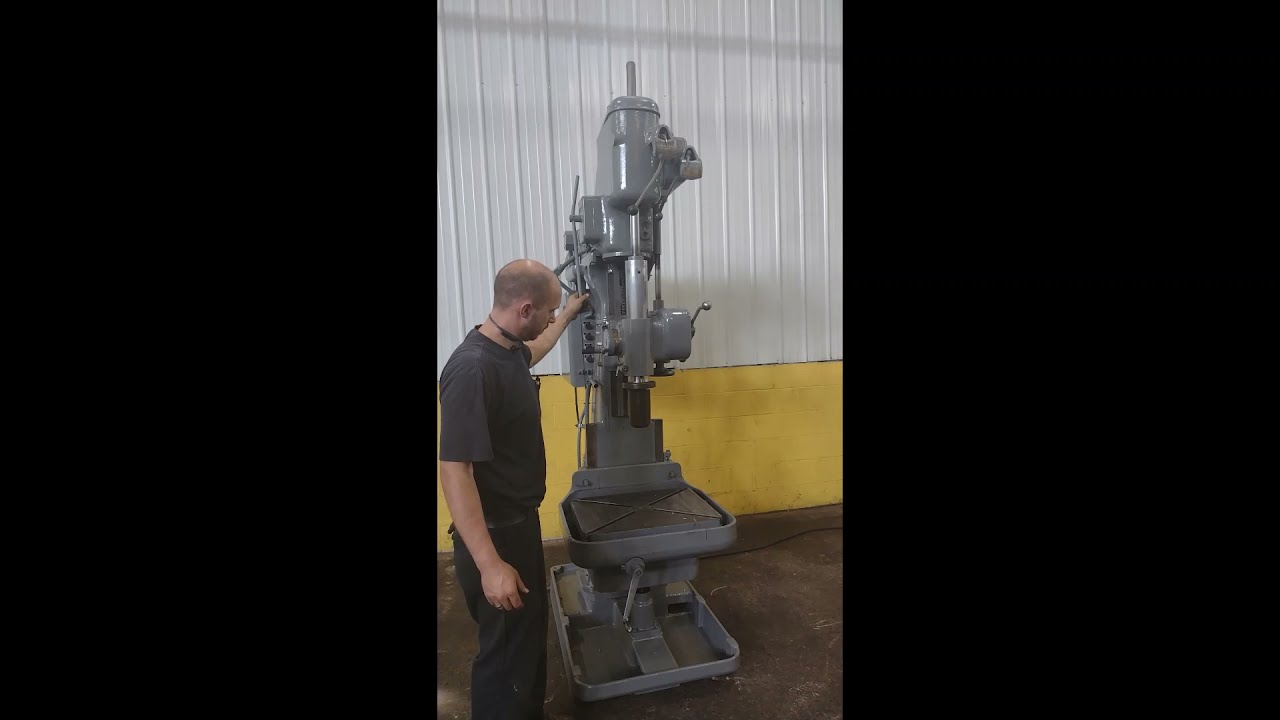

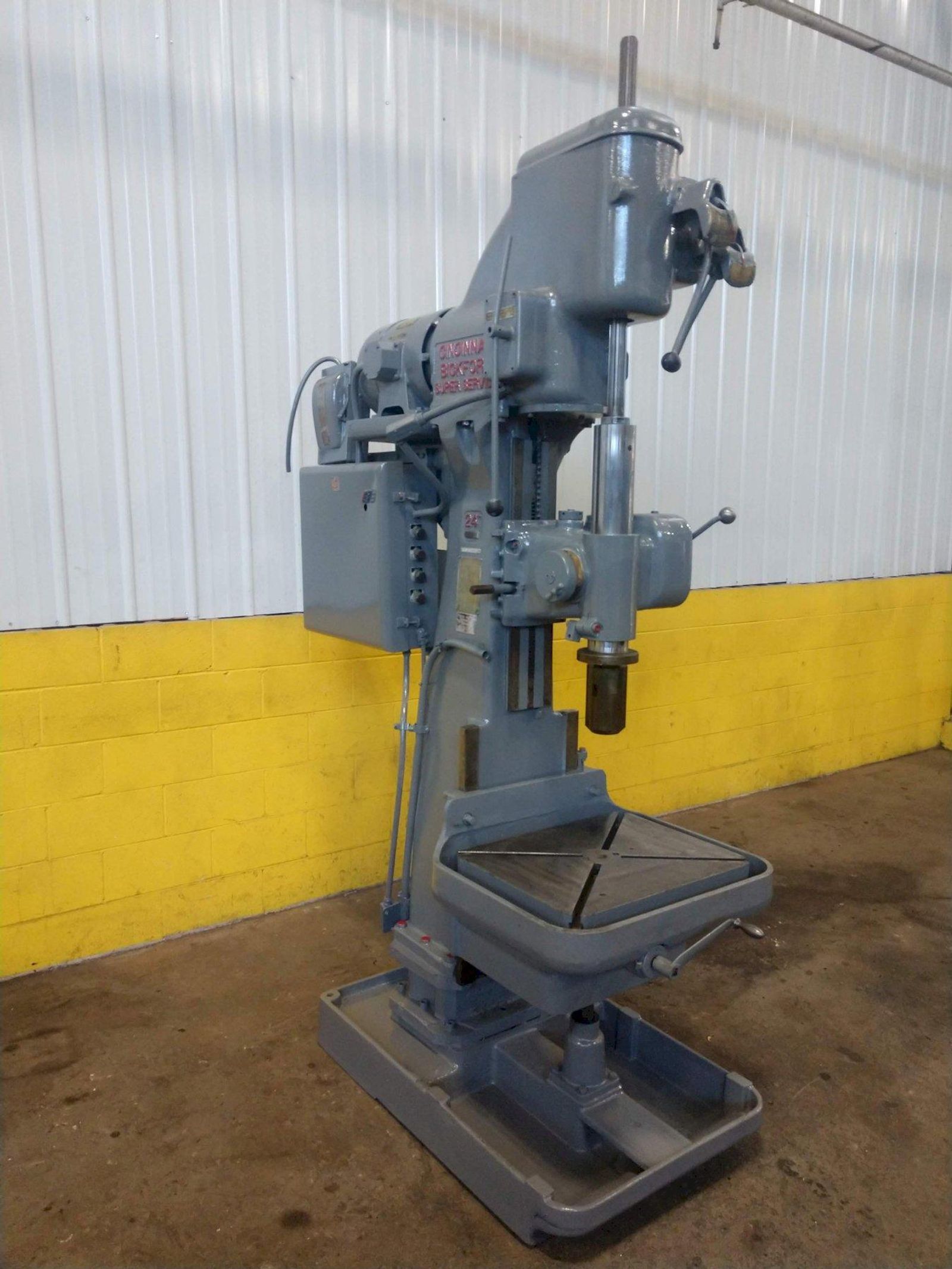

24" CINCINNATI BICKFORD MODEL #2L SUPER SERVICE SINGLE SPINDLE DRILL: STOCK #11857

Stock #: 11857

Equipped With

SERIAL ............................. 2L
MODEL .............................. 24" BOX COLUMN
SPINDLE TO LOWER COLUMN ............ 12-1/2"
SPINDLE TO UPPER COLUMN ............ 11-1/2"
SPINDLE TO TABLE MAXIMUM ........... 32-3/4"
VERTICAL TABLE ADJUSTMENT .......... 10-3/4"
VERTICAL SLIDING HEAD ADJUSTMENT ... 17-1/2"
POWER SPINDLE TRAVEL ............... 10-1/2"
TABLE AREA (T-SLOTTED) ............. 24" X 19"
SPINDLE SPEEDS ..................... (12) 60 TO 1000 RPM
SPINDLE FEEDS ...................... (9) .005 TO .043 IPR
SPINDLE DIAMETER ................... 3-15/16"
SPINDLE TAPER ...................... #4 MT
COOLANT ............................ YES
HORSEPOWER SPINDLE MOTOR ........... 5
