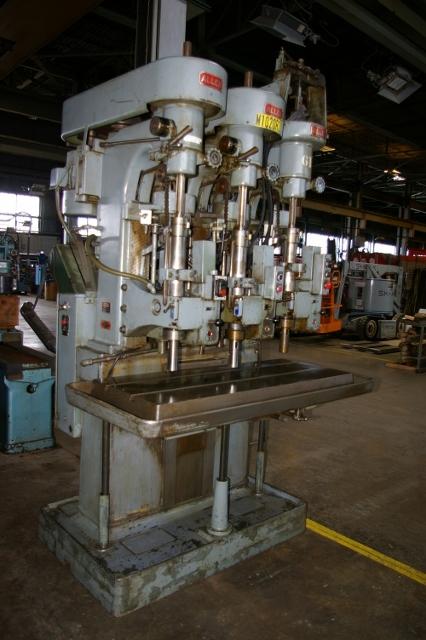

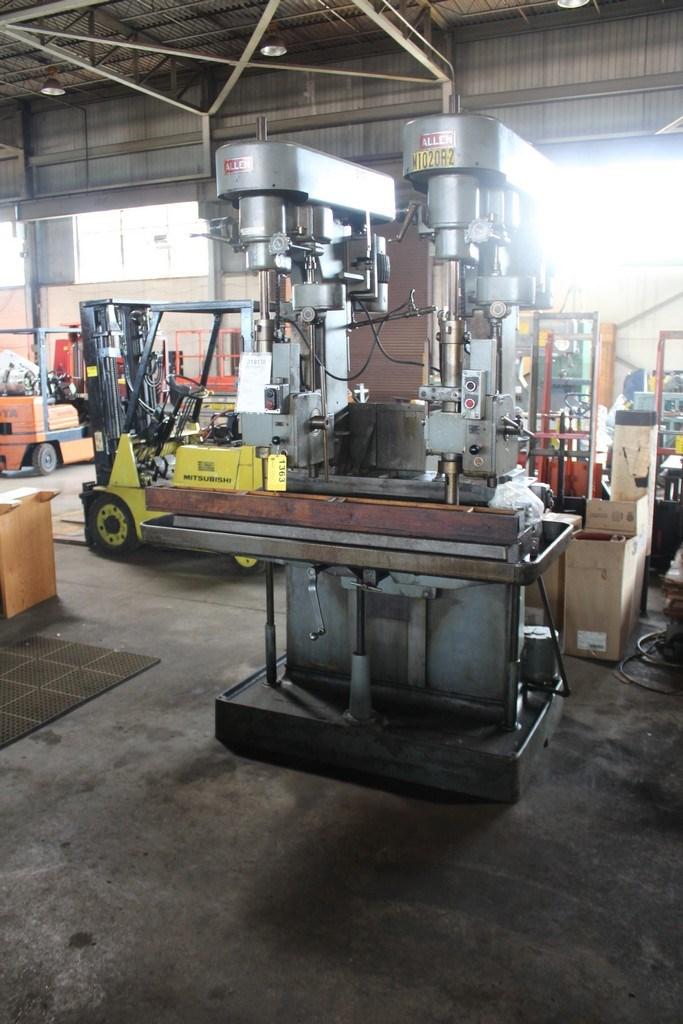

24" 2 SPINDLE ALLEN HEAVY DUTY DRILL PRESS: STOCK #11094

Stock #: 11094

Equipped With

MODEL 2-1/2                 ( BOX COLUMN )
THROAT DEPTH ------------------------------ 12"
TAPER ------------------------------------- #4 MT
SLIDING HEAD TRAVEL ----------------------- 6"
QUILL TRAVEL ------------------------------ 8"
TABLE WORKING SURFACE --------------------- 20-1/2" X 52"
VARIABLE SPEED DRIVE, 2 SPINDLES ---------- 50 TO 1800 RPM
DISTANCE BETWEEN SPINDLE CENTERS ---------- 15"
(2) VARIABLE SPEED HEADS, DRIVEN BY ------- 3 HP 230/460/3/60 MOTOR


EQUIPPED WITH ---
VARIABLE SPEED
POWER DOWN FEED TO EACH SPINDLE
AUTOMATIC DWELL TIMER TO ONE HEAD
COOLANT PUMP AND PIPING

OPTION AVAILABLE:
DRILL/TAP HEAD ( MISSING 5 HP MOTOR & ONE PULLEY ) AT NO CHARGE.

Buy Machines

24" 2 SPINDLE ALLEN HEAVY DUTY DRILL PRESS: STOCK #11094

Stock # 11094

Share Machine
Print Details

Machine Specifications

MODEL 2-1/2                 ( BOX COLUMN )
THROAT DEPTH ------------------------------ 12"
TAPER ------------------------------------- #4 MT
SLIDING HEAD TRAVEL ----------------------- 6"
QUILL TRAVEL ------------------------------ 8"
TABLE WORKING SURFACE --------------------- 20-1/2" X 52"
VARIABLE SPEED DRIVE, 2 SPINDLES ---------- 50 TO 1800 RPM
DISTANCE BETWEEN SPINDLE CENTERS ---------- 15"
(2) VARIABLE SPEED HEADS, DRIVEN BY ------- 3 HP 230/460/3/60 MOTOR


EQUIPPED WITH ---
VARIABLE SPEED
POWER DOWN FEED TO EACH SPINDLE
AUTOMATIC DWELL TIMER TO ONE HEAD
COOLANT PUMP AND PIPING

OPTION AVAILABLE:
DRILL/TAP HEAD ( MISSING 5 HP MOTOR & ONE PULLEY ) AT NO CHARGE.

Specifications
Dimensions 061"-048"-109"
Weight 5000 pounds
