Machine Information

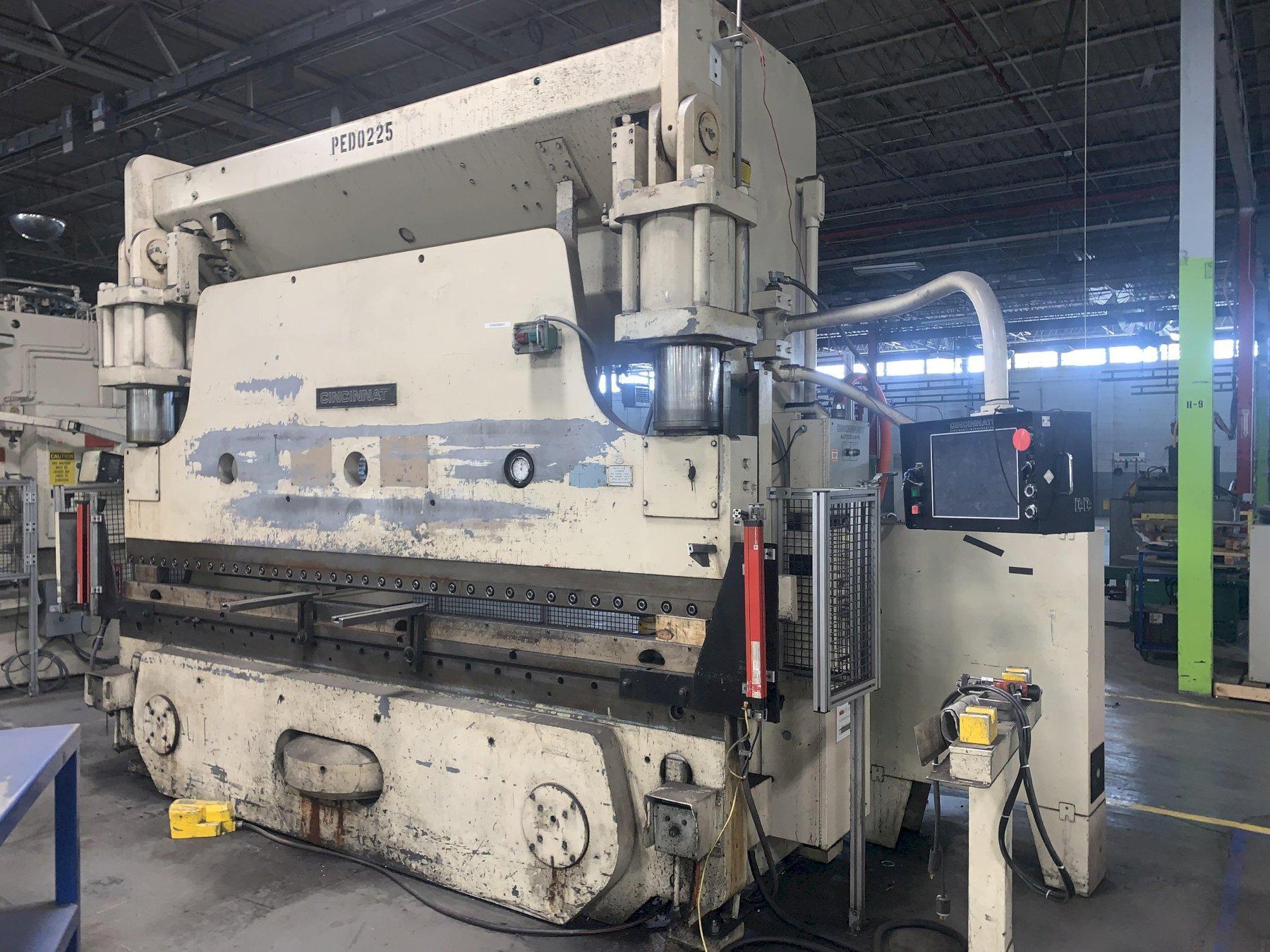

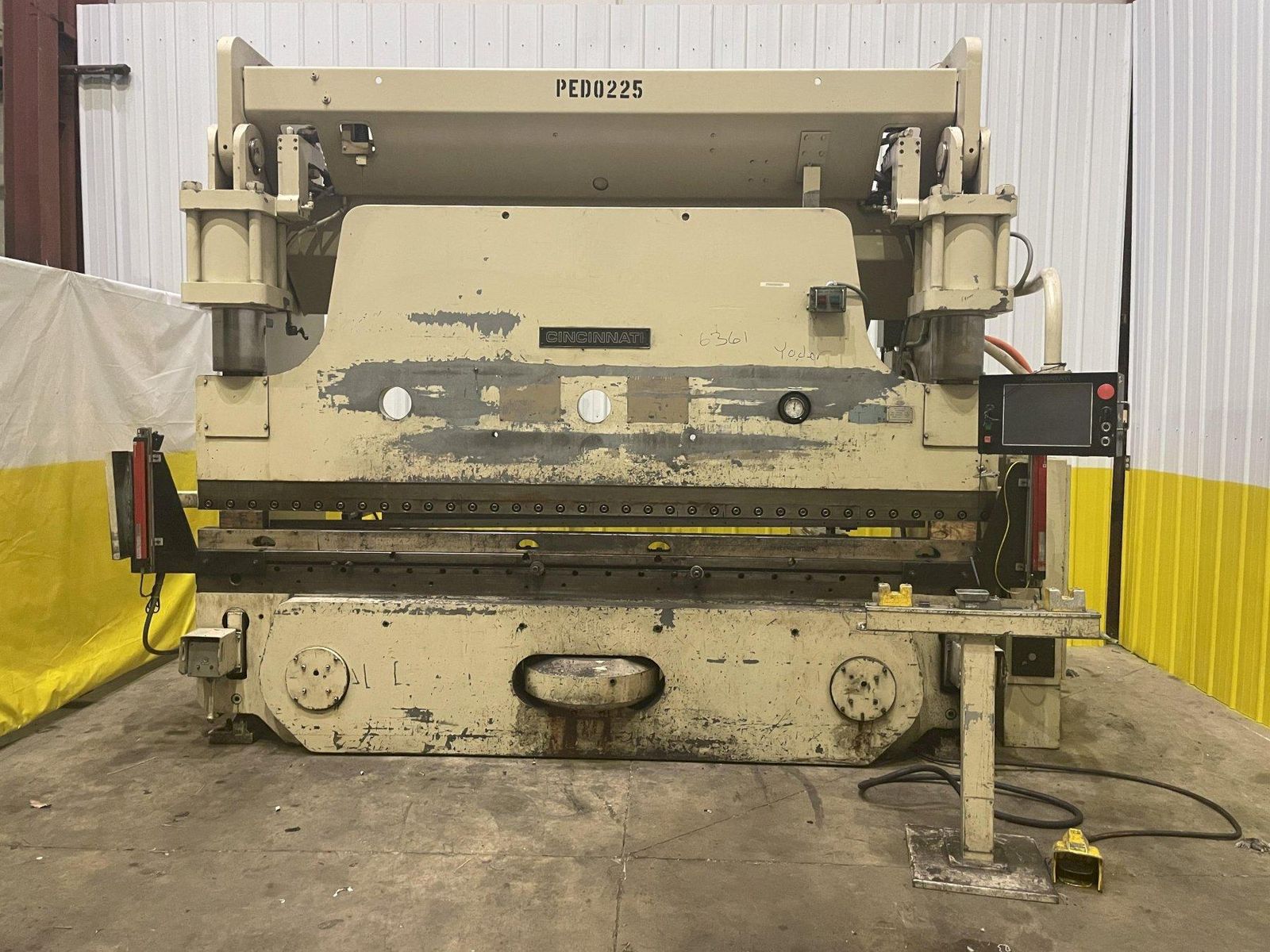

230 TON X 12' CINCINNATI MODEL #230-10AS AUTO SHAPE HYDRAULIC CNC PRESS BRAKE WITH UPGRADED TOUCHSCREEN CONTROLS: STOCK 12998

Stock #: 12998

Equipped With

SERIAL ........................... 43990
MODEL............................. 230ASX10
YEAR NEW ......................... 1985
UPDATED TOUCHSCREEN CONTROLS ..... 05/2012
CAPACITY ......................... 230 TON
OVERALL LENGTH OF BED AND RAM .... 12'
DISTANCE BETWEEN HOUSING ......... 10'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
RAM SPEED HIGH ................... 101 IPM
RAM SPEED MEDIUM ................. 49 IPM
RAM SPEED LOW .................... 14 IPM
RAM SEED RETURN .................. 95 IPM
POWER BACKGUAGES ................. 48"
AUTO CROWNING .................... YES
POWER CLAMPING ON DIE RAIL ....... YES
FLOOR STANDING, NO PIT REQUIRED .. YES
ELECTRIC FOOT TRIP ............... YES
PEDESTAL STAND W/ PALM BUTTONS ... YES
MOTOR ............................ 30 HP

Buy Machines

230 TON X 12' CINCINNATI MODEL #230-10AS AUTO SHAPE HYDRAULIC CNC PRESS BRAKE WITH UPGRADED TOUCHSCREEN CONTROLS: STOCK 12998

Stock # 12998

Share Machine
Print Details

Machine Specifications

SERIAL ........................... 43990
MODEL............................. 230ASX10
YEAR NEW ......................... 1985
UPDATED TOUCHSCREEN CONTROLS ..... 05/2012
CAPACITY ......................... 230 TON
OVERALL LENGTH OF BED AND RAM .... 12'
DISTANCE BETWEEN HOUSING ......... 10'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
RAM SPEED HIGH ................... 101 IPM
RAM SPEED MEDIUM ................. 49 IPM
RAM SPEED LOW .................... 14 IPM
RAM SEED RETURN .................. 95 IPM
POWER BACKGUAGES ................. 48"
AUTO CROWNING .................... YES
POWER CLAMPING ON DIE RAIL ....... YES
FLOOR STANDING, NO PIT REQUIRED .. YES
ELECTRIC FOOT TRIP ............... YES
PEDESTAL STAND W/ PALM BUTTONS ... YES
MOTOR ............................ 30 HP

Specifications
Weight 34500 pounds
