Machine Information

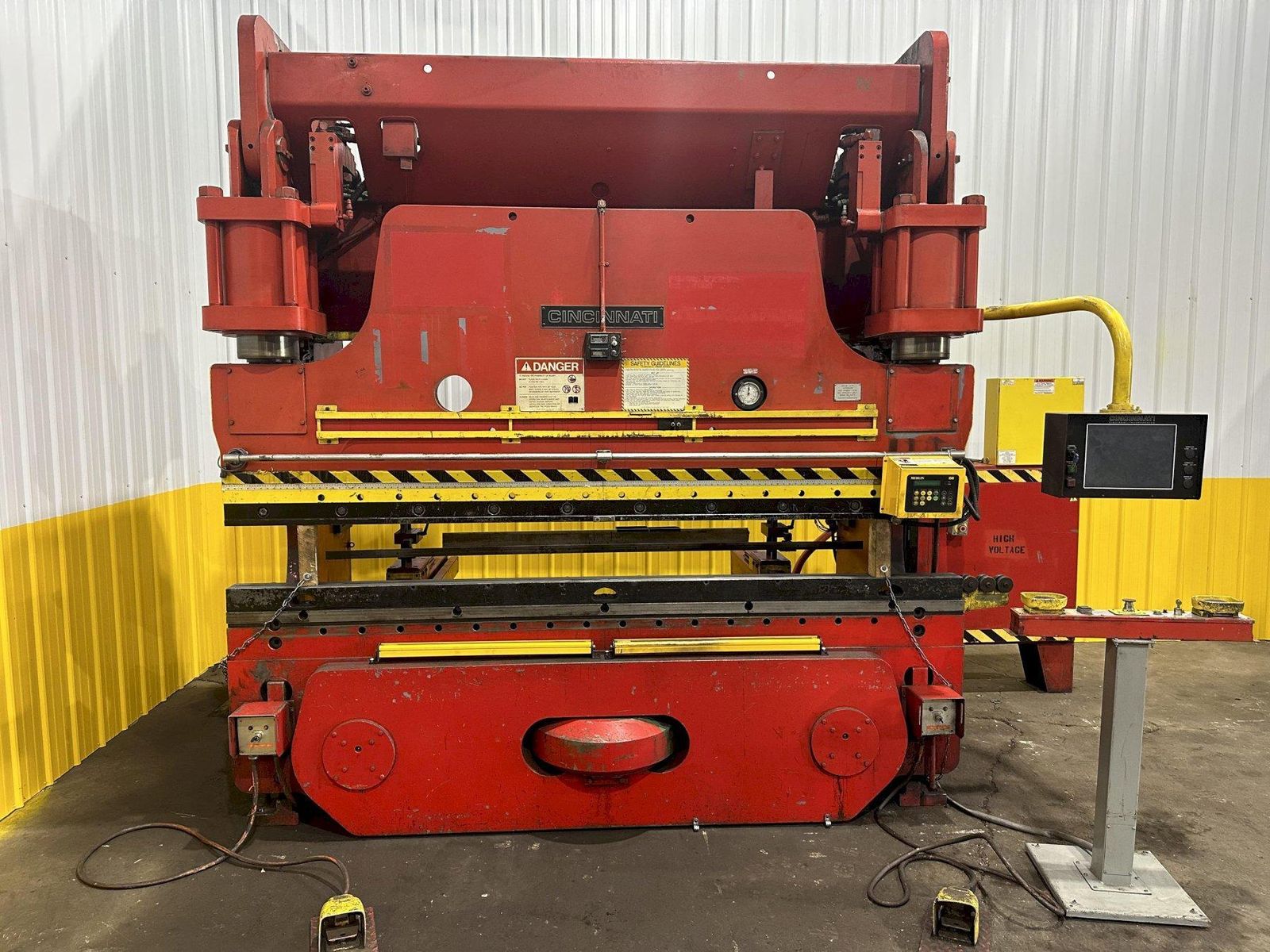

230 TON X 10' CINCINNATI MODEL #230-8AS HYDRAULIC CNC PRESS BRAKE W/ UPGRADED CONTROLS: STOCK #19387

Stock #: 19387

Equipped With

YODER BROTHERS MACHINERY ...STOCK# 19387
SERIAL ........................... 43974
CAPACITY ......................... 230 TON
OVERALL LENGTH OF BED AND RAM .... 10'
DISTANCE BETWEEN HOUSING ......... 8'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
RAM ADVANCE SPEED ................ 101 IPM
RAM PRESS SPEED .................. 14 IPM
RAM RETURN SPEED ................. 95 IPM
POWER BACKGUAGE .................. 48"
AUTO CROWNING .................... YES
FLOOR STANDING, NO PIT REQUIRED .. YES
ELECTRIC FOOT TRIP ............... YES
PEDESTAL STAND W/ PALM BUTTONS  .. YES
MOTOR ............................ 30 HP
