Machine Information

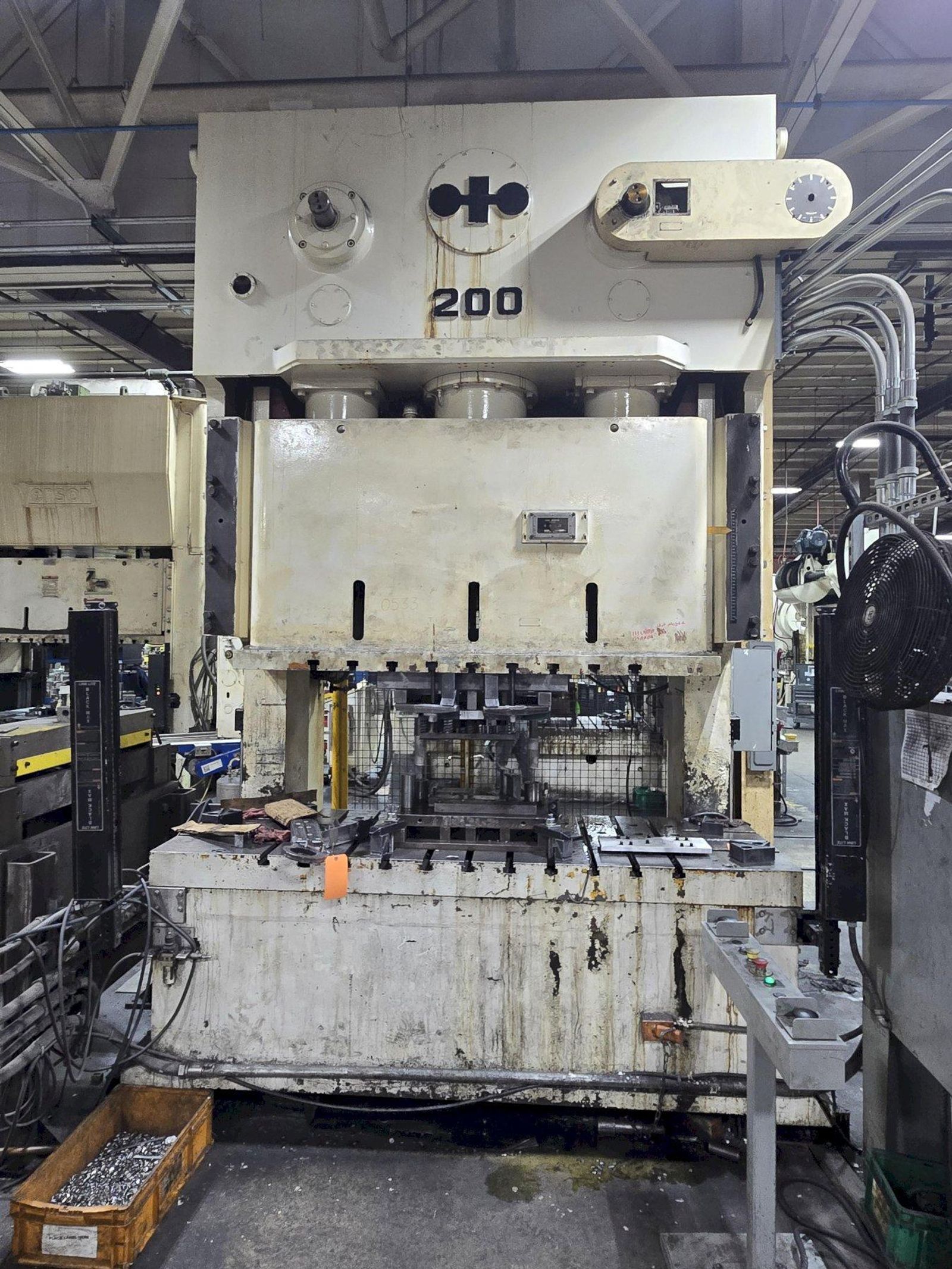

220 TON KOMATSU MODEL #OBW200 GAP FRAME PRESS 9.8" STROKE: YOBRO #24929

Stock #: 24929

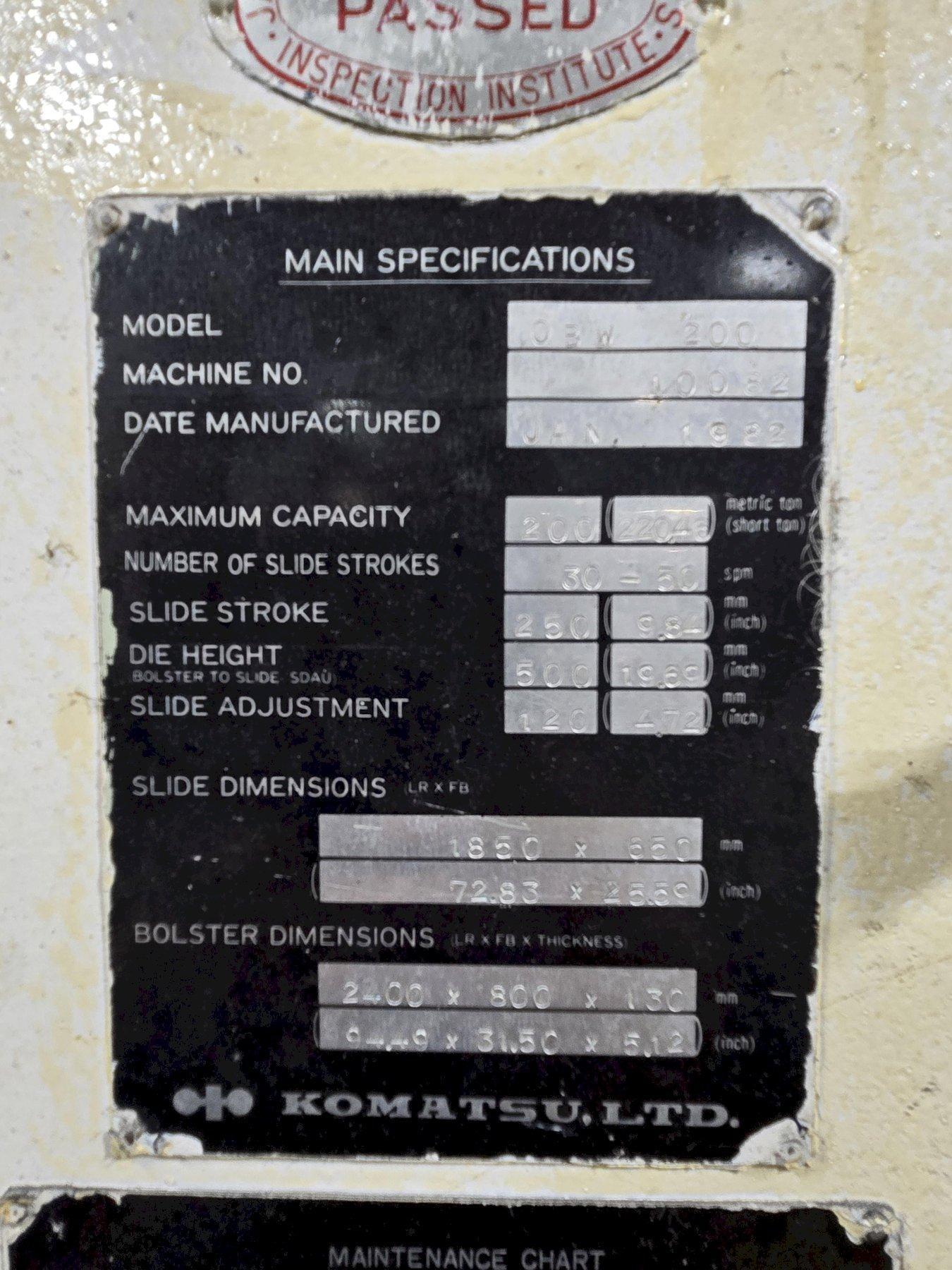

Equipped With

SERIAL .................................. 10082
NEW ..................................... 1982
MODEL ................................... OBW 200
CAPACITY ................................ 220 TONS
STROKE .................................. 9.8" (250 MM)
ADJUSTMENT .............................. 4.72" (120 MM)
DIE HIEGHT TO BOLSTER ................... 19.69" (500MM)
SPEEDS .................................. 30 TO 50 SPM
RAM ..................................... 72.83" X 25.59" (1850 X 650 MM)
BOLSTER ................................. 94.49" X 31.5" X 5.12" (2400 X 800 X 130 MM)
AIR CLUTCH .............................. YES
GAP FRAME ............................... YES
