Machine Information

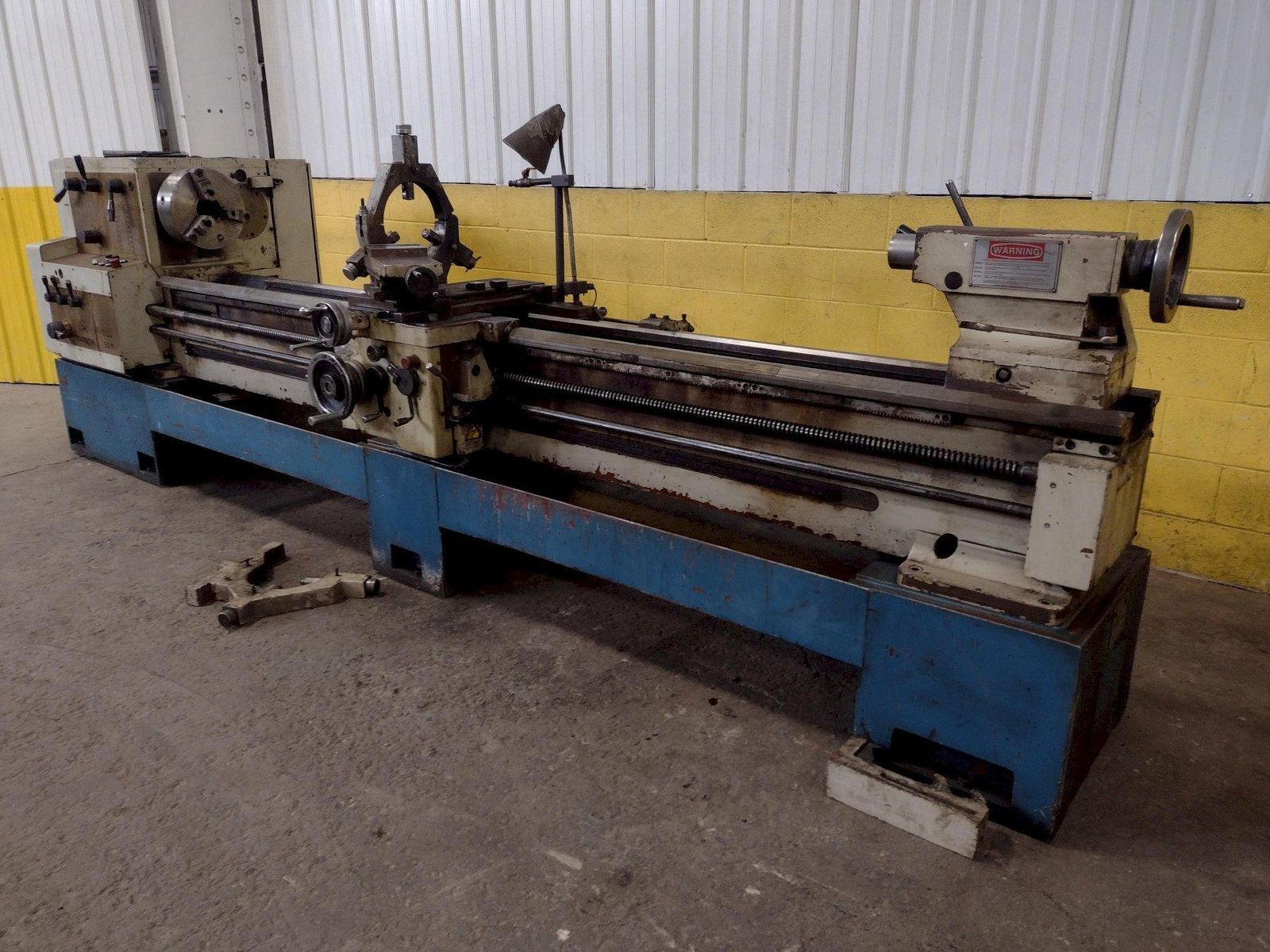

22" X 120" TARNOW MODEL TUJ 50M GAP BED ENGINE LATHE: STOCK 17546

Stock #: 17546

Equipped With

MODEL ..................... TUJ 50M
SWING OVER BED ............ 22-3/8"
SWING OVER CARRIAGE ....... 14-1/2"
SWING IN GAP .............. 31-1/2"
DISTANCE BETWEEN CENTERS .. 120"
CROSS SLIDE TRAVEL ........ 13"
COMPOUND TRAVEL ........... 8"
SPINDEL BORE .............. 3-3/5"
SPINDLE SPEEDS ............ 20-1600 RPM
SPINDEL NOSE .............. D1-11
LONGITUDINAL FEEDS (98) ... .0007 TO .72 IPR
CROSS FEEDS (98) .......... .0004 TO .36 IPR
INCH THREADS .............. 1 TO 112 TPI
METRIC THREADS ............ 1/4 TO 28MM
TAILSTOCK QUILL DIAMETER .. 3-1/8"
QUILL TRAVEL .............. 6"
QUILL TAPER ............... #5 MT
SPINDLE MOTOR ............. 15 HP

Buy Machines

22" X 120" TARNOW MODEL TUJ 50M GAP BED ENGINE LATHE: STOCK 17546

Stock # 17546

Share Machine
Print Details

Machine Specifications

MODEL ..................... TUJ 50M
SWING OVER BED ............ 22-3/8"
SWING OVER CARRIAGE ....... 14-1/2"
SWING IN GAP .............. 31-1/2"
DISTANCE BETWEEN CENTERS .. 120"
CROSS SLIDE TRAVEL ........ 13"
COMPOUND TRAVEL ........... 8"
SPINDEL BORE .............. 3-3/5"
SPINDLE SPEEDS ............ 20-1600 RPM
SPINDEL NOSE .............. D1-11
LONGITUDINAL FEEDS (98) ... .0007 TO .72 IPR
CROSS FEEDS (98) .......... .0004 TO .36 IPR
INCH THREADS .............. 1 TO 112 TPI
METRIC THREADS ............ 1/4 TO 28MM
TAILSTOCK QUILL DIAMETER .. 3-1/8"
QUILL TRAVEL .............. 6"
QUILL TAPER ............... #5 MT
SPINDLE MOTOR ............. 15 HP
