SERIAL 213-08-01

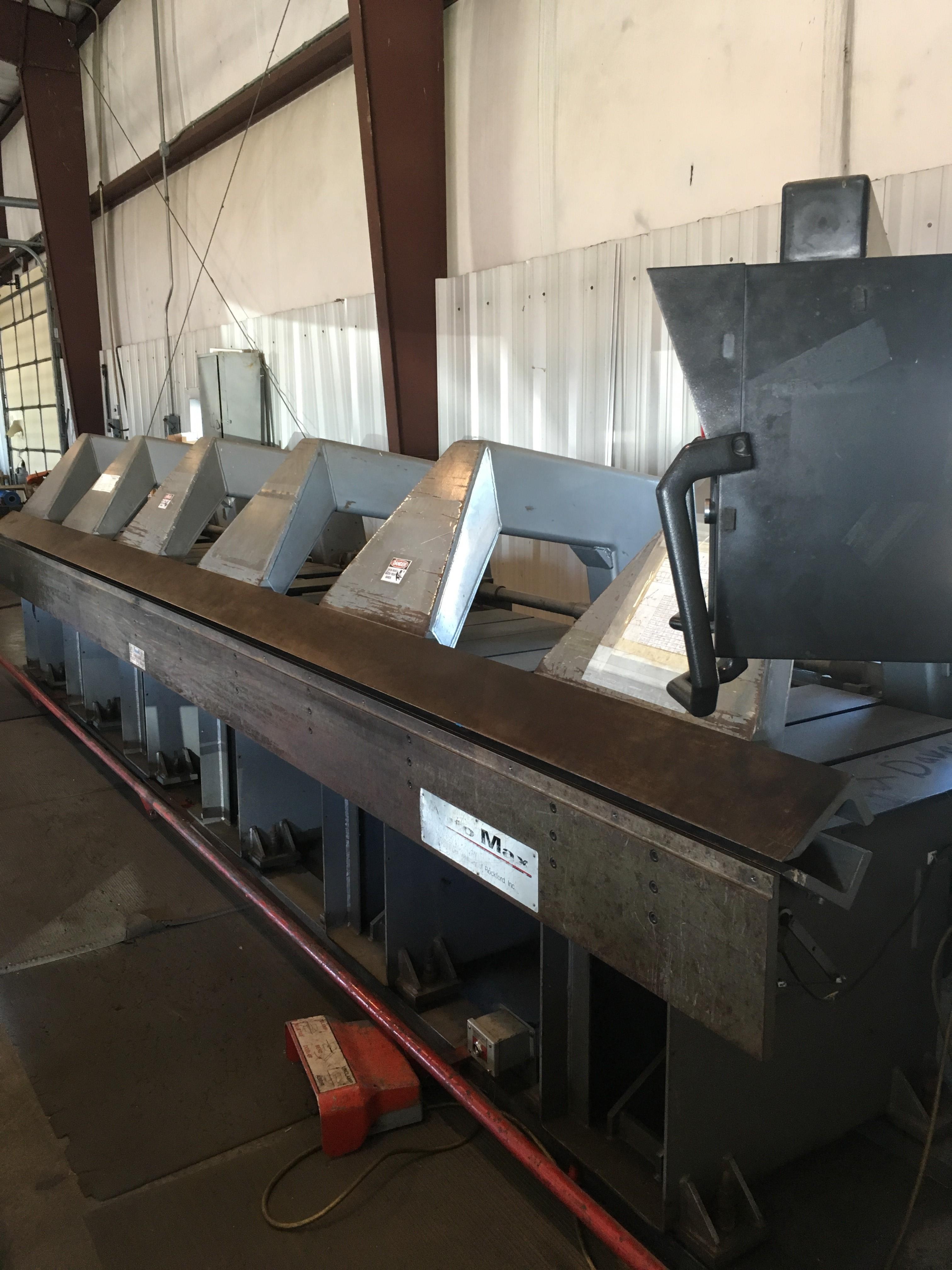

MODEL AM21160 AUTOMAX
BENDING LENGTH
21.3' / 6.5 m
MAXIMUM BENDING CAPACITY MILD STEEL
16 ga / 1.6 mm
MAXIMUM BENDING CAPACITY STAINLESS STEEL
20 ga / 1.0 mm
MAXIMUM BENDING CAPACITY ALUMINUM
0.08 in / 2.0 mm
MAXIMUM SLITTING CAPACITY MILD STEEL
16 ga / 1.6 mm
BACK GAUGE TRAVEL
49 in / 1250 mm
NUMBER OF BACK GAUGE FINGERS (STANDARD)
5
MINIMUM BACK GAUGE DISTANCE (PUSHING)
0.394 in / 10 mm
NUMBER OF C FRAMES
5
NUMBER OF BENDING CYLINDERS
2
WIDTH OF FOLDING BEAM
0.550 in / 14 mm
FOLDING BEAM MAXIMUM BEND
147 degrees
STANDARD CLAMPING RAIL
35 degrees
SLITTER OFFSET FROM BENDING POINT
2.5 in / 70 mm
HYDRAULIC MOTOR
7.5 HP
| Specifications | ||
|---|---|---|
| Max Thickness | .0625 inches | |
| Max Thickness (gauge) | 16 | |
| OA Length | 21 feet | |
| OA Length | 21 feet | |
| CNC Control | yes | |
| Type of CNC Control | ORION CONTROL | |
Brand
ROPER WHITNEY
Type
Folding Machines
Stock No.
10095
 |
419-269-2000 |
Stock #: 10095
SERIAL 213-08-01
MODEL AM21160 AUTOMAX
BENDING LENGTH
21.3' / 6.5 m
MAXIMUM BENDING CAPACITY MILD STEEL
16 ga / 1.6 mm
MAXIMUM BENDING CAPACITY STAINLESS STEEL
20 ga / 1.0 mm
MAXIMUM BENDING CAPACITY ALUMINUM
0.08 in / 2.0 mm
MAXIMUM SLITTING CAPACITY MILD STEEL
16 ga / 1.6 mm
BACK GAUGE TRAVEL
49 in / 1250 mm
NUMBER OF BACK GAUGE FINGERS (STANDARD)
5
MINIMUM BACK GAUGE DISTANCE (PUSHING)
0.394 in / 10 mm
NUMBER OF C FRAMES
5
NUMBER OF BENDING CYLINDERS
2
WIDTH OF FOLDING BEAM
0.550 in / 14 mm
FOLDING BEAM MAXIMUM BEND
147 degrees
STANDARD CLAMPING RAIL
35 degrees
SLITTER OFFSET FROM BENDING POINT
2.5 in / 70 mm
HYDRAULIC MOTOR
7.5 HP
