Machine Information

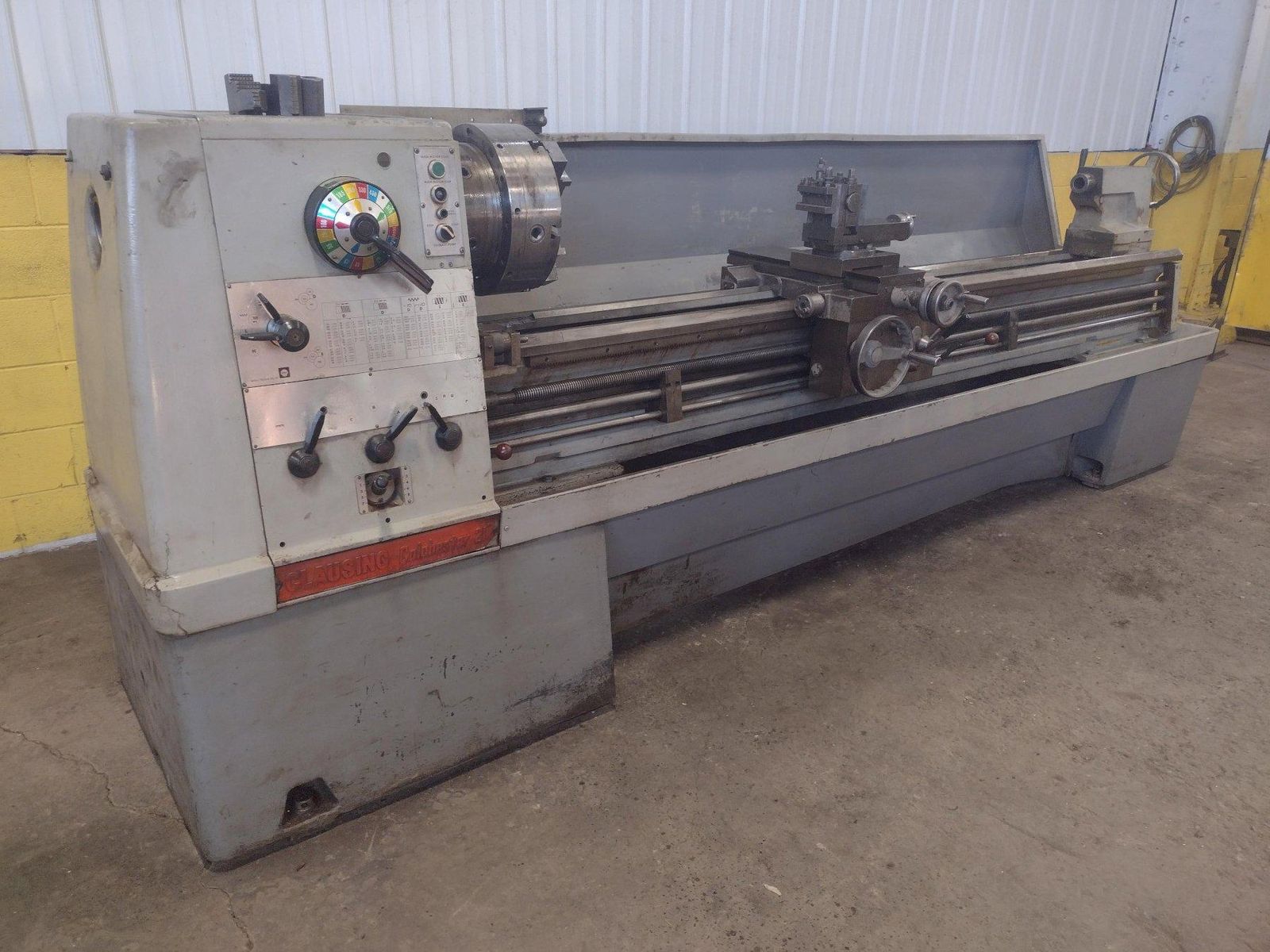

21" X 108" CLAUSING COLCHESTER MODEL #21 ENGINE LATHE 3.5" HOLE: STOCK #17305

Stock #: 17305

Equipped With

SERIAL ........................... 8/0226/03709
MODEL ............................ 21
SWING OVER BED ................... 21"
SWING OVER CROSS SLIDE ........... 14-1/2"
DISTANCE BETWEEN CENTERS ......... 108"
SPINDLE SPEEDS ................... (16) 18 TO 1400 RPM
ENGLISH FEEDS .................... (13) .002 TO .032 IPR
METRIC FEEDS ..................... (13) .06 TO 1 MMPR
ENGLISH THREADS .................. (38) 2 TO 72 TPI
METRIC THREADS ................... (40) .4 TO 14 TPMM
HOLE THRU SPINDLE ................ 3-1/2"
THREAD DIAL ...................... YES
TRAVEL DIAL ...................... YES
CHUCK  ........................... 15" 3 JAW CHUCK
TAIL STOCK TAPER ................. #5 MT
COOLANT WITH CHIP PANS ........... YES
MOTOR ............................ 12.5 HORSEPOWER

Buy Machines

21" X 108" CLAUSING COLCHESTER MODEL #21 ENGINE LATHE 3.5" HOLE: STOCK #17305

Stock # 17305

Share Machine
Print Details

Machine Specifications

SERIAL ........................... 8/0226/03709
MODEL ............................ 21
SWING OVER BED ................... 21"
SWING OVER CROSS SLIDE ........... 14-1/2"
DISTANCE BETWEEN CENTERS ......... 108"
SPINDLE SPEEDS ................... (16) 18 TO 1400 RPM
ENGLISH FEEDS .................... (13) .002 TO .032 IPR
METRIC FEEDS ..................... (13) .06 TO 1 MMPR
ENGLISH THREADS .................. (38) 2 TO 72 TPI
METRIC THREADS ................... (40) .4 TO 14 TPMM
HOLE THRU SPINDLE ................ 3-1/2"
THREAD DIAL ...................... YES
TRAVEL DIAL ...................... YES
CHUCK  ........................... 15" 3 JAW CHUCK
TAIL STOCK TAPER ................. #5 MT
COOLANT WITH CHIP PANS ........... YES
MOTOR ............................ 12.5 HORSEPOWER

Videos
Specifications
Chuck Size 15 inches
Swing in Gap 21 inches
Spindle Speed RPM 1400
Main Motor 12.5
Threads Per Inch 72
Threads Per Millimeter 14
