2023 W.F. WELLS F-1620-A CNC HORIZONTAL BANDSAW W/ BUNDLING ATTACHMENT: STOCK #22088
Overview
- Serial #: A4360FA221137
- Model: F-1620-A-CNC
- Capacity: Rectangular at 90º 16″ High x 20″ Wide, Round 16″ Diameter
- Weight Capacity: 5,000 lbs
- Blade Speed: 60-500 SFPM
- Blade Size: 1¼” X .042″ X 15′
- Blade Guide: Roller Guides with Carbide Inserts
- Vise: Hydraulic, Full Stroke, 15″ High
- Bandwheel Size: 20″
- Blade Tension: Hydraulic

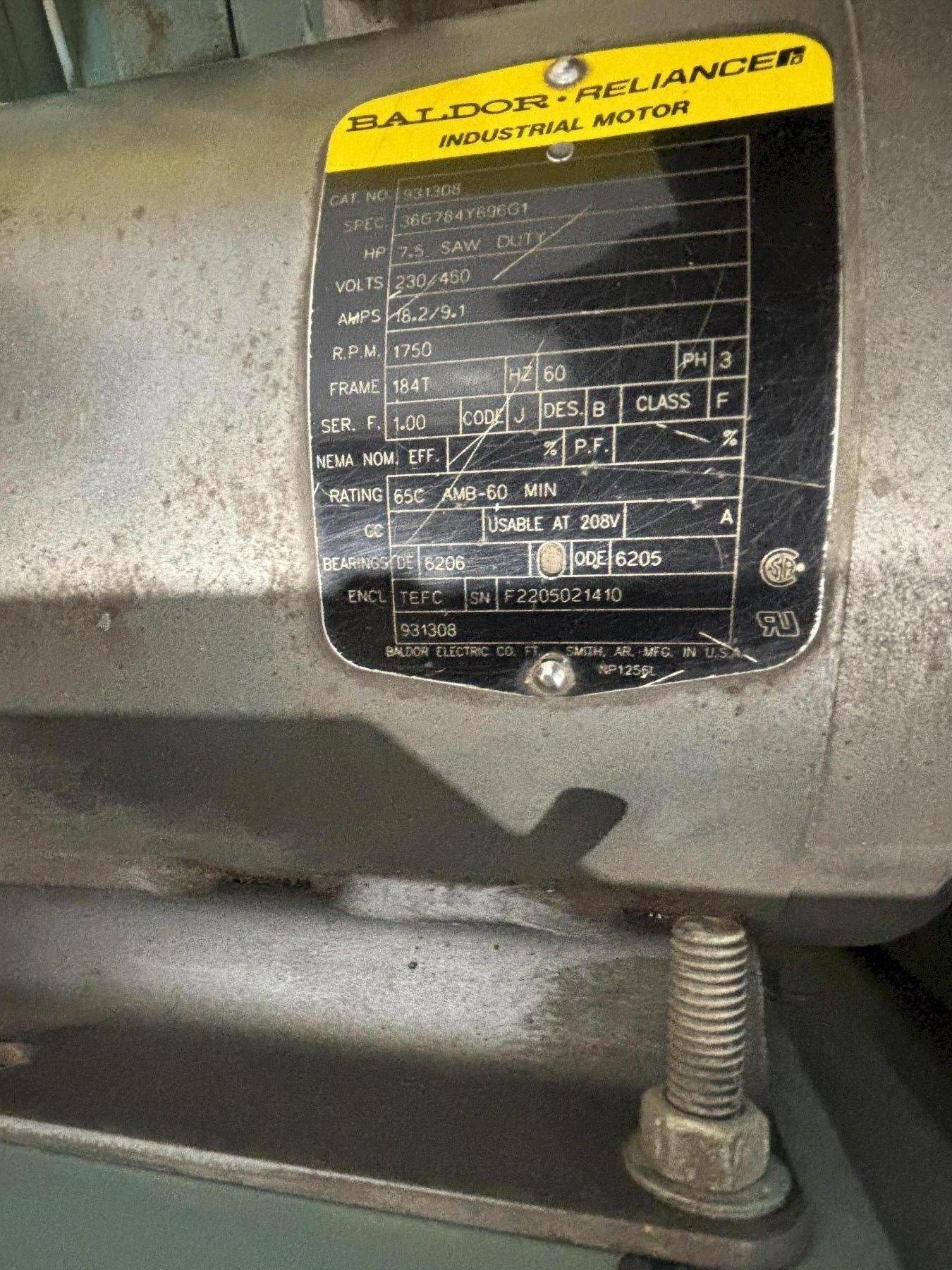

- Blade Drive: 7½ HP, AC Vector Drive
- Sawing Force: 0-750 lbs
- Coolant Capacity: 15 Gallons
- Hydraulic Capacity: 20 Gallons
- Hydraulic Drive: 2 HP Motor
- Work Height: 35″
- Barfeed Projection: 0 – 25″ CNC Controlled
- Shuttle Indexes: Unlimited
- Projection Accuracy: +/-.002″
- Remnant End: 4″
- CNC Programmable Controller with Color Touch Screen
- 500+ Job Selection
- Automatic Kerf Compensation
- Blade Break/Stall Switch
- Bed and Vise Wear Strips
- Shipping Weight: 4,000 lbs
- Electrics: Wired to NFPA 79 Machine Tool Standards
- Machine Dimensions: 104″ Length x 101″ Width x 88″ Height
2023 W.F. WELLS F-1620-A CNC HORIZONTAL BANDSAW W/ BUNDLING ATTACHMENT: STOCK #22088
Type
Saws, Band, Horizontal
