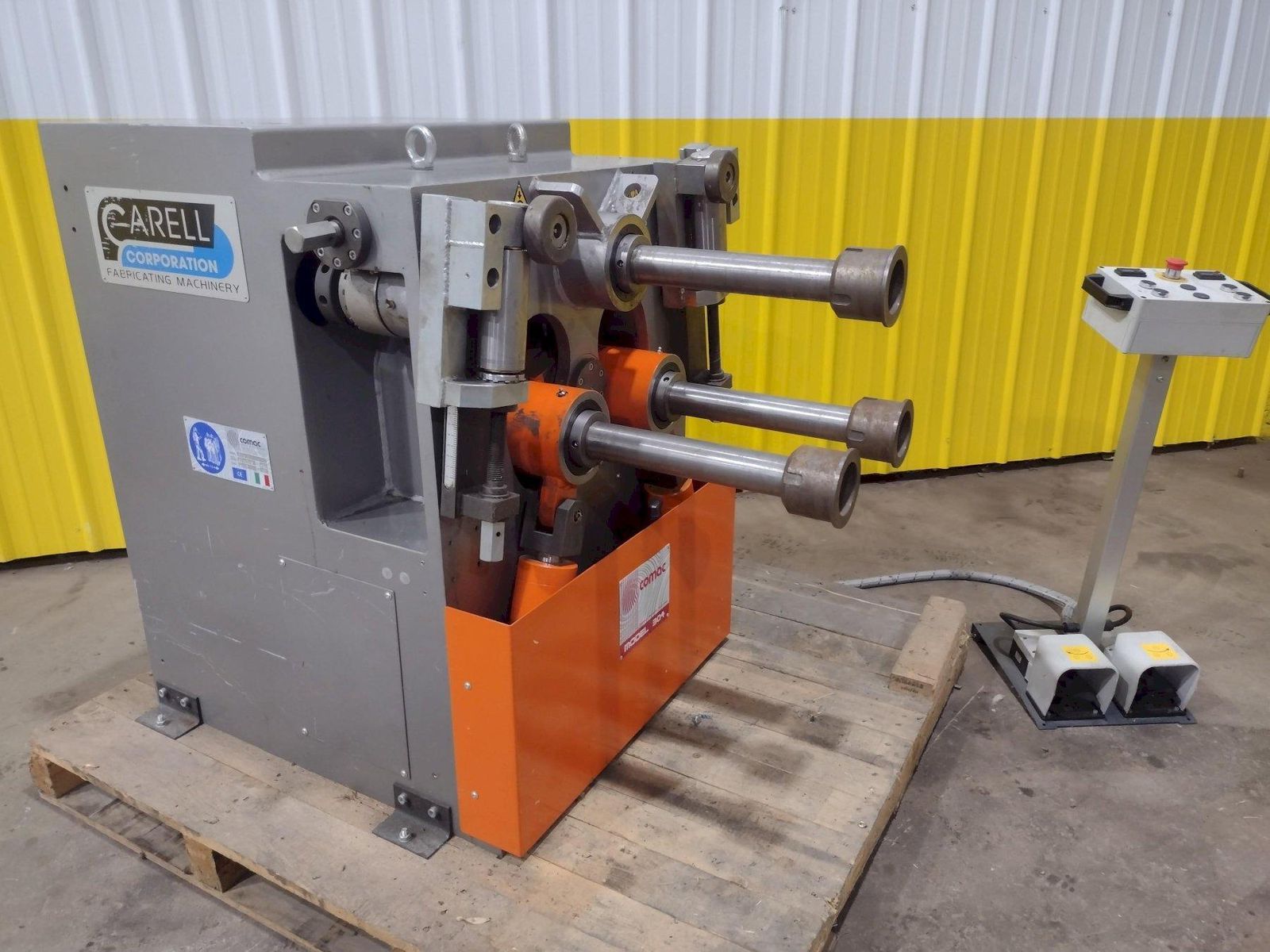

2.5" X 2.5" CARELL-COMAC MODEL #304-HV HYDRAULIC ANGLE & PIPE BENDING ROLL: STOCK #19337

Stock #: 19337

Equipped With

MODEL ................ 304HV
SERIAL ............... 3040246
YEAR ................. 2015


Rolling Speed ........ 20 fpm / 5.2 mpm
Shaft Diameters ...... 2.36 in. / 60 mm
Thread Length ........ 2 7/8 in. / 73 mm
Power Output ......... 4.7 HP / 3.5 kW

Shaft O.D. ........... 2 3/8 in. / 60 mm
Key Width ............ 3/4 in. / 18 mm
Total Shaft Height ... 2.5 in. / 65 mm
Overall Roll O.D. .... 8 1/8 in. / 206 mm


TECHNICAL FEATURES

Three driven rolls, smooth surfaced for optimal profile traction and surface finish
Double Pinch Geometry permits pre-bending of leading and trailing ends of the profile without removal from the machine
Material guides tri-directionally adjustable "in/out" "up/down" "cw/ccw"
Dual LED Digital Displays monitor bending roll positions (All Versions)
Monolithic single weldment frames heavily reinforced  at load points, stress relieved and CNC machined
Detached mobile control stand with trailing lead, low voltage controls, Emergency stop
With both Horizontal & Vertical operation
Bending rolls in Nickel Chrome Molybdenum tool steel, hardened for optimal performance
Top roll drive incorporates a torque limiting device for overload protection which allows differing roll speeds when bending tall sections /  mechanical clutch
Electro-mechanical drive
Shafts journaled in dual self-aligning high dynamic load roller bearings
