Machine Information

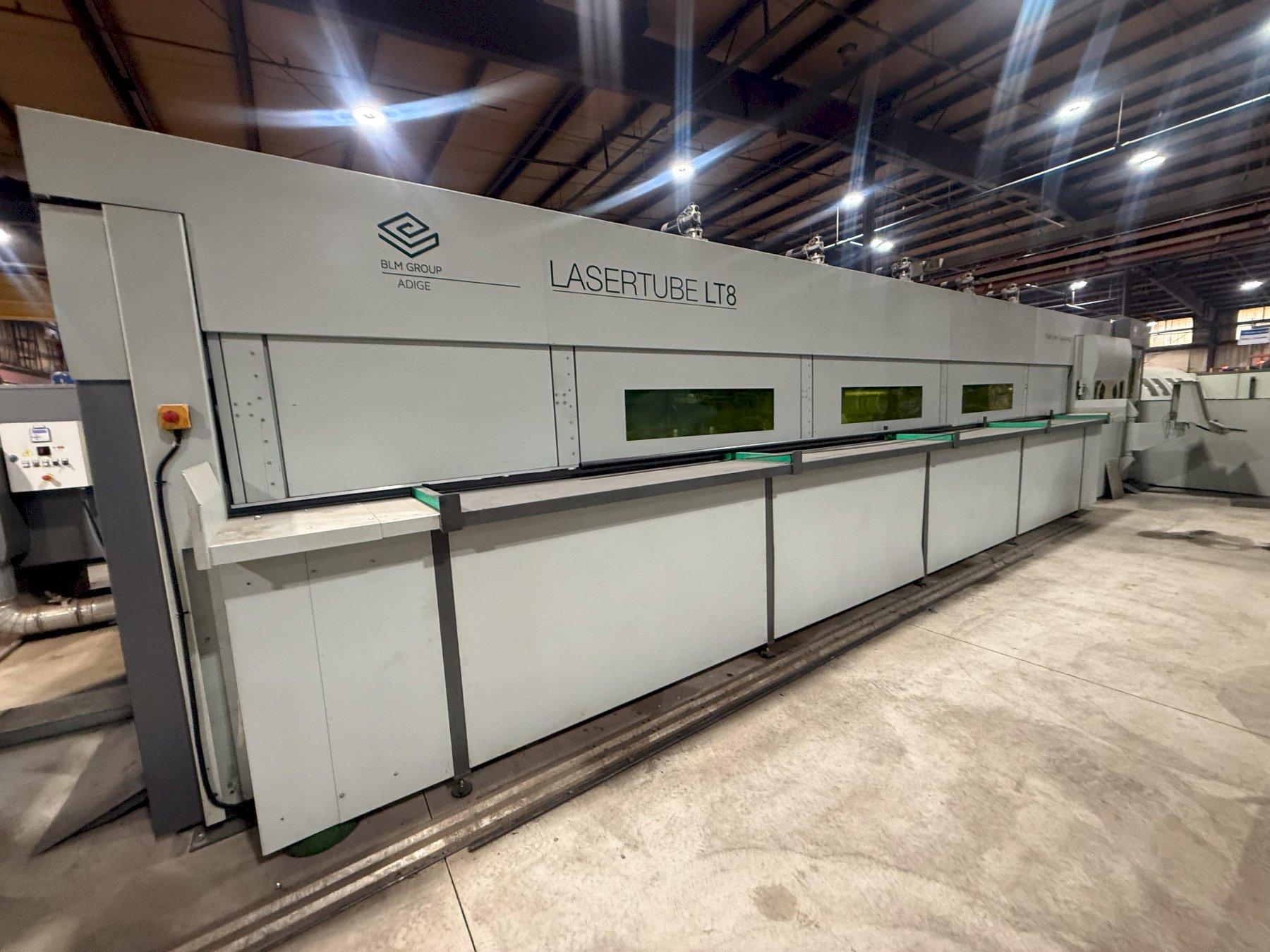

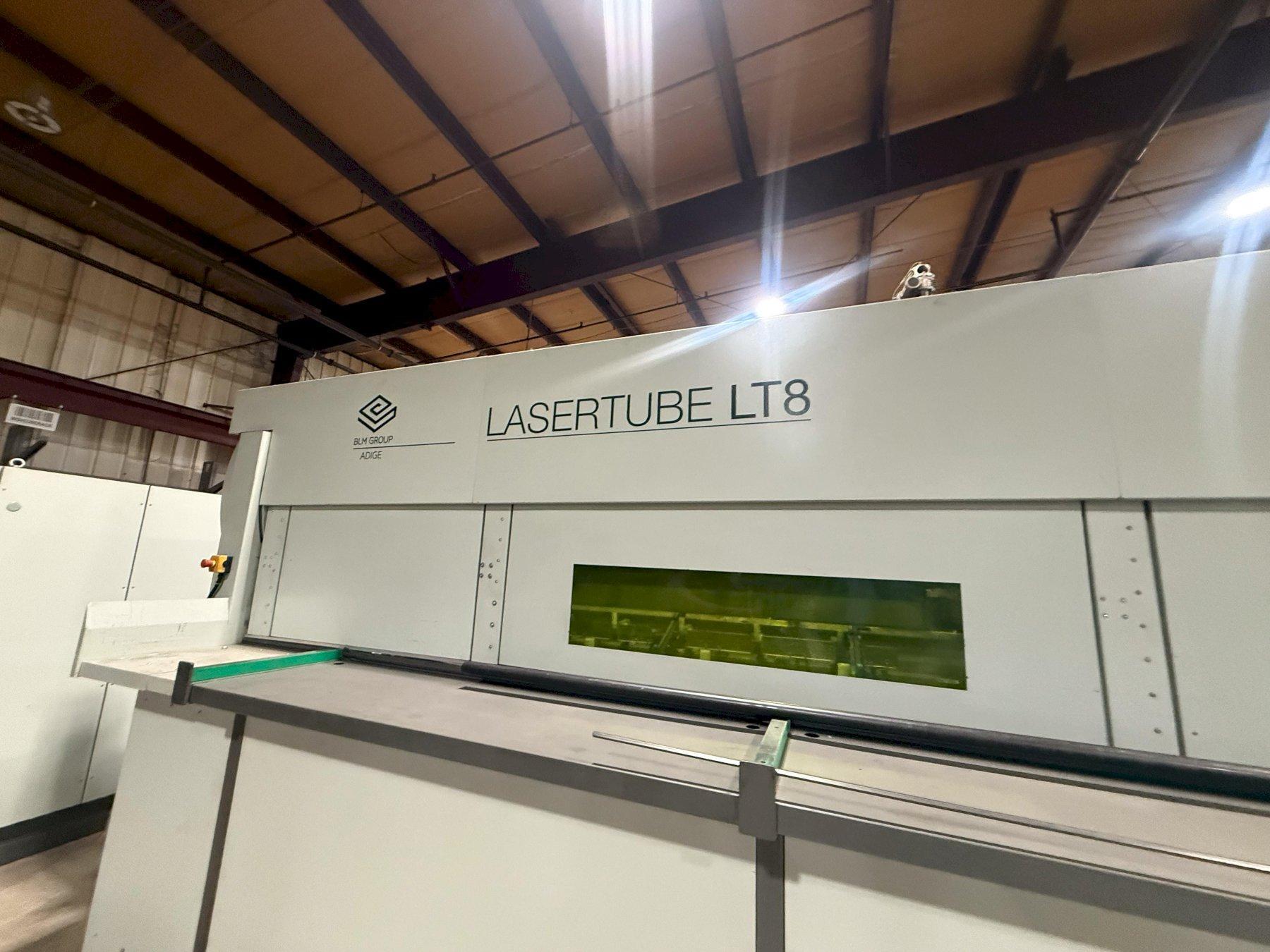

2015 BLM LT8 2D FIBER TUBE LASER 8" X .394": YOBRO 24053

Stock #: 25043

Equipped With

Year 2015
Controller Siemens Simatic
Laser Power IPG YLS 3000 Watt Fiber Resonator
Round Tube Diameter .50” - 8.625”
Square Tubes .50” - 8.0”
Rectangular Tube (Width) .50” – 8.0”
Bar Load Size 28’
Min. Bar Load Length (Auto Bundle Loader) 8.2'
Bar Unload Size 21”
Max. Bundle Weight 8,800 lbs.
Max. Bar Weight (At full duty cycle) 25 lbs. / Foot
Cutting Head HPSSL (2D)
Open Shapes Capability Standard - Processing Angle Iron, Channel, Flat Bar
Booster Pierce / Breakthrough Detector Standard
Weld Seam Detection Standard
Tube Twist & Bow Correction Standard
Max. Cut Thickness (Mild Steel) .394”
Max. Cut Thickness (Stainless Steel) .236”
Max. Cut Thickness (Aluminum) .236”
Max. Cut Thickness (Brass) .236”
Max. Cut Thickness (Copper) .157”
Equipped With:
HPSSL 2D Cutting Head
Active Piercing
Optical Weld Seam Detector
Spoon (Clean Tube Technology)
Rear Bundle Loader
Front Single Bar Loader
3kW IPG YLS Fiber Laser
Reidel USA Chiller

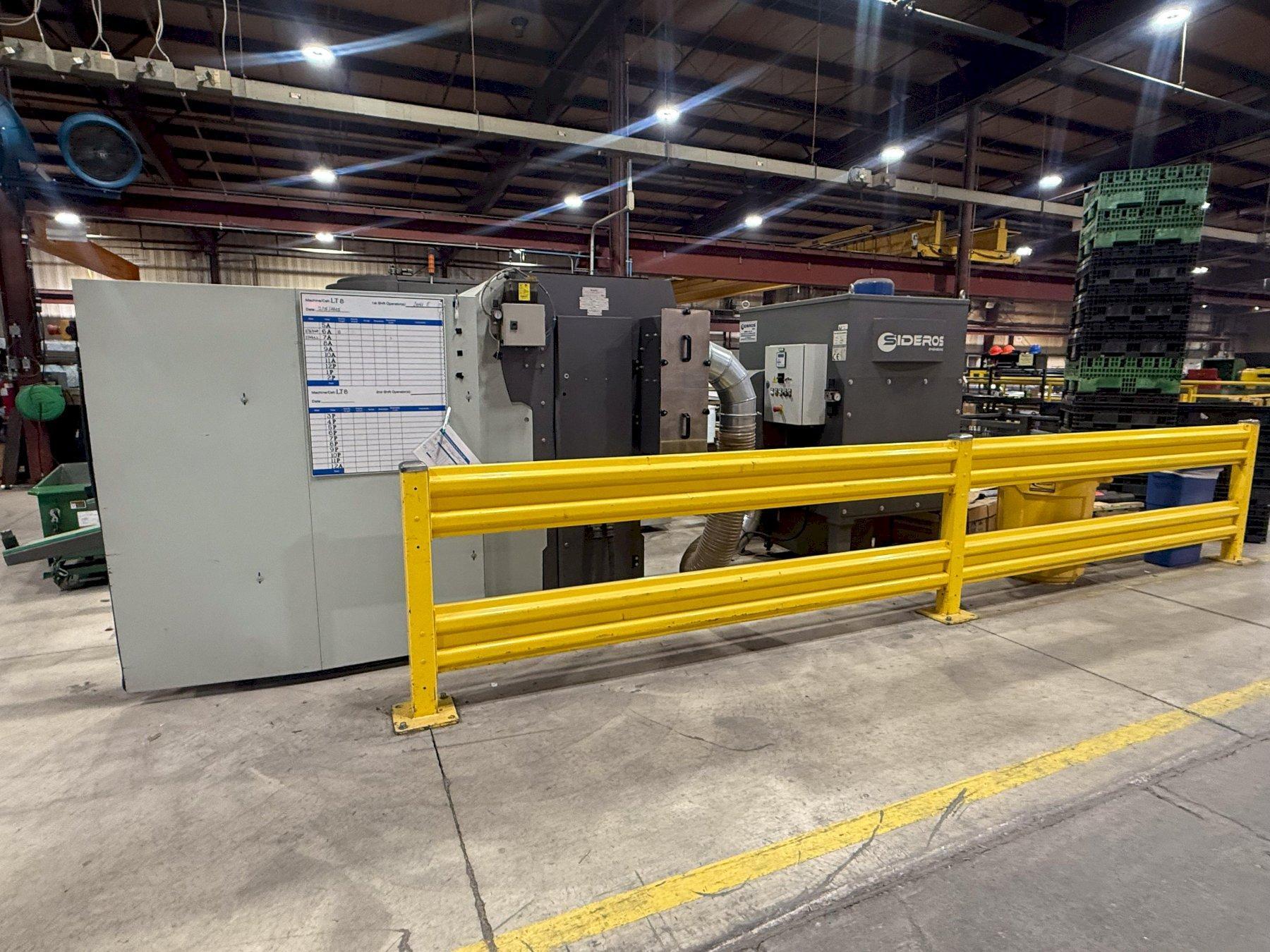

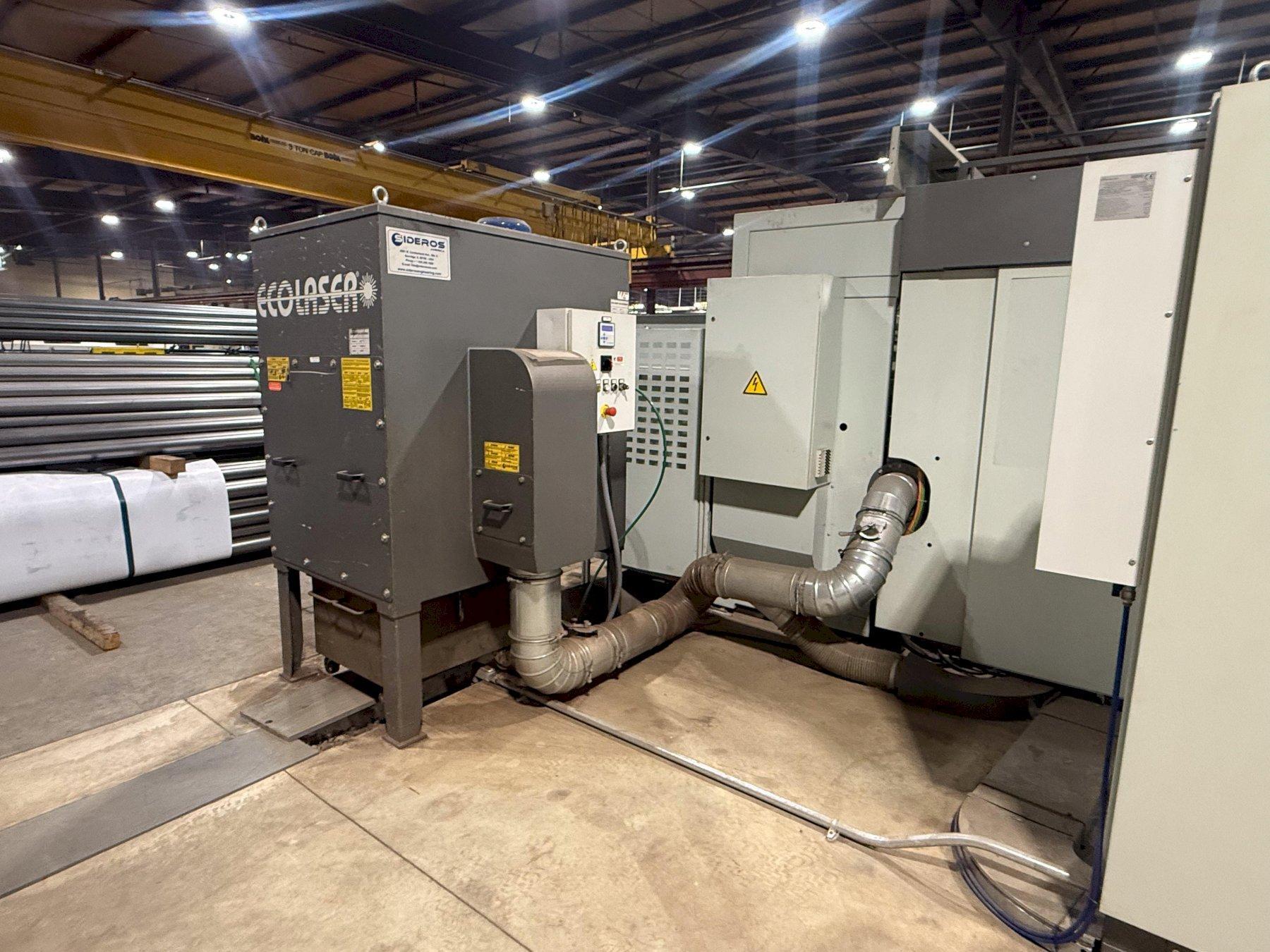

(2) Sideros ECO4 Dust Collector
(2) On-board cameras (Internal & Rear of Machine)
Short Parts Belt
Rear Scrap Conveyor
Front Unload Collection Table
Rear Unload Collection Table
