| Specifications | ||
|---|---|---|
| Dimensions | 90 X 101 X 94" H | |
| Weight | 3400 pounds | |
Brand
FALCON
Type
Knee Mills
Stock No.
21140
 |
419-269-2000 |
Stock #: 21140

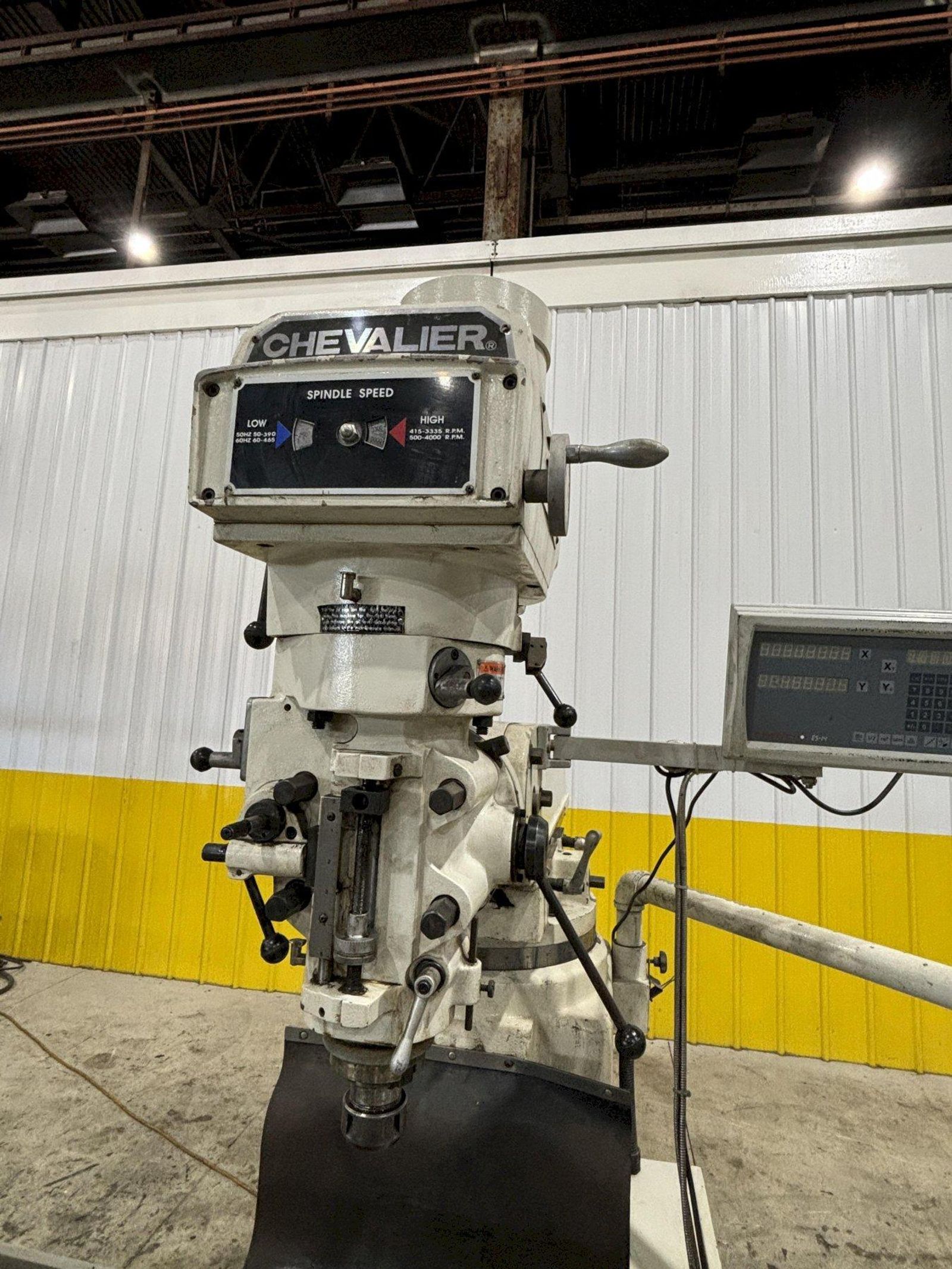

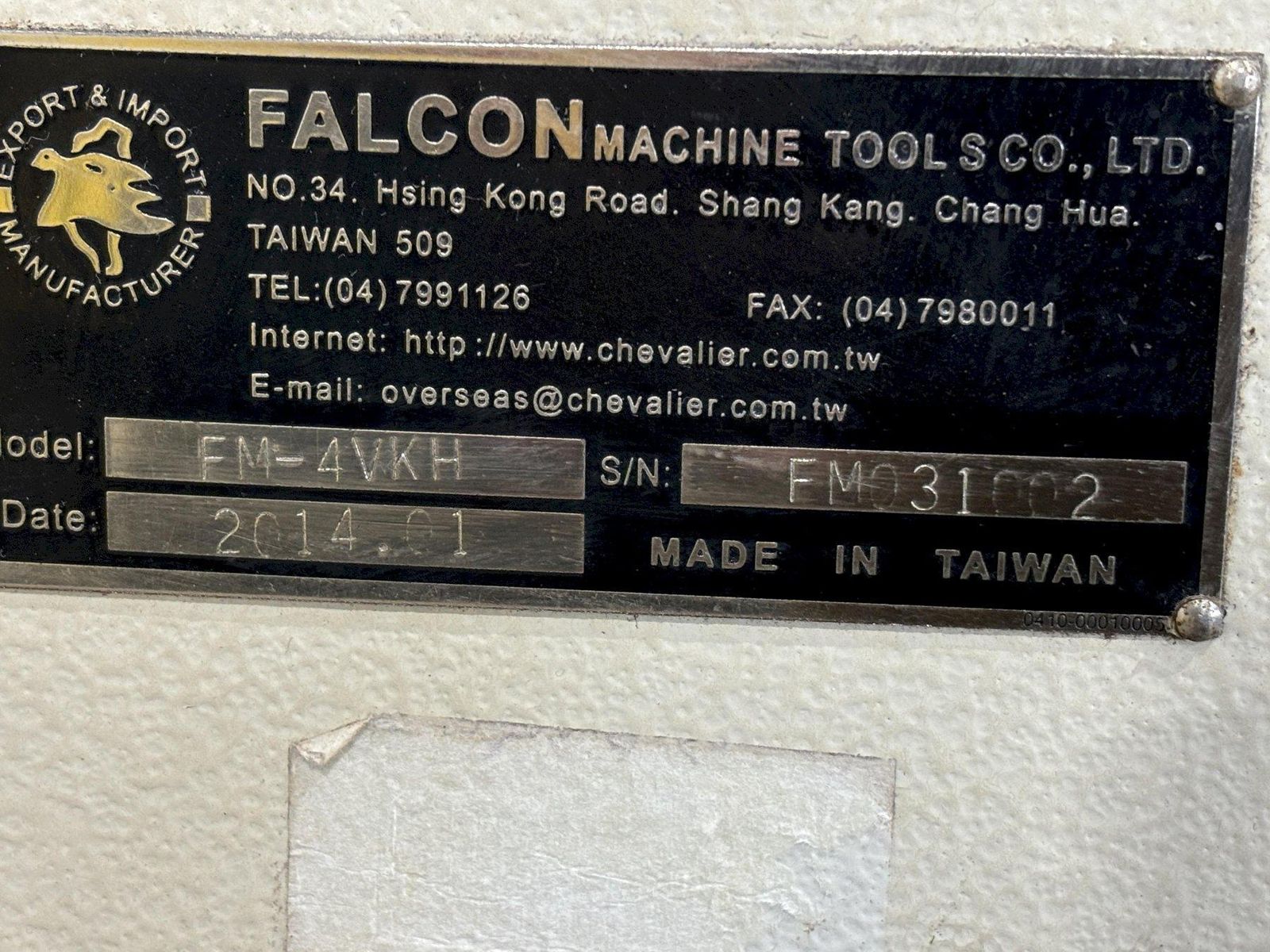

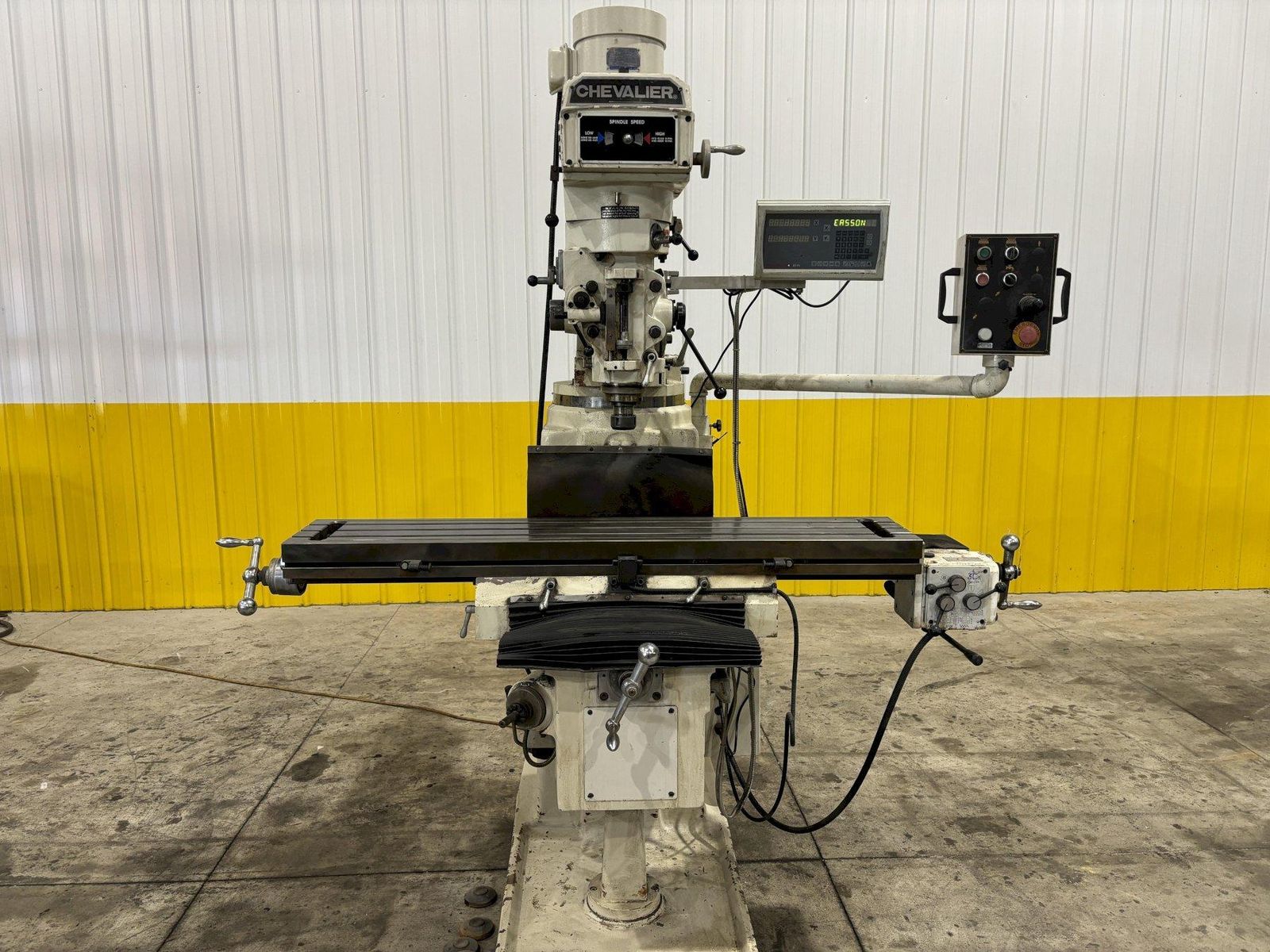

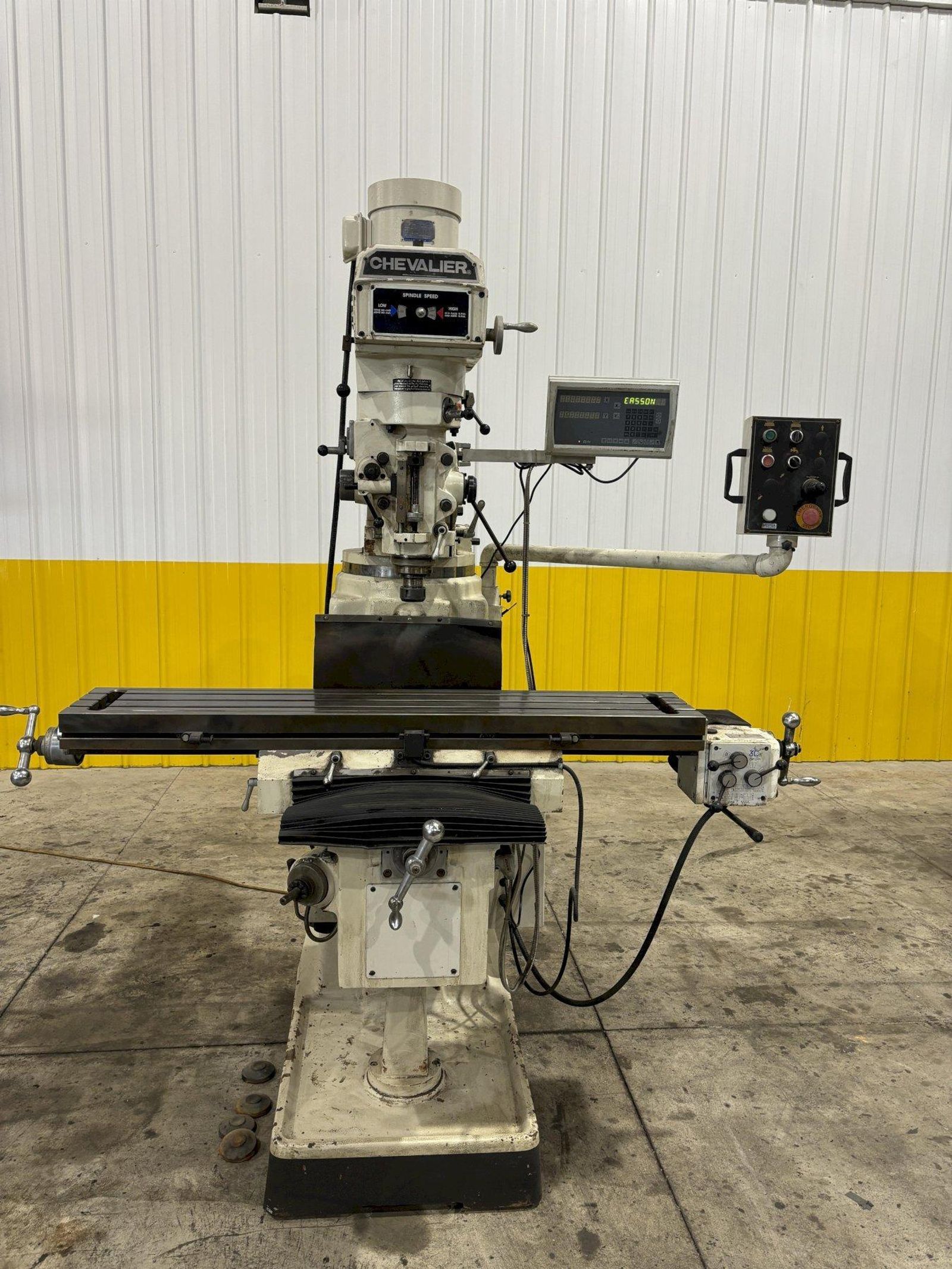

2014 FALCON CHEVALIER MODEL #FM-4VKH VERTICAL RAM TYPE KNEE MILL: STOCK #21140S/N ......................... FM31002

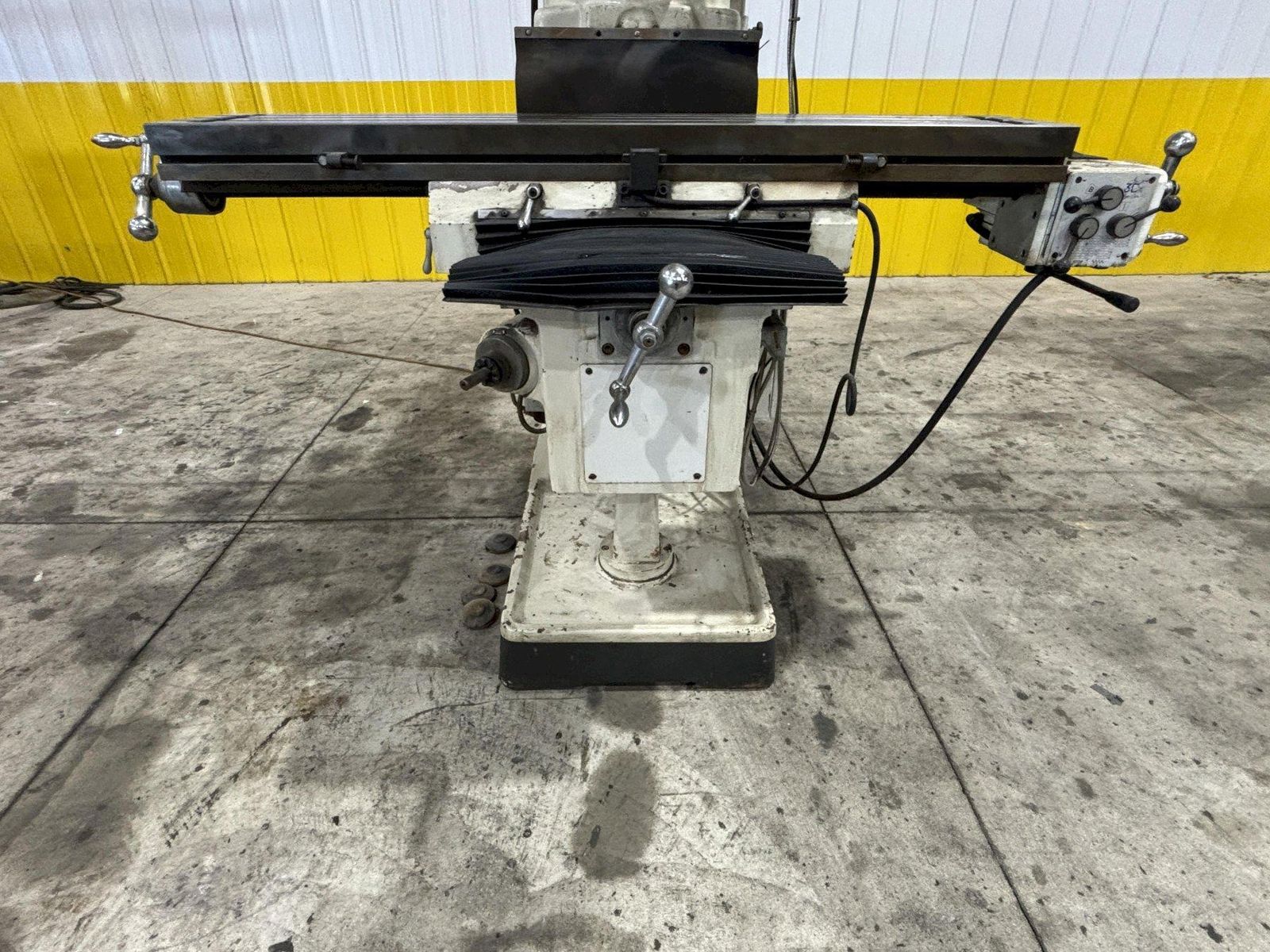

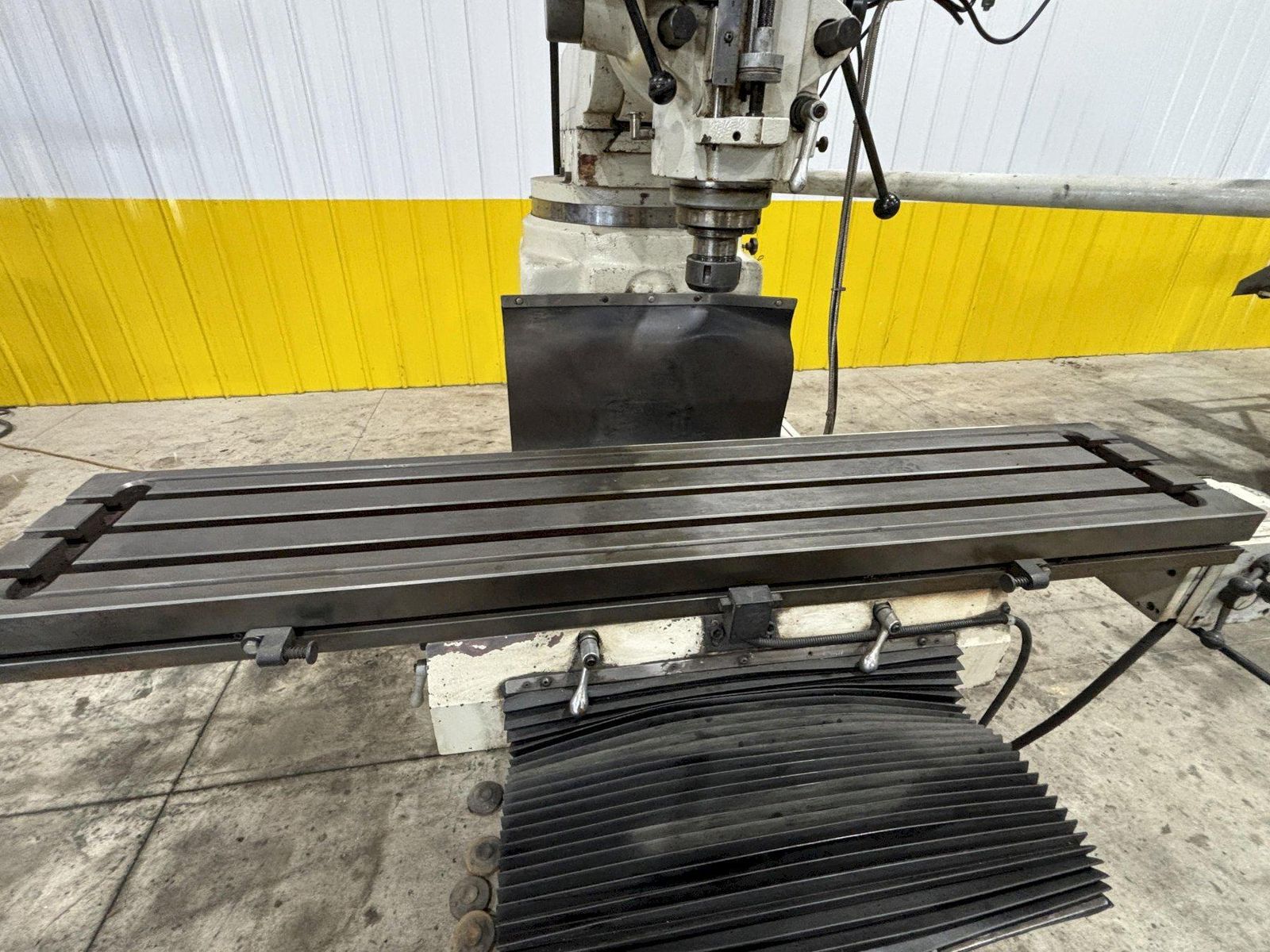

Table size .................. 10” x 50”Longitudinal Travel ......... 30”Cross Travel ................ 15.75”Vertical Knee Travel ........ 18.5"

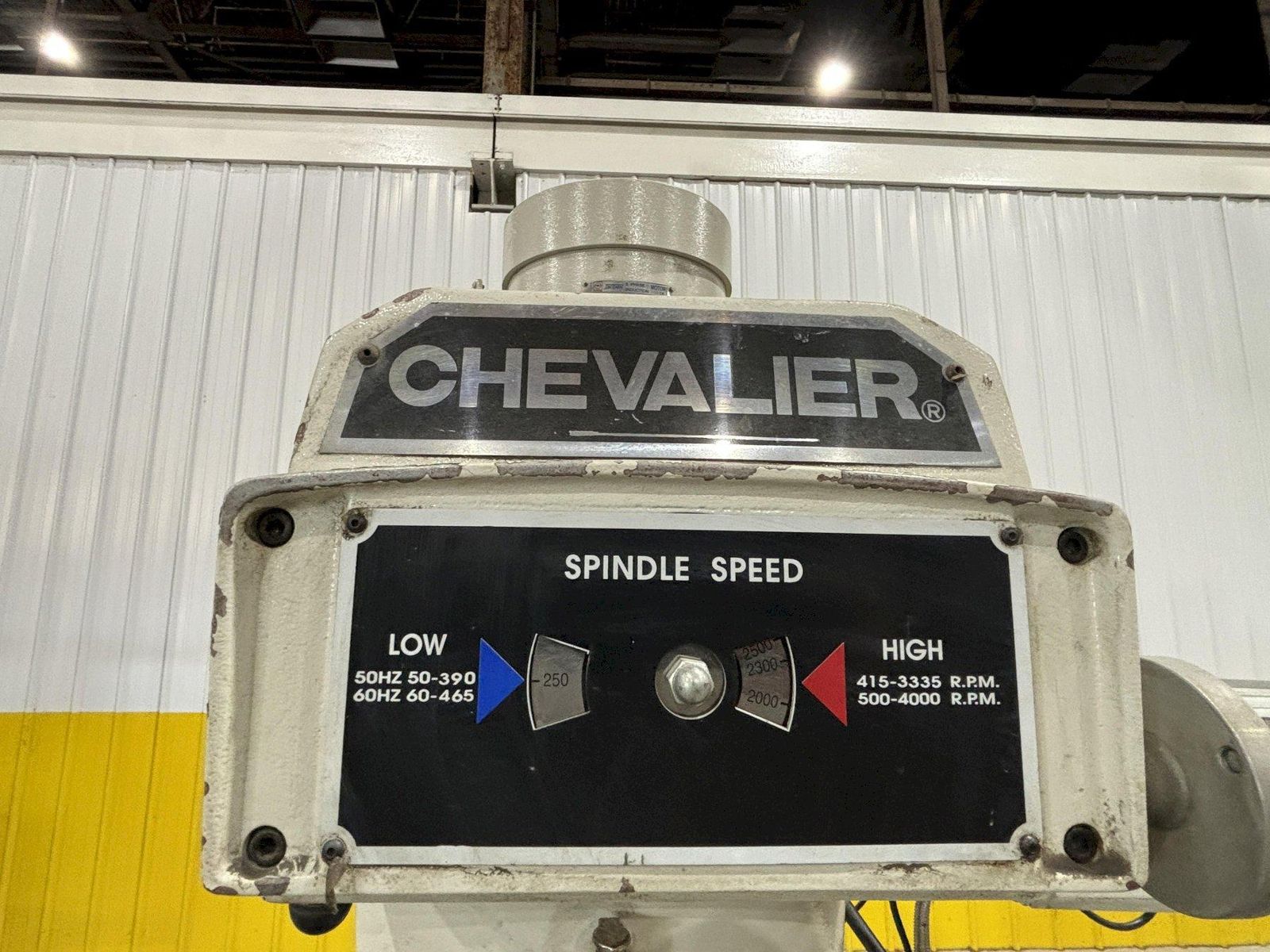

Variable Spindle Speeds ..... 60 TO 4000 RPM
TABLE CAPACITY .............. 990 LBS

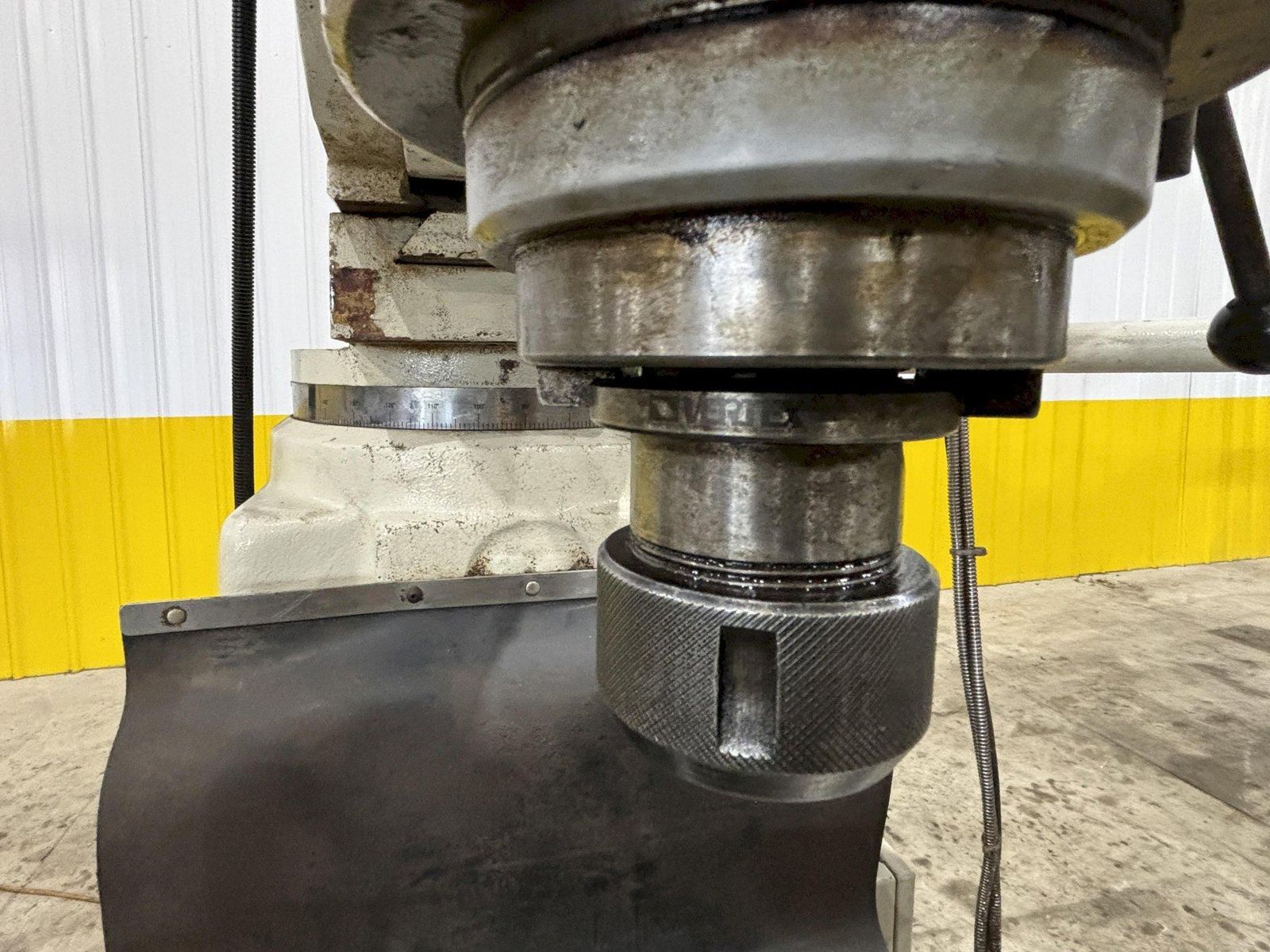

SPINDLE TAPER ............... NST 40
SPINDLE NOSE TO TABLE ....... 2-3/8" TO 20-7/8"
SPINDL CENTER TO COLUMN ..... 5-7/8" TO 27-1/2"
QUILL TRAVEL ................ 5"

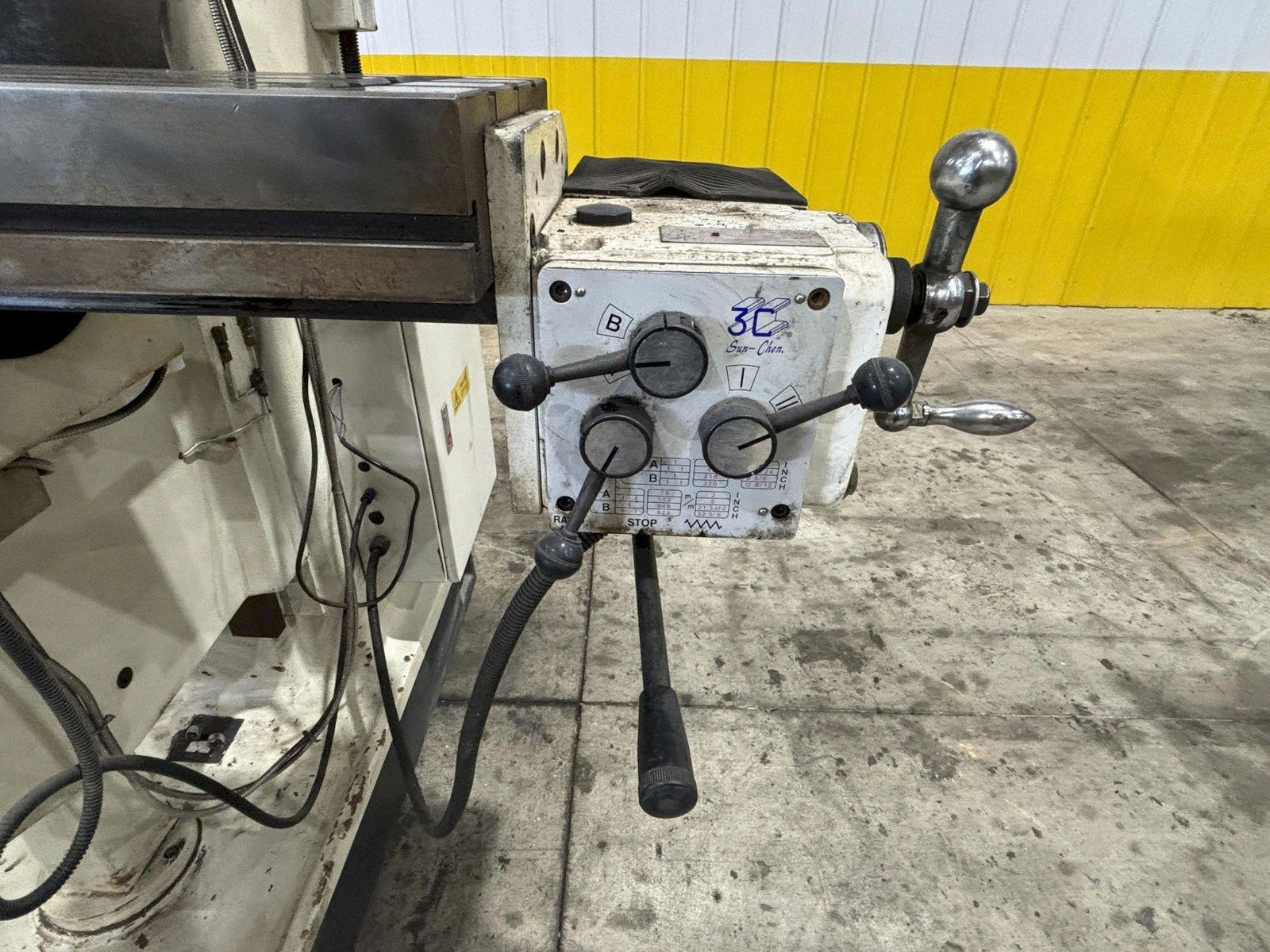

FEEDS ....................... .0015, .003, .006 IPR
HEAD SWIVEL ................. 90 DEGREES L&R; 45 DEGREES F&B

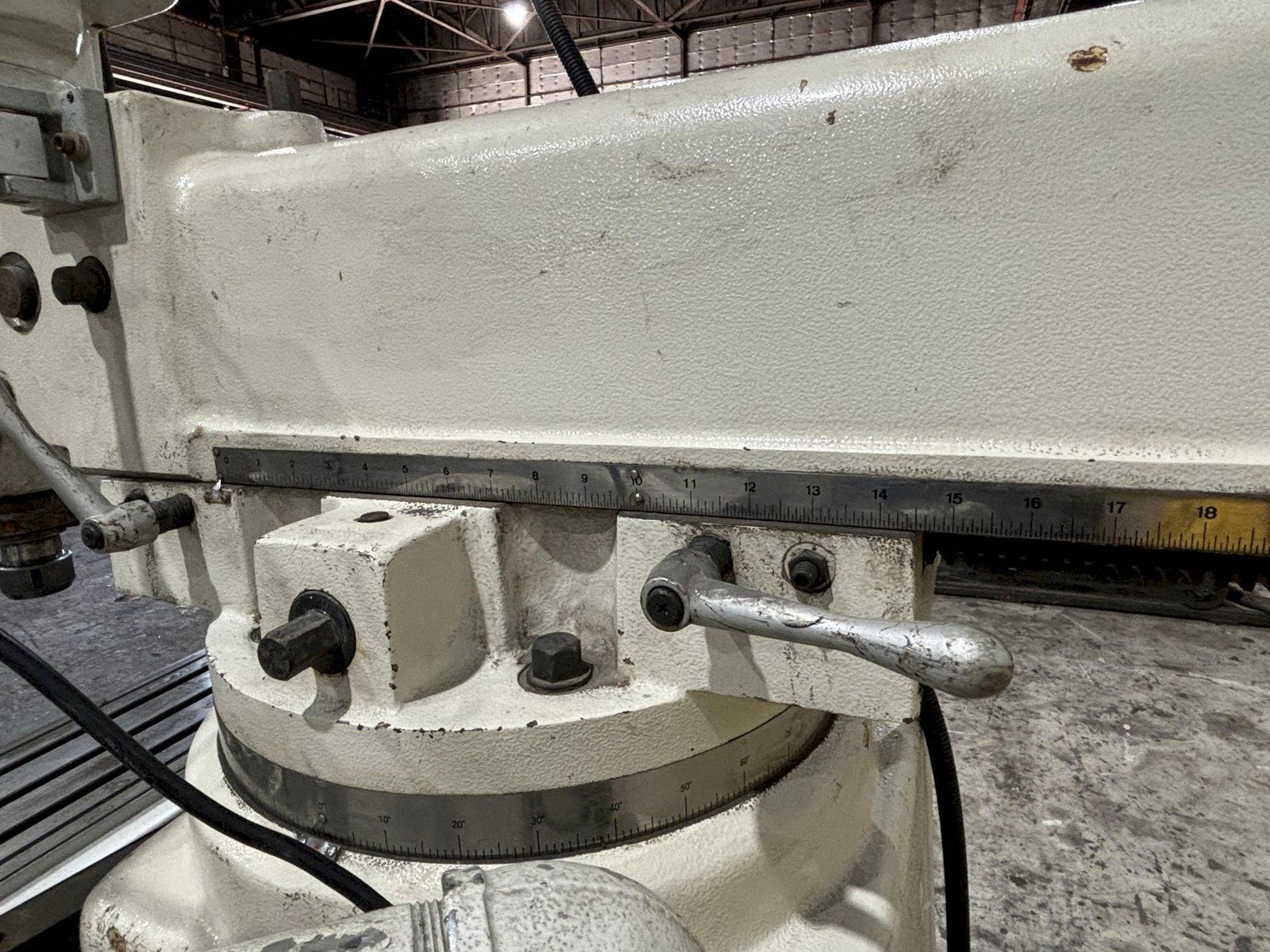

OVERARM TRAVEL .............. 21-5/8"
SPINDLE MOTOR ............... 3 HP
