Machine Information

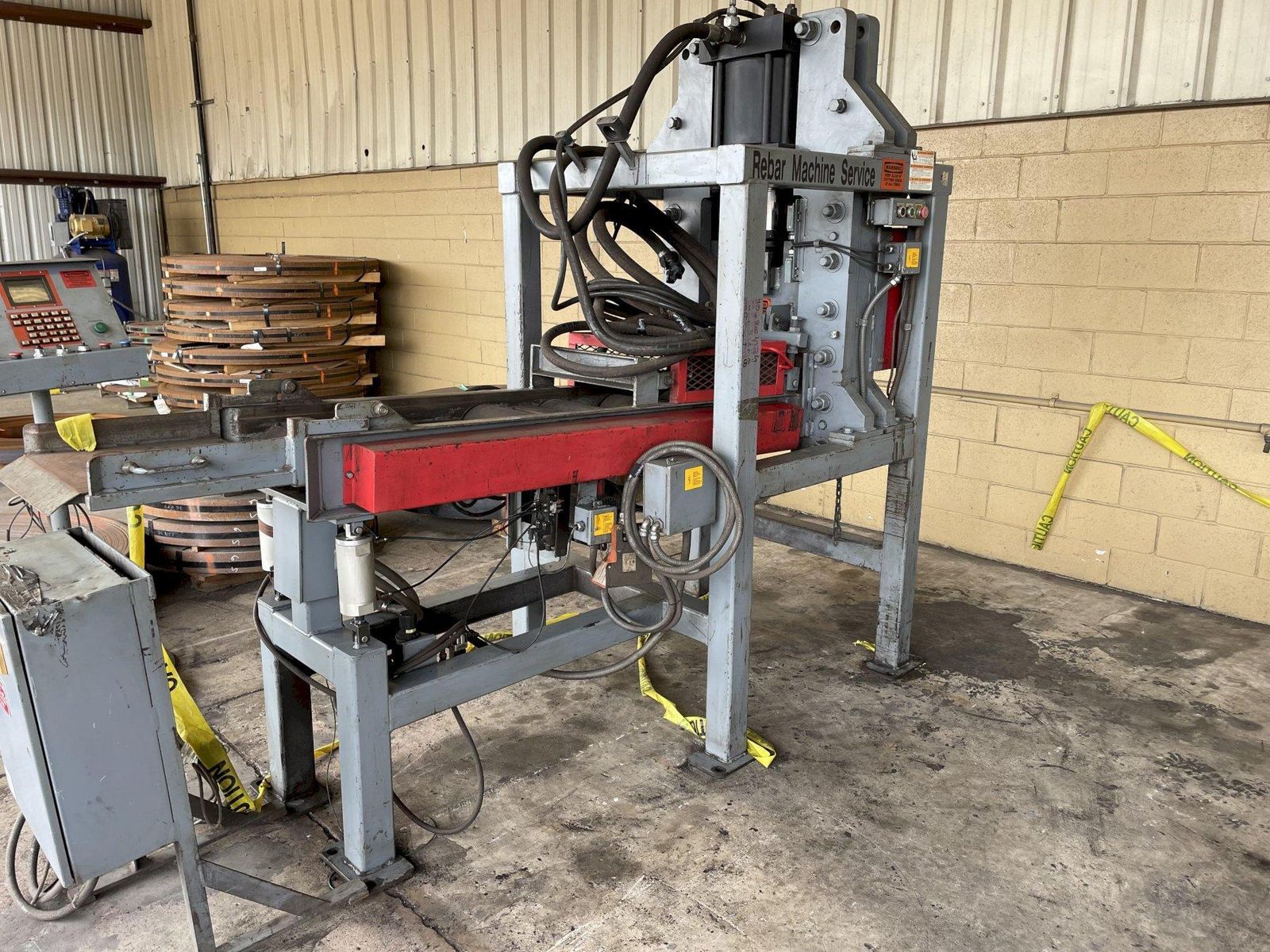

2011 RMS MODEL #611 (160 TON) HYDRAULIC REBAR SHEAR WITH BAR FEED SYSTEM: STOCK #19897

Stock #: 19897

Equipped With

RMS (REBAR MACHINE SERVICES) SHEAR:
SERIAL ................... SMC 11238
YEAR NEW ................. 2011
MODEL .................... 611
MAX REBAR CAPACITY ....... #18 BAR (2.25")
REBAR CAPACITIES (GRADE 60):
#18 REBAR ................ 2 BARS
#14 REBAR ................ 4 BARS
#11 REBAR ................ 10 BARS
TONNAGE CAPACITY ......... 160 TONS
MAIN CYLINDER ............ 12" BORE
HOLD DOWN CYLINDER ....... 3-1/4" BORE
BLADE LENGTH ............. 18"
INFEED LIFT TABLE ........ YES
TANK CAPACITY ............ 60 GALLONS
PUMP CAPACITY ............ 45 GPM
MAIN PUMP MOTOR .......... 30 HP


AUTOMATIC BAR FEED / EXIT SYSTEM


Stock Table…
• The Stock Table (entry table) consists of a 40 foot long powered 12 inch conveyor. A stock rack is supplied on one side of the conveyor with shakedown directly on to the conveyor. Rolls are belt driven by means of Kevlar lined V-belts.

Gauge Table…
• The Gauge Table consists of a 10 foot long powered 12 inch conveyor, three preselectable storage pockets on one side of the conveyor, together with an air kickoff system. Foot stops are positioned at 12 inch increments for the first ten feet and then at two foot increments thereafter. The table can also be expanded, in length, or by adding bin pockets to the opposite side.

CONTROLS:
RMS PROGRAMMABLE MICRO CONTROLLER & OPERATOR STATION
Control System…
• Micro controller that will allow the operator to run the entire Shearline and shear from one central point.

Shear…
• The 611 includes 12 inch wide blades and a five foot entry drop table.
