Brand
CWP
Type
Coil Feed Lines
Stock No.
21083
![]() |
419-269-2000 |
Stock #: 21083

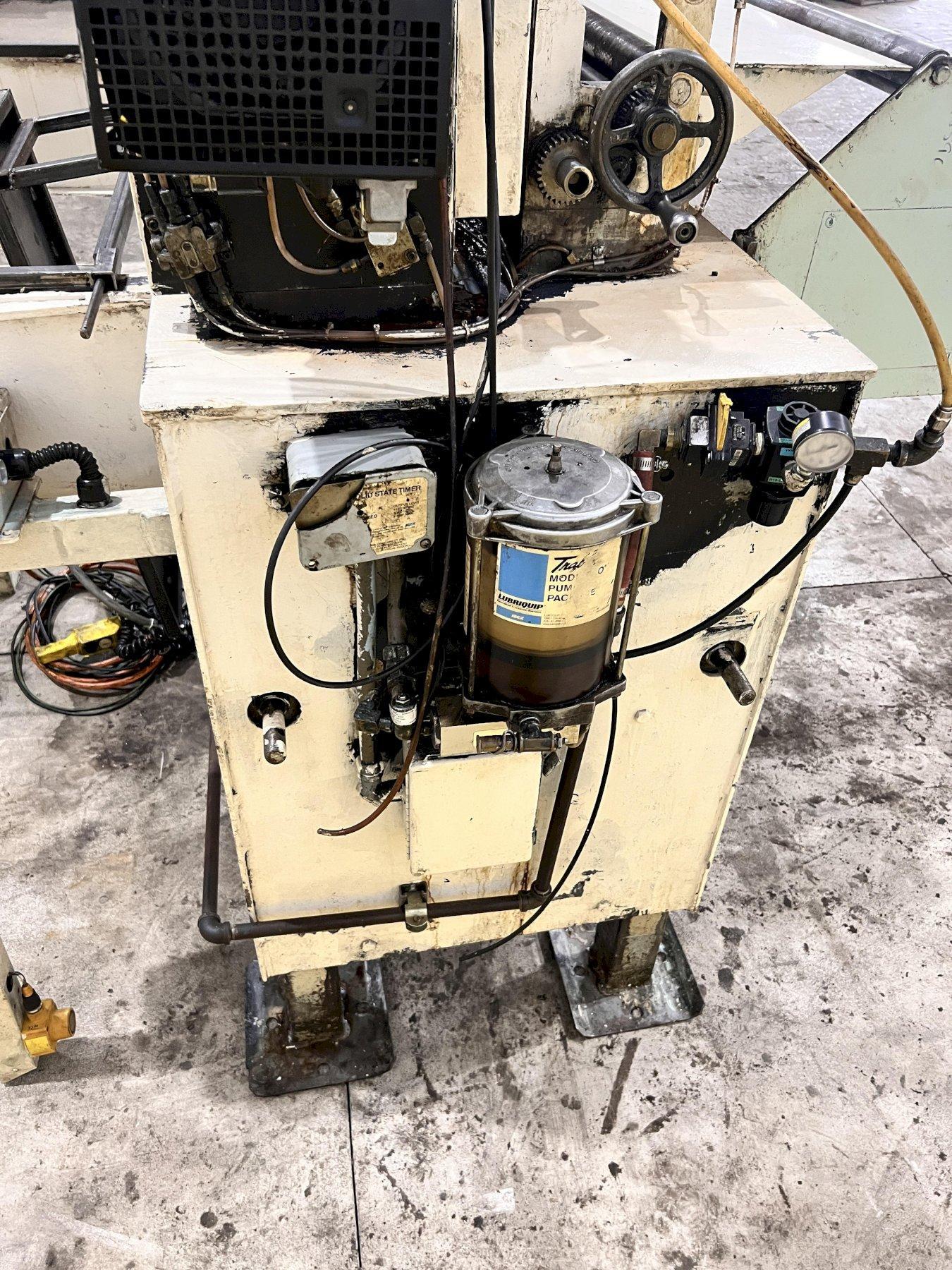

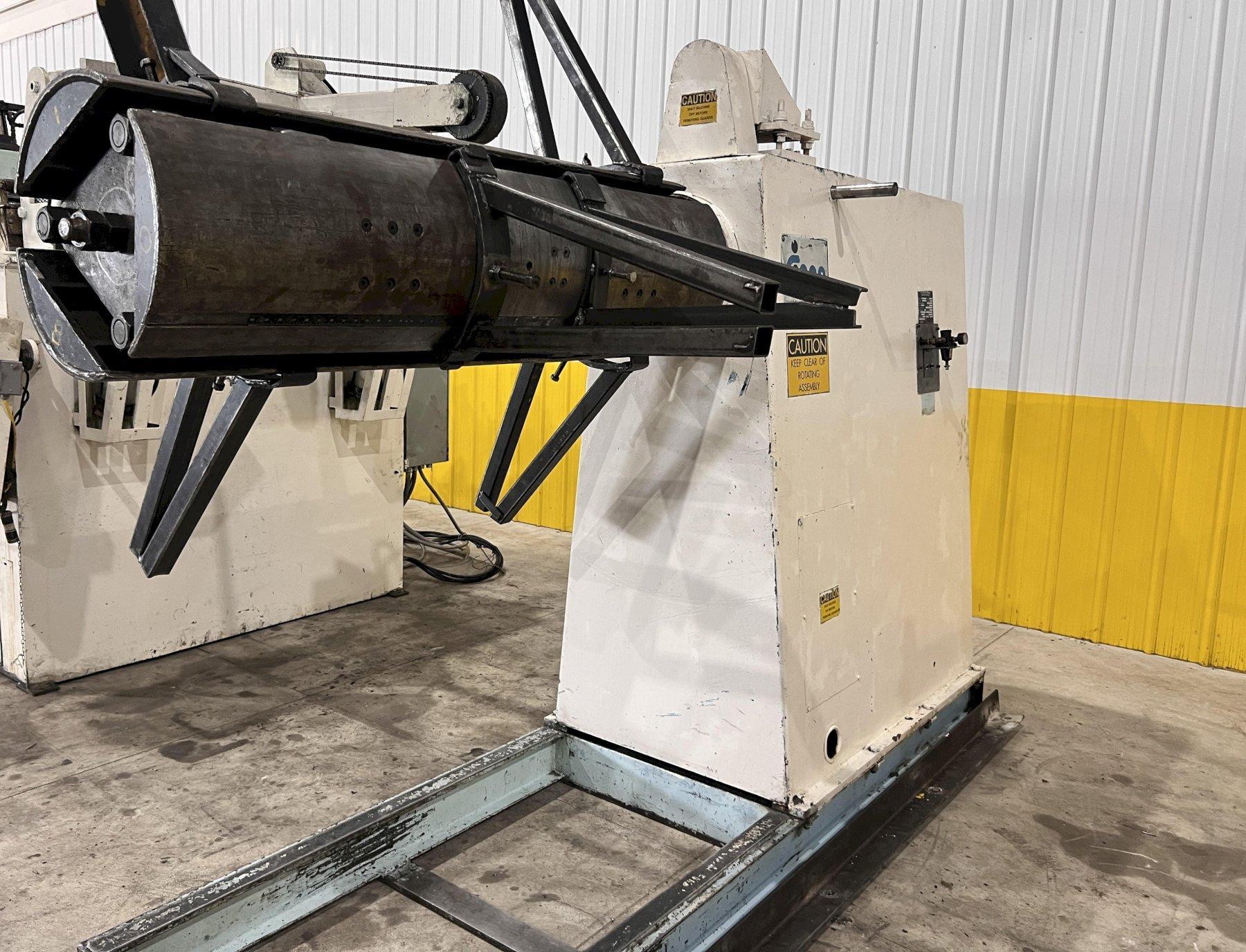

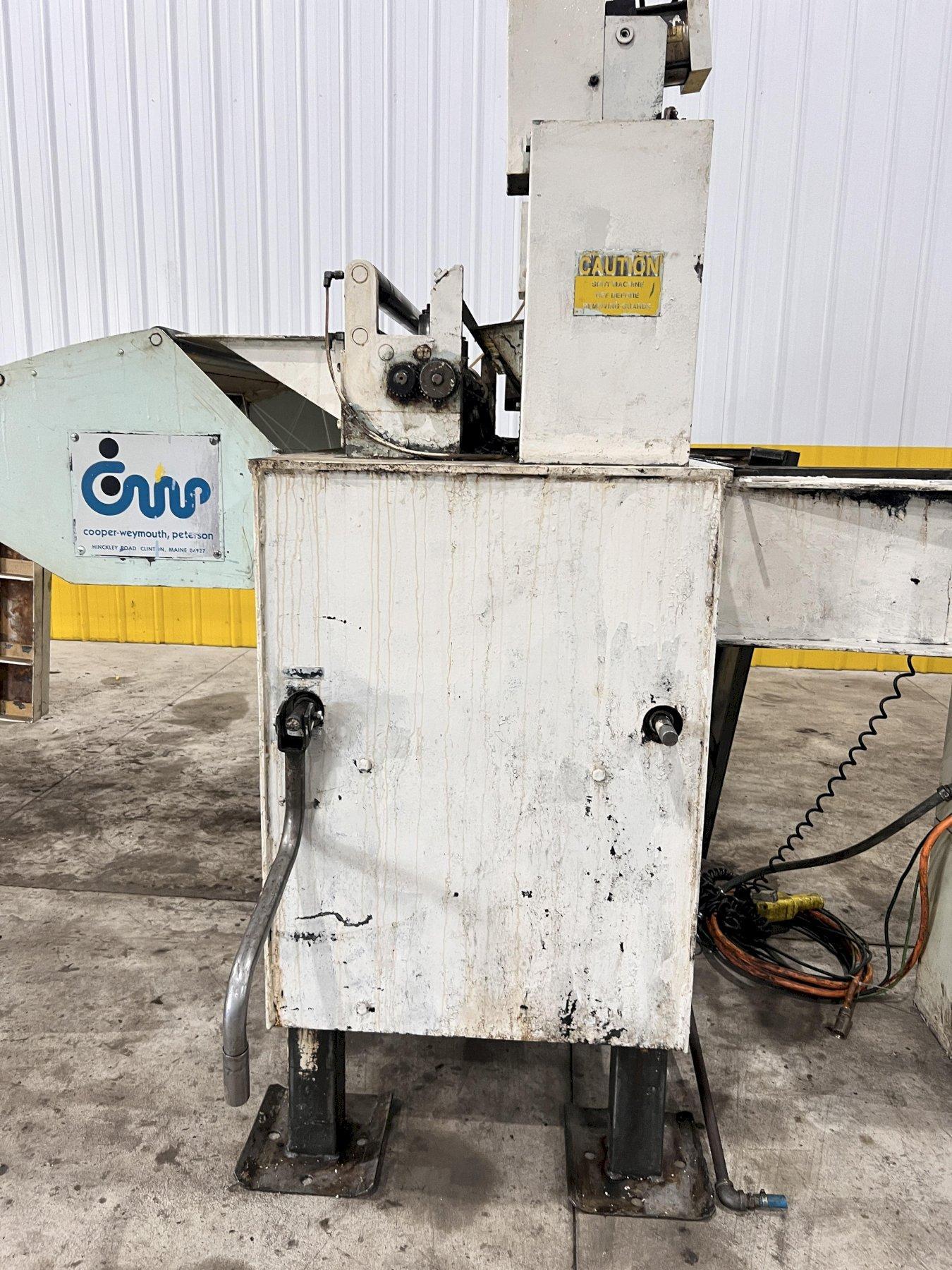

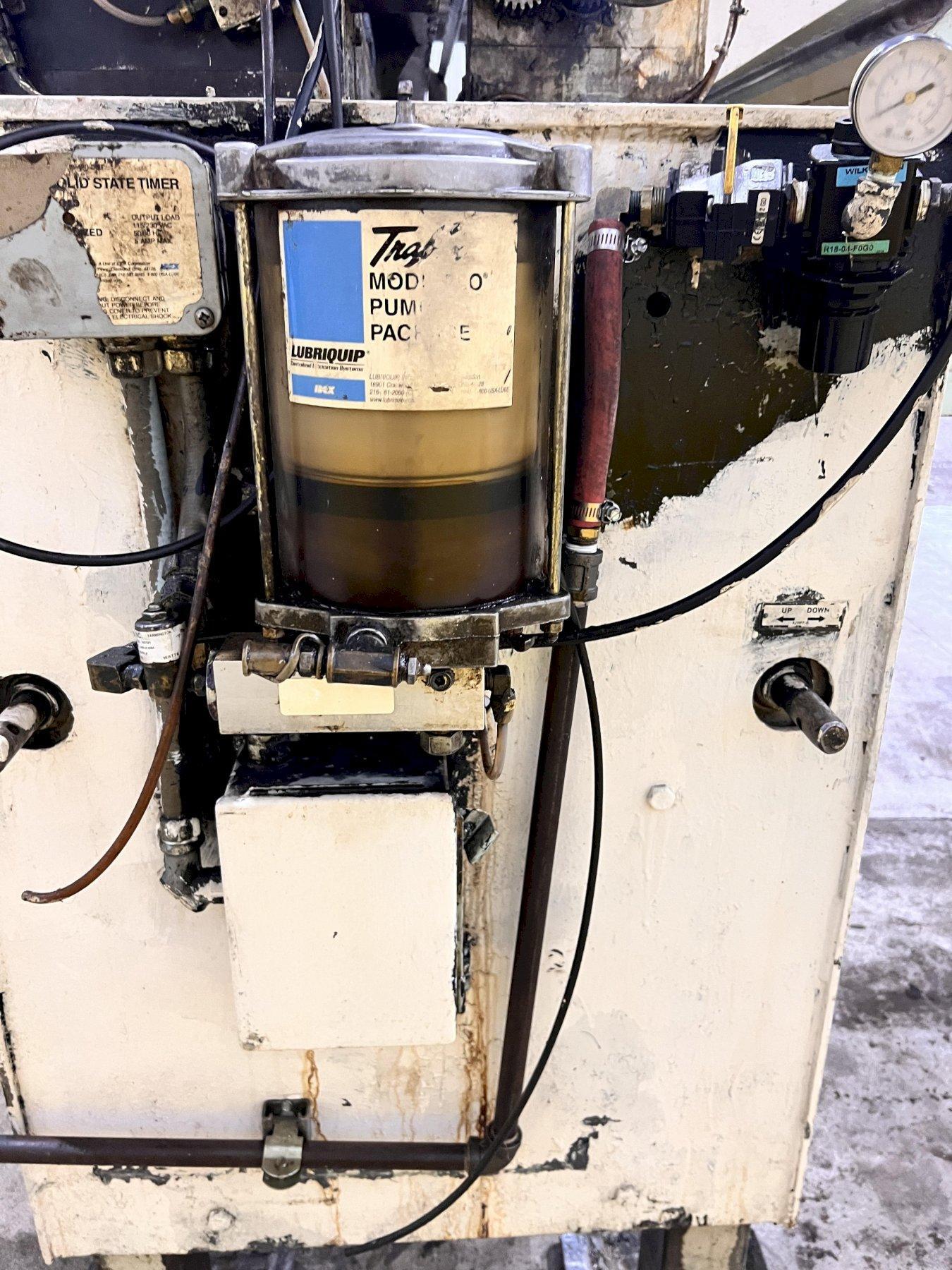

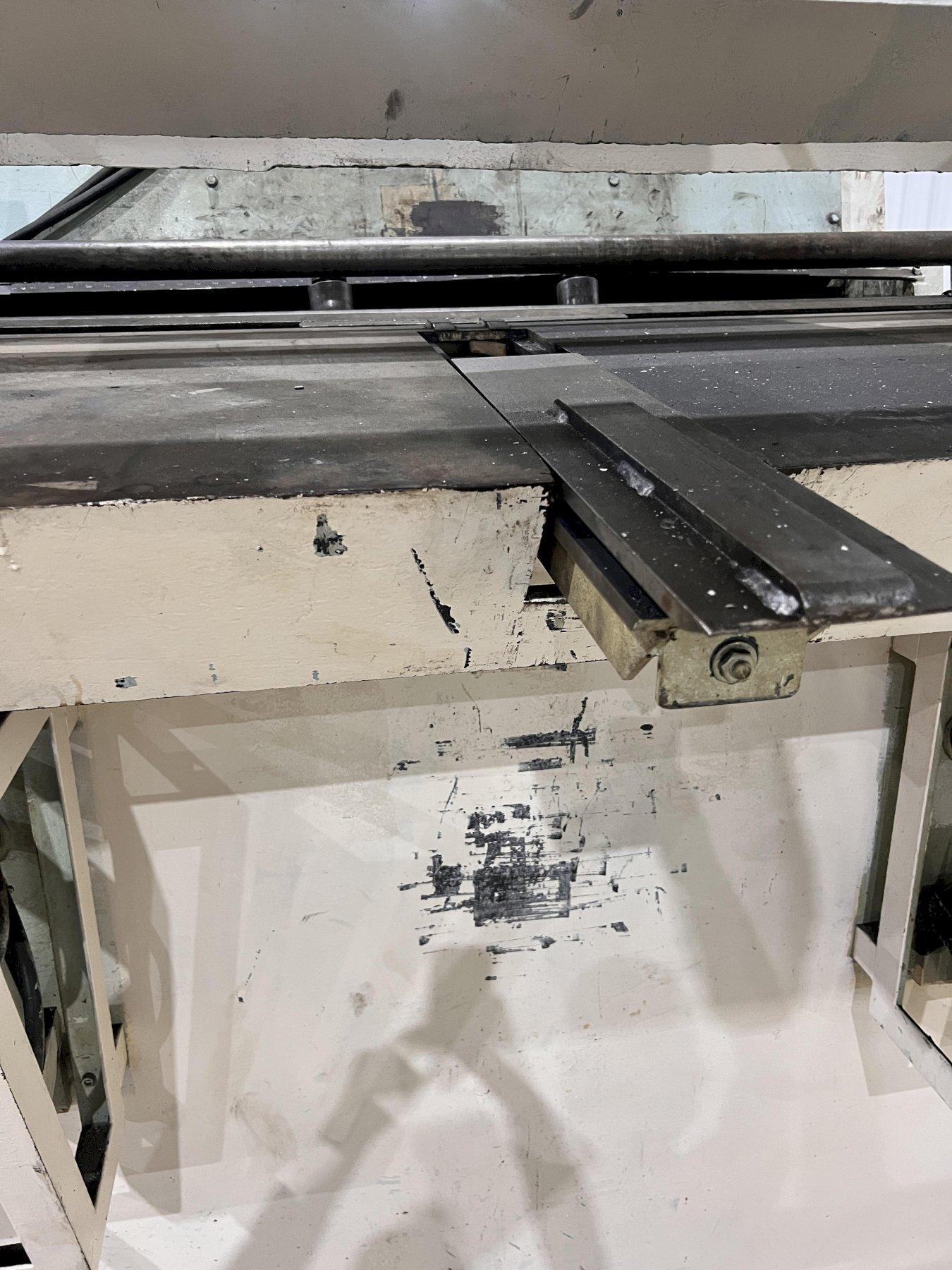

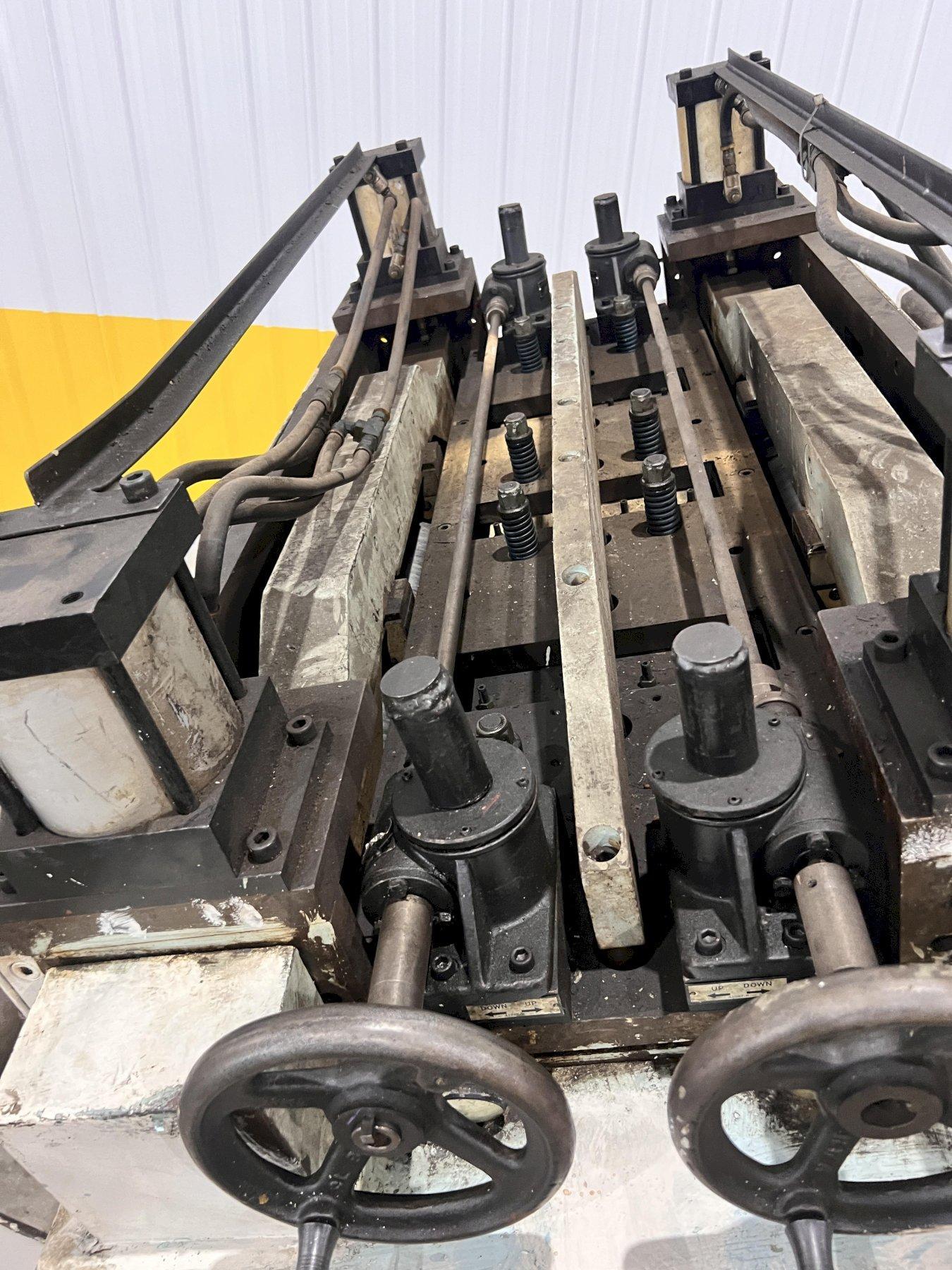

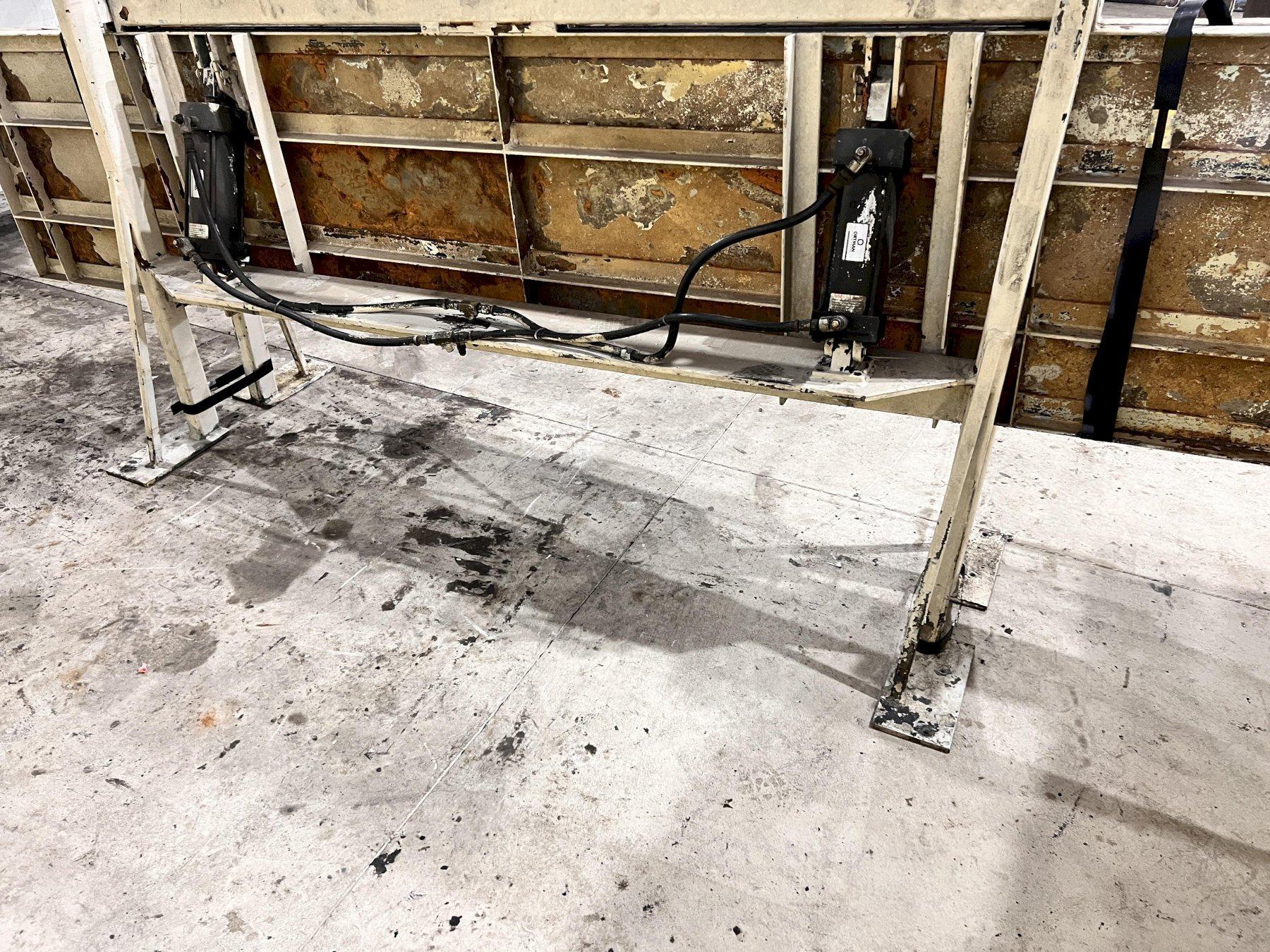

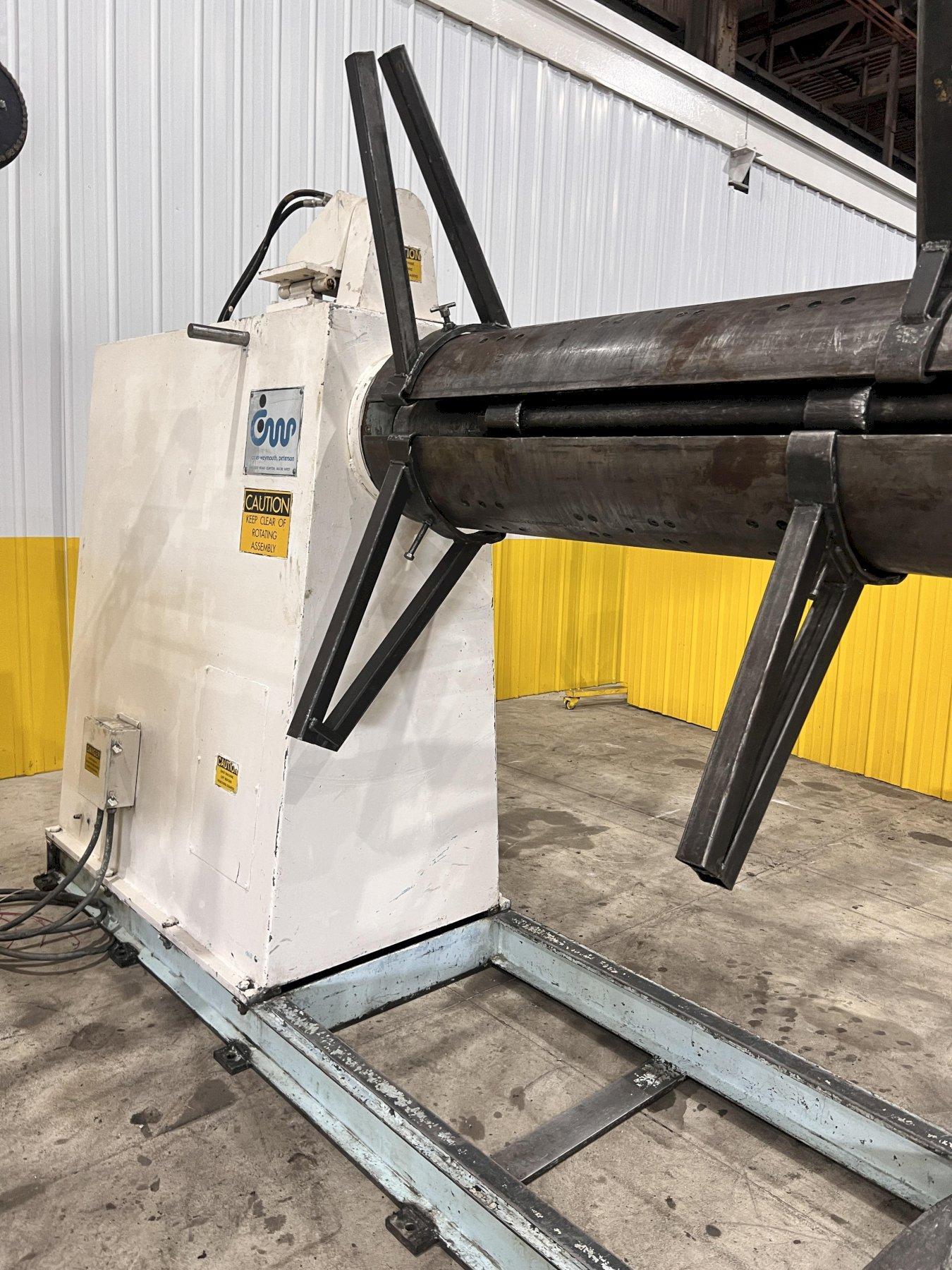

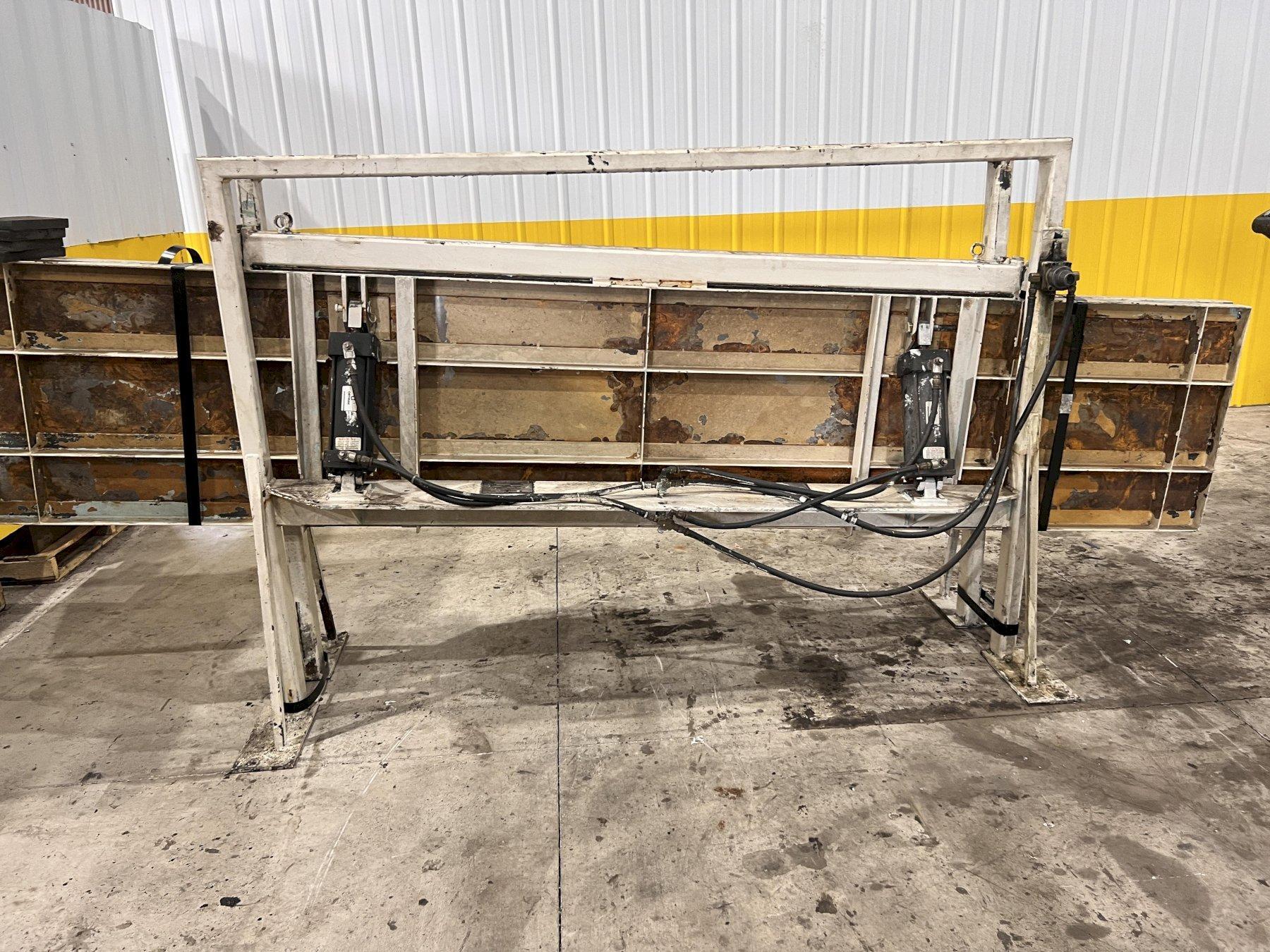

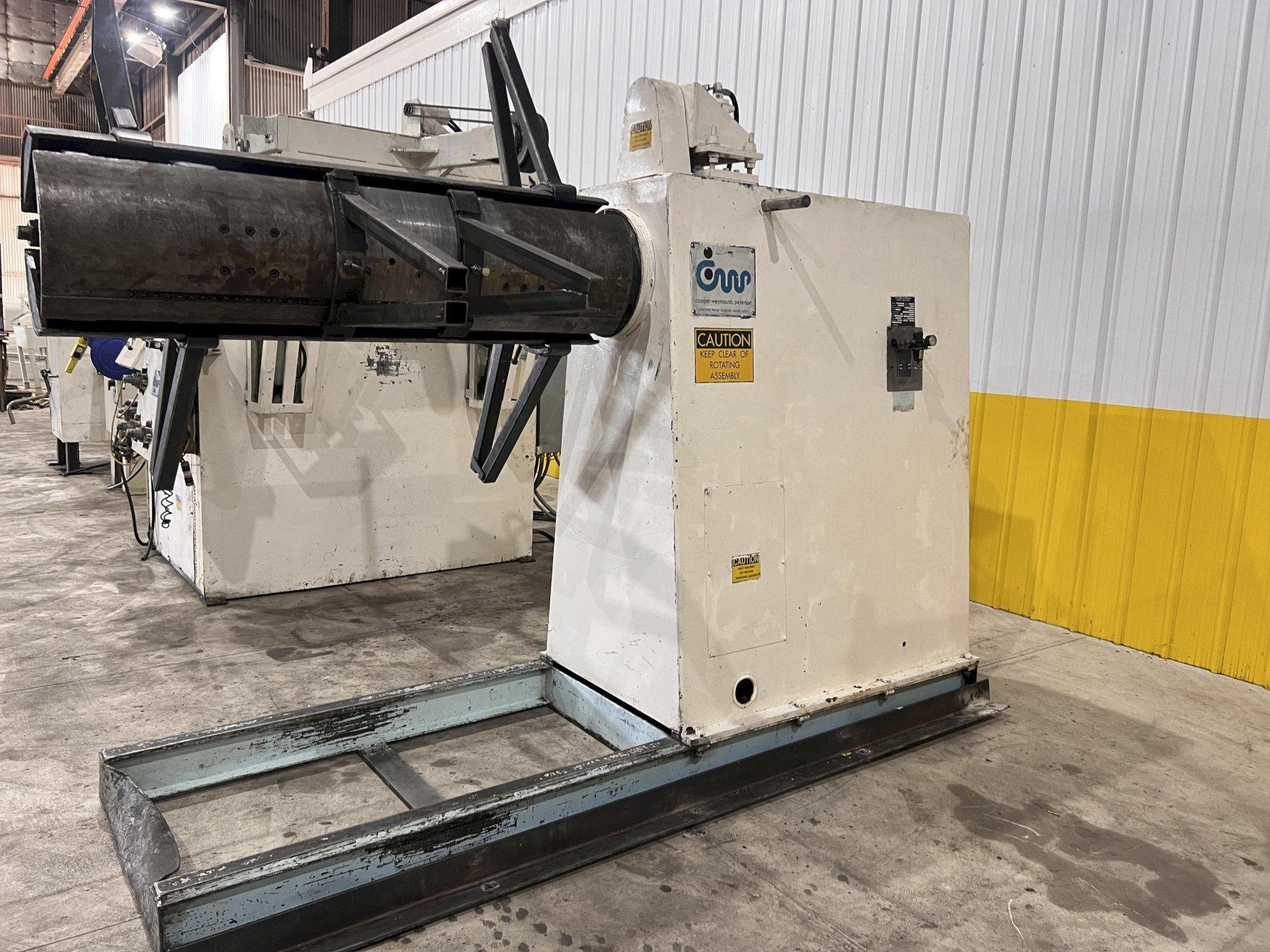

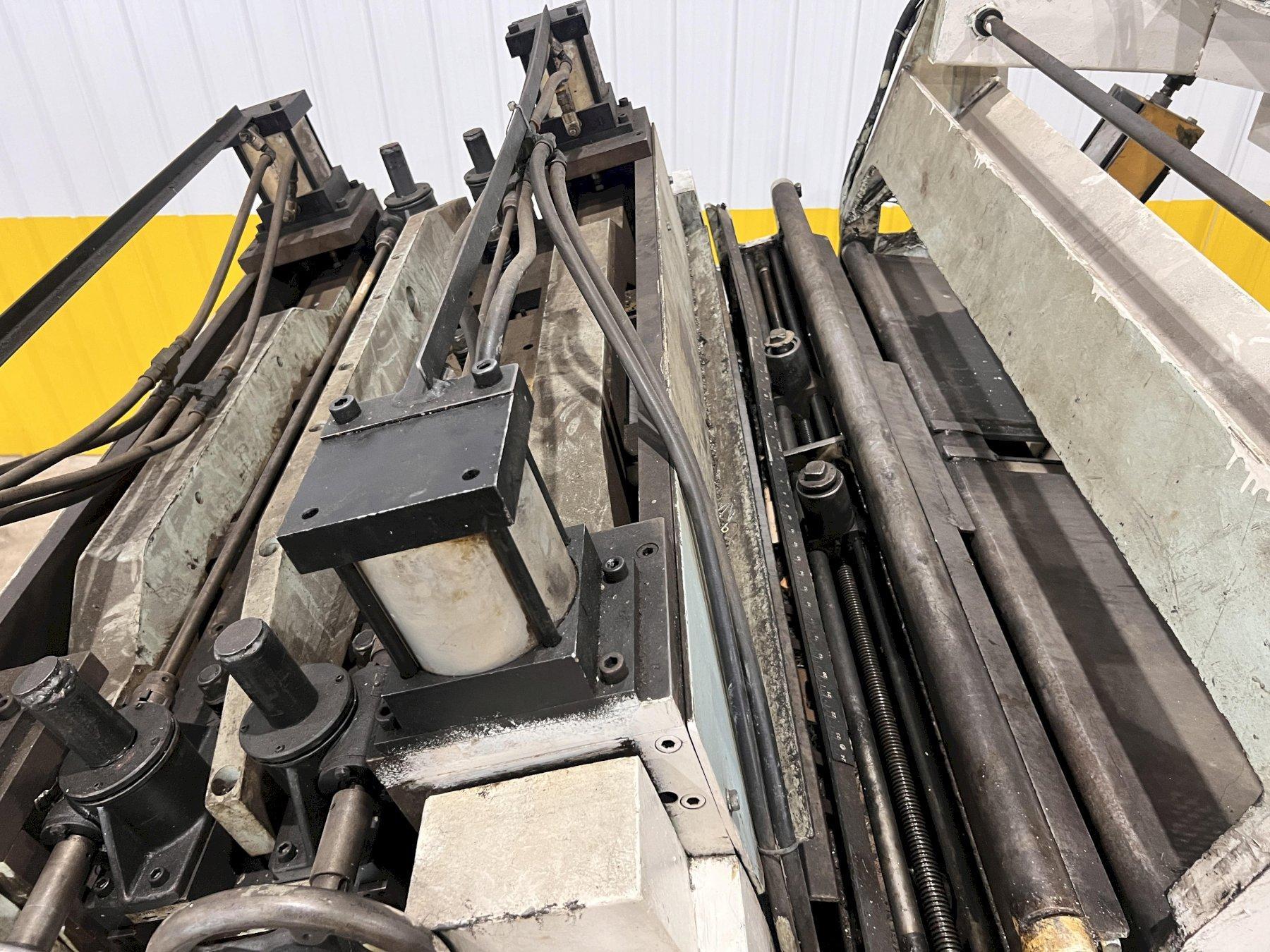

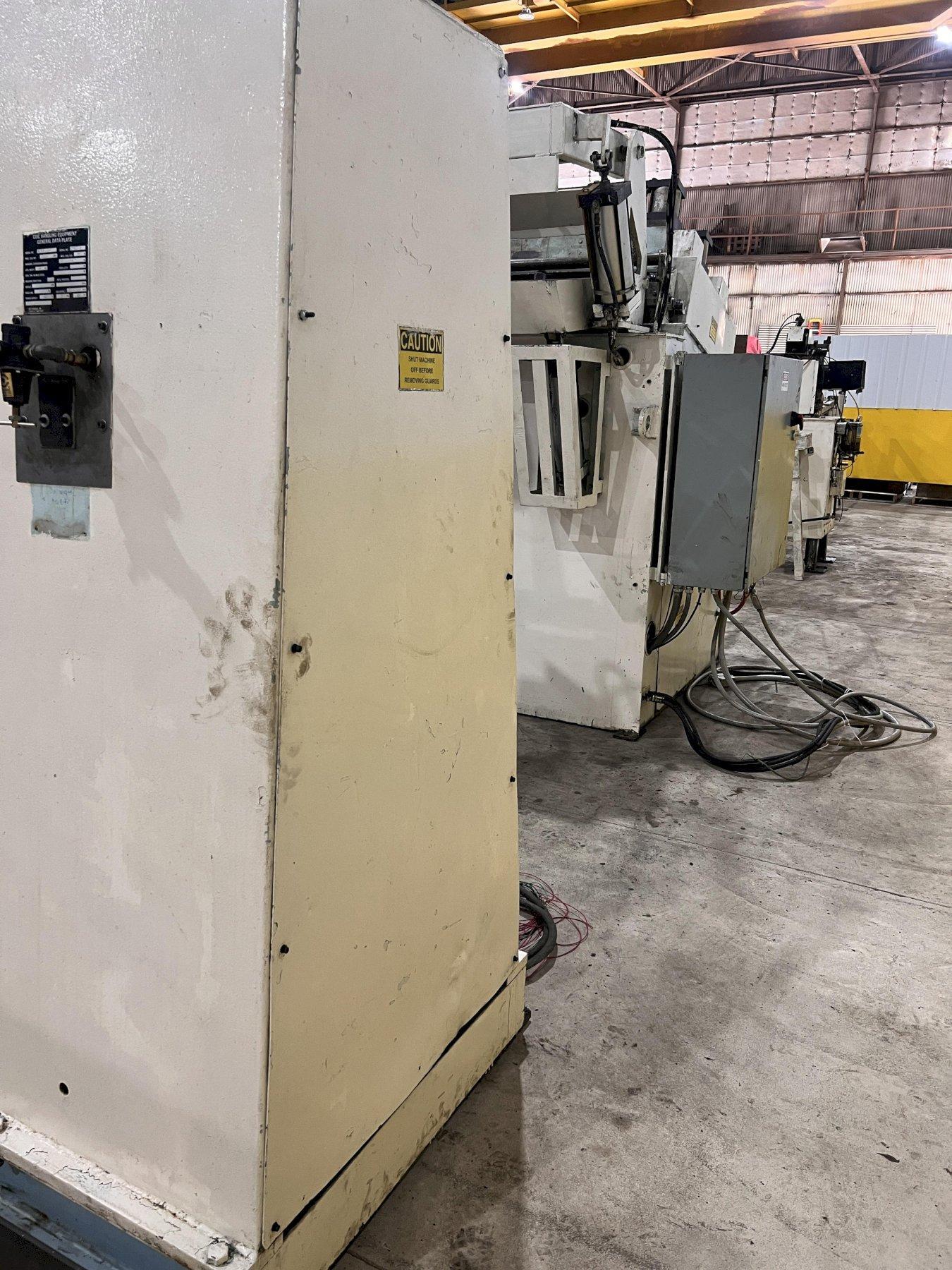

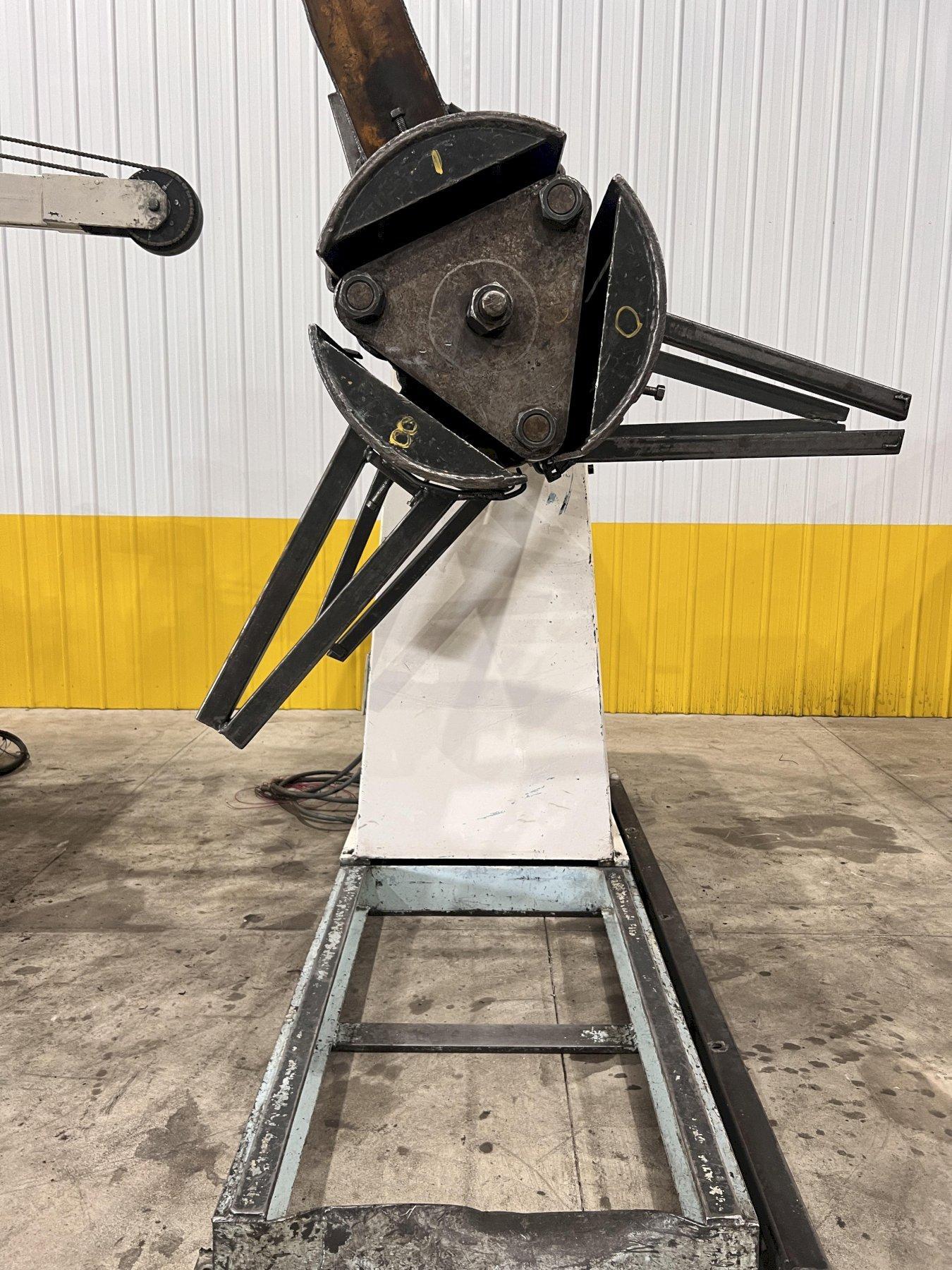

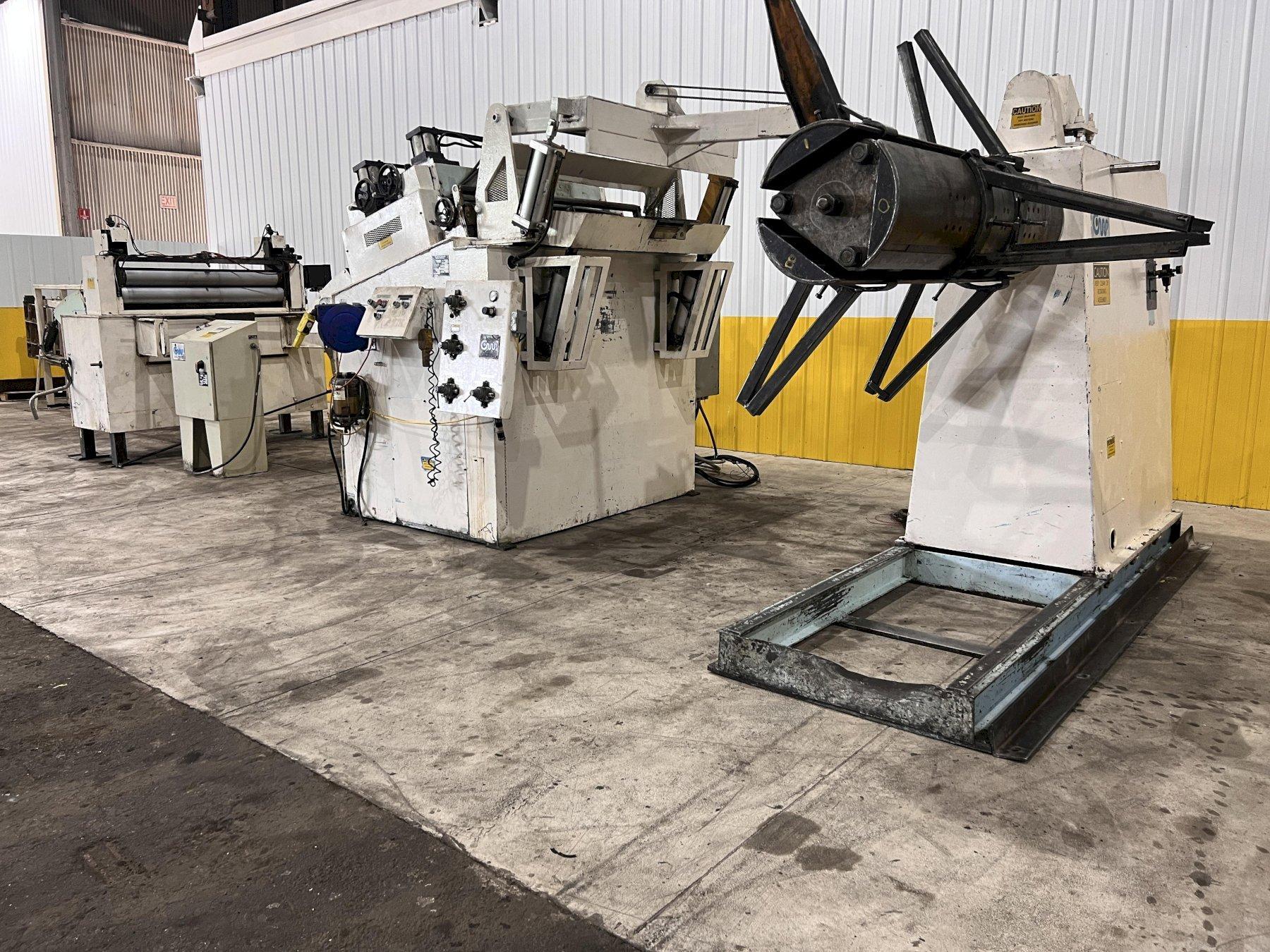

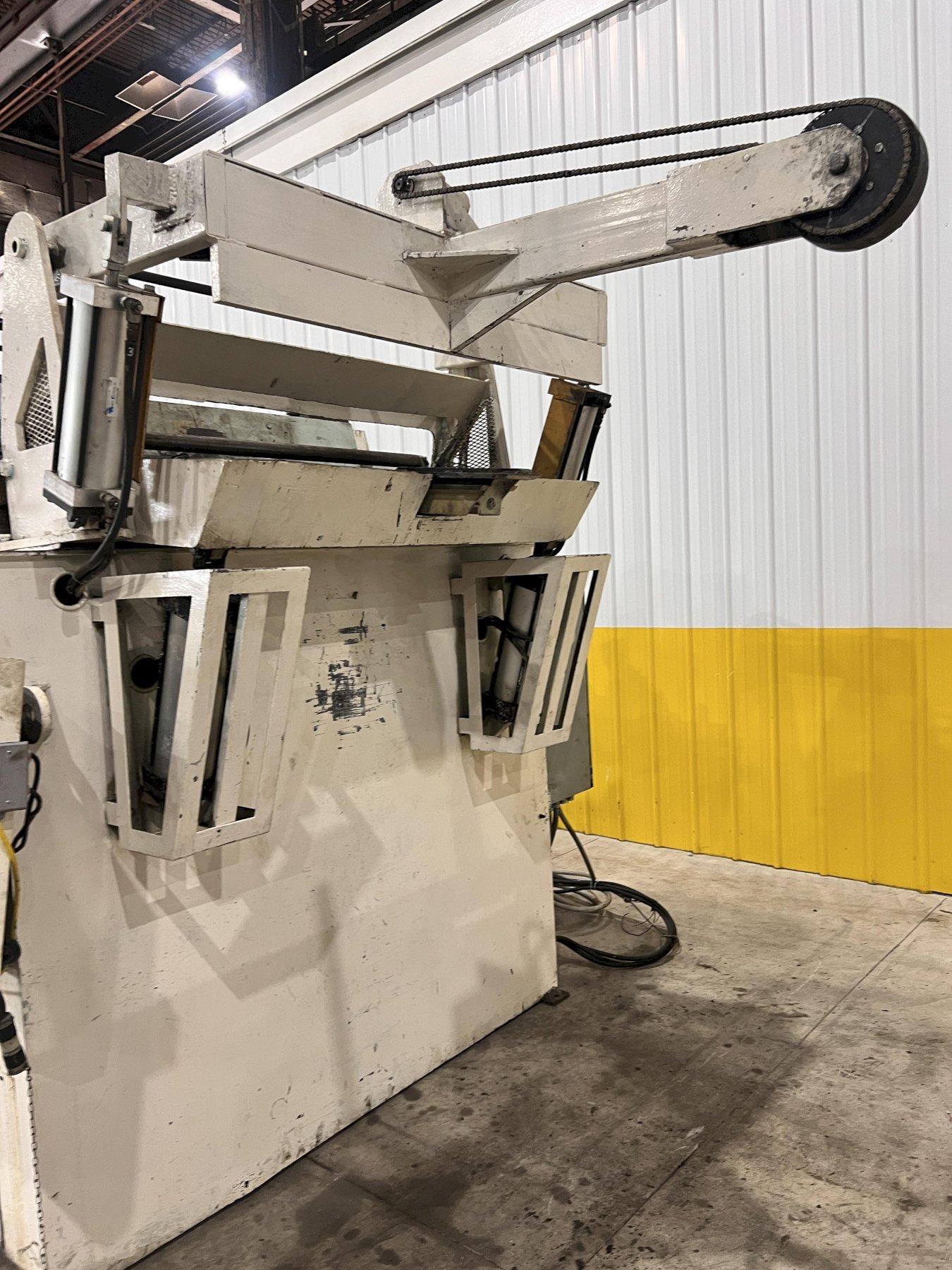

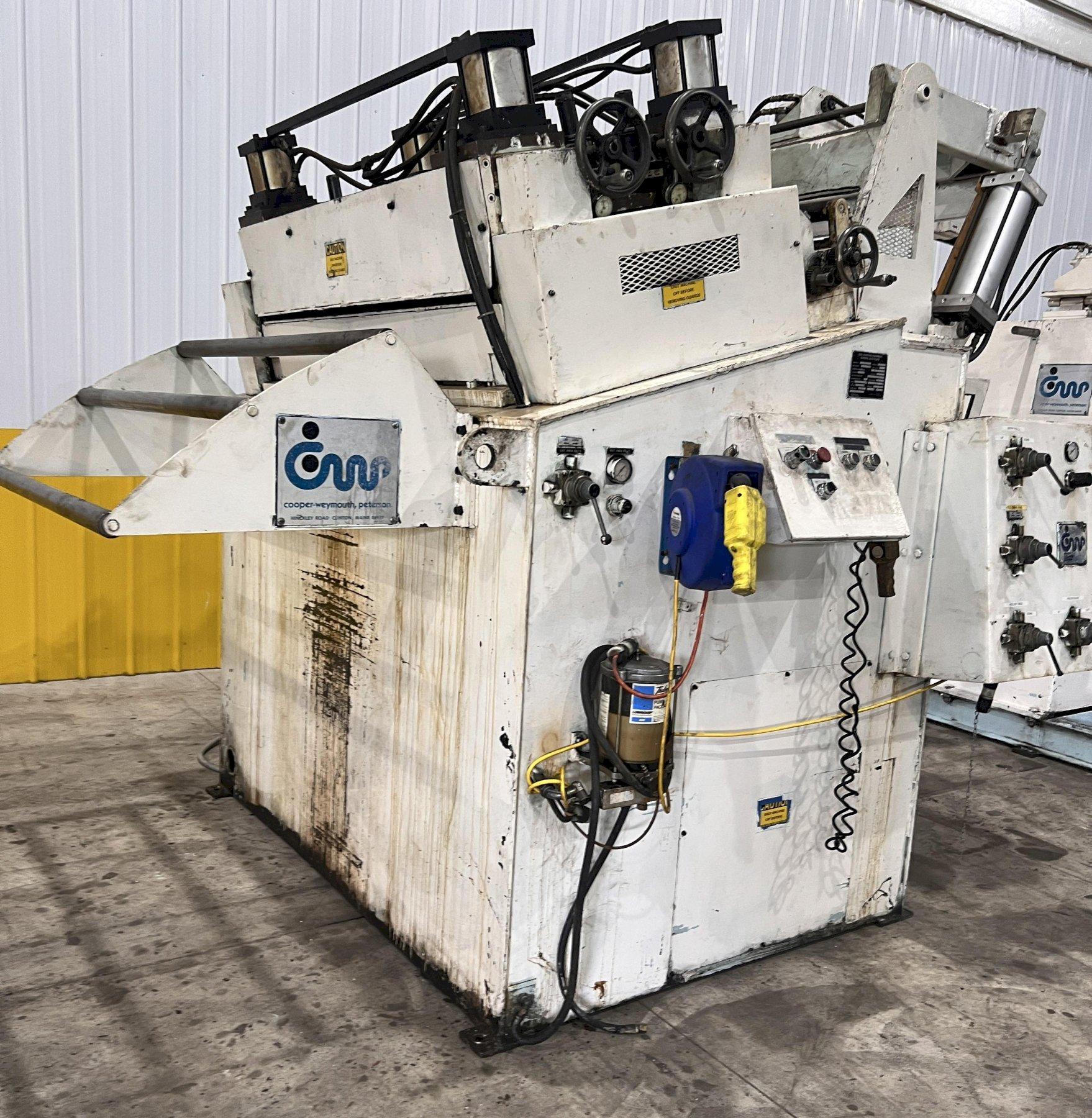

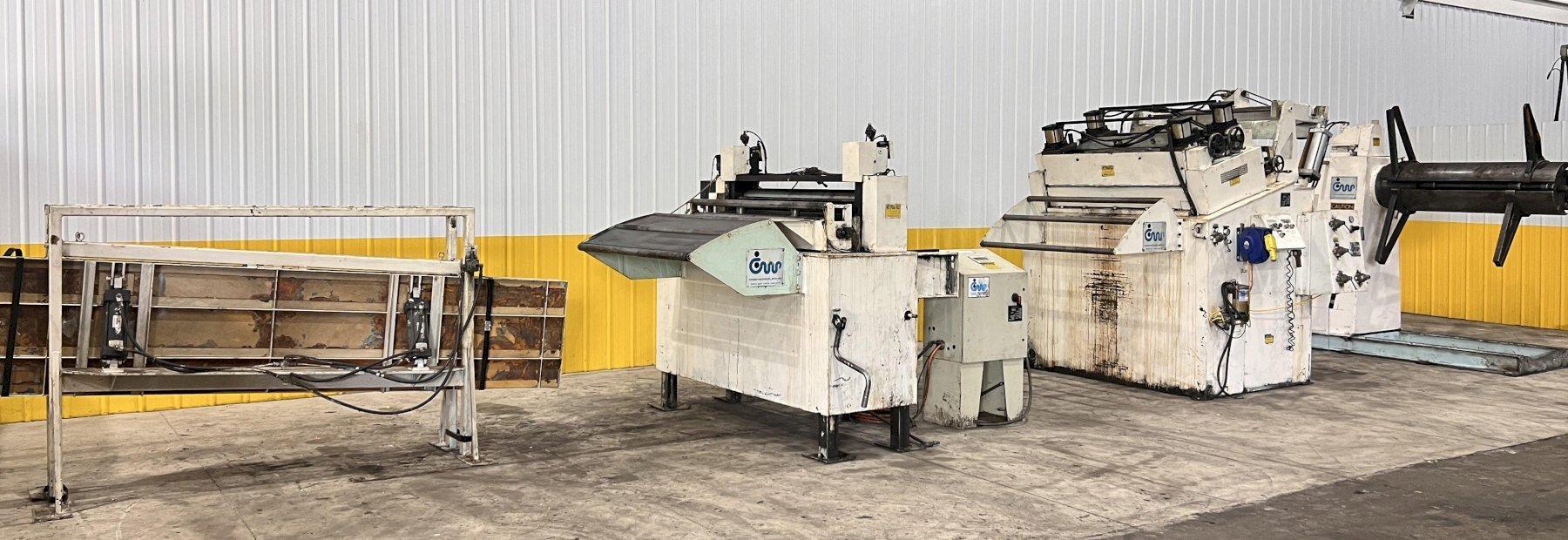

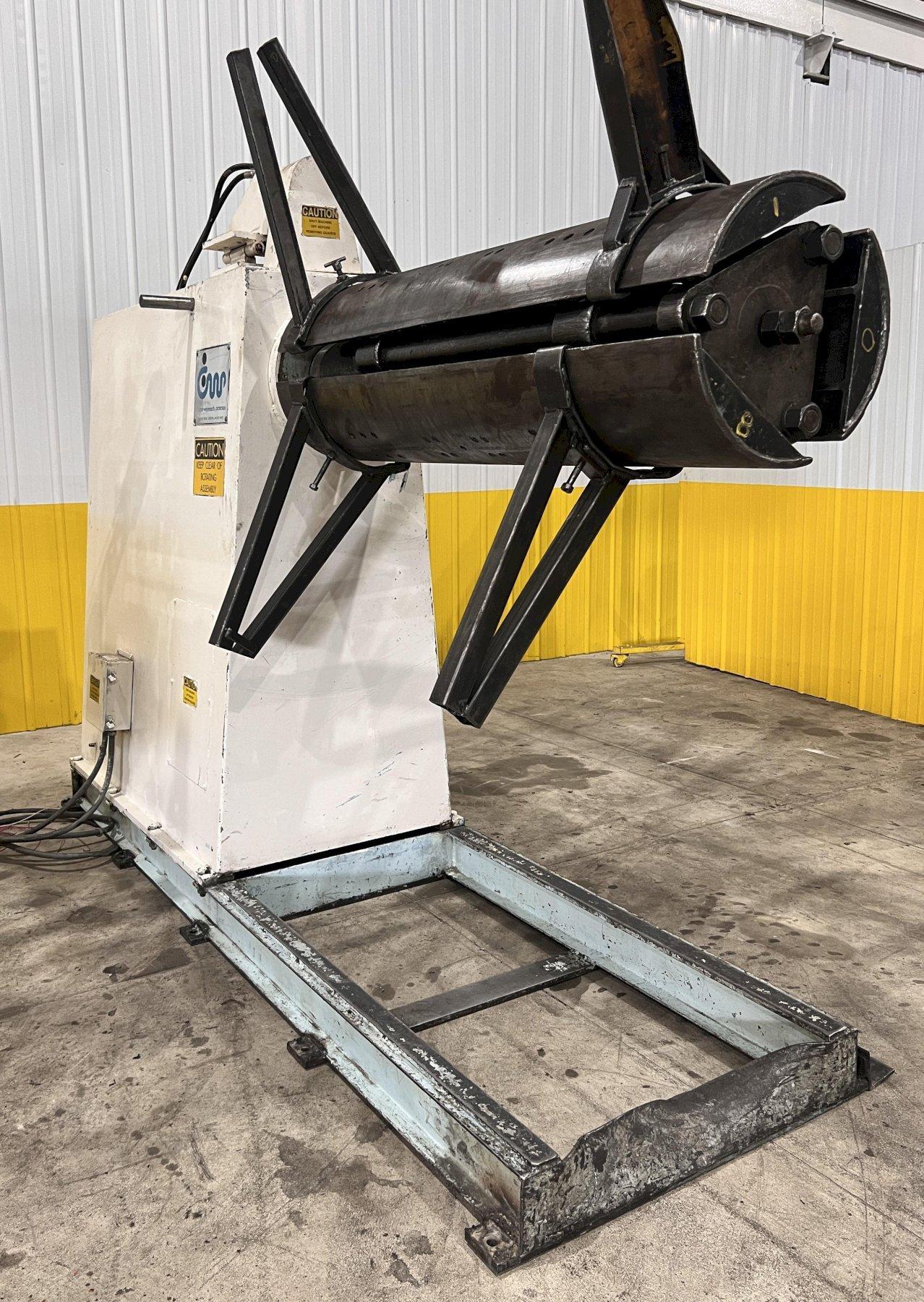

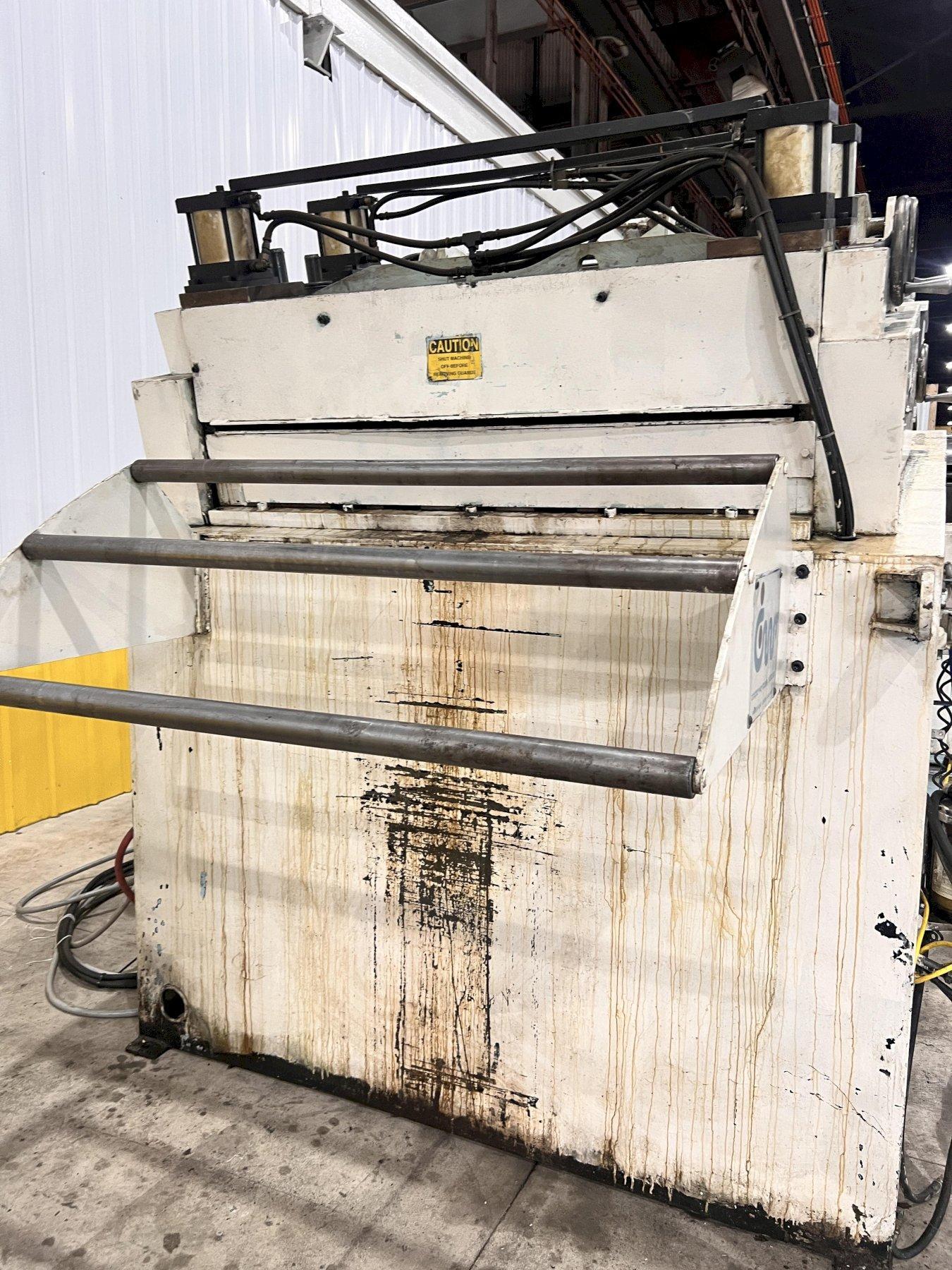

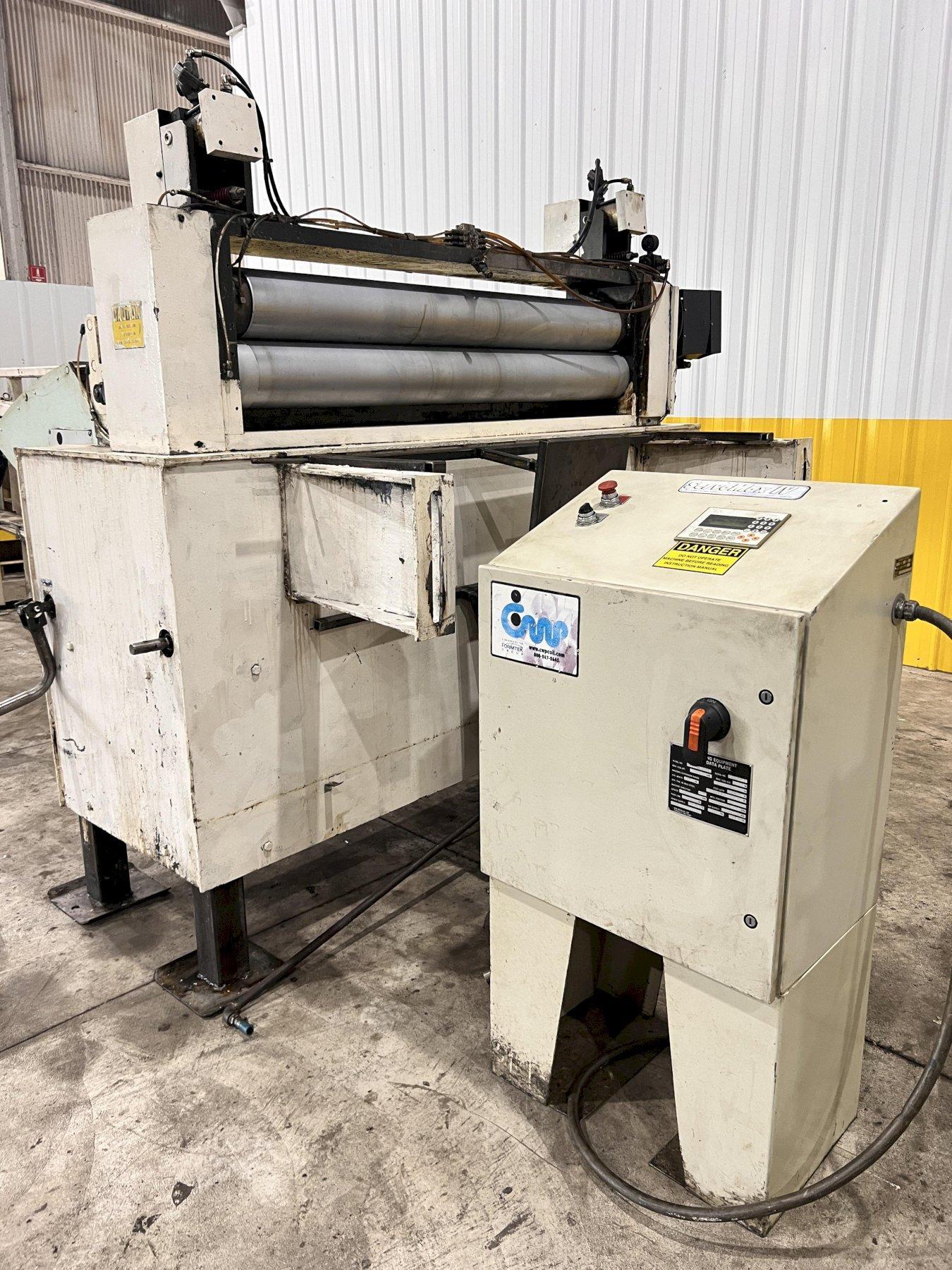

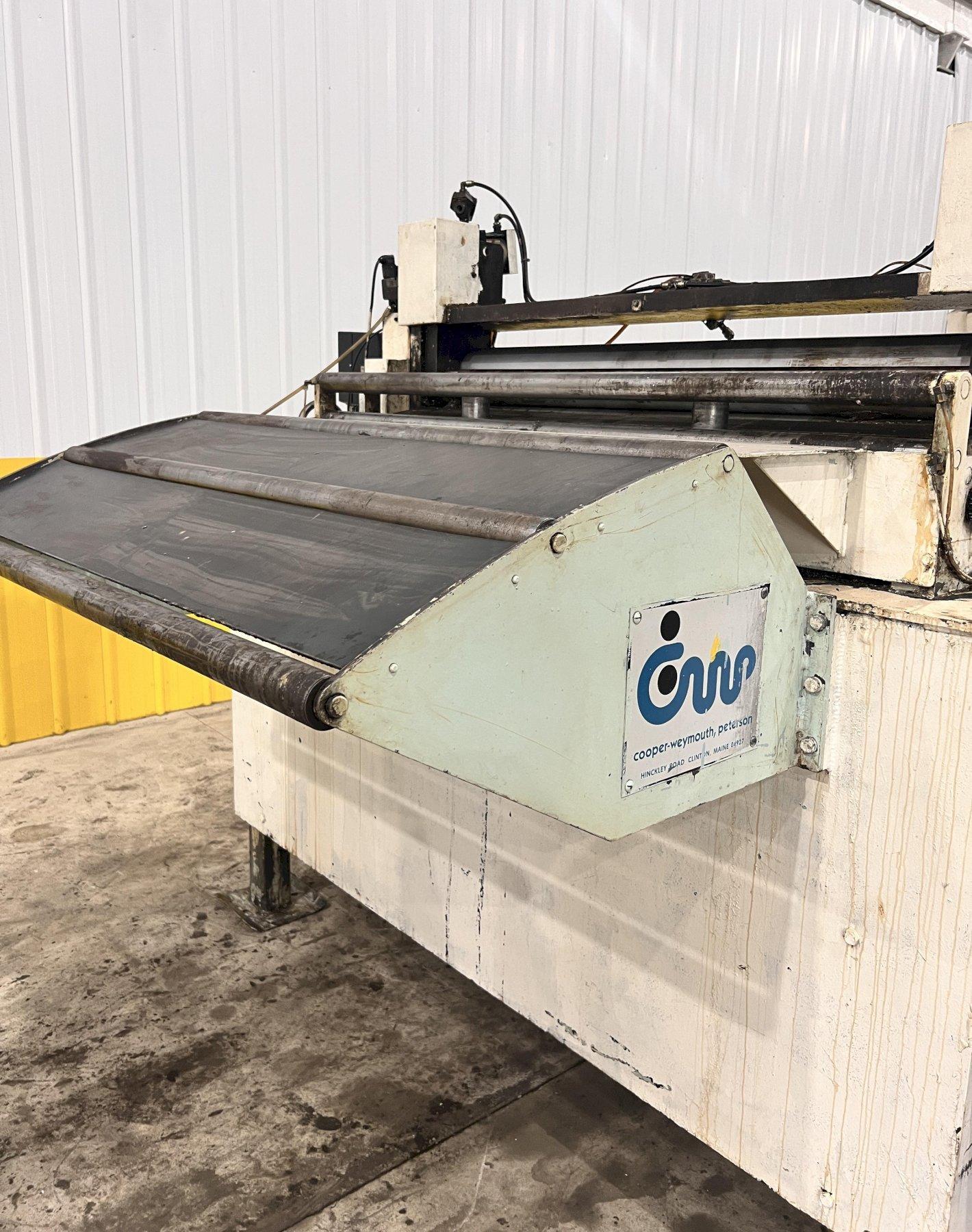

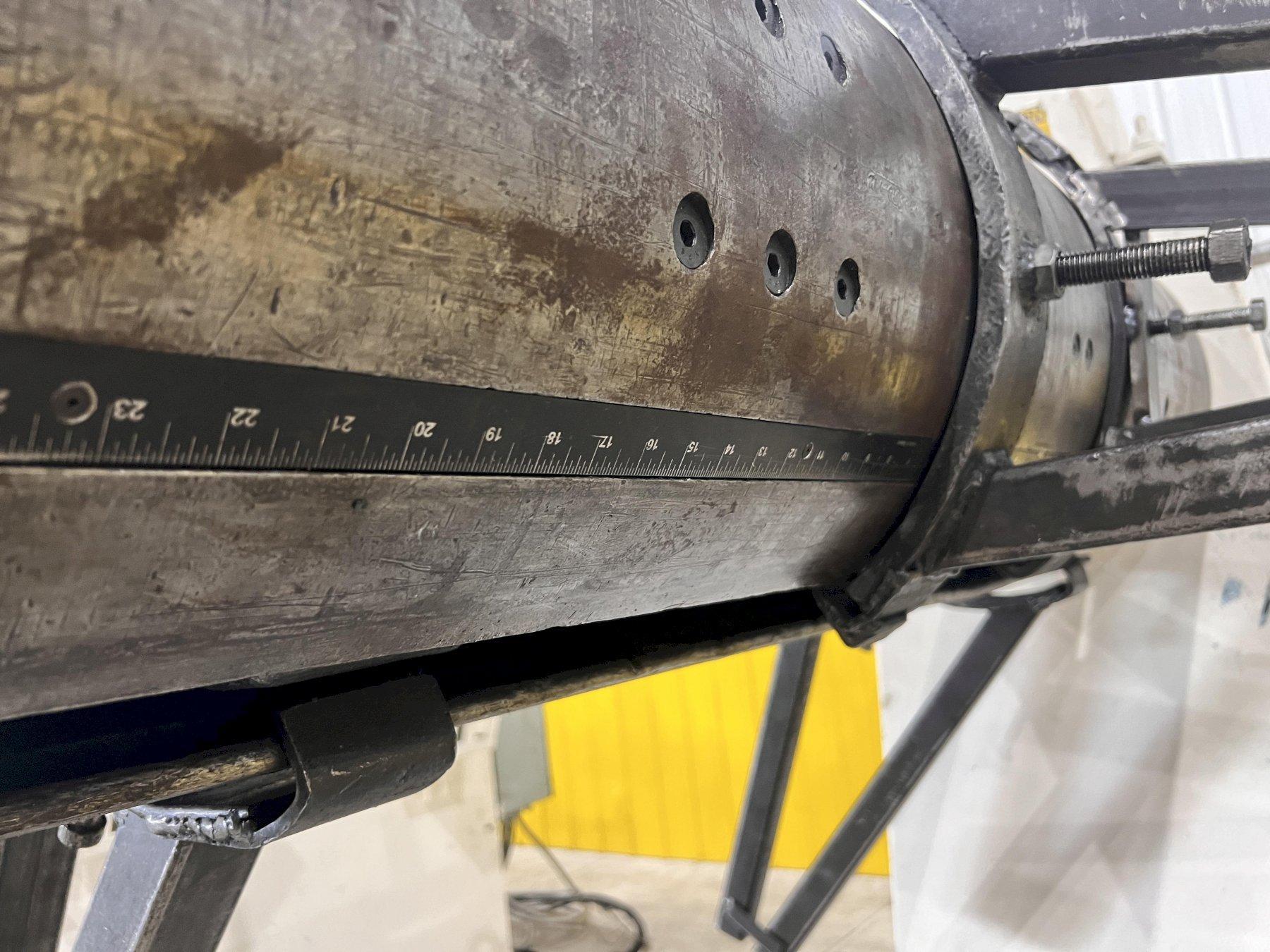

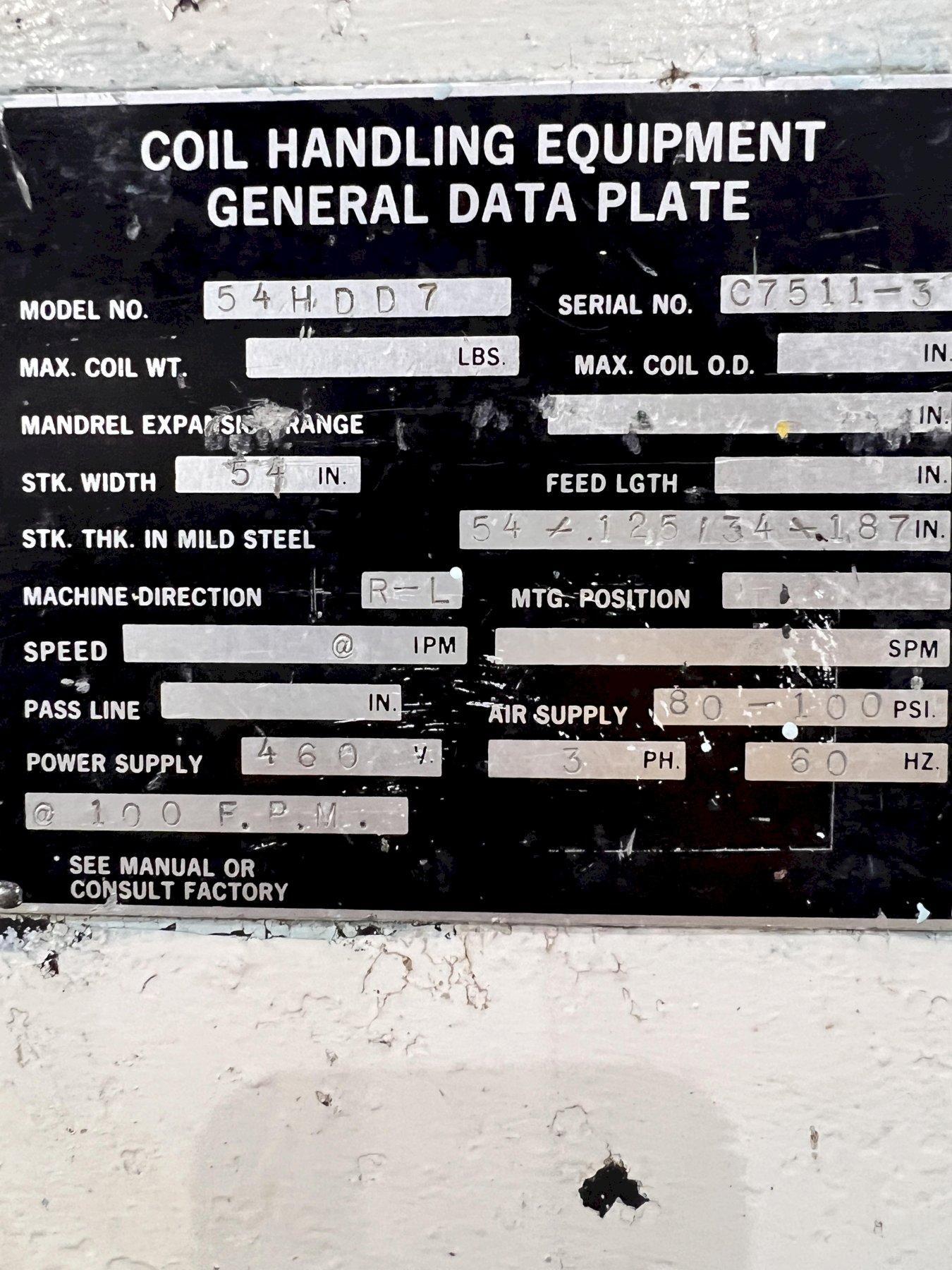

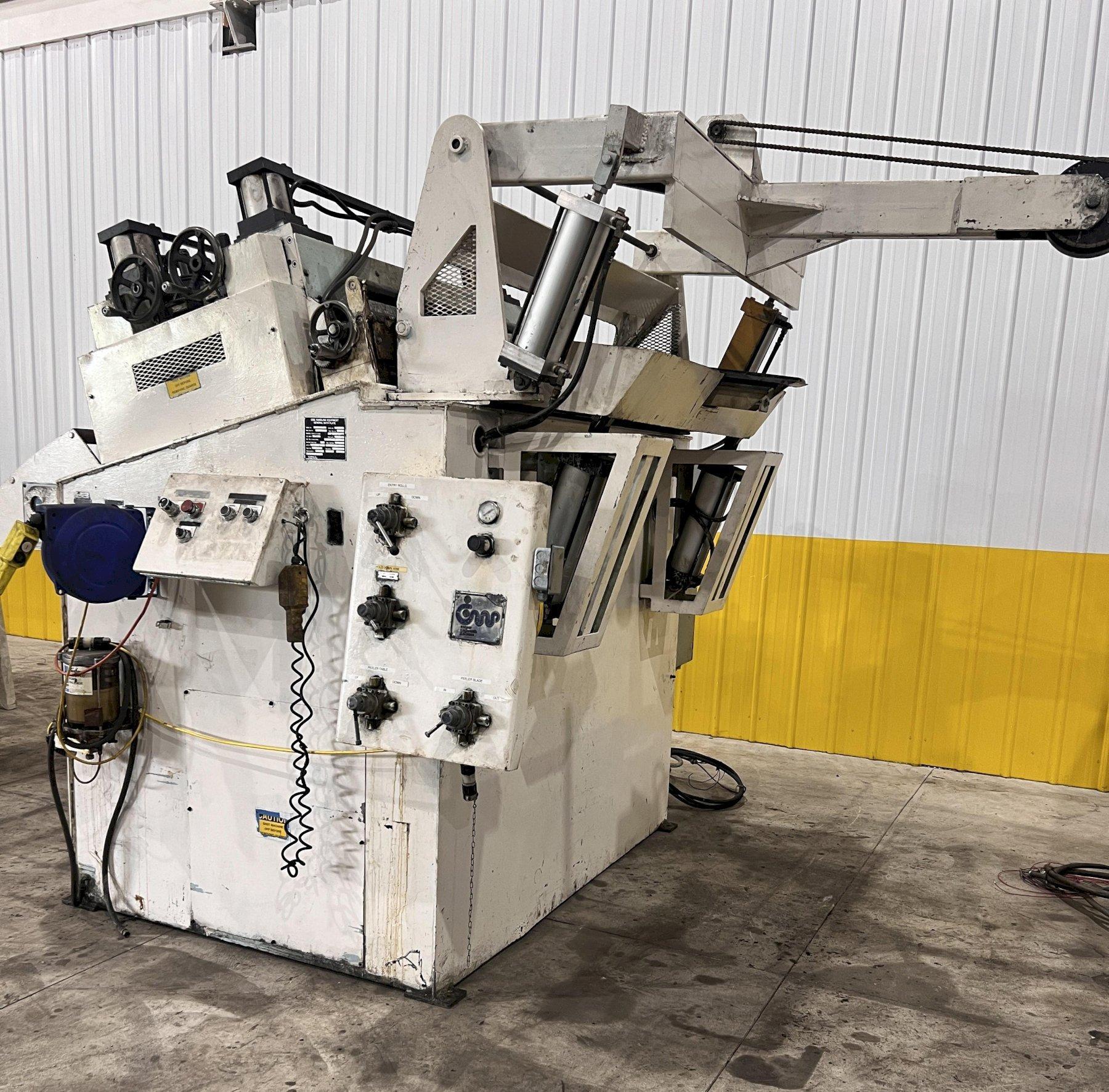

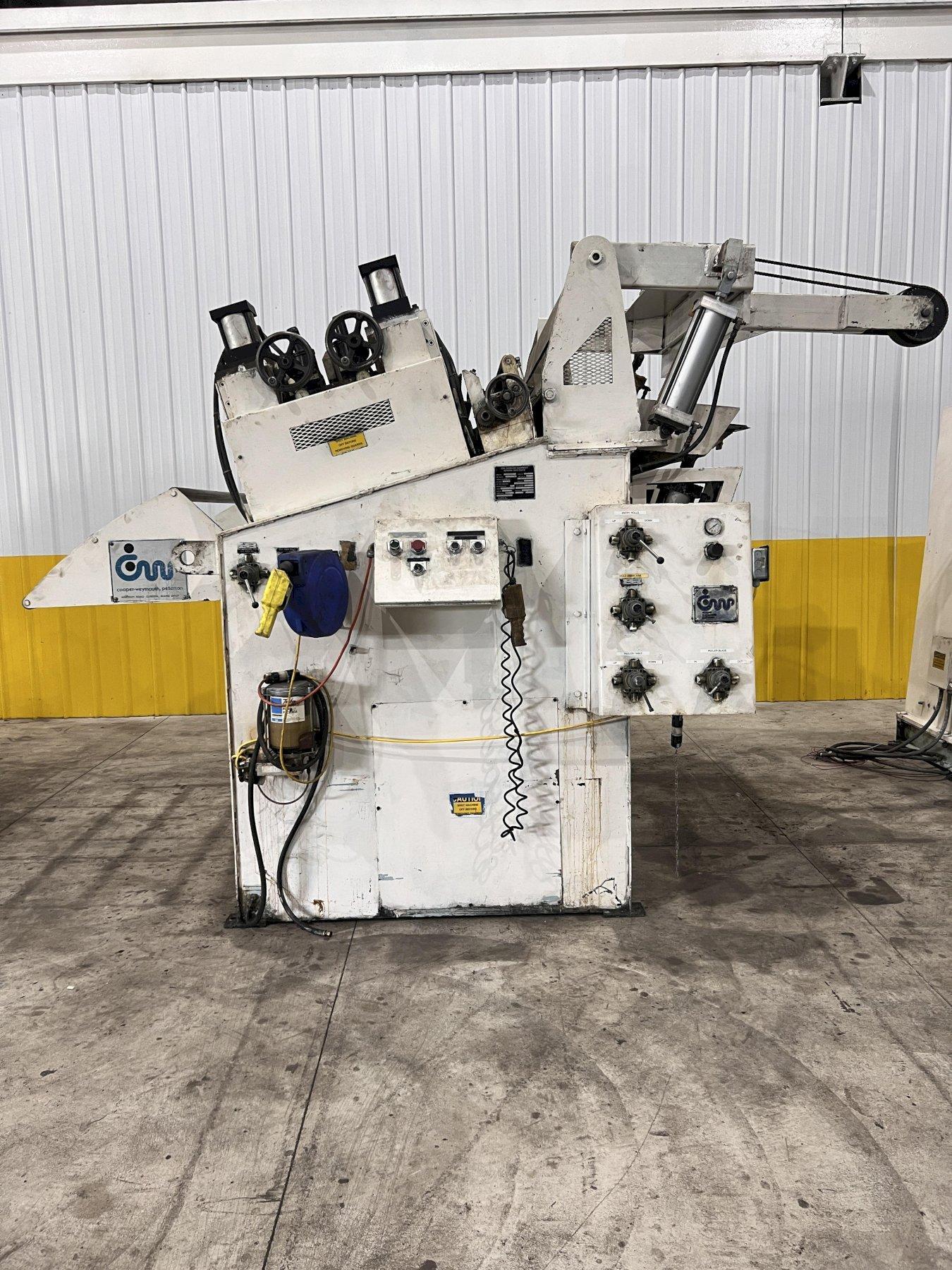

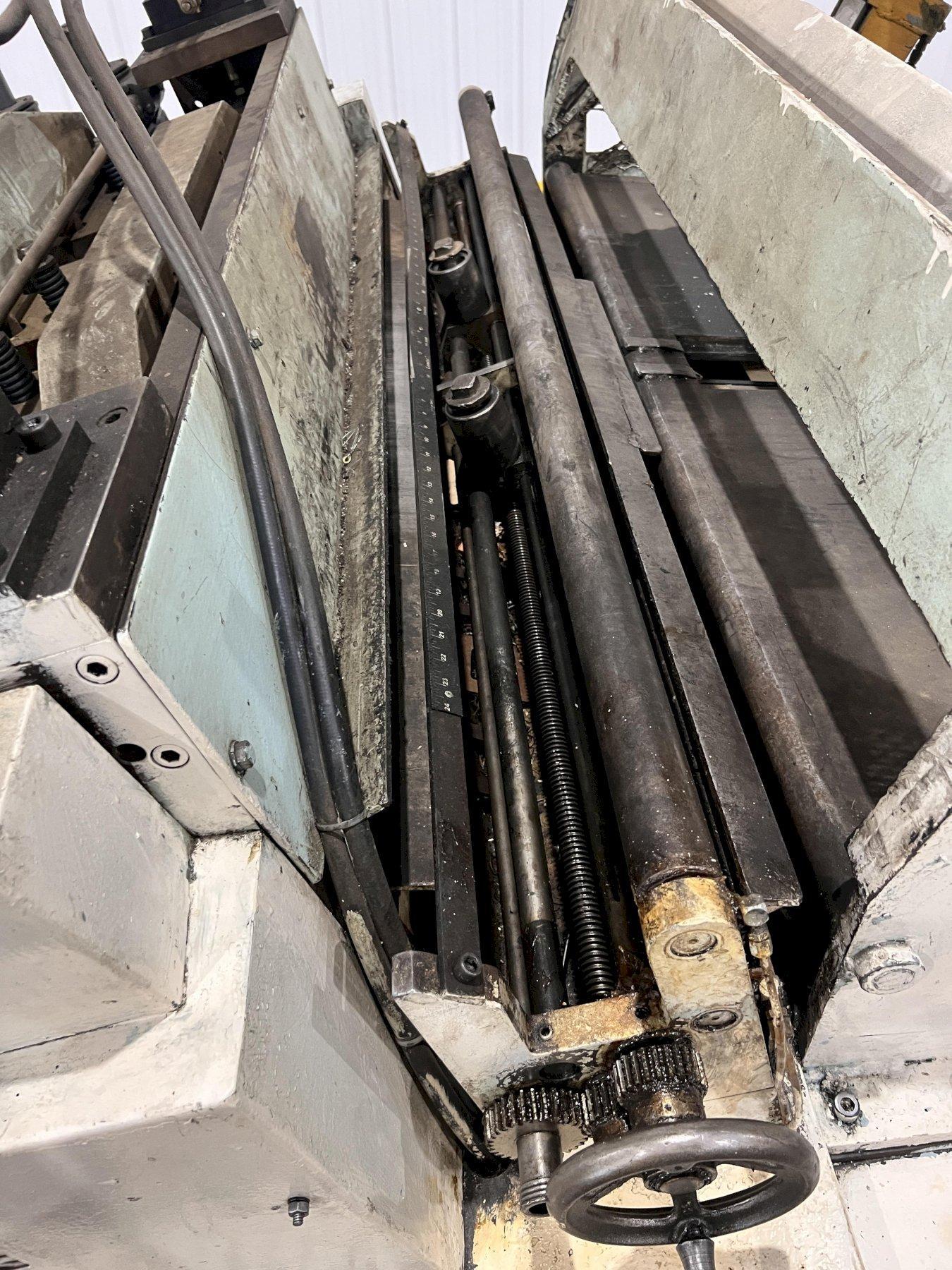

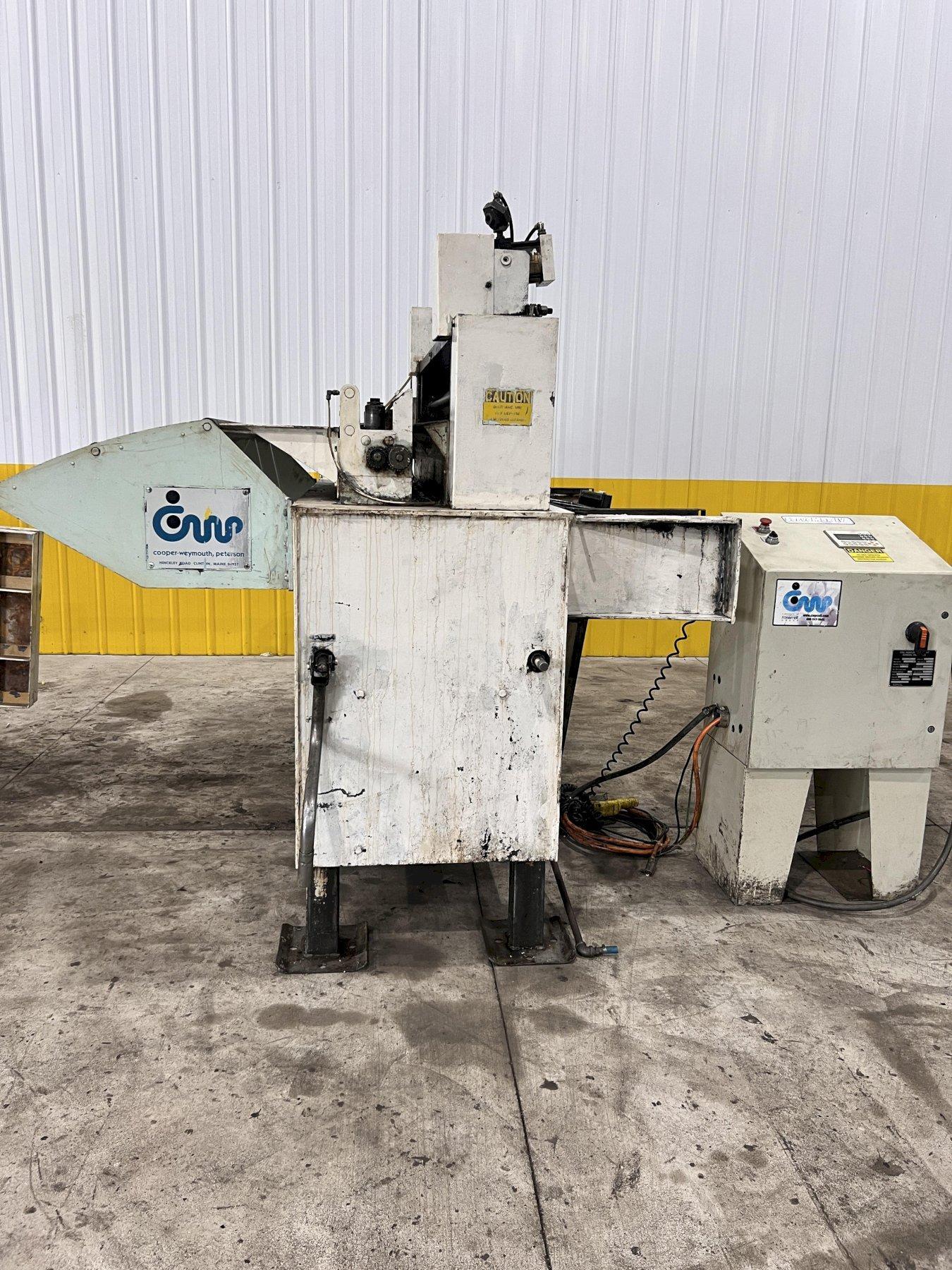

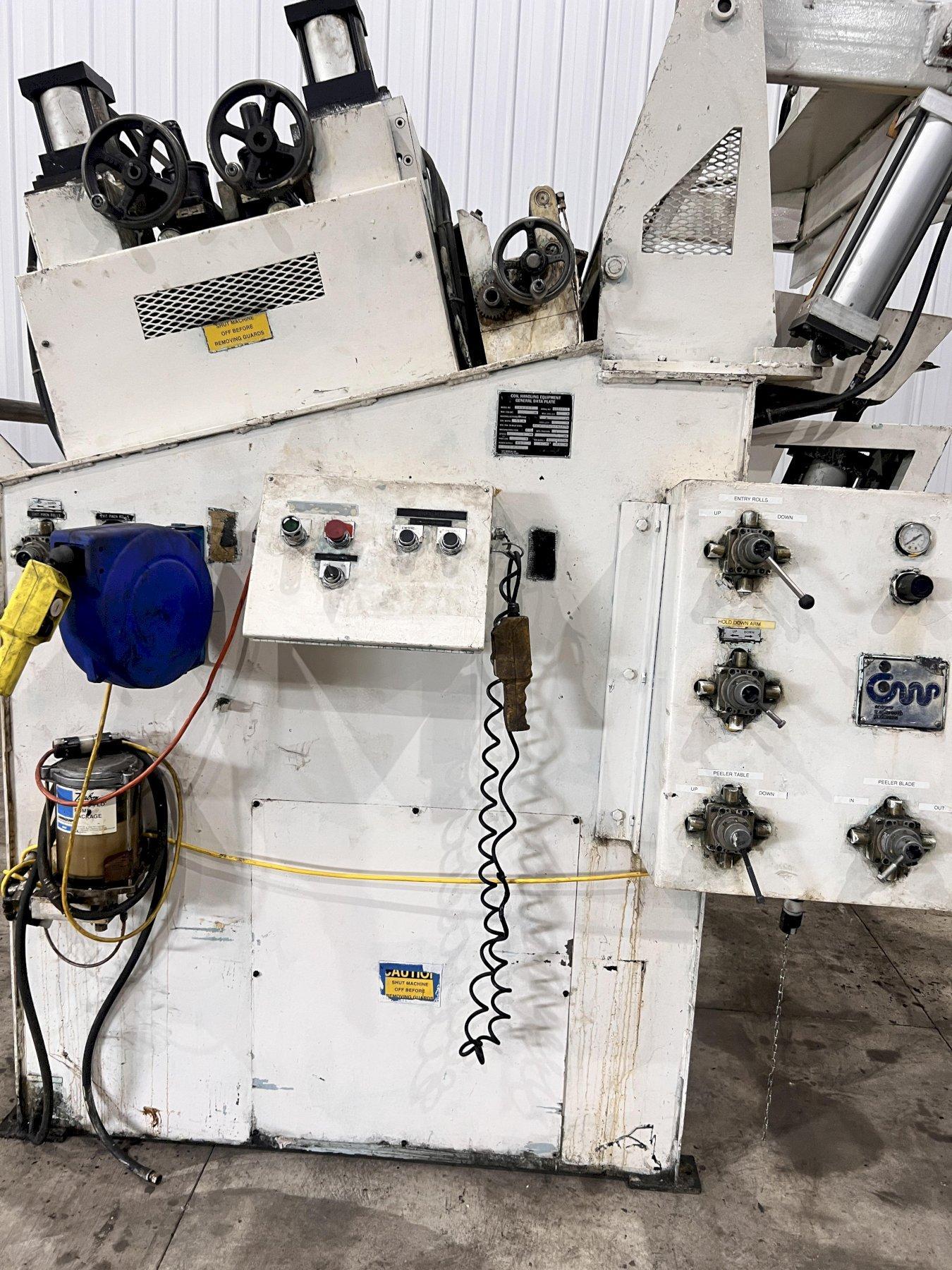

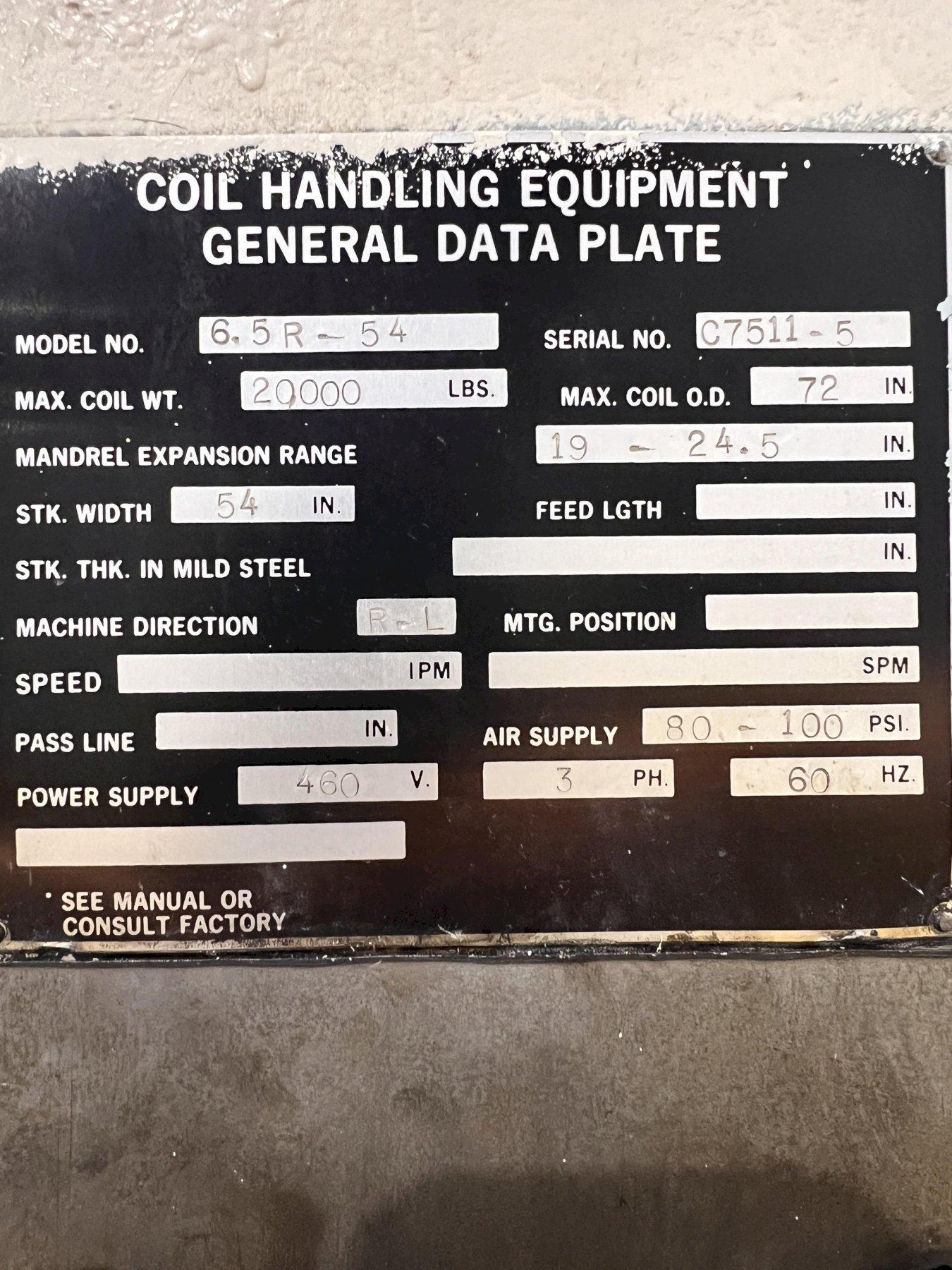

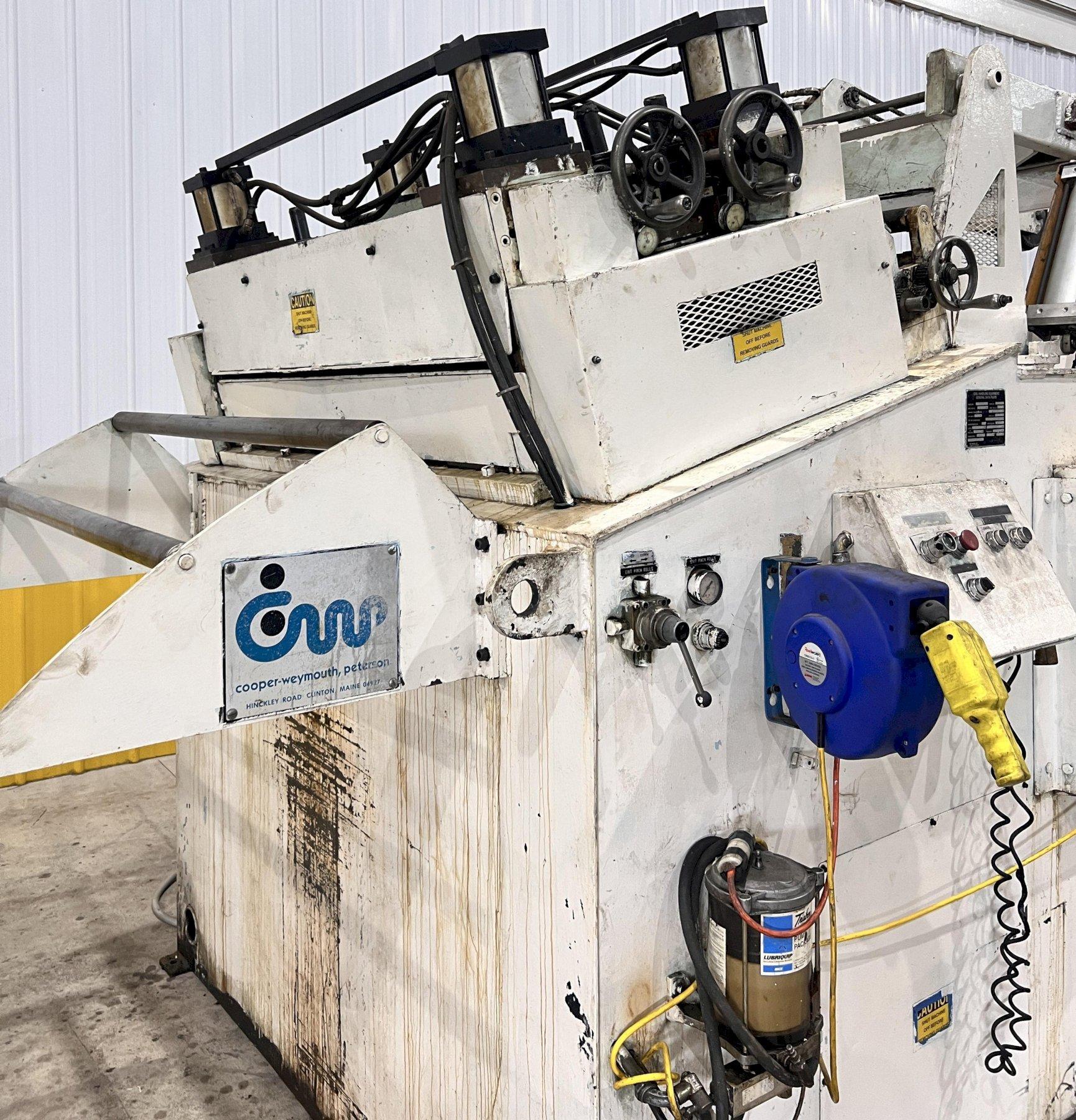

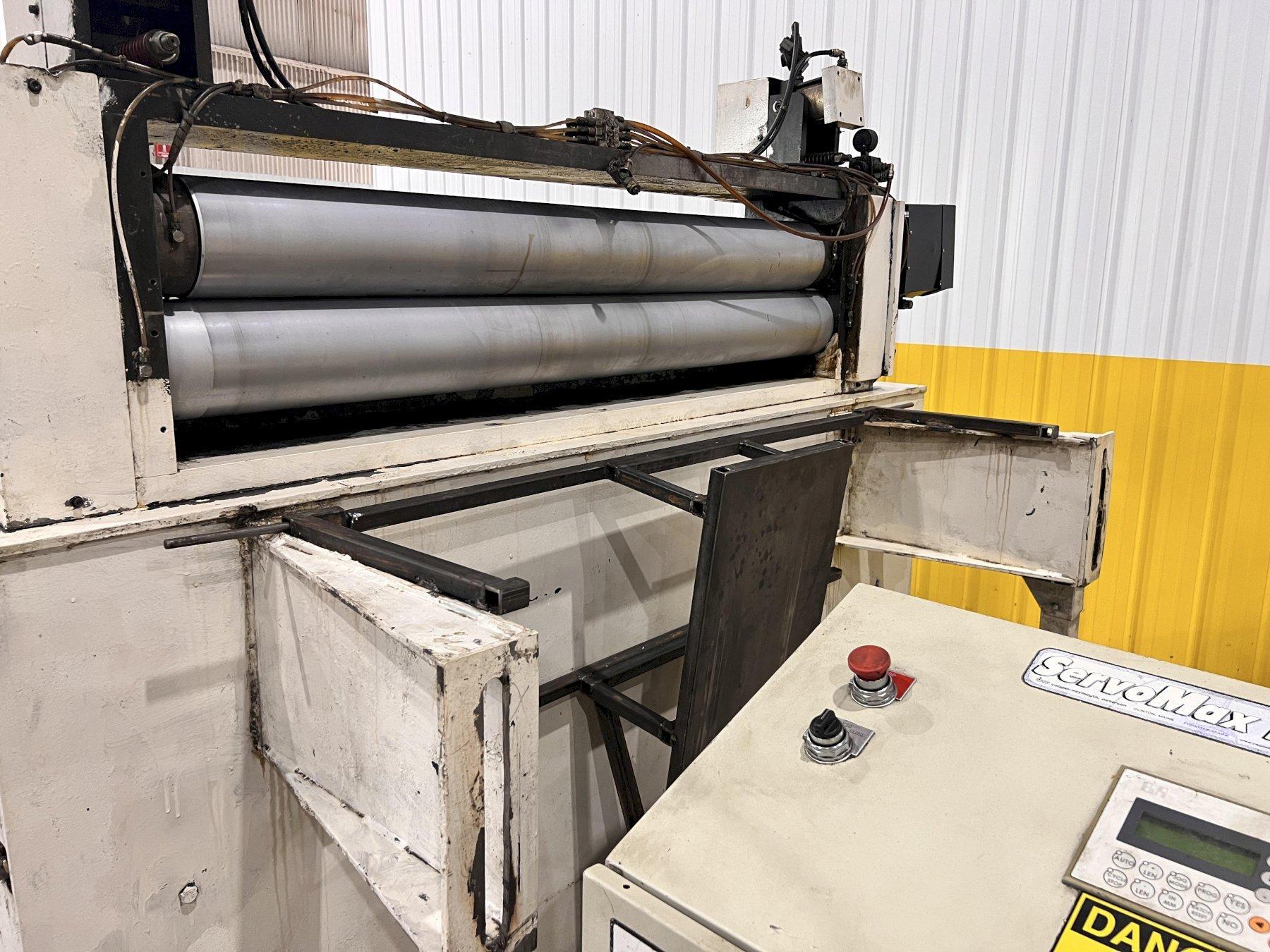

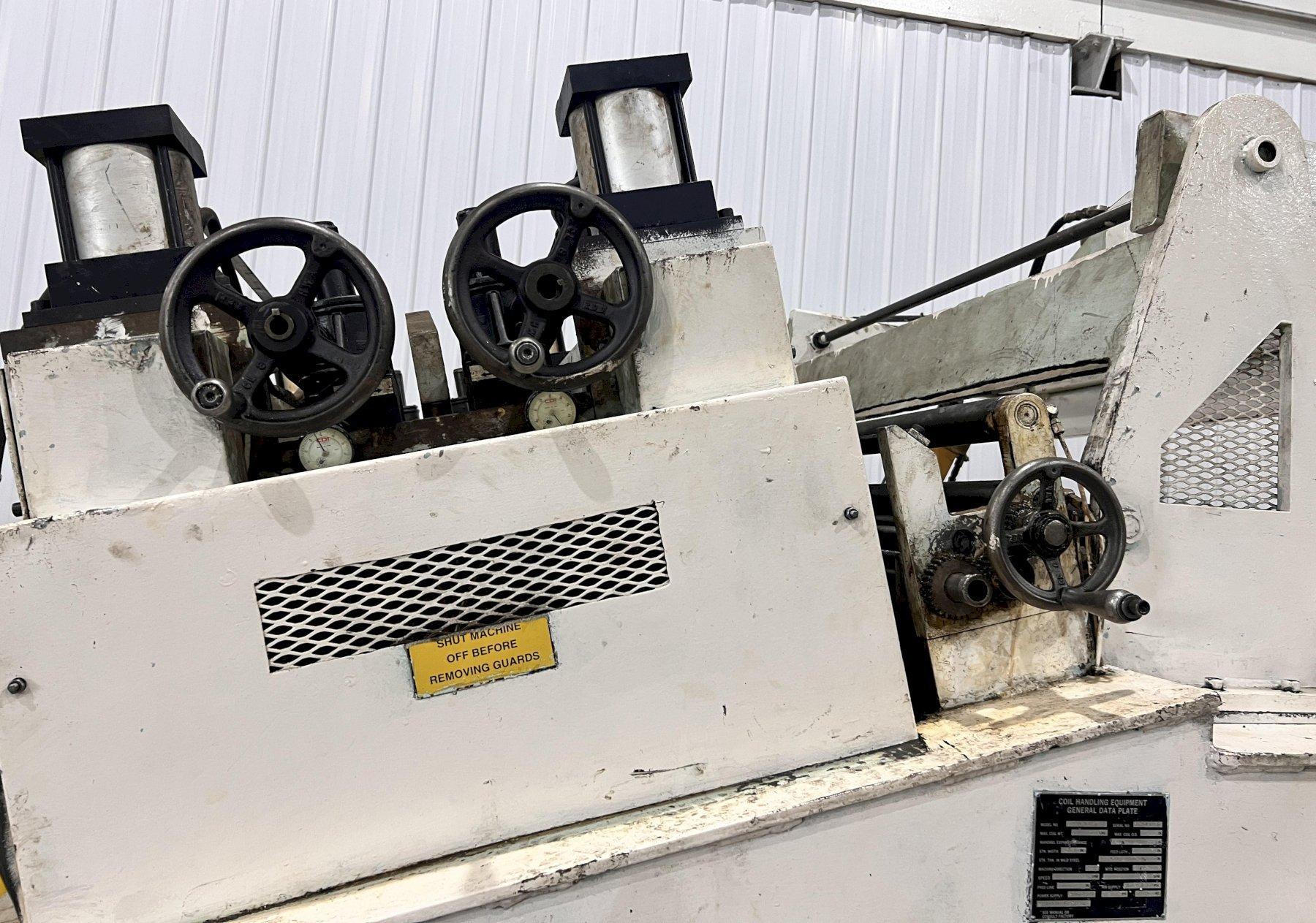

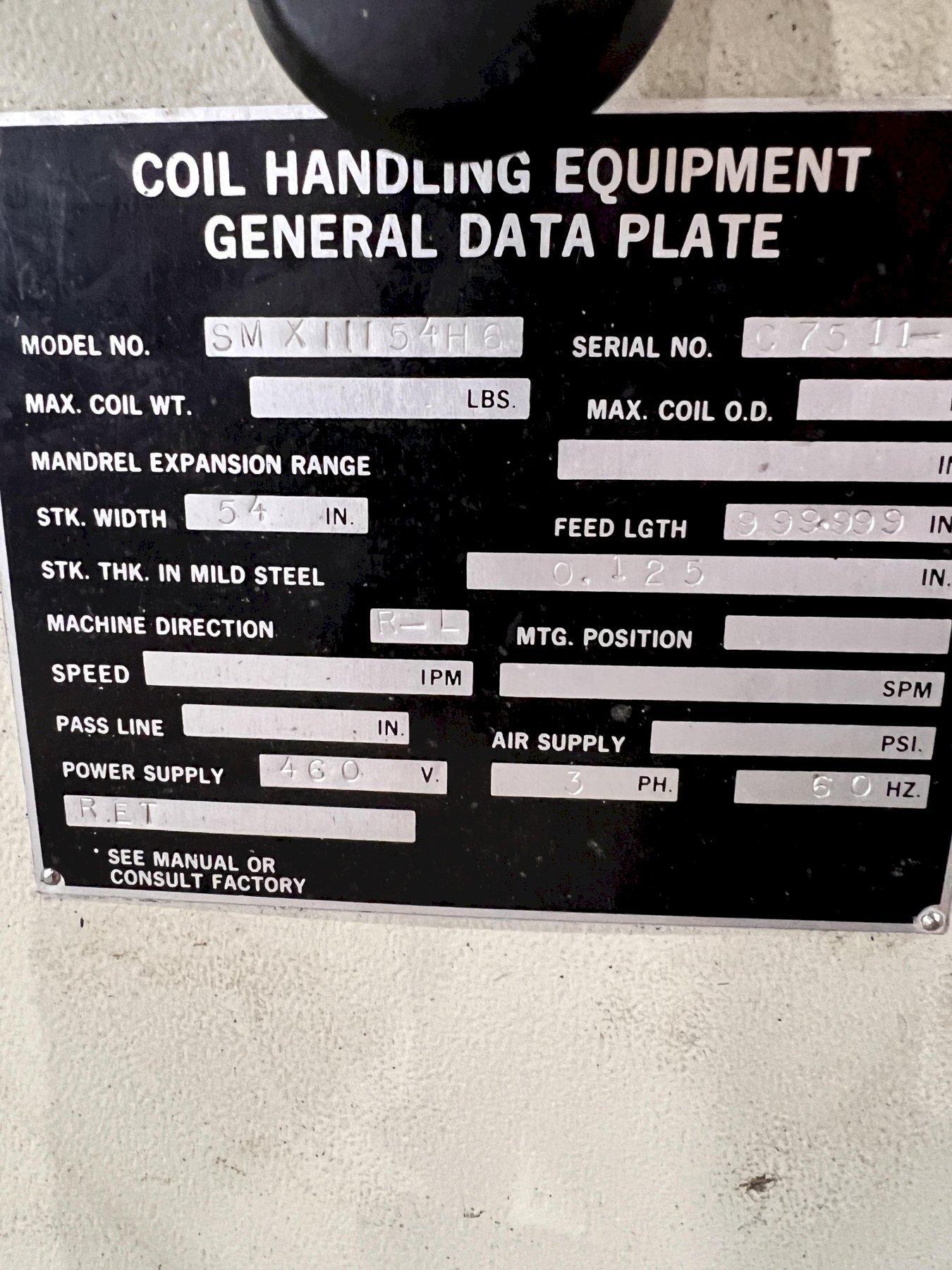

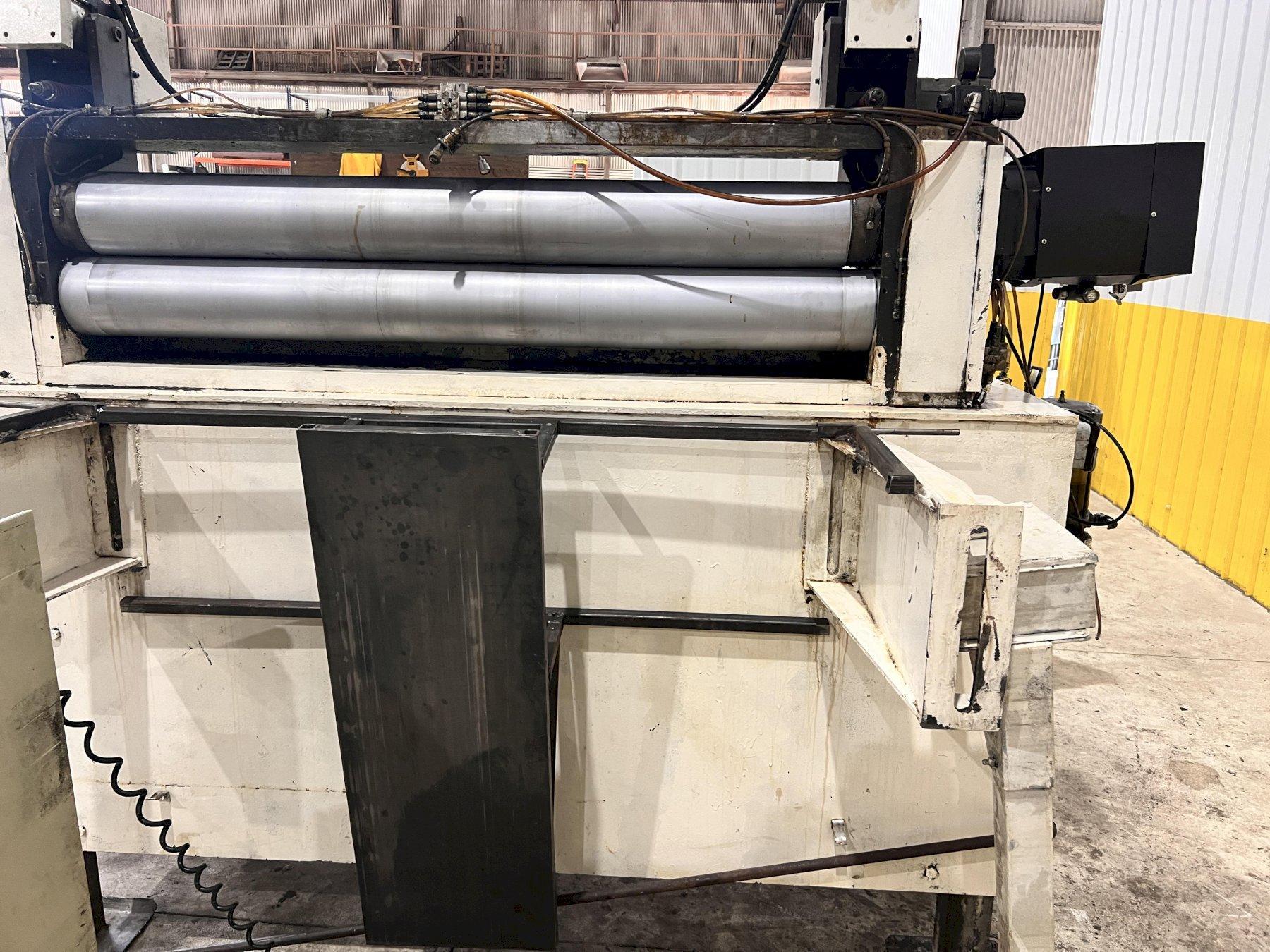

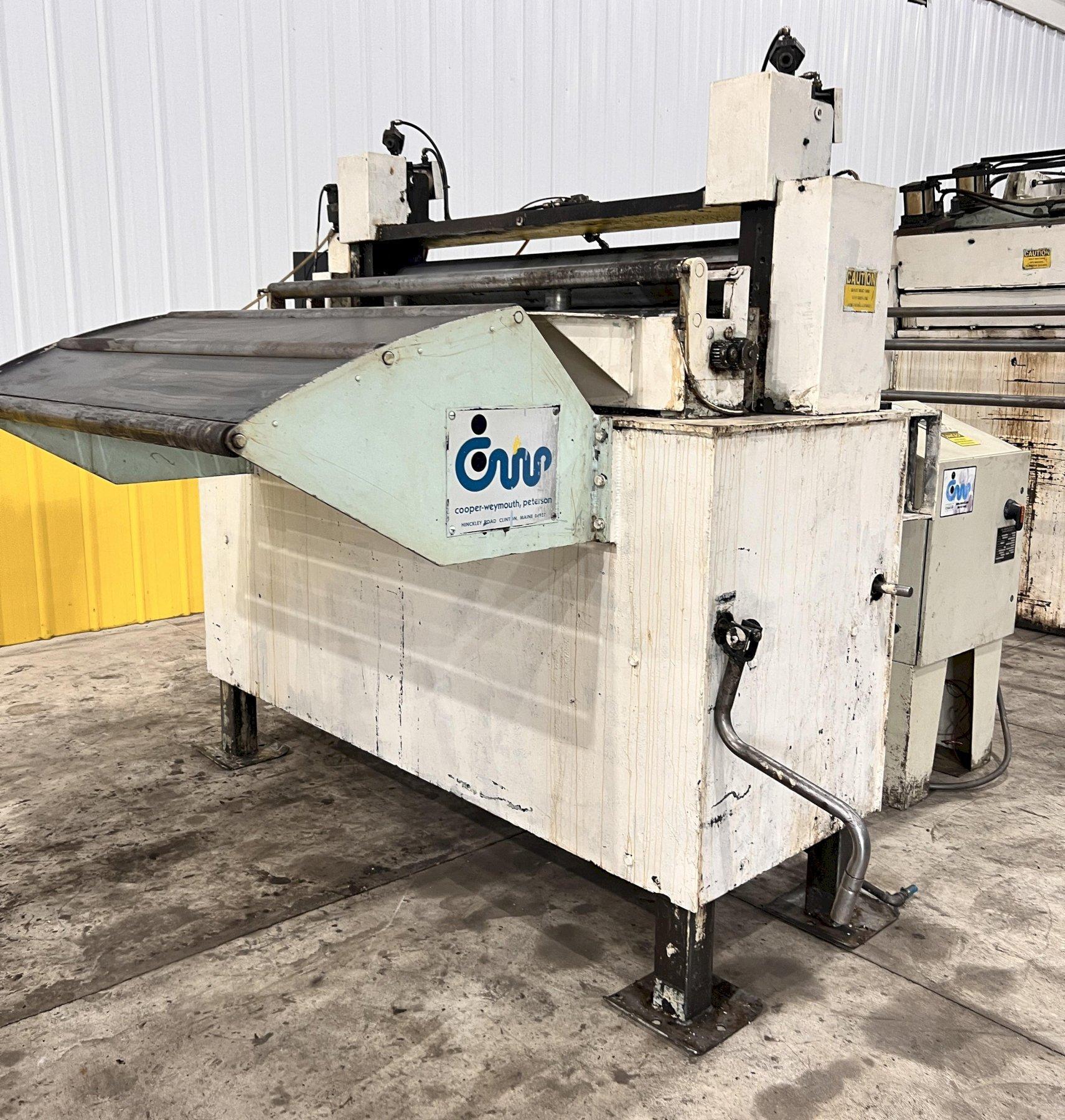

20,000 LBS X 54" X .125" CWP COIL SERVO FEED LINE, REEL, STRAIGHTENER, FEEDER, THREADING TABLE: STOCK #21083Coil weight capacity ......................... 20000 poundsStock Width Capacity ......................... 54 inchesMax Stock Thickness Capacity At Full Width ... .125 inchesMinimum expansion range ...................... 19 inchesMaximum expansion range ...................... 24.5 inchesCoil O.D. capacity ........................... 72 inchesEQUIPED WITH- Stock thickness capacity: .125" x 54" Wide- Stock thickness capacity: .187" x 34" WideCWP Servo Roll Feed Model No. SMXIII 54H6Six inch diameter upper and lower feed rollsPiloting upper roll lift - air operatedAdjustable stock width edge guides - hand crankEntry cascade loop support rollersHeavy duty cabinet base mountedAdjustable pass lineAutomatic lubrication systemAC Servo drive and controlsCWP Powered Coil Straightener Model No. 54HDD7Seven straightening rollsBack up supports on upper and lower straightening rollsEntry and exit pinch rolls with air operated adjustmentAdjustable stock width edge guides - hand crankCoil hold down arm with motorized end wheelStock peeler tableExit cascade loop support rollersAutomatic lubrication systemAC Variable frequency drive and controlsOperator's control stationCWP Exit Thread Tables (Dual Sided)
