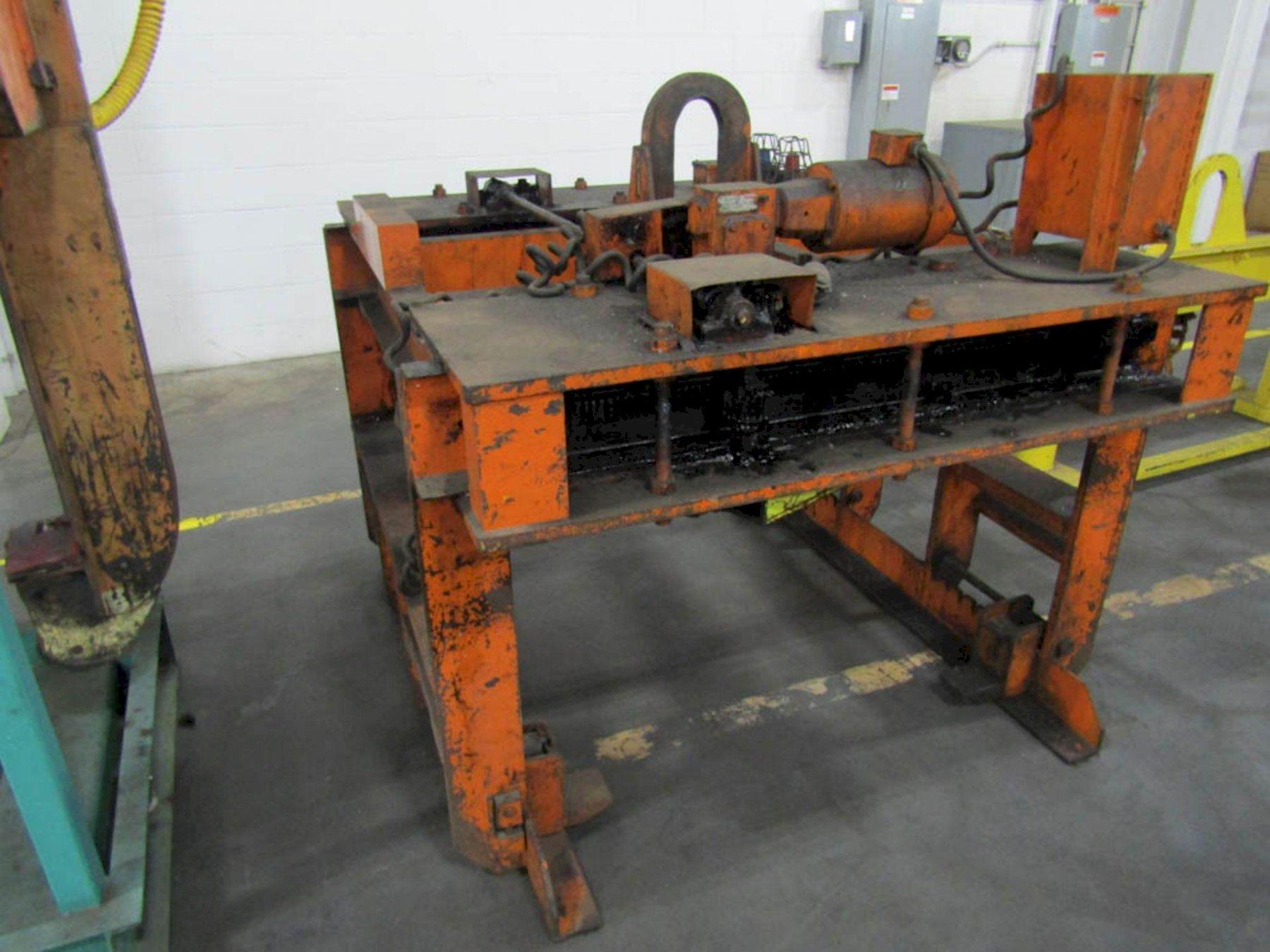

20,000 LB BUSHMAN MODEL #M5600 MOTORIZED PALLET GRAB & SHEET LIFTER: STOCK #13220

Stock #: 13220

Equipped With

SERIAL ................................................ 11858
NEW ................................................... 12-16-1986
MODEL ................................................. M5600
CAPACITY .............................................. 20,000 LBS
UNIT WEIGHT ........................................... 3440 LBS
LIFTING ANGLES ........................................ 72" LONG X 3.5" WIDE
DROP DOWN FEET ........................................ 4 @ 4.5" WIDE
DISTANCE BETWEEN FEET ................................. 30" TO 54" (12" ADJUSTMENT EACH)
STACK HEIGHT .......................................... 32"
DRIVE MOTOR ........................................... 1 HP
LEG SPEED ............................................. 20 RPM
PAINT ................................................. BUSHMAN ORANGE STANDARD
HOOK DIMENSIONS ....................................... 5"L X 10" W
CENTER OF HOOK TO END OF BASE ......................... 30"
FEET DIMENSIONS ....................................... 2"L X 4.5" W
TOTAL HEIGHT (FEET TO HOOK) ........................... 55" H
CLEAR HEIGHT (FEET TO BOTTOM OF TOP BASE) ............. 30" H
TOTAL WIDTH OPEN ...................................... 108" W
TOTAL WIDTH OPEN BETWEEN FEET DOWN .................... 99" W
TOTAL PALLET CAPACITY ................................. 48" X 86" & 72" X 96"
TOTAL SHEET STOCK ..................................... 36"-105"
