Machine Information

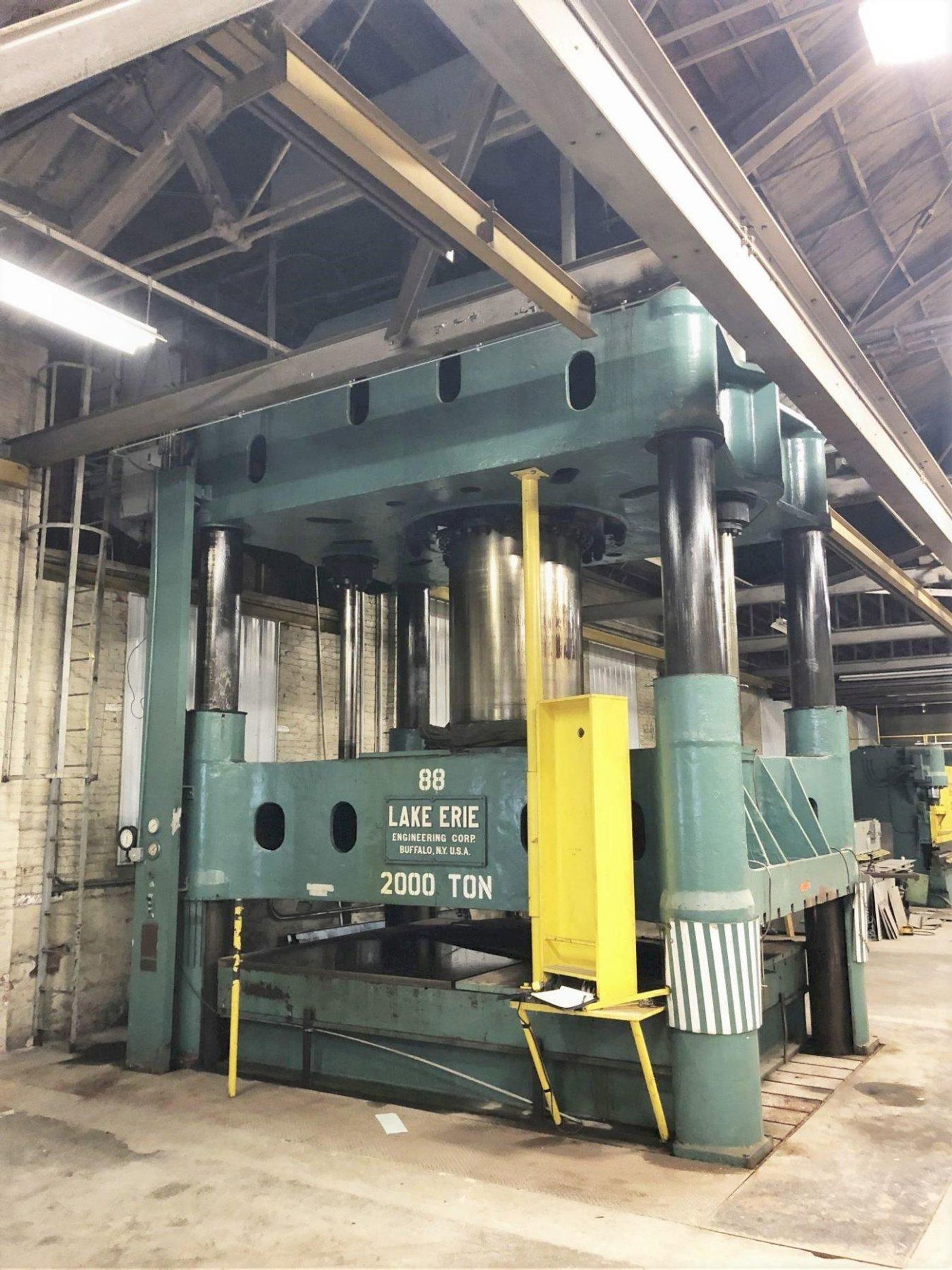

2000 TON LAKE ERIE MODEL DC-SA 4-POST HYDRAULIC PRESS: STOCK #15557

Stock #: 15557

Equipped With

CAPACITY ........................ 2000 TONS AT 2520 PSI
MAX STROKE ...................... 60″
DAYLIGHT TO BED ................. 40″ TO 108″ WITH 31″ RISER [71″ TO 139″ WITHOUT RISER]
OVERALL BED AREA ................ 186″ X 132″ (RL X FB)
OVERALL RAM AREA ................ 186″ X 96″ (RL X FB)
BETWEEN THE POSTS ............... 151″ X 96″ (RL X FB)
USABLE BED AREA ................. 151″ X 132″ (RL X FB)
SPEEDS .......................... 125 IPM CLOSING / 10.4 IPM PRESSING / 125 IPM RETURN
FLOOR TO BED .................... 60″
CYLINDER SIZE ................... 45″ DIA. BORE
2-PULL BACK CYLINDERS ........... 6.5″ AND 11.25″ DIA.
HYDRAULICS ...................... OILGEAR DH-10025 HYDRAULIC PUMP
ELECTRICS ....................... 100 HP WESTINGHOUSE LIFE-LINE MOTOR 440V-3-60 | 122 AMPS
CONTROLS ........................ UPDATED ALLEN-BRADLEY SMC-FLEX SOFT-START AND RELAY LOGIC CONTROLS
DIMENSIONS ...................... 17’4″ X 13’4″ (RL X FB) X 30’6″ HIGH
APPROX. WEIGHT .................. 450,000 LBS
EQUIPPED WITH ................... FLOOR STANDING DESIGN FLUSH WITH GROUND.
NOTE ............................ PRINTS ARE WITH CUSHION IN BED BUT THIS PRESS DOES NOT HAVE CUSHION
