Machine Information

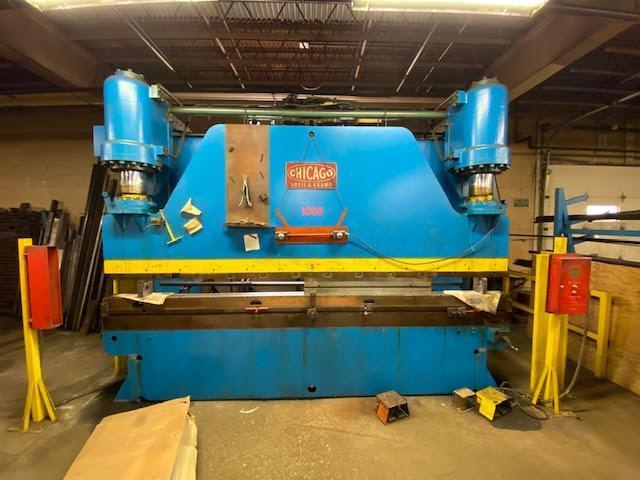

200 TON X 12' CHICAGO DREIS & KRUMP MODEL #200-H-10 HYDRAULIC PRESS BRAKE: STOCK #14997

Stock #: 14997

Equipped With

SERIAL ......................... H-1291
MODEL .......................... 200-S-10
CAPACITY ....................... 200 TON
OVERALL LENGTH OF BED & RAM .... 12'6"
DISTANCE BETWEEN HOUSINGS ...... 10'6"
STROKE OF RAM .................. 12"
OPEN HEIGHT .................... 17"
CLOSED HEIGHT .................. 5"
DEPTH OF THROAT ................ 8"
RAM SPEED PRESS ................ 30 IPM
RAM SPEED FAST RETURN .......... 85 IPM
DUAL PALM BUTTON ............... YES
ELECTRIC FOOT TRIP ............. YES
FLUSH FLOOR MACHINE ............ YES
MOTOR .......................... 20 HORSEPOWER
