Machine Information

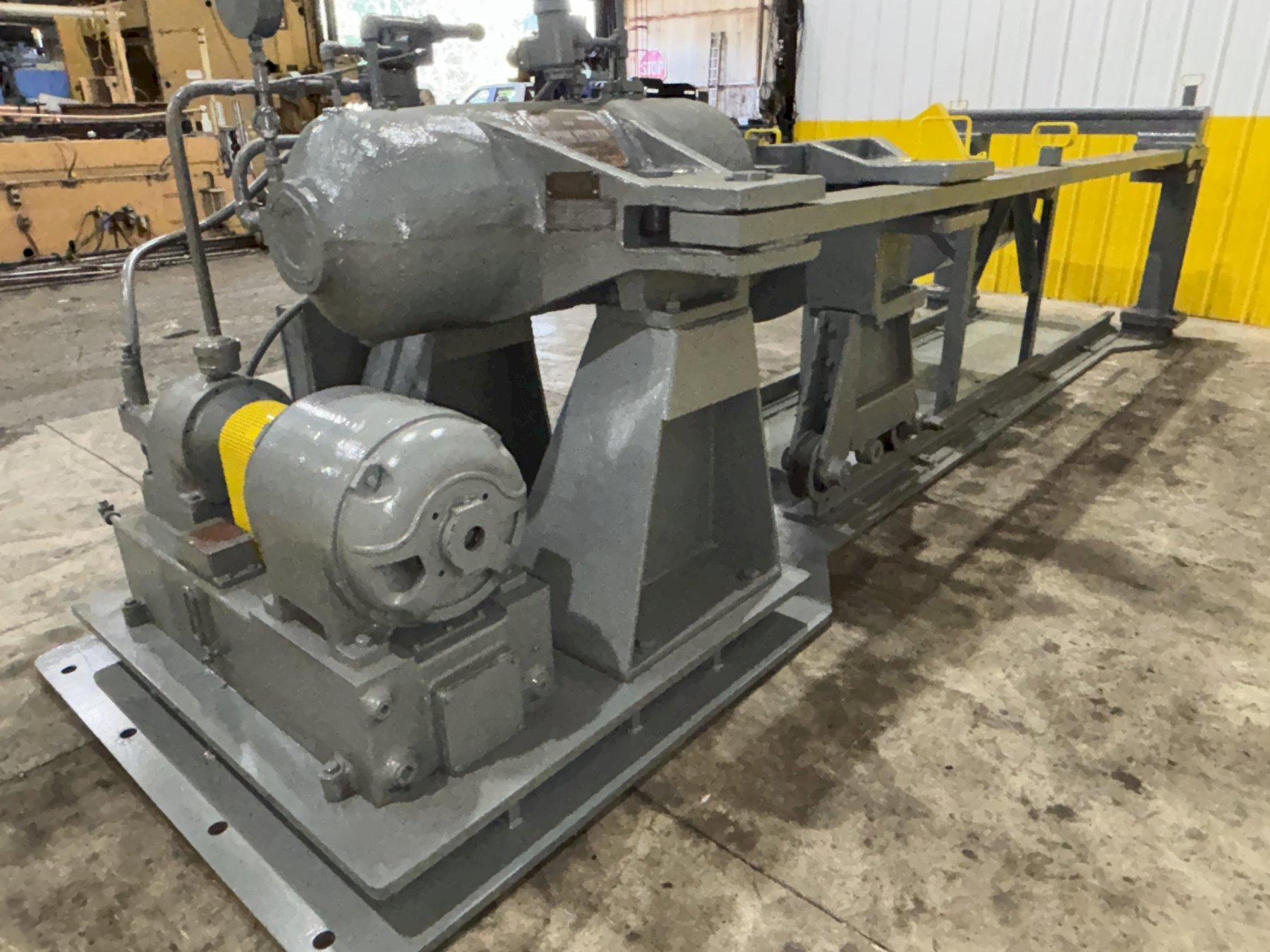

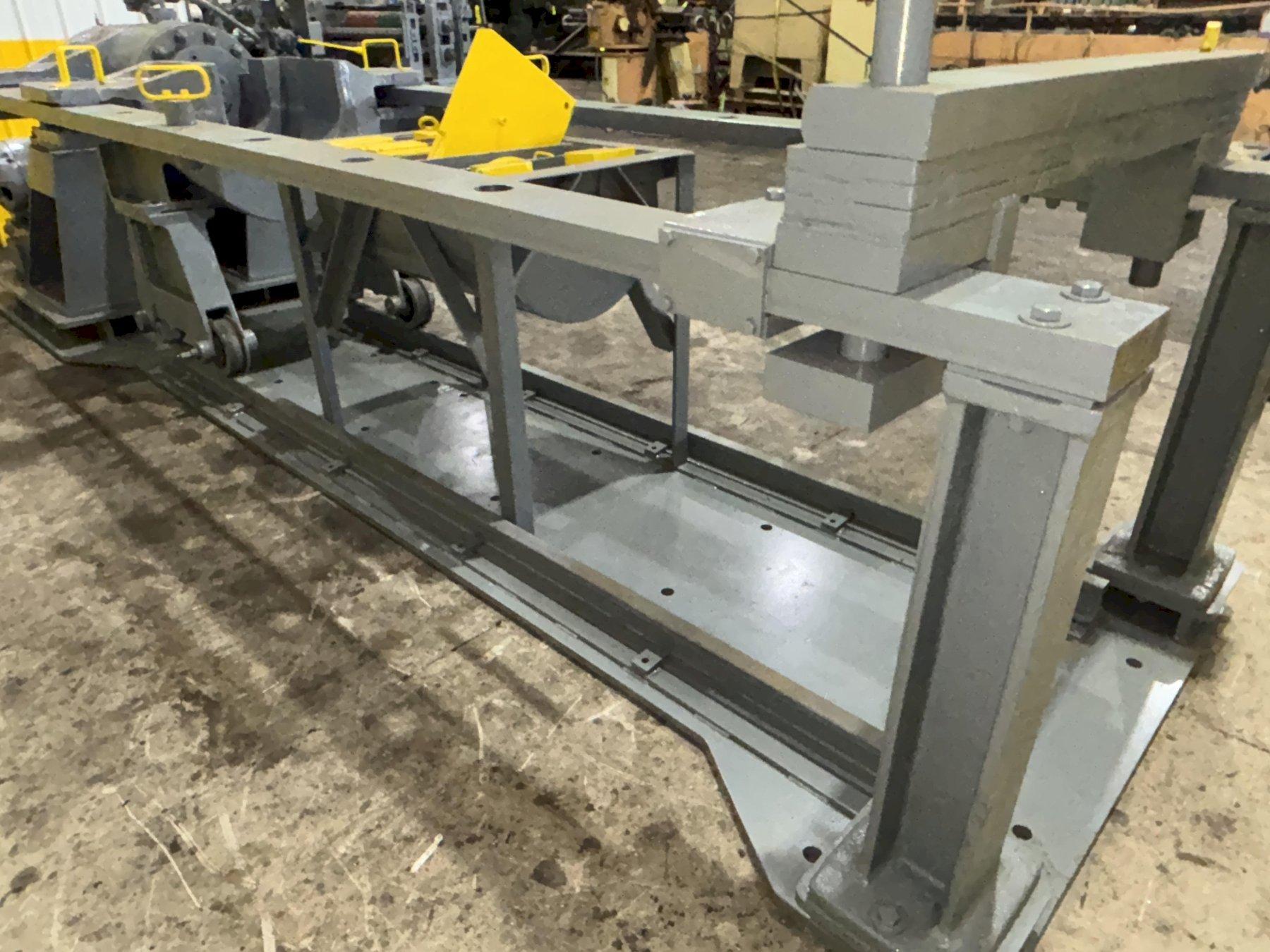

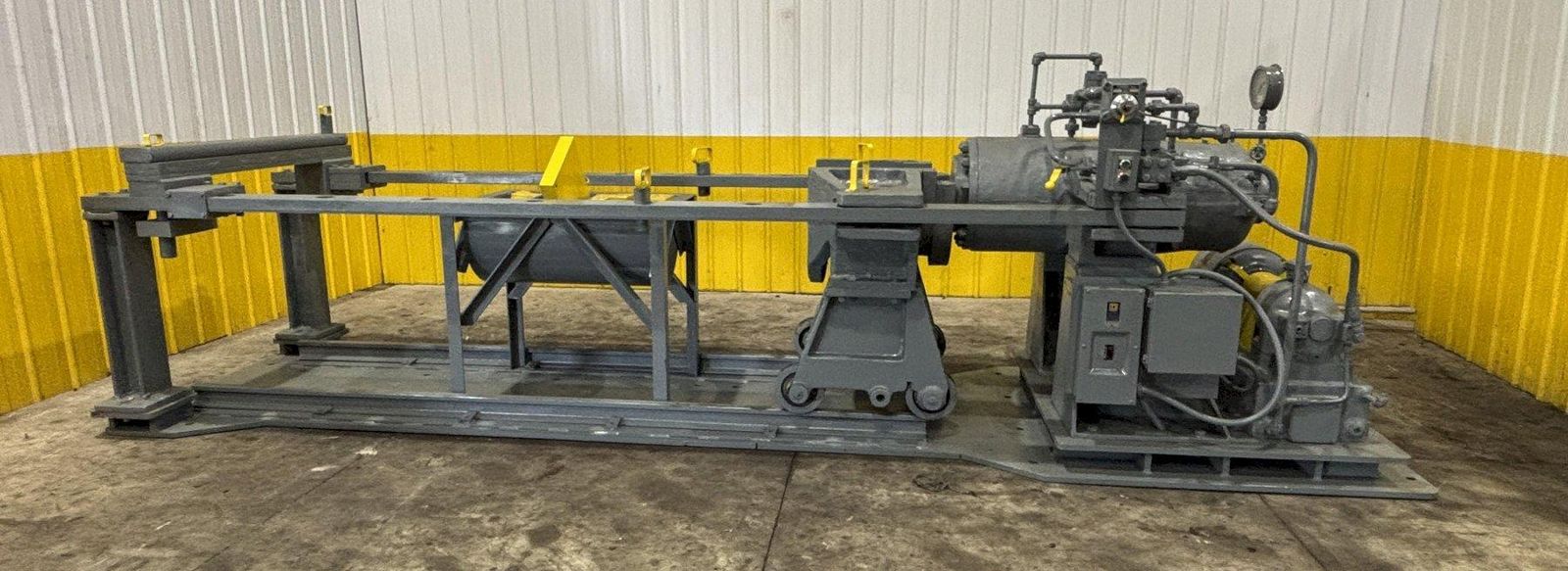

200 TON WATSON-STILLMAN HORIZONAL HYDRAULIC WHEEL PRESS: STOCK #17204

Stock #: 17204

Equipped With

SERIAL .................... 9692
CAPACITY .................. 200 TON
STROKE OF RAM ............. 16"
DIAMETER OF RAM ........... 15"
DIAMETER OF PUSH POINT .... 6"

BETWEEN STRAIN BARS ....... 43"
RAM CENTER TO FLOOR ....... 41"

RAM TO RESISTANCE BLOCK ... 32" TO 120"
WIDTH OF RESTANCE BLOCK ... 20"

HOLE IN RESISTANCE BLOCK .. 17"
RESISTANCE BLOCK ADAPTORS . 8-1/2" & 11"
ADAPTOR PUSH PLATES ....... 3", 5", 7", 9" & 11"
RESISTANCE BLOCK MOVABLE .. YES, ON TRACK & WHEELS
VICKERS HYDRAULIC PUMP .... F2Y-202-A
RAM & PUMP SPEED .......... VARIABLE, DIAL TYPE
PRESSURE TONNAGE GUAGE .... YES
HYDRAULIC UNIT MOTOR ...... 7.5 HP

*** MACHINE MOUNTED TO COMMON STEEL BASE PLATE ***

Buy Machines

200 TON WATSON-STILLMAN HORIZONAL HYDRAULIC WHEEL PRESS: STOCK #17204

Stock # 17204

Share Machine
Print Details

Machine Specifications

SERIAL .................... 9692
CAPACITY .................. 200 TON
STROKE OF RAM ............. 16"
DIAMETER OF RAM ........... 15"
DIAMETER OF PUSH POINT .... 6"

BETWEEN STRAIN BARS ....... 43"
RAM CENTER TO FLOOR ....... 41"

RAM TO RESISTANCE BLOCK ... 32" TO 120"
WIDTH OF RESTANCE BLOCK ... 20"

HOLE IN RESISTANCE BLOCK .. 17"
RESISTANCE BLOCK ADAPTORS . 8-1/2" & 11"
ADAPTOR PUSH PLATES ....... 3", 5", 7", 9" & 11"
RESISTANCE BLOCK MOVABLE .. YES, ON TRACK & WHEELS
VICKERS HYDRAULIC PUMP .... F2Y-202-A
RAM & PUMP SPEED .......... VARIABLE, DIAL TYPE
PRESSURE TONNAGE GUAGE .... YES
HYDRAULIC UNIT MOTOR ...... 7.5 HP

*** MACHINE MOUNTED TO COMMON STEEL BASE PLATE ***
