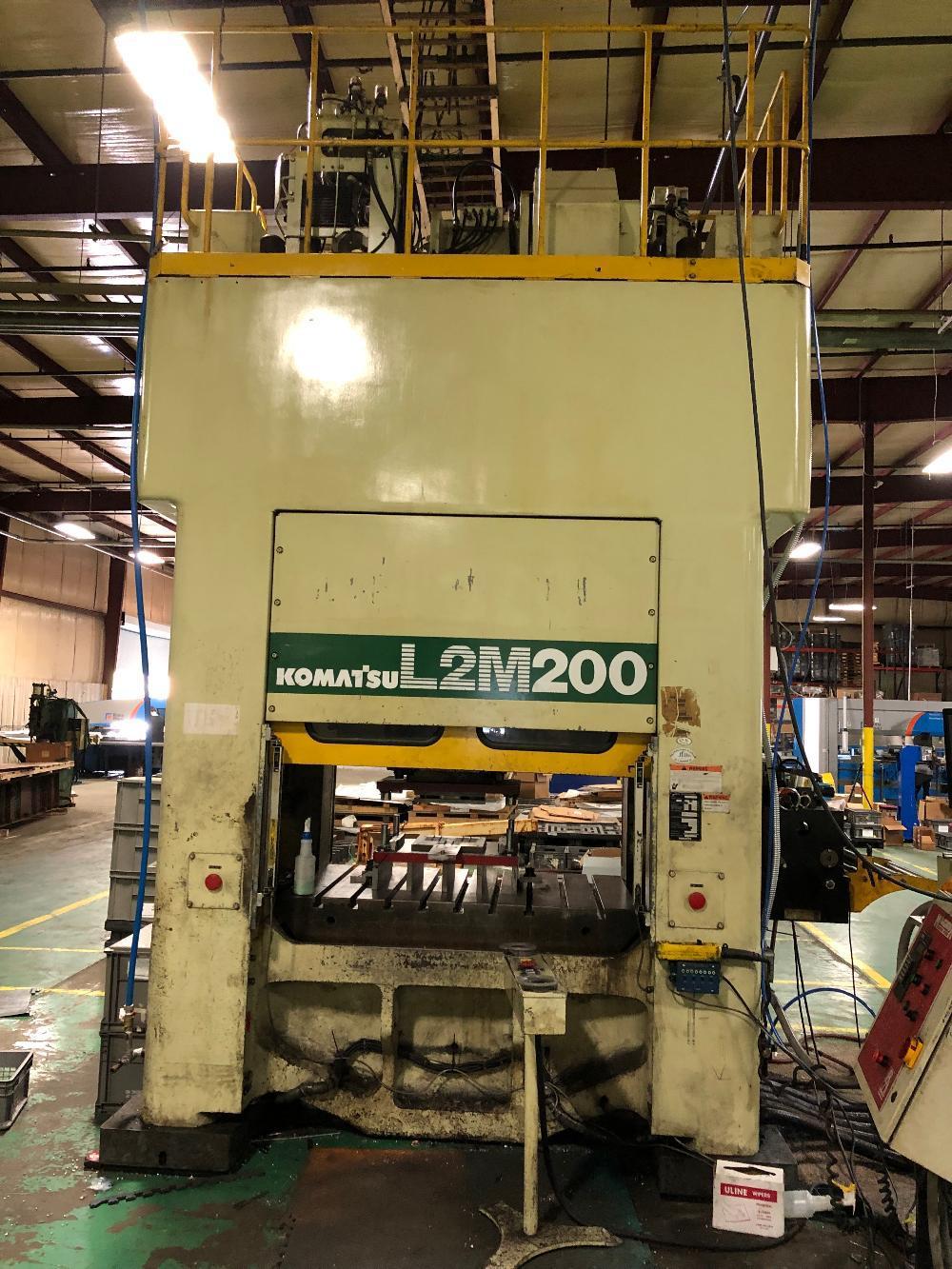

200 TON KOMATSU LINK MOTION MODEL #L2M LINK MOTION STRAIGHT SIDE PRESS: STOCK 12134

Stock #: 12134

Equipped With

Serial ....................... 10108
Model
........................ L2M200-3BM
New .......................... 2000
Stroke ....................... 7.87"
Shut height .................. 18.7" to the bolster
Adjustment ................... 3.94" (motorized)
Strokes per minute ...........  50 to 120 Variable
Bed area ..................... 61" L.R. x 37.4" F.B.
Slide area ................... 61" L.R. x 33.4" F.B. "T" slotted
Bolster plate ................ 61" L.R. x 37.4" F.B. x 9" thick "T" slotted
Clutch & brake ............... Hydraulic
Hydraulic overloads .......... Yes
Counter balances ............. Air
Windows ...................... Yes
Cast steel frame ............. Oil Cooled
Tie rod construction ......... Yes
Floor standing ............... No Pit Required
Komatsu Controls ............. Model SIT2

FEED LINE AVAILABLE AT ADDITIONAL COST:
https://yoderbrothersmachinery.com/listing/6000-lb-x-24-x-200-littell-and-pa-industries-servo-feed-line-new-2000-stock-12134/

Buy Machines

200 TON KOMATSU LINK MOTION MODEL #L2M LINK MOTION STRAIGHT SIDE PRESS: STOCK 12134

Stock # 12134

Share Machine
Print Details
Download Images

Machine Specifications

Serial ....................... 10108
Model
........................ L2M200-3BM
New .......................... 2000
Stroke ....................... 7.87"
Shut height .................. 18.7" to the bolster
Adjustment ................... 3.94" (motorized)
Strokes per minute ...........  50 to 120 Variable
Bed area ..................... 61" L.R. x 37.4" F.B.
Slide area ................... 61" L.R. x 33.4" F.B. "T" slotted
Bolster plate ................ 61" L.R. x 37.4" F.B. x 9" thick "T" slotted
Clutch & brake ............... Hydraulic
Hydraulic overloads .......... Yes
Counter balances ............. Air
Windows ...................... Yes
Cast steel frame ............. Oil Cooled
Tie rod construction ......... Yes
Floor standing ............... No Pit Required
Komatsu Controls ............. Model SIT2

FEED LINE AVAILABLE AT ADDITIONAL COST:
https://yoderbrothersmachinery.com/listing/6000-lb-x-24-x-200-littell-and-pa-industries-servo-feed-line-new-2000-stock-12134/

Videos
Specifications
Tonnage 200 tons
Stroke 7.87 inches
Shut Height 18.7 inches
SPM 120
Vari Speed (Yes/No) yes
Bed W 37.4 inches
Bed L 61 inches
Crank (Single/Double) single
Air Clutch (Yes/No) yes
