Machine Information

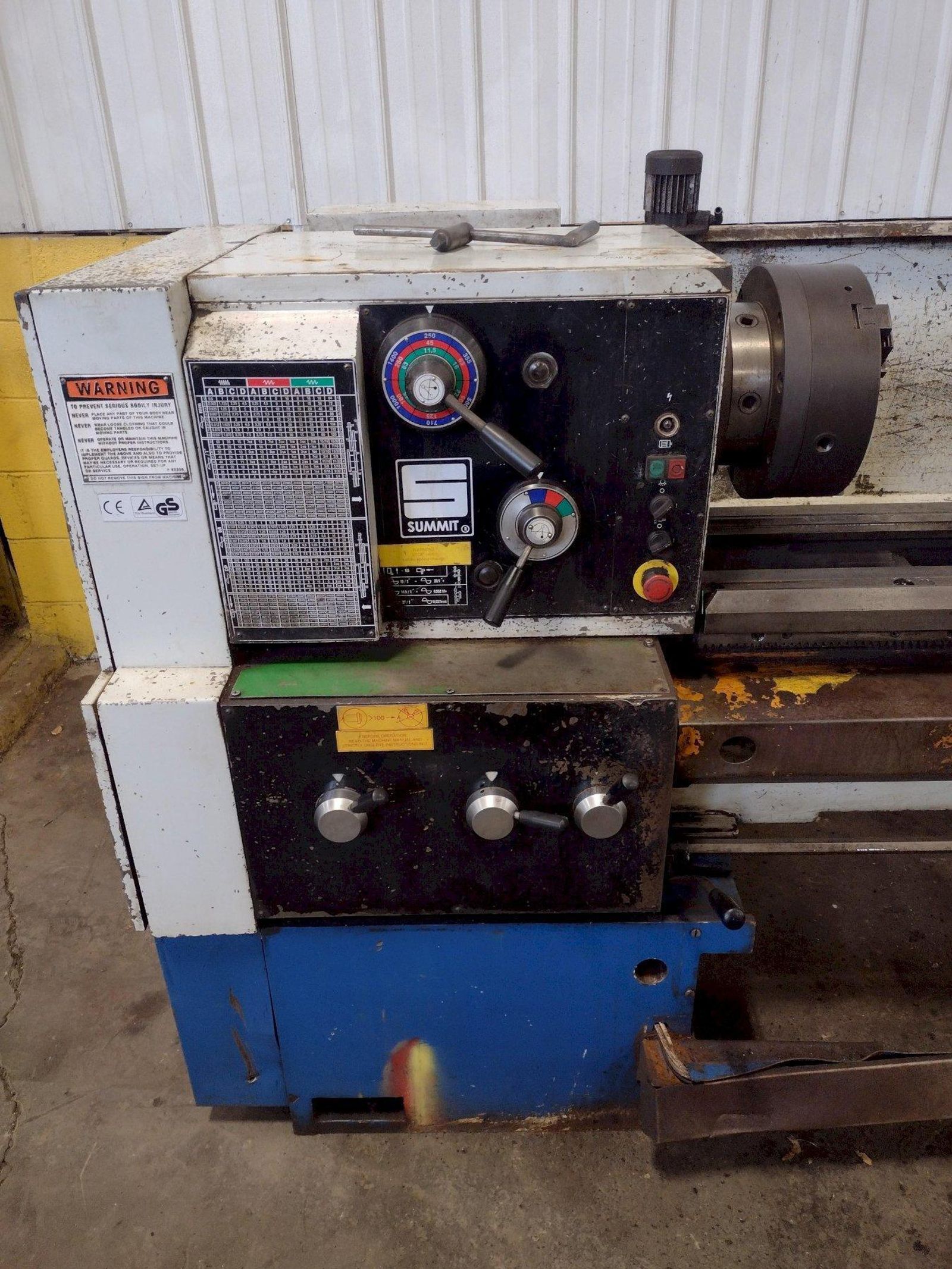

20" x 80" SUMMIT MODEL #2080 ENGINE LATHE, 4" SPINDLE HOLE: STOCK #16957

Stock #: 16957

Equipped With

SERIAL .......................... 35797
MODEL ........................... 20X80
SWING OVER WAYS ................. 21"
SWING IN THE GAP ................ 28"
SWING OVER CROSS SLIDE .......... 12"
DISTANCE BETWEEN CENTERS ........ 84"
SPINDLE SPEEDS .................. (18) 11.5 TO 1400 RPM
CHUCK ........................... 12" 3 JAW
DIAMETER OD SPINDLE HOLE ........ 4-1/16"
FEEDS ENGLISH ................... (124) .00145 TO .44474 IPR
THREADS ENGLISH ................. (64) 1/4 TO 60 TPI
METRIC THREADS .................. (64) 0.5 TO 120 MM
RAPID TRAVERSE (4 WAY) .......... 150 IPM
TAPER ATTACHMENT ................ YES
THREAD DIAL ..................... YES
STEADY REST ROLLER TYPE ......... (2)
FOLLOW REST ..................... YES
COOLANT ......................... YES
MOTOR ........................... 10 HORSEPOWER

Buy Machines

20" x 80" SUMMIT MODEL #2080 ENGINE LATHE, 4" SPINDLE HOLE: STOCK #16957

Stock # 16957

Share Machine
Print Details

Machine Specifications

SERIAL .......................... 35797
MODEL ........................... 20X80
SWING OVER WAYS ................. 21"
SWING IN THE GAP ................ 28"
SWING OVER CROSS SLIDE .......... 12"
DISTANCE BETWEEN CENTERS ........ 84"
SPINDLE SPEEDS .................. (18) 11.5 TO 1400 RPM
CHUCK ........................... 12" 3 JAW
DIAMETER OD SPINDLE HOLE ........ 4-1/16"
FEEDS ENGLISH ................... (124) .00145 TO .44474 IPR
THREADS ENGLISH ................. (64) 1/4 TO 60 TPI
METRIC THREADS .................. (64) 0.5 TO 120 MM
RAPID TRAVERSE (4 WAY) .......... 150 IPM
TAPER ATTACHMENT ................ YES
THREAD DIAL ..................... YES
STEADY REST ROLLER TYPE ......... (2)
FOLLOW REST ..................... YES
COOLANT ......................... YES
MOTOR ........................... 10 HORSEPOWER

Specifications
Dimensions 11’6”X58”X86”
