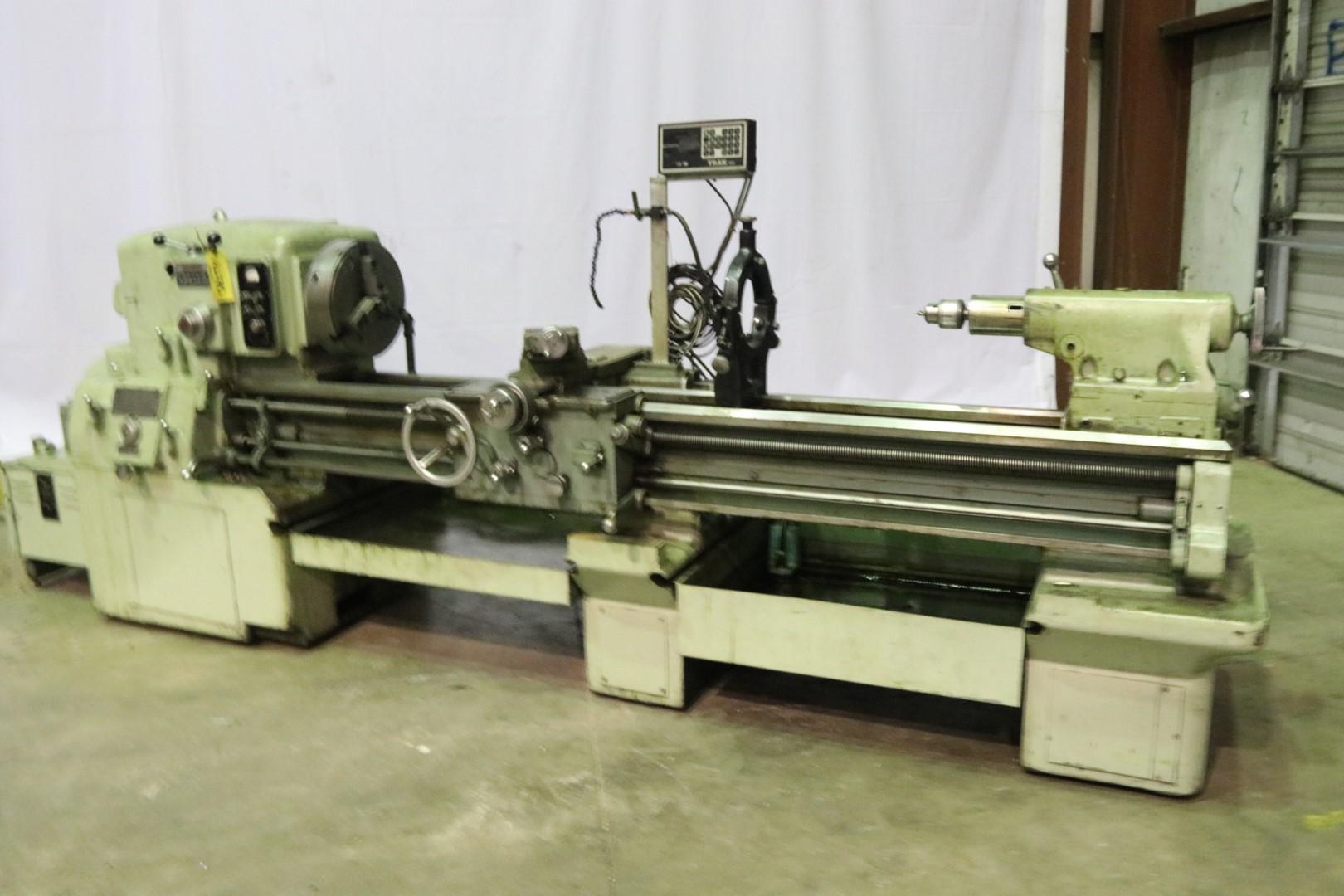

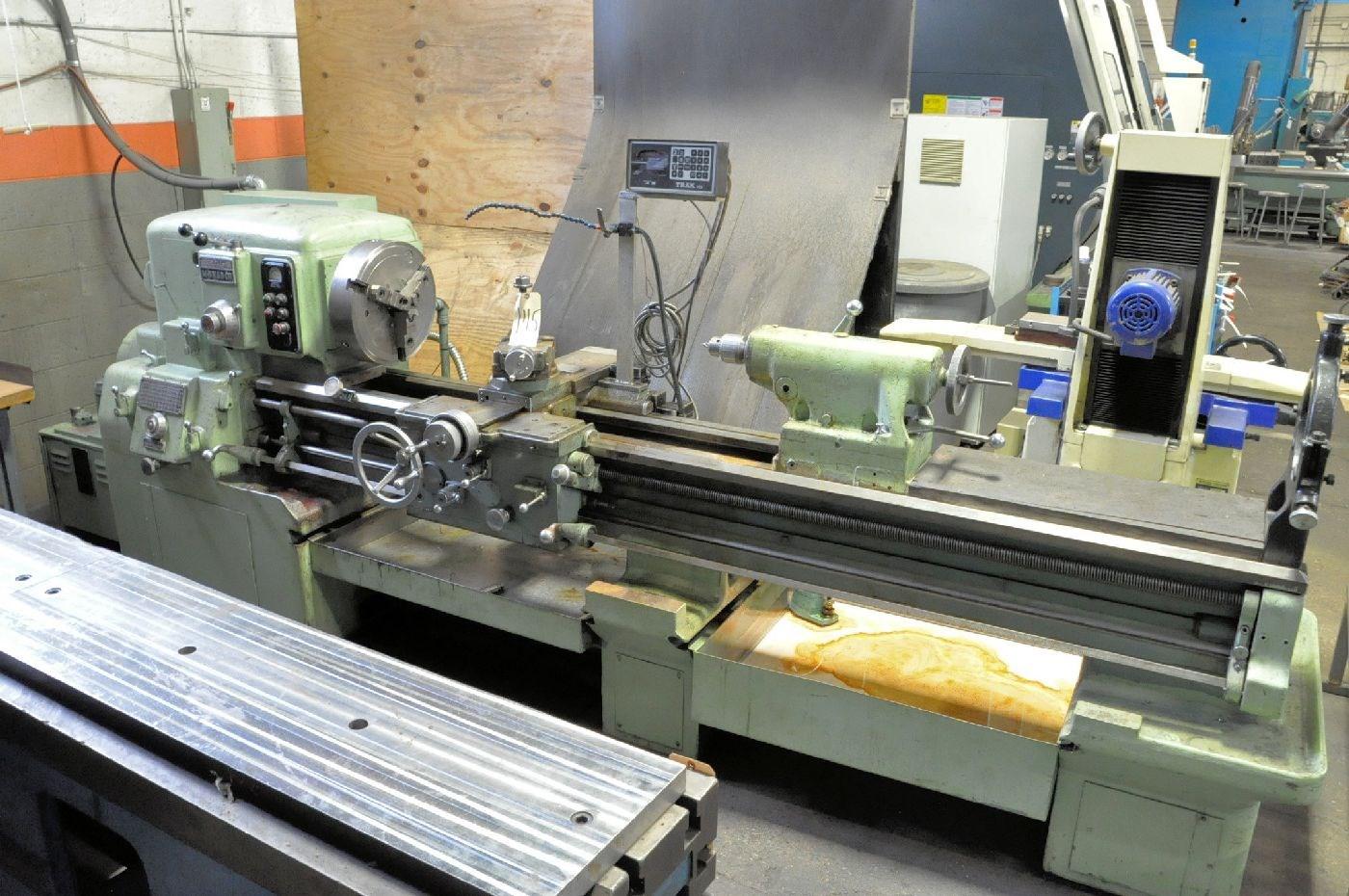

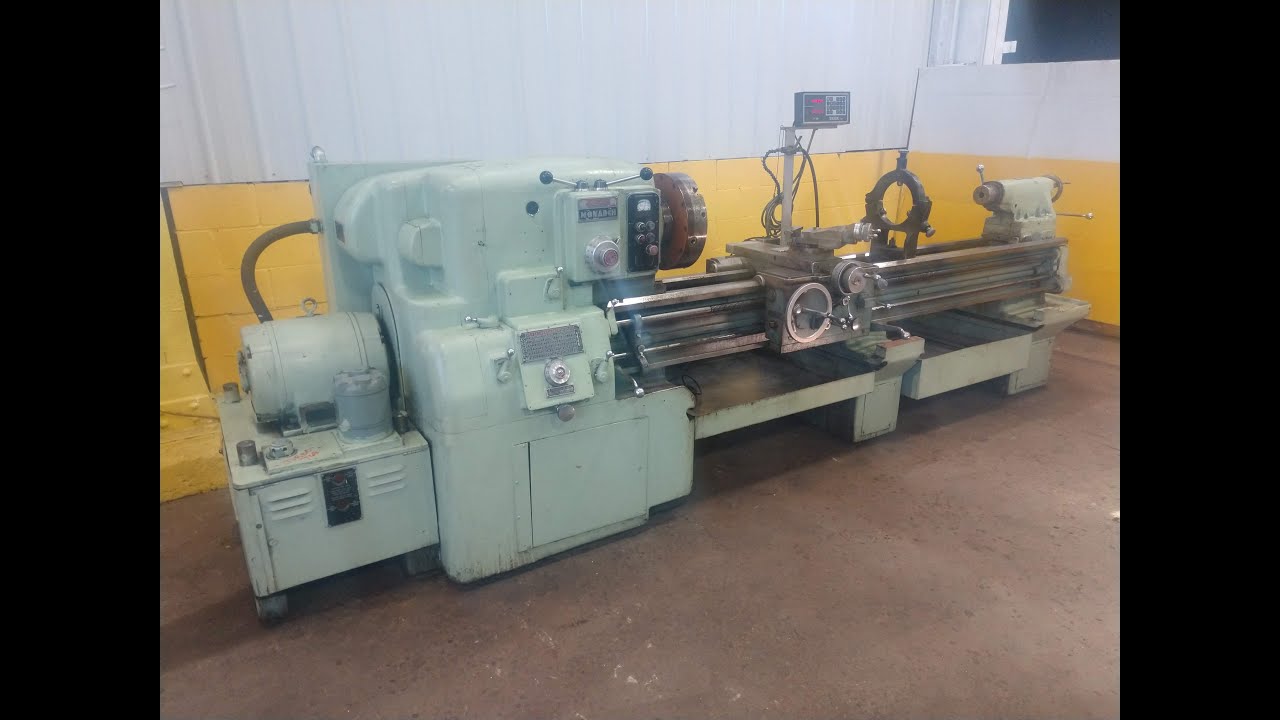

20" X 78" MONARCH MODEL #1610 ENGINE LATHE: STOCK 10540

Stock #: 10540

Equipped With

SERIAL .............................. 44491
NEW ................................. 07/1960
MODEL ............................... 612
TYPE ................................ 1610-13 X 78
SWING OVER WAYS ..................... 21"
SWING OVER CROSS SLIDE .............. 13"
DISTANCE BETWEEN CENTERS ............ 78"
SPINDLE SPEEDS ...................... (36) 12 TO 1500 RPM
FEEDS ............................... (66) .0013 TO .0821 IPR
THREADS ............................. (66) 2 TO 120 TPI
DIAMETER OF SPINDLE HOLE ............ 2-1/8"
CHUCK ............................... 15" 3 JAW CUSHMAN
STEADY REST ......................... 8" 3 POINT ROLLER
THREAD DIAL ......................... YES
DIGITAL READ OUT .................... TRAK 2 AXIS
TAILSTOCK ........................... #3 MT
COOLANT WITH PANS ................... YES
MOTOR ............................... 15 HORSEPOWER MAIN MOTOR

Buy Machines

20" X 78" MONARCH MODEL #1610 ENGINE LATHE: STOCK 10540

Stock # 10540

Share Machine
Print Details

Machine Specifications

SERIAL .............................. 44491
NEW ................................. 07/1960
MODEL ............................... 612
TYPE ................................ 1610-13 X 78
SWING OVER WAYS ..................... 21"
SWING OVER CROSS SLIDE .............. 13"
DISTANCE BETWEEN CENTERS ............ 78"
SPINDLE SPEEDS ...................... (36) 12 TO 1500 RPM
FEEDS ............................... (66) .0013 TO .0821 IPR
THREADS ............................. (66) 2 TO 120 TPI
DIAMETER OF SPINDLE HOLE ............ 2-1/8"
CHUCK ............................... 15" 3 JAW CUSHMAN
STEADY REST ......................... 8" 3 POINT ROLLER
THREAD DIAL ......................... YES
DIGITAL READ OUT .................... TRAK 2 AXIS
TAILSTOCK ........................... #3 MT
COOLANT WITH PANS ................... YES
MOTOR ............................... 15 HORSEPOWER MAIN MOTOR

Specifications
Swing 20 inches
Centers 78 inches
Weight 8625 pounds
Swing in Gap 20.5 inches
Spindle Speed RPM 1500
Main Motor 15
Threads Per Inch 120
Spindle Bore 2.125 inches
Power 15 horsepower
RPM 1500
Swing Over Cross Slide 13 inches
Dimensions 14 X 4 X 5
Chuck Size 15 inches
