Machine Information

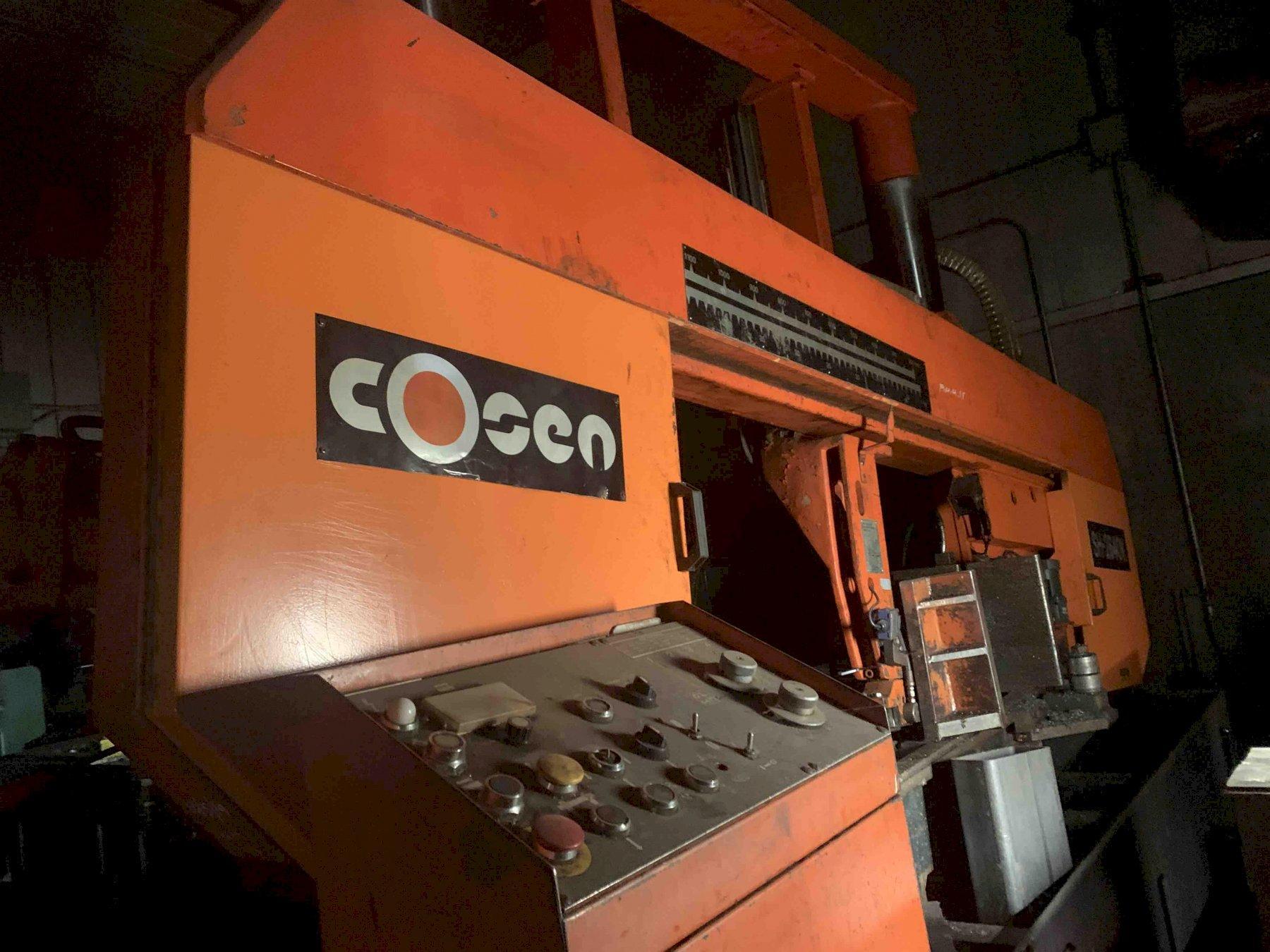

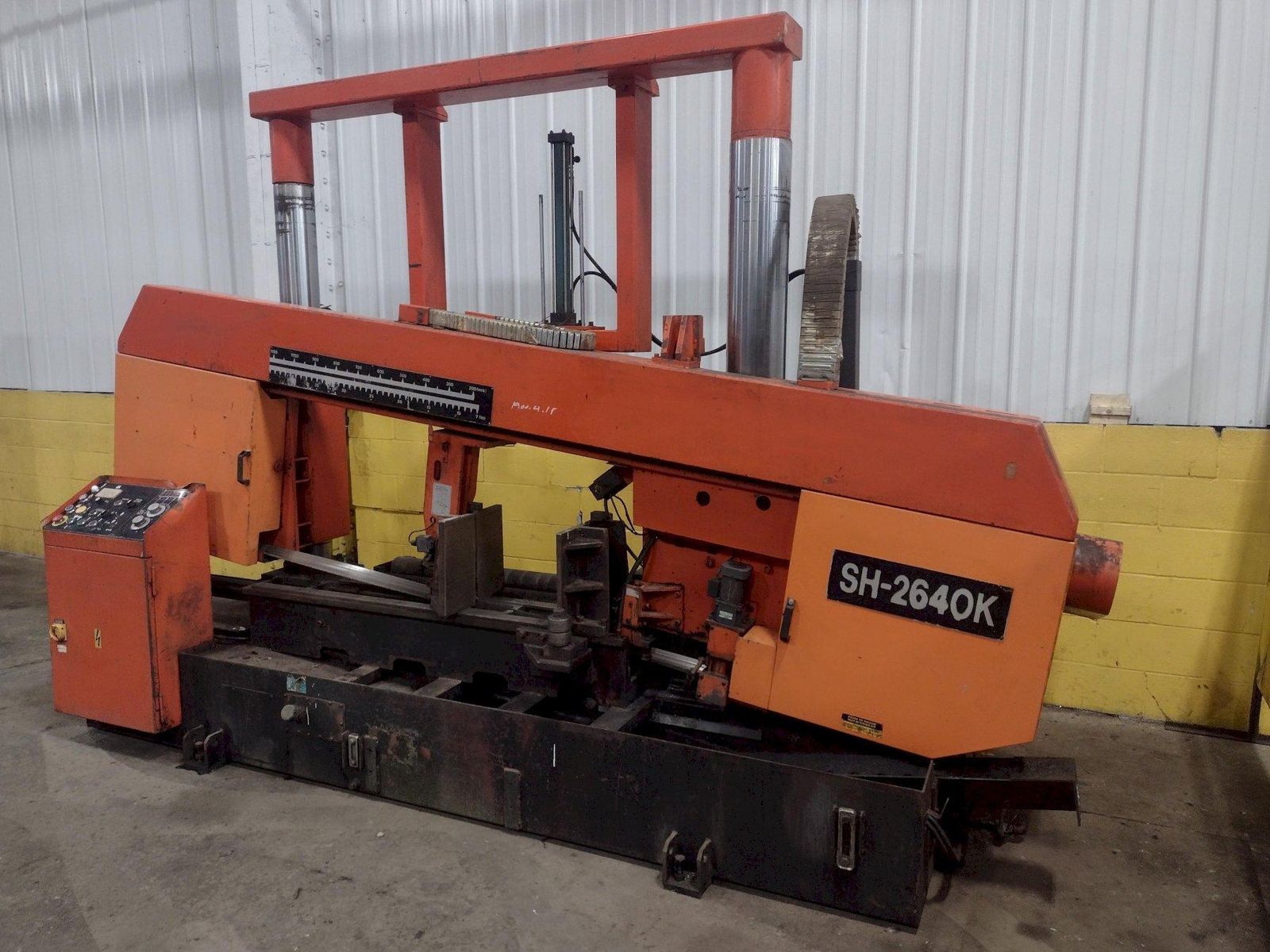

26" X 43" COSEN MODEL #SH-2640K TWIN-POST HEAVY DUTY HORIZONTAL BAND SAW: STOCK #15824

Stock #: 15824

Equipped With

SERIAL .................... 940219
MODEL ..................... SH-2640K
YEAR NEW .................. 2005
CONTSTRUCTION DESIGN ...... TWIN POST
CAPACITY (RECTANGLES) ..... 20.5" X 43"
CAPACITY (SQUARES) ........ 23" X 23"
CAPACITY (ROUNDS) ......... 26"
CUTTING WIDTH SCALE ....... YES, 7" TO 43"
CUTTING HEIGHT SCALE ...... YES, 1" TO 26"
BLADE SPEEDS .............. 49.2 TO 295.2 FPM
BLADE SPEED VFD DRIVE ..... TOSHIBA VF-S11
BLADE SIZE ................ 2.12" X 315" X .063"
BLADE TENSIONING .......... POWERED
BLADE GUIDE ARM ........... POWERED
BLADE ROTARY BRUSH OFF .... POWERED
VERTICAL HOLD DOWN ARM .... YES, HYDRAULIC
POWERED ROLLER ............ YES
COOLANT ................... YES
COOLANT CAPACITY .......... 26 GALLONS
CONTROL STATION ........... YES
E-STOP BUTTON ............. YES
WORK LIGHT ................ YES
COOLANT MOTOR ............. 1/8 HP
HYDRAULIC MOTOR ........... 3 HP
SAW BLADE MOTOR ........... 10 HP

Buy Machines

26" X 43" COSEN MODEL #SH-2640K TWIN-POST HEAVY DUTY HORIZONTAL BAND SAW: STOCK #15824

Stock # 15824

Share Machine
Print Details

Machine Specifications

SERIAL .................... 940219
MODEL ..................... SH-2640K
YEAR NEW .................. 2005
CONTSTRUCTION DESIGN ...... TWIN POST
CAPACITY (RECTANGLES) ..... 20.5" X 43"
CAPACITY (SQUARES) ........ 23" X 23"
CAPACITY (ROUNDS) ......... 26"
CUTTING WIDTH SCALE ....... YES, 7" TO 43"
CUTTING HEIGHT SCALE ...... YES, 1" TO 26"
BLADE SPEEDS .............. 49.2 TO 295.2 FPM
BLADE SPEED VFD DRIVE ..... TOSHIBA VF-S11
BLADE SIZE ................ 2.12" X 315" X .063"
BLADE TENSIONING .......... POWERED
BLADE GUIDE ARM ........... POWERED
BLADE ROTARY BRUSH OFF .... POWERED
VERTICAL HOLD DOWN ARM .... YES, HYDRAULIC
POWERED ROLLER ............ YES
COOLANT ................... YES
COOLANT CAPACITY .......... 26 GALLONS
CONTROL STATION ........... YES
E-STOP BUTTON ............. YES
WORK LIGHT ................ YES
COOLANT MOTOR ............. 1/8 HP
HYDRAULIC MOTOR ........... 3 HP
SAW BLADE MOTOR ........... 10 HP

Specifications
Dimensions 150" X 90" X 120" HIGH
Weight 9500 pounds
