Machine Information

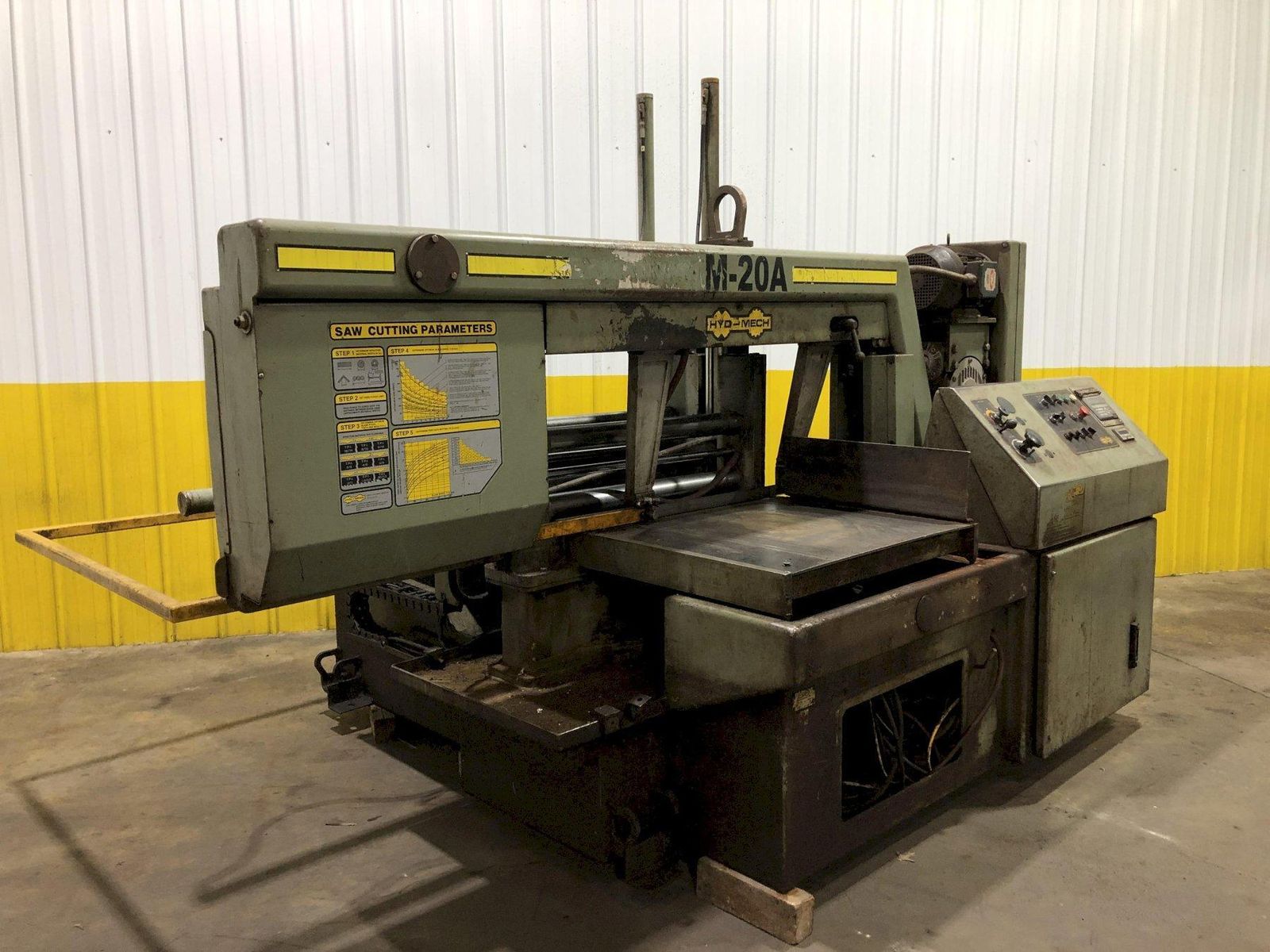

20" X 30" HYDMECH MODEL M-20A AUTOMATIC HORIZONTAL BANDSAW WITH POWER MITRE & BUNDLING: STOCK #16516

Stock #: 16516

Equipped With

MODEL ........................... M-20A
YEAR NEW ........................ 2000
CAPACITY @ 90 DEGREES ........... 20" W X 30" H
CAPACITY @ 45 DEGREES ........... 18" W X 20" H
BLADE SPEEDS (VARIABLE) ......... 50 TO 350 SFPM
BLADE SIZE ...................... 20'6" X 1-1/2"
CUTTING FORCE ................... 0 TO 500 LBS.
CLAMPING FORCE (VARIABLE) ....... 150 TO 900 PSI
MAXIMUM WORK LOAD ............... 8000 LBS.
SHUTTLE STROKE .................. 0 TO 33" (220" MAXIMUM)
OPERATOR'S CONSOLE .............. DIGITAL ANGLE DISPLAY
VISE & BLADE TENSION ............ HYDRAULIC
CHIP AUGER CONVEYOR ............. HYDRAULIC
MITERING ........................ POWER
BUDDLE CUTTING .................. NESTING
PLC CONTROL ..................... 200
COOLANT ......................... YES
HYDRAULIC MOTOR ................. 3 HORSEPOWER
BLADE MOTOR ..................... 10 HORSEPOWER

Buy Machines

20" X 30" HYDMECH MODEL M-20A AUTOMATIC HORIZONTAL BANDSAW WITH POWER MITRE & BUNDLING: STOCK #16516

Stock # 16516

Share Machine
Print Details

Machine Specifications

MODEL ........................... M-20A
YEAR NEW ........................ 2000
CAPACITY @ 90 DEGREES ........... 20" W X 30" H
CAPACITY @ 45 DEGREES ........... 18" W X 20" H
BLADE SPEEDS (VARIABLE) ......... 50 TO 350 SFPM
BLADE SIZE ...................... 20'6" X 1-1/2"
CUTTING FORCE ................... 0 TO 500 LBS.
CLAMPING FORCE (VARIABLE) ....... 150 TO 900 PSI
MAXIMUM WORK LOAD ............... 8000 LBS.
SHUTTLE STROKE .................. 0 TO 33" (220" MAXIMUM)
OPERATOR'S CONSOLE .............. DIGITAL ANGLE DISPLAY
VISE & BLADE TENSION ............ HYDRAULIC
CHIP AUGER CONVEYOR ............. HYDRAULIC
MITERING ........................ POWER
BUDDLE CUTTING .................. NESTING
PLC CONTROL ..................... 200
COOLANT ......................... YES
HYDRAULIC MOTOR ................. 3 HORSEPOWER
BLADE MOTOR ..................... 10 HORSEPOWER
