Machine Information

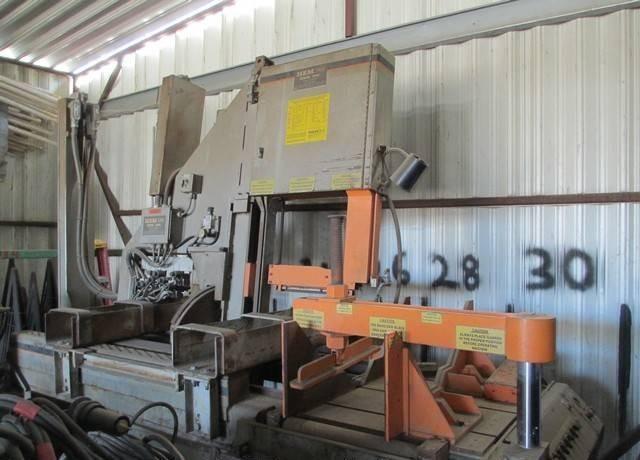

20" X 25" HEM MODEL #V150A-SMART AUTOMATIC MITERING VERTICAL BAND SAW: STOCK #18167

Stock #: 18167

Equipped With

SERIAL ................... 567497
NEW ...................... 1997
MODEL .................... VT150A SMART SAW
BLADE LENGTH ............. 1.5" X 18.6" X .050"
CAPACITY, 90 DEGREES ..... 20" W x 25" H
CAPACITY, 45 DEGREES ..... 20" W x 18" H
POWER HEAD TILTING ....... YES, LEFT OR RIGHT
BLADE SPEED .............. 75 TO 400 FPM
BLADE GUIDE ARM .......... POWERED

BLADE TENSIONING ......... POWERED
BLADE DEBURRING BRUSH .... YES
VERTICAL HOLDDOWN CLAMP .. POWERED
AUTOMATIC FEED SYSTEM .... YES

LENGTH OF FEED TRAVEL .... SINGLE OR MULTI-STROKE
MANUAL FEED JOGGING ...... YES
TOP NESTING CLAMP ........ YES
CHIP CONVEYOR ............ YES
COOLANT SYSTEM ........... YES
WORK LIGHT ............... YES

HYDRAULIC MOTOR .......... 5 HP
DRIVE MOTOR .............. 10 HP

Buy Machines

20" X 25" HEM MODEL #V150A-SMART AUTOMATIC MITERING VERTICAL BAND SAW: STOCK #18167

Stock # 18167

Share Machine
Print Details

Machine Specifications

SERIAL ................... 567497
NEW ...................... 1997
MODEL .................... VT150A SMART SAW
BLADE LENGTH ............. 1.5" X 18.6" X .050"
CAPACITY, 90 DEGREES ..... 20" W x 25" H
CAPACITY, 45 DEGREES ..... 20" W x 18" H
POWER HEAD TILTING ....... YES, LEFT OR RIGHT
BLADE SPEED .............. 75 TO 400 FPM
BLADE GUIDE ARM .......... POWERED

BLADE TENSIONING ......... POWERED
BLADE DEBURRING BRUSH .... YES
VERTICAL HOLDDOWN CLAMP .. POWERED
AUTOMATIC FEED SYSTEM .... YES

LENGTH OF FEED TRAVEL .... SINGLE OR MULTI-STROKE
MANUAL FEED JOGGING ...... YES
TOP NESTING CLAMP ........ YES
CHIP CONVEYOR ............ YES
COOLANT SYSTEM ........... YES
WORK LIGHT ............... YES

HYDRAULIC MOTOR .......... 5 HP
DRIVE MOTOR .............. 10 HP

Specifications
Dimensions 14'W X 8'D X 12'H
