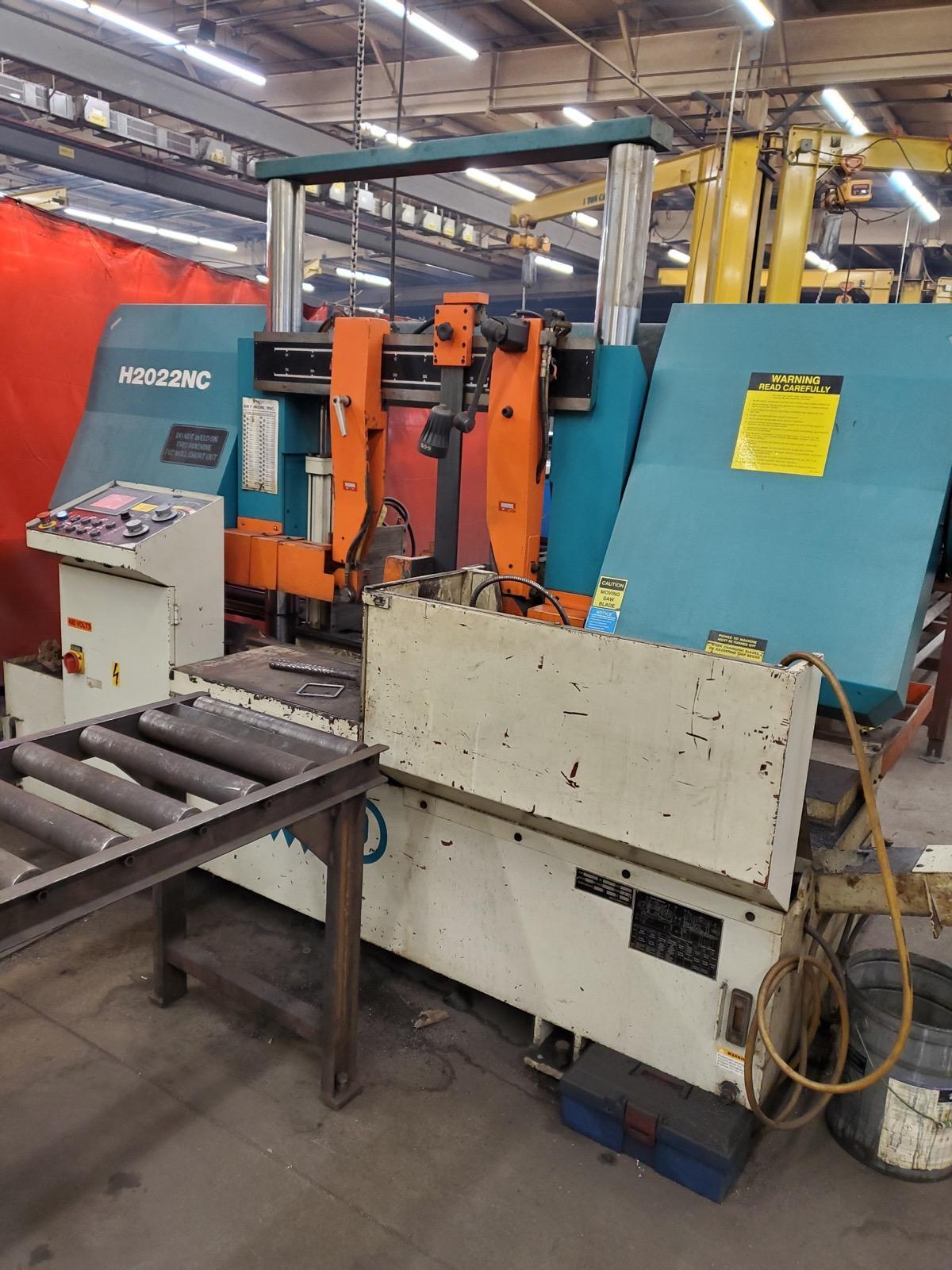

20" X 22" CLAUSING MODEL H2022NC HORIZONTAL AUTOMATIC BAND SAW: STOCK #12512

Stock #: 12512

Equipped With

SPECIFICATIONS:

  •
  • Serial #: C1010429
  • Year new: 2012
  •
  • 90° Cutting Capacity:
  • Round: 20.5"
  • Square: 20.5"
  • Rectangular: 22" x 20.5"
  • Bundle Cutting Width: 9.84" to 18.5"
  • Bundle Cutting Height: 5.9" to 12.4"
  • Blade Speeds (Variable speed): 66-328 fpm (20-100 m/min)
  • Blade Size (W x T x L): 2.1" x .06" x 238"
  •
  • Length of Remnant Auto:
  • Feed Length/Index: 23.6"
  • Max. Feed: 255.9"
  •
  • Blade Tension: Hydraulic
  • Coolant: Recirculating
  • Coolant Capacity: 22.5 gallons
  • Hydraulic Oil Capacity: 10.5 gallons
  • Motor: 7.5 Hp (5.6 kw), 230/460v 3ph
  • Hydraulic Pump Motor: 2 Hp
  •
  • Length: 114.2"
  • Width: 114.2"
  • Height: 82.7"
  • Height (head up):
  • Bed Height: 27.2"
  • Net Weight: 8,157 lbs
  • Shipping Weight: 9,480 lbs
