Machine Information

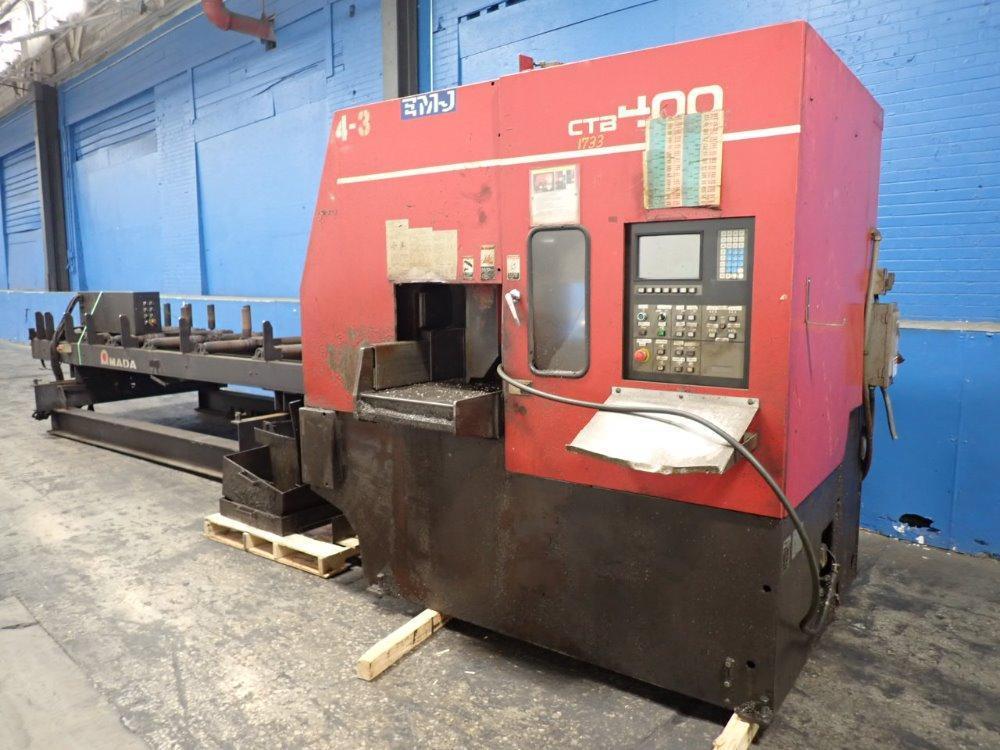

20" X 17" AMADA MODEL #CTB-400 VERTICAL BAND SAW: STOCK #14624

Stock #: 14624

Equipped With

SERIAL ............................ 4185-0085
MODEL ............................. CBT-400
YEAR NEW .......................... 1999
CUTTING CAPACITY (ROUND) .......... 1.18" TO 16.9" (
30 TO 430 MM)
CUTTING CAPACITY (RECTANGULAR) .... 16.9" X 16.9"
WORK LOAD CAPACITY ................ 5,500 LBS
SAW BLADE ......................... 1-1/2" X .055 X 15'6"
SAW BLADE SPEED ................... 50 TO 492 FPM
WORK FEED STROKE (FRONT VISE) ..... 11.8"
WORK FEED STROKE (REAR VISE) ...... 15.7"
FEED LENGTH (WITH MULTI INDEXING) . .0394" TO 393.69"
NUMBER OF CUT-OFF PIECES .......... 1 TO 999
REMNANT LENGTH .................... .059"
TABLE HEIGHT ...................... 39.4"
CUTTING FLUID TANK CAPACITY ....... 60.8 GALLONS
CHIP CONVEYOR ..................... YES
BLADE GUIDE ....................... YES
BLADE DEVIATION MONITOR ........... YES
TOUCH SCREEN CONTROLS ............. YES
SAW BLADE MOTOR ................... 10 HP
HYDRAULIC PUMP MOTOR .............. 2 HP
CUTTING FLUID PUMP MOTOR .......... 1/4 HP
WIRE BRUSH MOTOR .................. 1/8 HP

POWER INFEED ROLLER TABLE
SERIAL ............................ RT0114
YEAR NEW .......................... 2000
MODEL ............................. RT500
SIDE BY SIDE CONVEYOR ............. YES
POWERED ROLLERS ................... YES
CONTROL STATION ................... YES

Buy Machines

20" X 17" AMADA MODEL #CTB-400 VERTICAL BAND SAW: STOCK #14624

Stock # 14624

Share Machine
Print Details

Machine Specifications

SERIAL ............................ 4185-0085
MODEL ............................. CBT-400
YEAR NEW .......................... 1999
CUTTING CAPACITY (ROUND) .......... 1.18" TO 16.9" (
30 TO 430 MM)
CUTTING CAPACITY (RECTANGULAR) .... 16.9" X 16.9"
WORK LOAD CAPACITY ................ 5,500 LBS
SAW BLADE ......................... 1-1/2" X .055 X 15'6"
SAW BLADE SPEED ................... 50 TO 492 FPM
WORK FEED STROKE (FRONT VISE) ..... 11.8"
WORK FEED STROKE (REAR VISE) ...... 15.7"
FEED LENGTH (WITH MULTI INDEXING) . .0394" TO 393.69"
NUMBER OF CUT-OFF PIECES .......... 1 TO 999
REMNANT LENGTH .................... .059"
TABLE HEIGHT ...................... 39.4"
CUTTING FLUID TANK CAPACITY ....... 60.8 GALLONS
CHIP CONVEYOR ..................... YES
BLADE GUIDE ....................... YES
BLADE DEVIATION MONITOR ........... YES
TOUCH SCREEN CONTROLS ............. YES
SAW BLADE MOTOR ................... 10 HP
HYDRAULIC PUMP MOTOR .............. 2 HP
CUTTING FLUID PUMP MOTOR .......... 1/4 HP
WIRE BRUSH MOTOR .................. 1/8 HP

POWER INFEED ROLLER TABLE
SERIAL ............................ RT0114
YEAR NEW .......................... 2000
MODEL ............................. RT500
SIDE BY SIDE CONVEYOR ............. YES
POWERED ROLLERS ................... YES
CONTROL STATION ................... YES

Specifications
Dimensions 90" X 90" X 90" HIGH
Weight 14000 pounds
