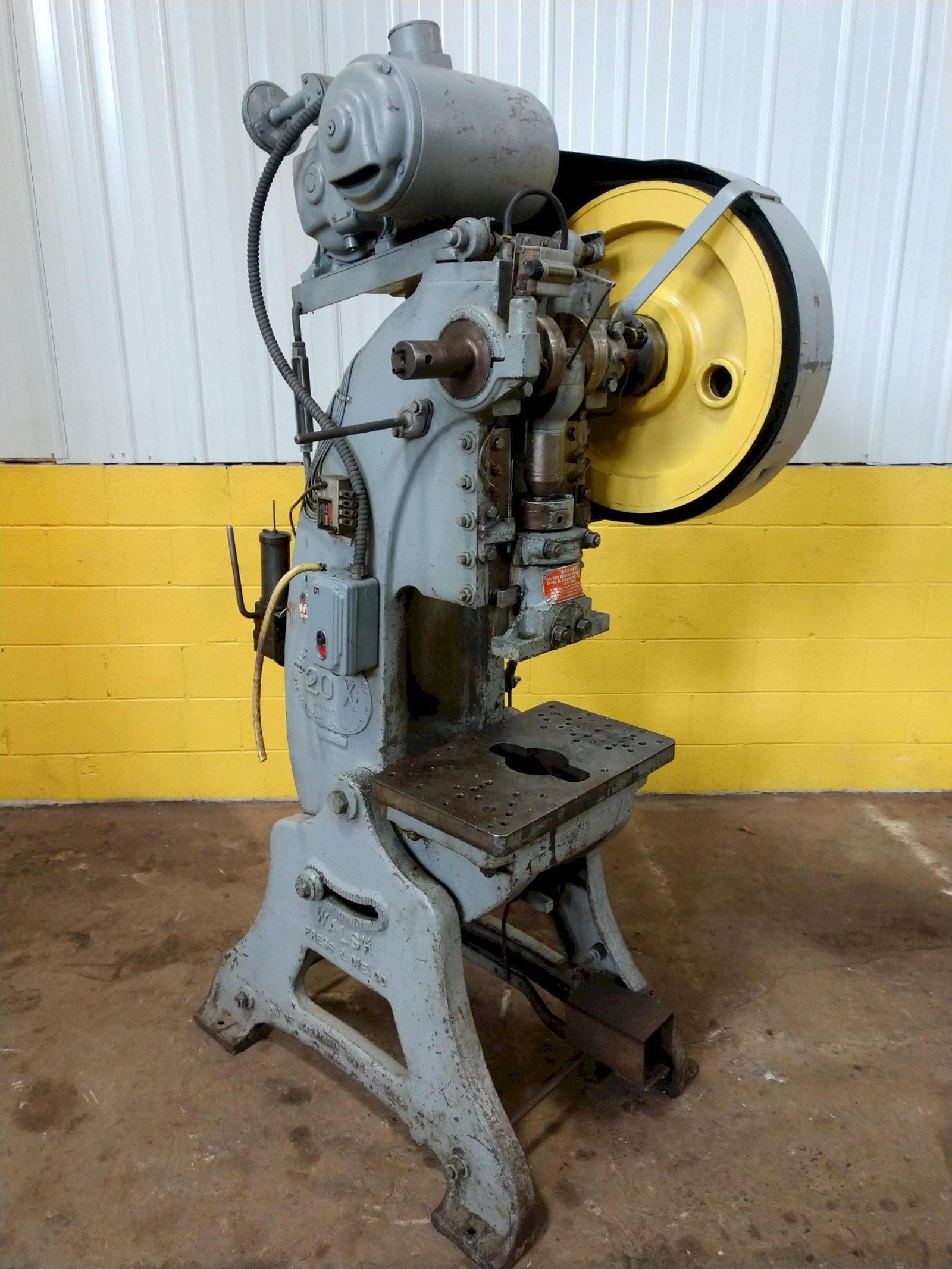

20 TON WALSH MODEL #20XL OBI PRESS: STOCK #12974

Stock #: 12974

Equipped With

SERIAL ......................... 10295
MODEL .......................... X20
CAPACITY ....................... 20 TONS
STROKE ......................... 3"
SHUT HEIGHT .................... 10"
SLIDE AREA ..................... 7" LR X 10-1/2" FB
BED AREA ....................... 22" LR X 13-1/4" FB
BED BOLSTER THICKNESS .......... 1-1/2"
WIDTH OF HOLE THROUGH BACK ..... 9"
WORK HEIGHT .................... 33"
AIR CLUTCH AND BRAKE ........... YES
STROKE COUNTER ................. YES
CENTRAL LUBE SYSTEM ............ YES
MOTOR .......................... 1 HORSEPOWER

Buy Machines

20 TON WALSH MODEL #20XL OBI PRESS: STOCK #12974

Stock # 12974

Share Machine
Print Details

Machine Specifications

SERIAL ......................... 10295
MODEL .......................... X20
CAPACITY ....................... 20 TONS
STROKE ......................... 3"
SHUT HEIGHT .................... 10"
SLIDE AREA ..................... 7" LR X 10-1/2" FB
BED AREA ....................... 22" LR X 13-1/4" FB
BED BOLSTER THICKNESS .......... 1-1/2"
WIDTH OF HOLE THROUGH BACK ..... 9"
WORK HEIGHT .................... 33"
AIR CLUTCH AND BRAKE ........... YES
STROKE COUNTER ................. YES
CENTRAL LUBE SYSTEM ............ YES
MOTOR .......................... 1 HORSEPOWER

Specifications
Weight 2000 pounds
