419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

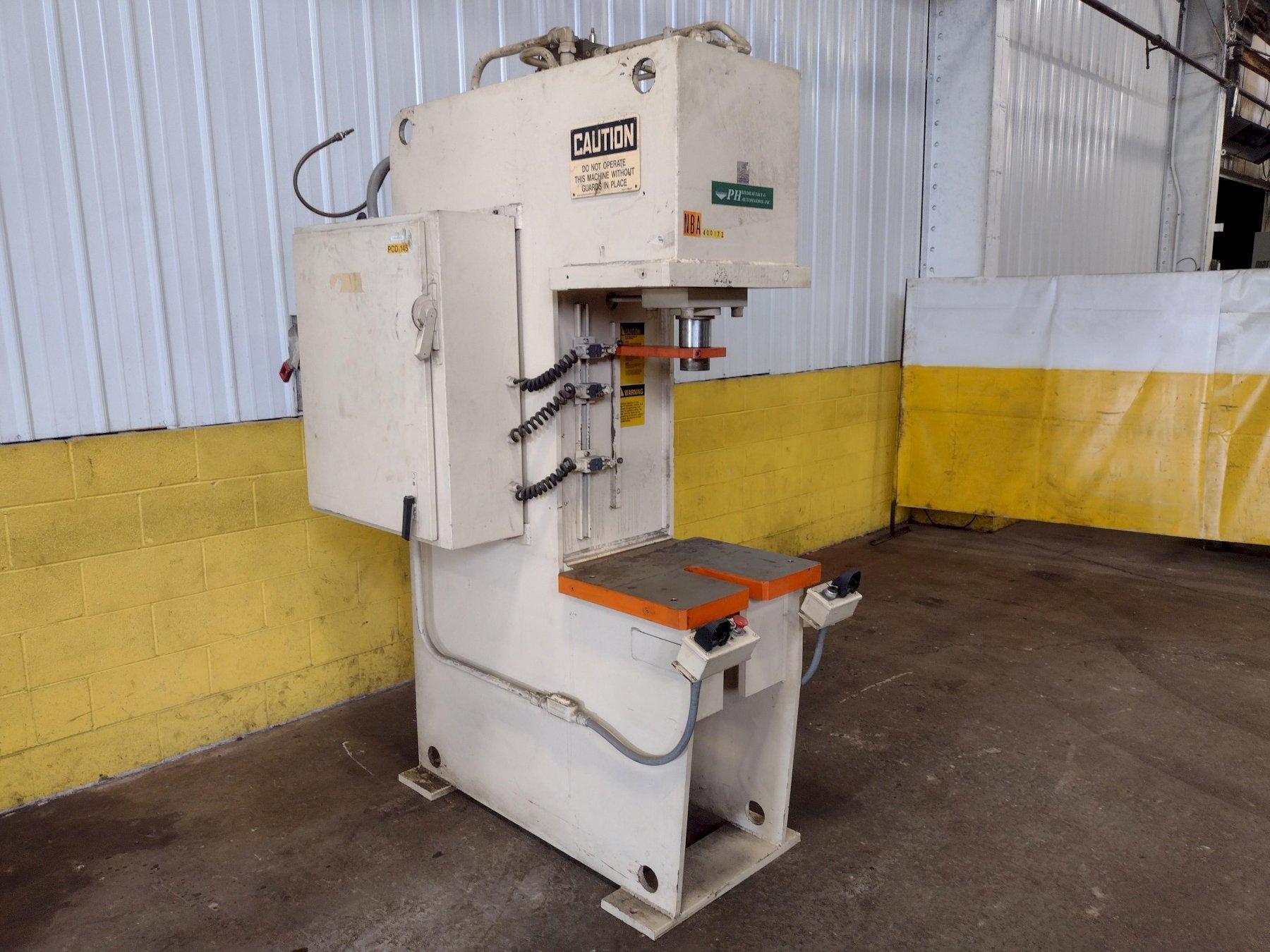

20 TON PH MODEL #OGF-20 HYDRAULIC PRESS: STOCK 17136

Stock #: 17136

Equipped With

SERIAL ............... 61593
NEW .................. 2000
MODEL ................ OGF20
CAPACITY ............. 20 TON
STROKE ............... 18"
OPEN HEIGHT .......... 24"
ADVANCE SPEED ........ 274 IPM
PRESS SPEED .......... 134 IPM
RETURN SPEED ......... 263 IPM
BED .................. 20.5" F-B X 24" L-R
SLOT IN BED .......... 10" X 2.5"
THROAT ............... 12"
BED TO FLOOR ......... 36"
OPERATING PRESSURE ... 2037 PSI (20 TON)
CONTROL .............. RUN/JOG
CONTROLS ............. PB-6 CIRCUIT
CYLINDER BORE ........ 5"
CYLINDER ROD ......... 3.5"
HYDRAULIC RESERVOIR .. 60 GALLON
PUMP ................. 12 GPM
MOTOR ................ 15 HP

20 TON PH MODEL #OGF-20 HYDRAULIC PRESS: STOCK 17136

Stock # 17136

Request a Quote

Share Machine

Print Details

Make an Offer



























Download Images

View All Images

Machine Specifications

SERIAL ............... 61593
NEW .................. 2000
MODEL ................ OGF20
CAPACITY ............. 20 TON
STROKE ............... 18"
OPEN HEIGHT .......... 24"
ADVANCE SPEED ........ 274 IPM
PRESS SPEED .......... 134 IPM
RETURN SPEED ......... 263 IPM
BED .................. 20.5" F-B X 24" L-R
SLOT IN BED .......... 10" X 2.5"
THROAT ............... 12"
BED TO FLOOR ......... 36"
OPERATING PRESSURE ... 2037 PSI (20 TON)
CONTROL .............. RUN/JOG
CONTROLS ............. PB-6 CIRCUIT
CYLINDER BORE ........ 5"
CYLINDER ROD ......... 3.5"
HYDRAULIC RESERVOIR .. 60 GALLON
PUMP ................. 12 GPM
MOTOR ................ 15 HP

Specifications
Dimensions	64 X 40 X 104" HIGH
Weight	4200 pounds
