Stock #: 17269

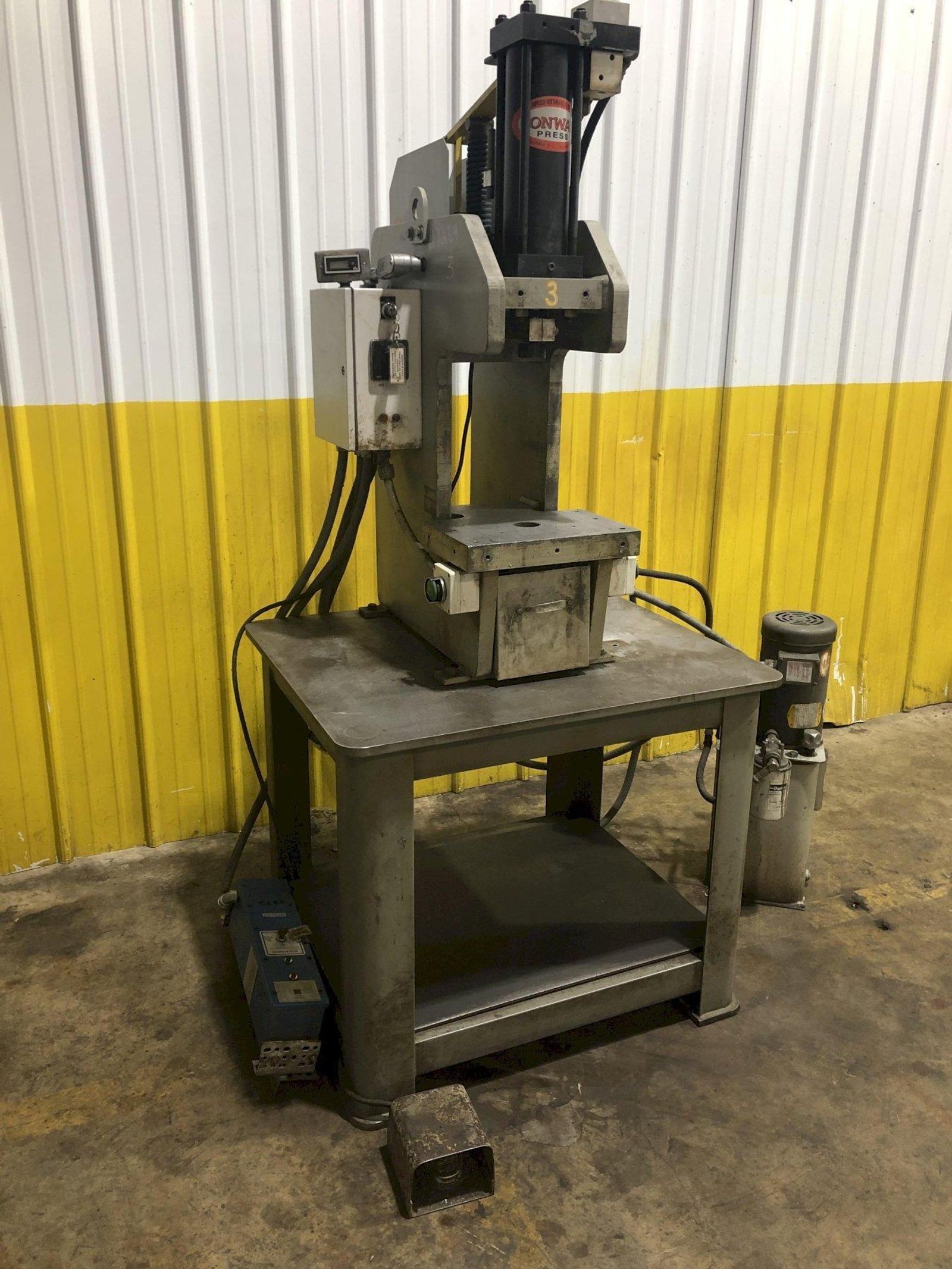

MODEL ................... C-20-C
CAPACITY ................ 20 TONS
STROKE .................. 9"
STROKE ADJUSTMENT ....... 4"
OPEN HEIGHT - DAYLIGHT .. 12.5"
SHUT HEIGHT - MINIMUM ... 3.5"
RAM SPEED - ADVANCE ..... 465 IPM
RAM SPEED - PRESSING .... 55 IPM
RAM SPEED - RETURN ...... 1000 IPM
CYLINDER BORE ........... 4"
RAM DIAMETER ............ 1.375"
THROAT .................. 5"
TABLE SIZE .............. 14" X 9" X 2" THICK
WORKING PRESSURE ........ 3200 PSI
DUAL PALM BUTTONS ....... YES
LIGHT CURTAINS .......... YES
METAL STAND BASE ........ YES
HYDRAULIC UNIT
PUMP CAPACITY ........... 3 GALLONS PER MIN
TANK CAPACITY ........... 4.5 GALLONS
MOTOR ................... 3 HP
Stock # 17269
MODEL ................... C-20-C
CAPACITY ................ 20 TONS
STROKE .................. 9"
STROKE ADJUSTMENT ....... 4"
OPEN HEIGHT - DAYLIGHT .. 12.5"
SHUT HEIGHT - MINIMUM ... 3.5"
RAM SPEED - ADVANCE ..... 465 IPM
RAM SPEED - PRESSING .... 55 IPM
RAM SPEED - RETURN ...... 1000 IPM
CYLINDER BORE ........... 4"
RAM DIAMETER ............ 1.375"
THROAT .................. 5"
TABLE SIZE .............. 14" X 9" X 2" THICK
WORKING PRESSURE ........ 3200 PSI
DUAL PALM BUTTONS ....... YES
LIGHT CURTAINS .......... YES
METAL STAND BASE ........ YES
HYDRAULIC UNIT
PUMP CAPACITY ........... 3 GALLONS PER MIN
TANK CAPACITY ........... 4.5 GALLONS
MOTOR ................... 3 HP
| Specifications |
|---|
