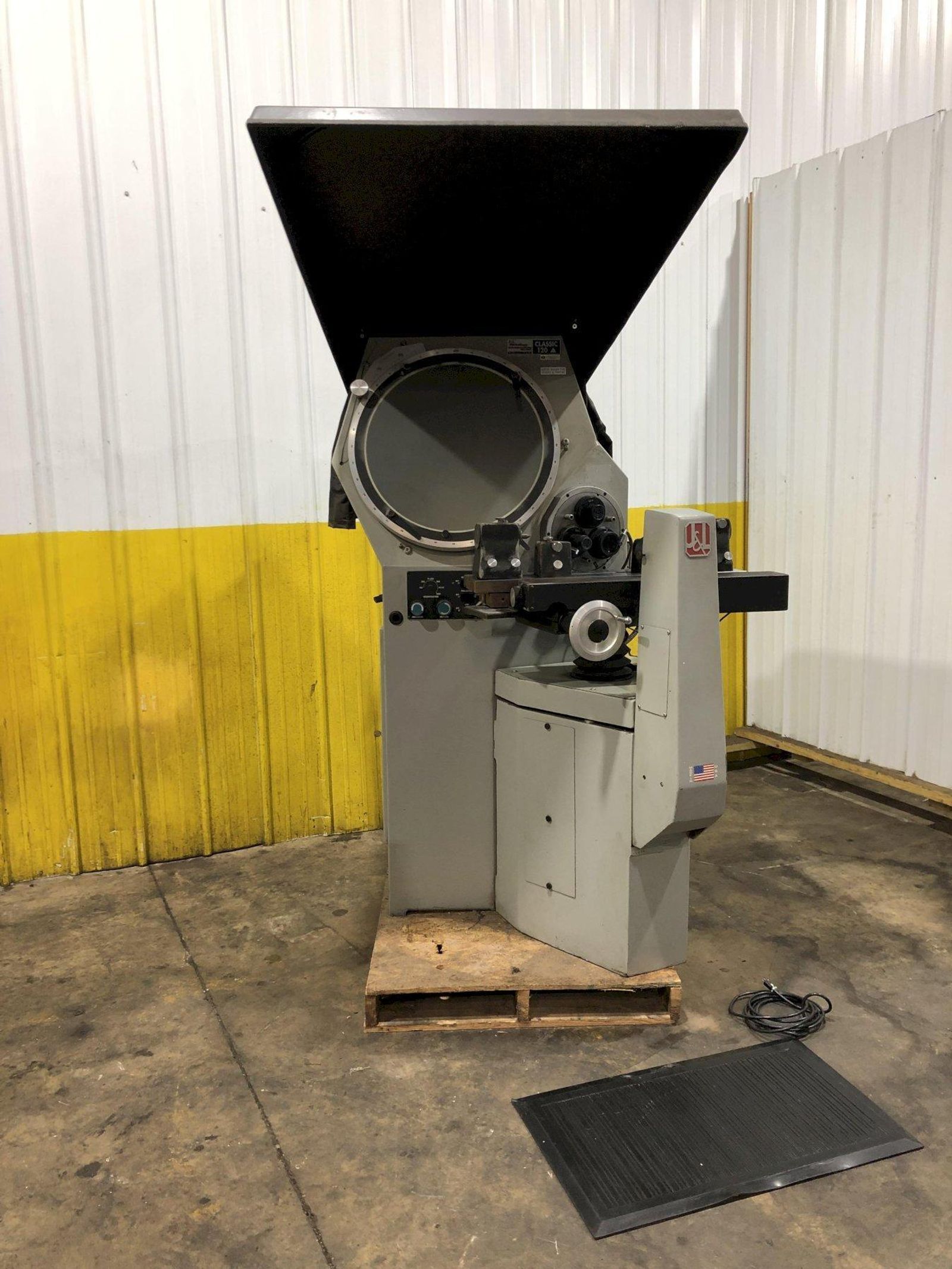

20" JONES & LAMSON CLASSIC 120 OPTICAL COMPARATOR: STOCK 12576

Stock #: 12576

Equipped With

MODEL .......................... CLASSIC 120
SCREEN DIAMETER ................ 20"
TABLE SIZE ..................... 6" X 30"
TABLE TRAVEL ................... 8"
LONGITUDINAL POWERED
TABLE TRAVEL ................... 6" VERTICAL POWERED
ANGULAR MEASURING .............. 360 DEGREE CHART ROTATION
CROSS TRAVEL ................... 1.5" FOR FOCUSING
TABLE SWIVELS .................. 15 DEGREES LEFT & RIGHT
LENS CENTER LINE TO TABLE ...... 2-1/4" TO 8-1/4"
FLOOR SPACE .................... 43" L-R X 57" F-B X 72" HIGH
WEIGHT ......................... 1,400 LBS

THREE POSITION LENS TURRET W/10X, 20X & 50X LENSES
NOVALITE MERCURY ARC PROJECTION

Buy Machines

20" JONES & LAMSON CLASSIC 120 OPTICAL COMPARATOR: STOCK 12576

Stock # 12576

Share Machine
Print Details

Machine Specifications

MODEL .......................... CLASSIC 120
SCREEN DIAMETER ................ 20"
TABLE SIZE ..................... 6" X 30"
TABLE TRAVEL ................... 8"
LONGITUDINAL POWERED
TABLE TRAVEL ................... 6" VERTICAL POWERED
ANGULAR MEASURING .............. 360 DEGREE CHART ROTATION
CROSS TRAVEL ................... 1.5" FOR FOCUSING
TABLE SWIVELS .................. 15 DEGREES LEFT & RIGHT
LENS CENTER LINE TO TABLE ...... 2-1/4" TO 8-1/4"
FLOOR SPACE .................... 43" L-R X 57" F-B X 72" HIGH
WEIGHT ......................... 1,400 LBS

THREE POSITION LENS TURRET W/10X, 20X & 50X LENSES
NOVALITE MERCURY ARC PROJECTION
