SERIAL #: 094062
MODEL: 22
NEW: 1994
BENDING CAPACITY AT MINIMUM DIAMETER:
LEG-OUT ANGLES, 24" MIN DIAMETER 2" X 2" X 1/4"
FLAT ON FLAT, 18" DIAMETER 5" X 5/8"
STANDARD PIPE, SCH 40 20" DIAMETER 1.5"
BENDING ROLLS, DIAMETER 8"
ROLL SPEED, VARIABLE 0 TO 10 RPM
ROLLING SPEED, VARIABLE 0 TO 20 FPM
MAIN MOTOR, HORSEPOWER 7.5 HP
ADJUSTABLE GUIDE ROLLS
HYDRAULIC ROLL ADJUSTMENT
REMOTE PUSH BUTTON STATION
SET OF ANGLE ROLLS
All Welded Steel Construction
Tool Steel Rolls
All Three Rolls Power Driven
Timken Roller Bearings
Drive Completely Enclosed
Power Adjustment on Forming Rolls
One Set Angle Tooling Included
| Specifications | ||
|---|---|---|
| Hyd/Mech | hydraulic | |
| Operation (Horz, Vert, Horz/Vert) | vertical | |
| Dimensions | 40" x 40" | |
| Weight | 2100 pounds | |
| Angle Capacity | 2 inches | |
| Angle Capacity | 2 inches | |
| Angle Capacity | .25 inches | |
| Pipe Capacity | 1.5 inches | |
| Power | 7.5 horsepower | |

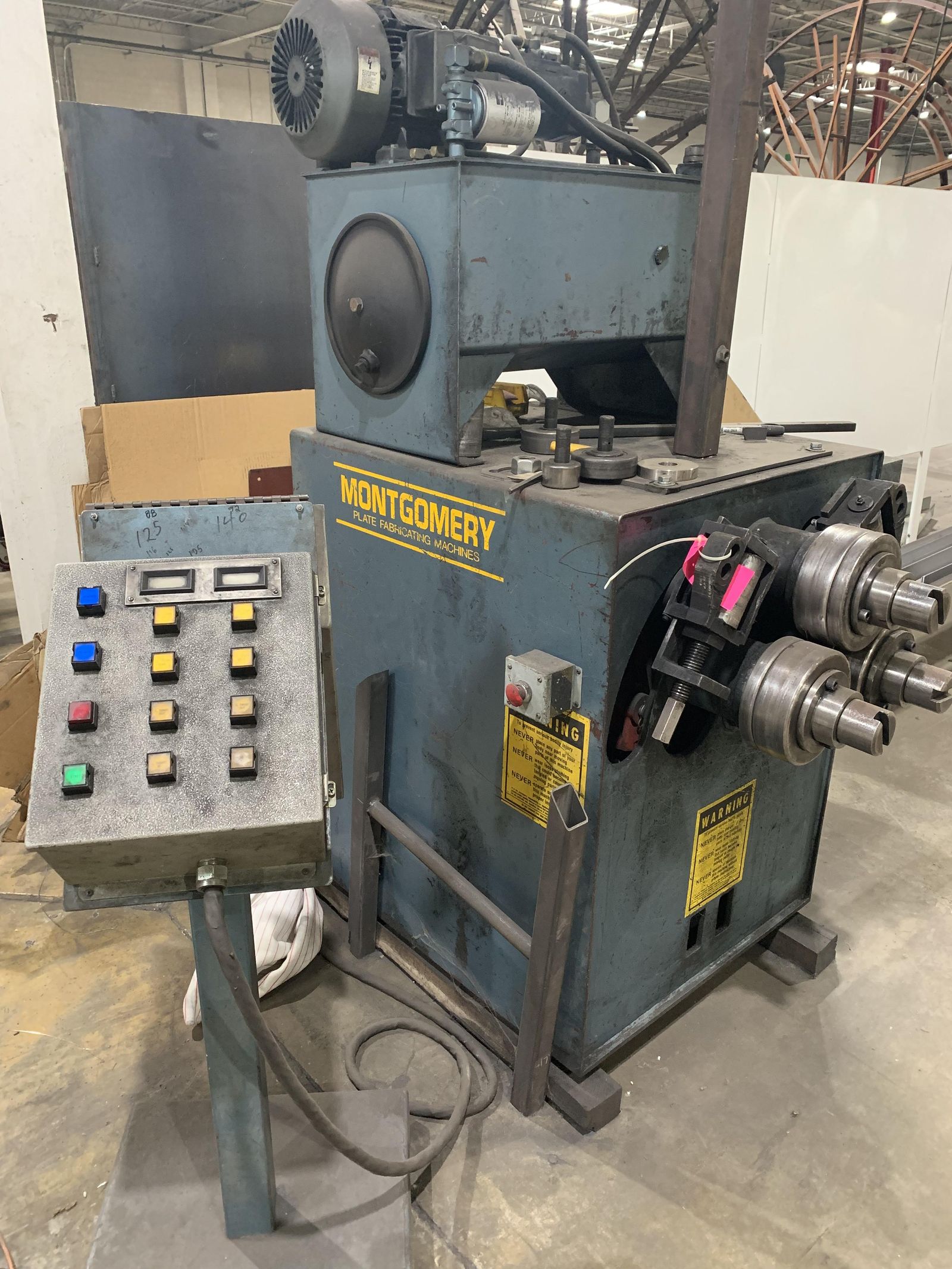

Brand
MONTGOMERY
Type
Rolls, Angle Bending
Stock No.
10134
 |
419-269-2000 |
