Machine Information

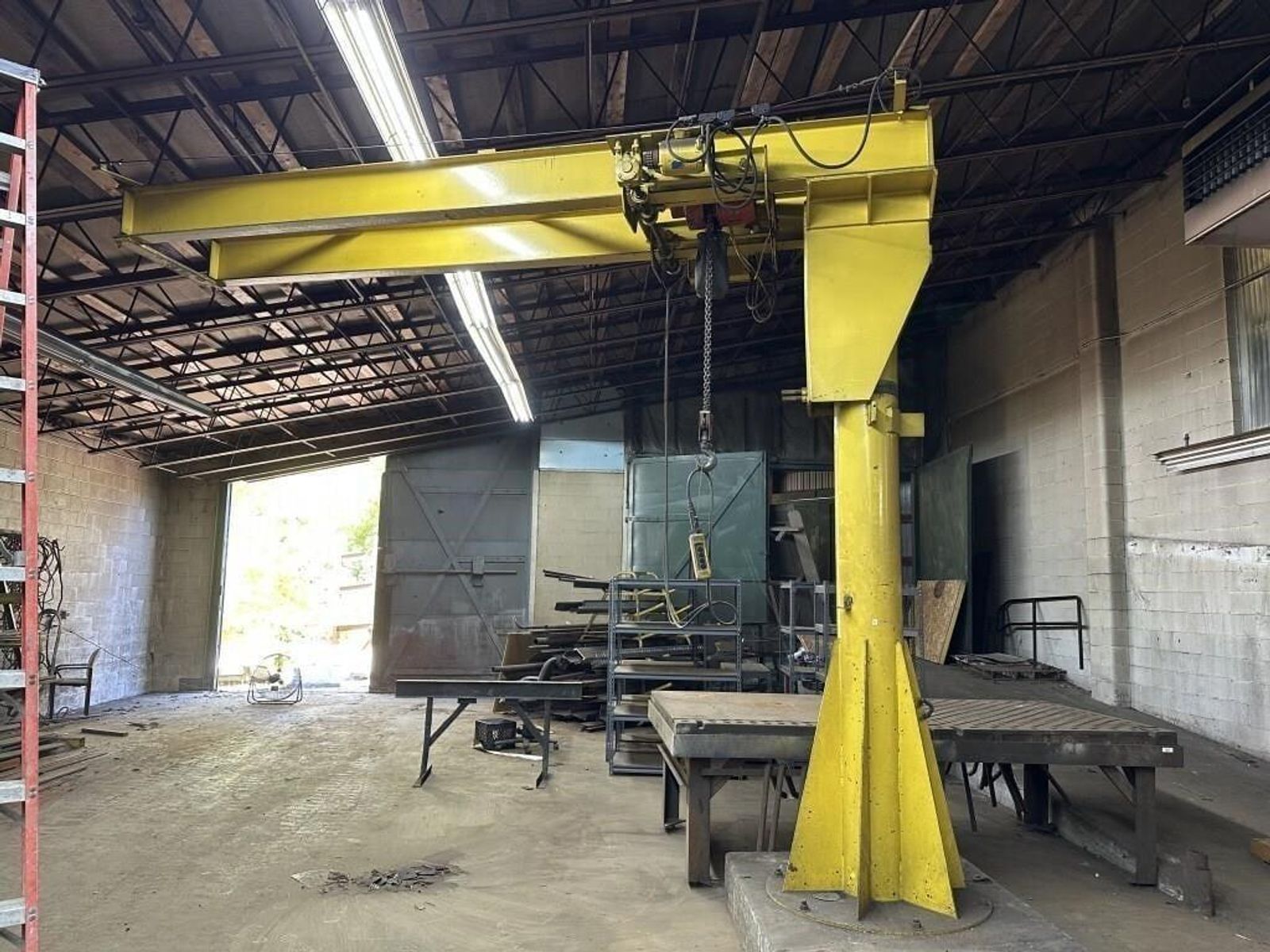

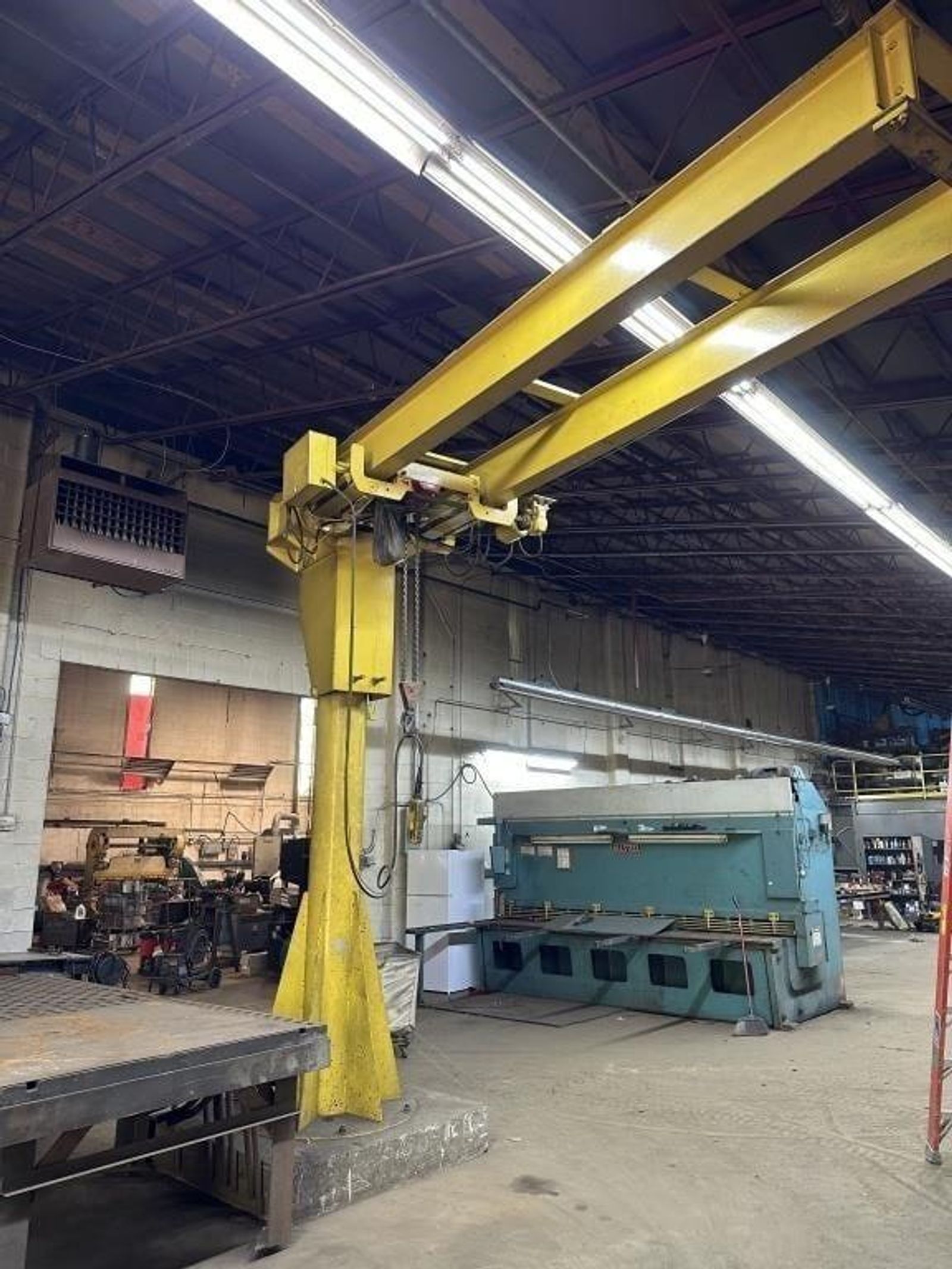

2 TON X 15' US MONORAL 360° FREE-STANDING JIB CRANE WITH POWER HOIST: STOCK #24249

Stock #: 24249

Equipped With

CAPACITY ................. 2 TON
ARM CONSTRUCTION ......... (2) I BEAMS 12" X 15' (180")
WIDTH OF ARM ............. 35.5"
REACH OF ARM ............. 14' (BEARING CENTER TO END OF ARM)

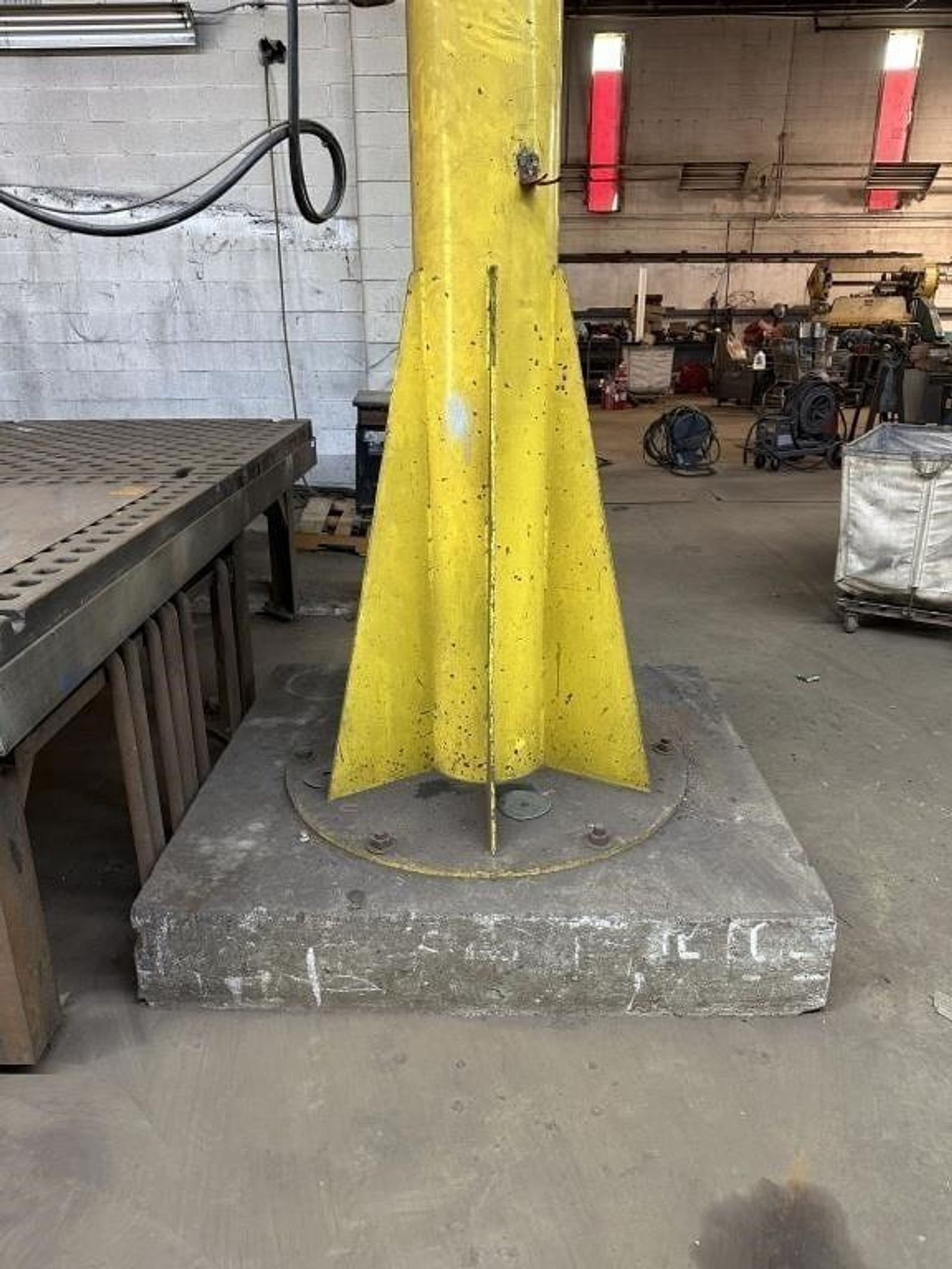

COLUMN DIAMETER .......... 11.5"
COLUMN HEIGHT ............ 11'6"
OVERALL CRANE HEIGHT ..... 12'8"
BASE DIAMETER ............ 42"

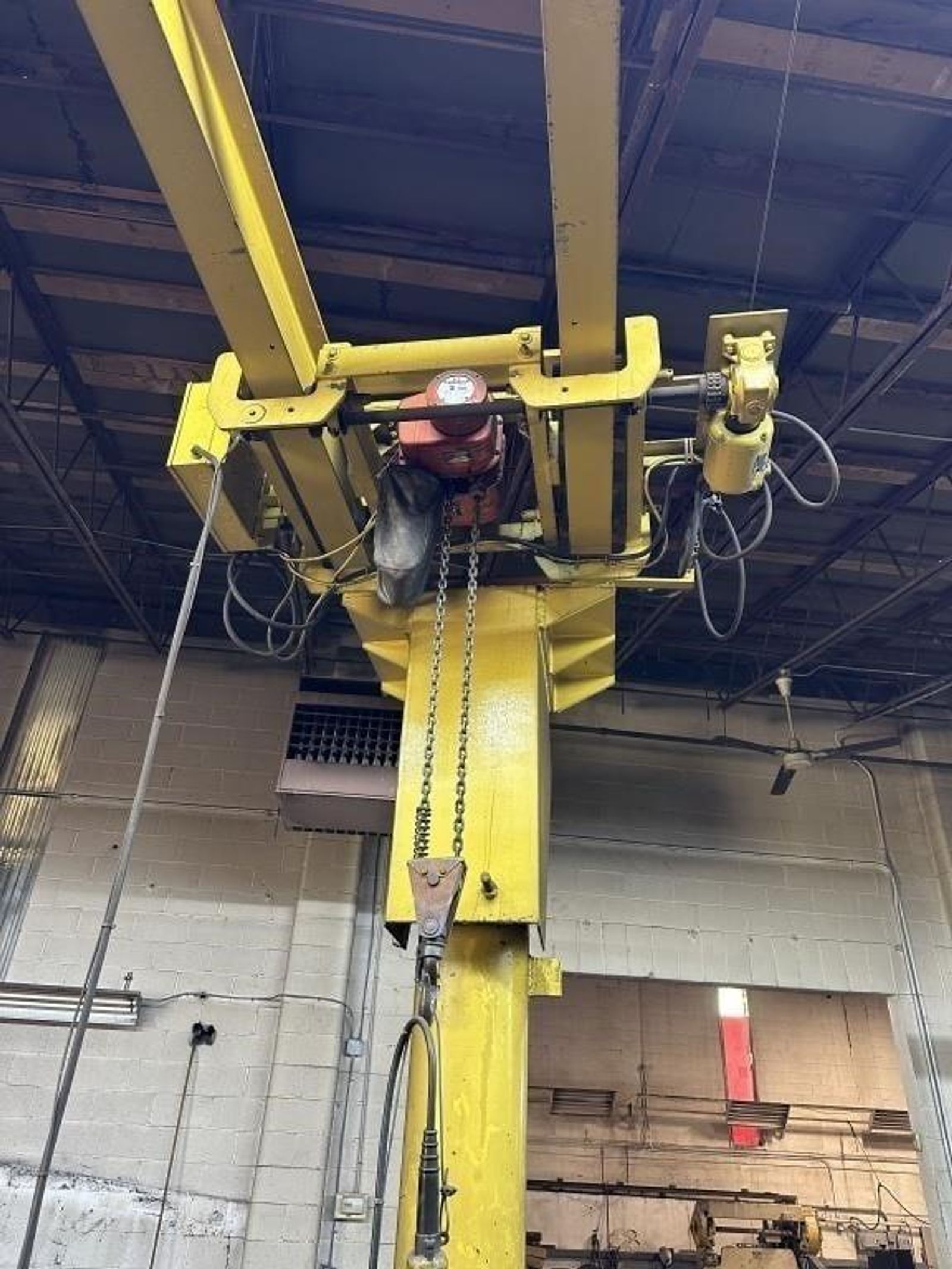

HOIST US MONORAIL
SERIAL ................... 8211246
MODEL .................... EC-3M
CAPACITY ................. 2 TON
LIFT ..................... 3 METERS
POWER TROLLEY
TROLLEY MOTOR ............ 1/2 HP
PENDANT .................. 4 BUTTON
