Stock #: 10624

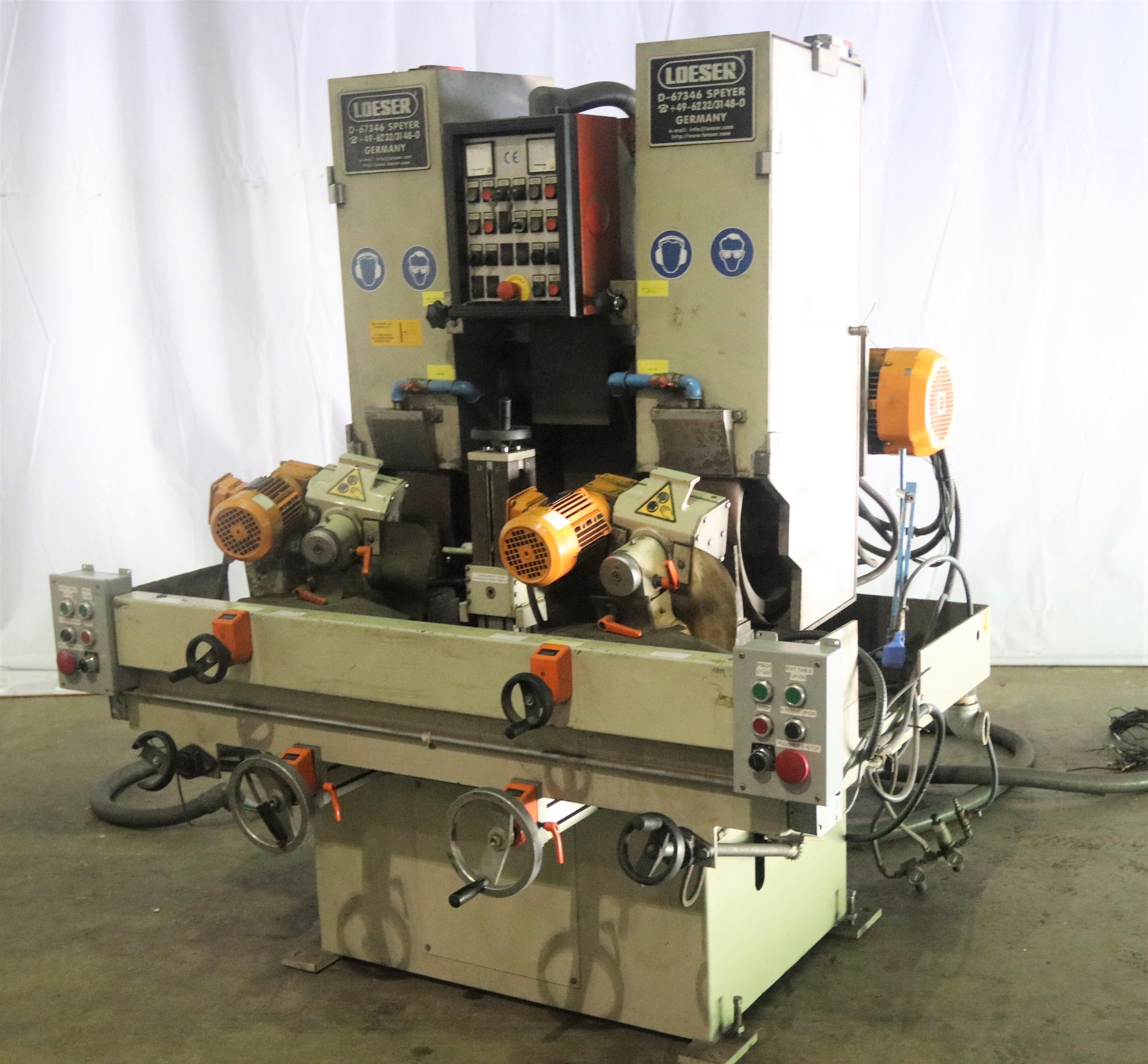

Characteristics of the centerless modell RPS 374
Diameter Range 10 - 80 mm
Special Version 1,3 mm up to 150 mm
Belt grinding motor 5,5 kW bis 7,5 kW / 7,5 HP to 10 HP
Belt dimension 150 mm wide x 2500 mm or 3500 mm length
Workpiece transport system by V-Conveyor with vibration transport
Workpiece transport system by roller guide with pinch roll system for secure and precise transport which eliminates a risk of spinning tubes
Patented pressure controlled grinding and polsihing heads
Angle adjustable buffing heads with automatic wear compensation
Stock # 10624
Characteristics of the centerless modell RPS 374
Diameter Range 10 - 80 mm
Special Version 1,3 mm up to 150 mm
Belt grinding motor 5,5 kW bis 7,5 kW / 7,5 HP to 10 HP
Belt dimension 150 mm wide x 2500 mm or 3500 mm length
Workpiece transport system by V-Conveyor with vibration transport
Workpiece transport system by roller guide with pinch roll system for secure and precise transport which eliminates a risk of spinning tubes
Patented pressure controlled grinding and polsihing heads
Angle adjustable buffing heads with automatic wear compensation
