Machine Information

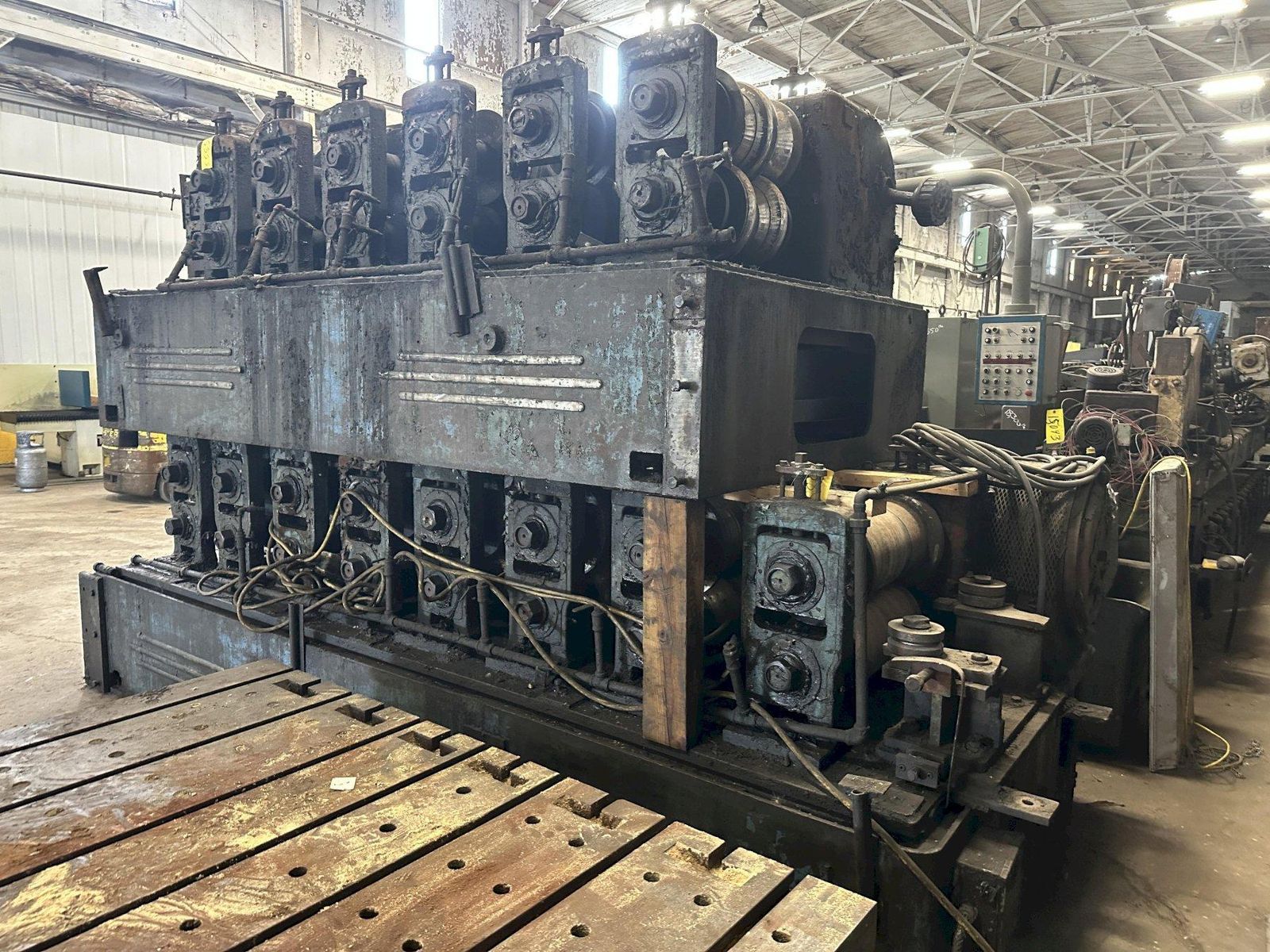

14 STAND X 3.5" X 24" TISHKEN MODEL #14-HXM-3-1/2 HEAVY DUTY ROLLFORMER: STOCK #15855

Stock #: 15855

Equipped With

SERIAL .................... 8438-59
MODEL ..................... 14-HXW-3-1/2
NUMBER OF PASSES .......... 14 (8 & 6)
ARBOR DIAMETER ............ 3-1/2"
MAX ROLL SPACE  ........... 24"
VERTICAL ADJUSTMENT ....... 8" TO 11"
HORIZONTAL CENTERS ........ 18"
BASE TO BOTTOM SHAFT ...... 10"
PASS LINE .................
DIRECTION OF TRAVEL ....... R TO L
EQUAL GEARING .............
ENTRY EDGE GUIDES ......... YES
EXIT STRAIGTENING HEAD .... YES
CONTROL STATION ........... YES
MOTOR ..................... 40 HP
