Machine Information

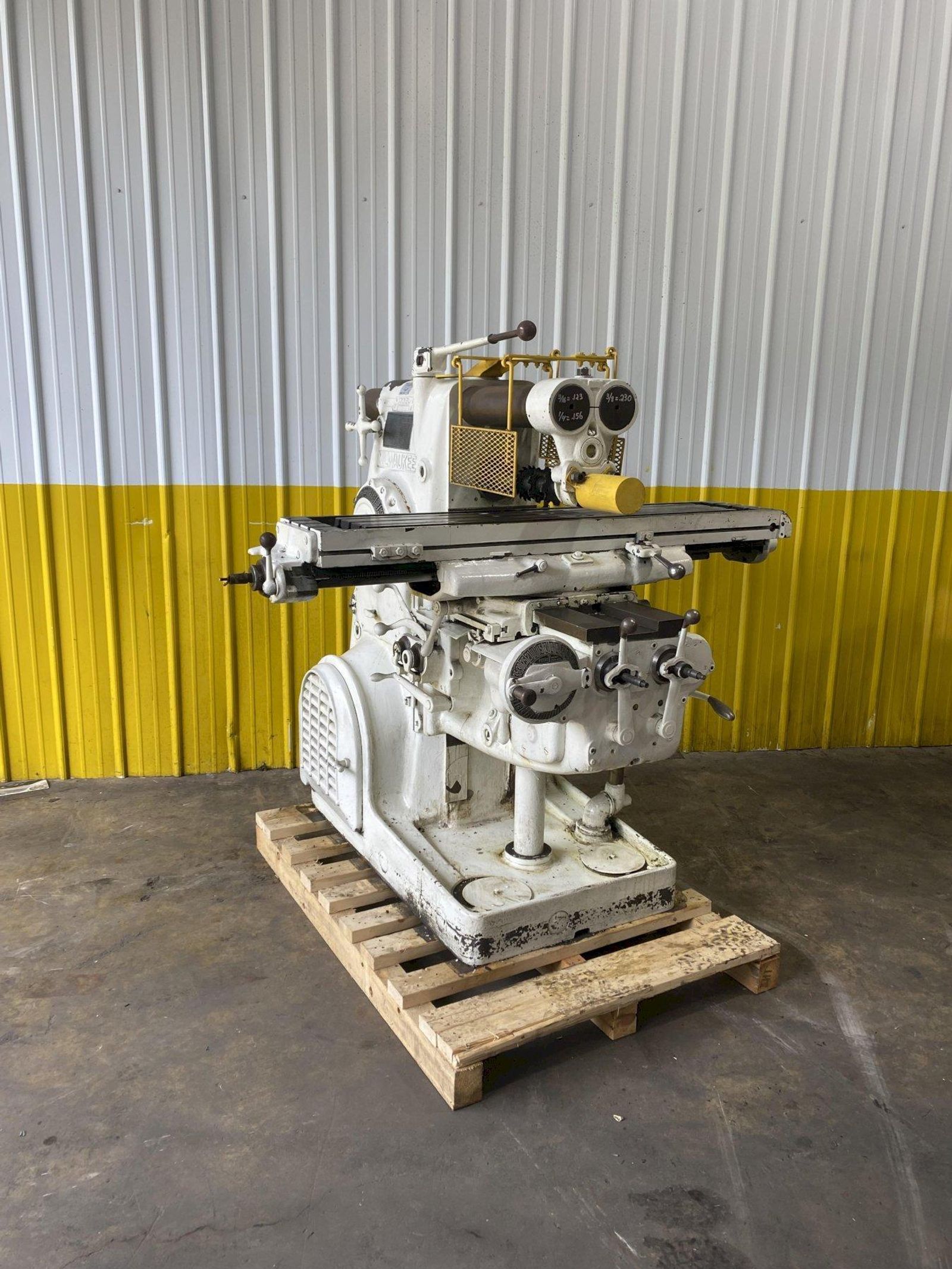

#2K KEARNEY & TRECKER HORIZONTAL UNIVERSAL MILL : STOCK #16790

Stock #: 16790

Equipped With



SERIAL ...................... 13-4657
SERIAL ...................... 14-2689
MODEL ....................... 2K UNIVERSAL
AREA OF TABLE ............... 56" X 12"
SPINDLE SPEEDS .............. (24) 15 TO 1500 RPM
LONGITUDINAL & CROSS FEEDS .. (32) 1/4 TO 60 IPM
VERTICAL FEEDS .............. (32) 1/8 TO 30 IPM
LONGITUDINAL TRAVEL ......... 28"
CROSS TRAVEL ................ 10"
VERTICAL KNEE TRAVEL ........ 17"
TAPER IN SPINDLE ............ #50 NS
CENTER OF SPINDLE TO TABLE .. 0" MINIMUM, 17" MAXIMUM
RAPID TRAVERSE .............. 150 IPM
COOLANT ..................... YES
DUAL CONTROLS ............... YES
SPINDLE DRIVE MOTOR ......... 7-1/2

#2K KEARNEY & TRECKER HORIZONTAL UNIVERSAL MILL : STOCK #16790

Stock # 16790

Request a Quote

Share Machine

Print Details

Make an Offer
















Download Images

View All Images

Machine Specifications

SERIAL ...................... 13-4657

SERIAL ...................... 14-2689

MODEL ....................... 2K UNIVERSAL

AREA OF TABLE ............... 56" X 12"

SPINDLE SPEEDS .............. (24) 15 TO 1500 RPM

LONGITUDINAL & CROSS FEEDS .. (32) 1/4 TO 60 IPM

VERTICAL FEEDS .............. (32) 1/8 TO 30 IPM

LONGITUDINAL TRAVEL ......... 28"

CROSS TRAVEL ................ 10"

VERTICAL KNEE TRAVEL ........ 17"

TAPER IN SPINDLE ............ #50 NS

CENTER OF SPINDLE TO TABLE .. 0" MINIMUM, 17" MAXIMUM

RAPID TRAVERSE .............. 150 IPM

COOLANT ..................... YES

DUAL CONTROLS ............... YES

SPINDLE DRIVE MOTOR ......... 7-1/2
