Machine Information

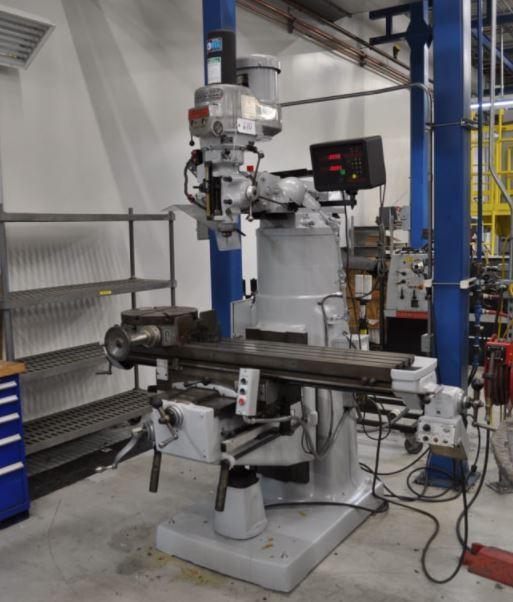

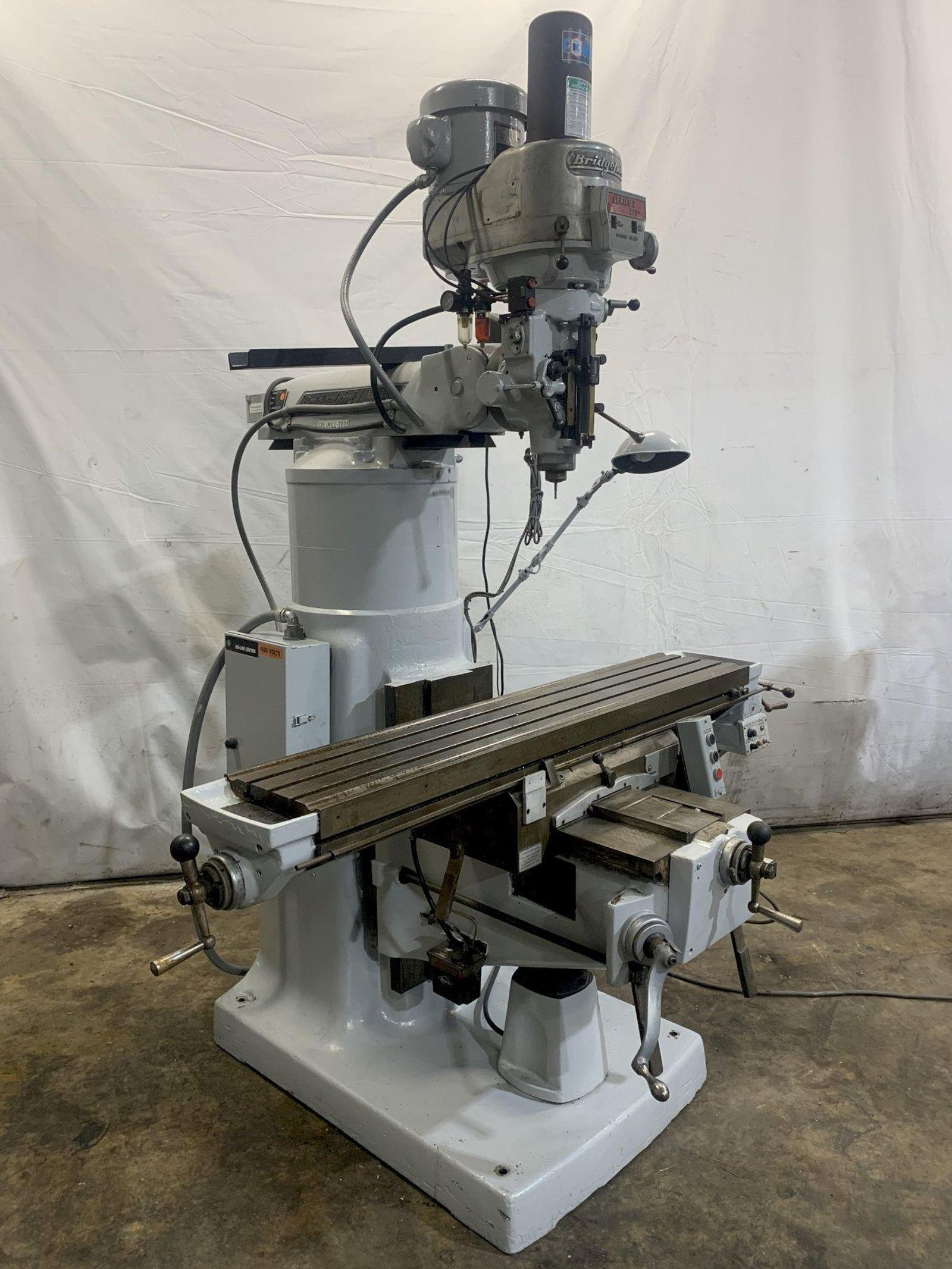

2 HP BRIDGEPORT SERIES II SPECIAL VERTICAL RAM TYPE KNEE MILL: STOCK #14066

Stock #: 14066

Equipped With

MODEL ................................. SERIES II SPECIAL
TABLE AREA (T-SLOTTED) ................ 58" X 11"
LONGITUDINAL TABLE TRAVEL ............. 33"
CROSS TRAVEL .......................... 15"
VERTICAL KNEE TRAVEL .................. 16"
RAM TRAVEL ............................ 17"
QUILL TRAVEL .......................... 5"
QUILL DIAMETER ........................ 3-3/8"
SPINDLE SPEEDS (VARIABLE) ............. 60 TO 4200 RPM
SPINDLE FEEDS ......................... .0015, .003, .006 IPR
MAXIMUM TABLE CAPACITY ................ 1500 LBS
DEPTH OF THROAT ....................... 6" MIN, 23" MAX
CHROME TABLE WAYS ..................... YES
DIGITAL READOUTS ...................... YES
1 SHOT LUBE ........................... YES
MOTOR ................................. 2 HORSEPOWER

Buy Machines

2 HP BRIDGEPORT SERIES II SPECIAL VERTICAL RAM TYPE KNEE MILL: STOCK #14066

Stock # 14066

Share Machine
Print Details

Machine Specifications

MODEL ................................. SERIES II SPECIAL
TABLE AREA (T-SLOTTED) ................ 58" X 11"
LONGITUDINAL TABLE TRAVEL ............. 33"
CROSS TRAVEL .......................... 15"
VERTICAL KNEE TRAVEL .................. 16"
RAM TRAVEL ............................ 17"
QUILL TRAVEL .......................... 5"
QUILL DIAMETER ........................ 3-3/8"
SPINDLE SPEEDS (VARIABLE) ............. 60 TO 4200 RPM
SPINDLE FEEDS ......................... .0015, .003, .006 IPR
MAXIMUM TABLE CAPACITY ................ 1500 LBS
DEPTH OF THROAT ....................... 6" MIN, 23" MAX
CHROME TABLE WAYS ..................... YES
DIGITAL READOUTS ...................... YES
1 SHOT LUBE ........................... YES
MOTOR ................................. 2 HORSEPOWER

Specifications
