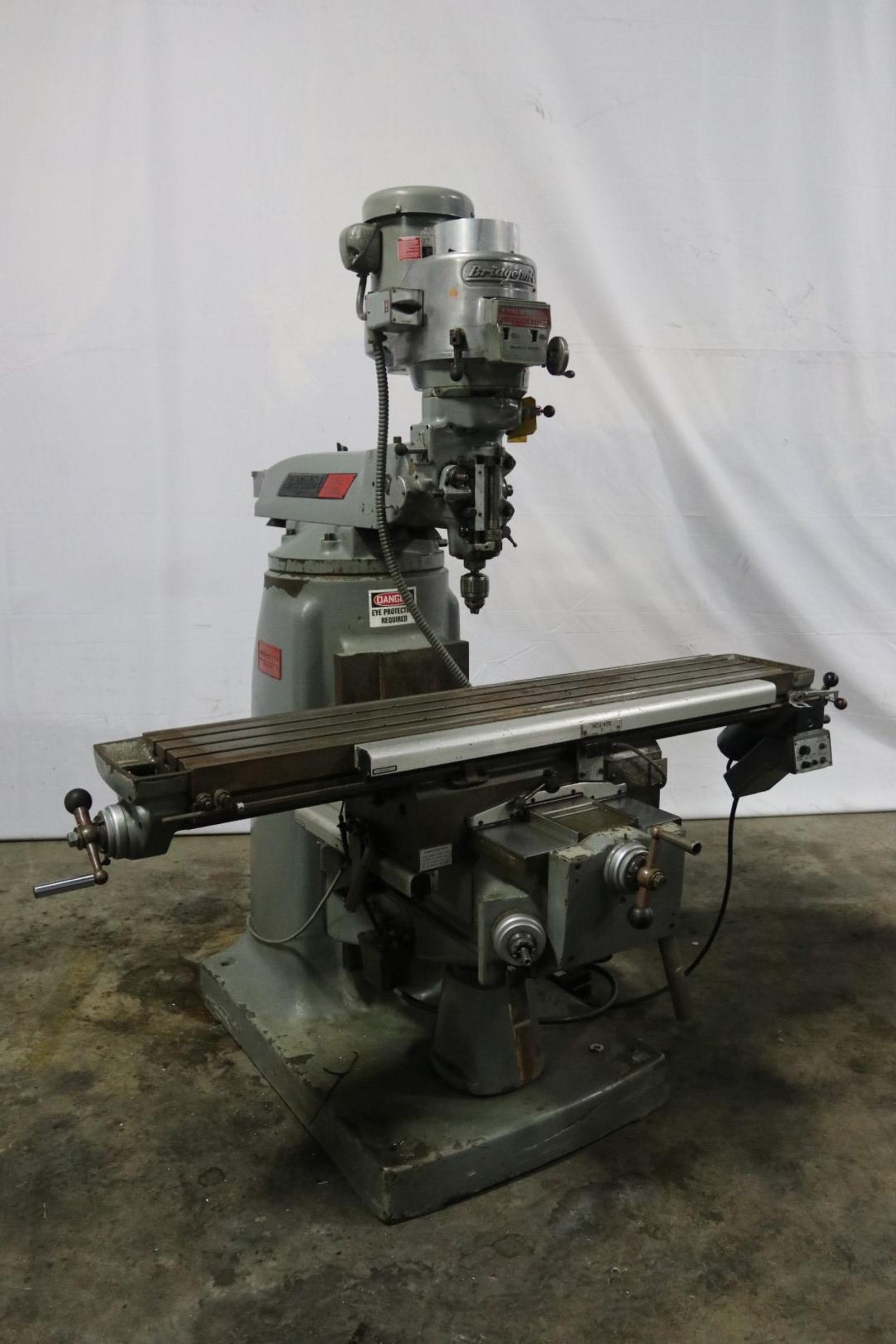

MODEL ................................. SERIES II SPECIAL
TABLE AREA (T-SLOTTED) ................ 58" X 11"
LONGITUDINAL TABLE TRAVEL ............. 33"
CROSS TRAVEL .......................... 15"
VERTICAL KNEE TRAVEL .................. 16"
RAM TRAVEL ............................ 17"
QUILL TRAVEL .......................... 5"
QUILL DIAMETER ........................ 3-3/8"
SPINDLE SPEEDS (VARIABLE) ............. 60 TO 4200 RPM
SPINDLE FEEDS ......................... .0015, .003, .006 IPR
MAXIMUM TABLE CAPACITY ................ 1500 LBS
DEPTH OF THROAT ....................... 6" MIN, 23" MAX
CHROME TABLE WAYS ..................... YES
DIGITAL READOUTS ...................... YES
1 SHOT LUBE ........................... YES
MOTOR ................................. 2 HORSEPOWER
| Specifications | ||
|---|---|---|
| Table-W | 11 inches | |
| Table-L | 58 inches | |
| Travel-Long | 33 inches | |
| Travel-Cross | 15 inches | |
| Power | 2 horsepower | |
| RPM | 4200 | |
| CNC Control | no | |
| Weight | 4000 pounds | |
Brand
BRIDGEPORT
Type
Millers, Vertical
Stock No.
10440
 |
419-269-2000 |
Stock #: 10440
MODEL ................................. SERIES II SPECIAL
TABLE AREA (T-SLOTTED) ................ 58" X 11"
LONGITUDINAL TABLE TRAVEL ............. 33"
CROSS TRAVEL .......................... 15"
VERTICAL KNEE TRAVEL .................. 16"
RAM TRAVEL ............................ 17"
QUILL TRAVEL .......................... 5"
QUILL DIAMETER ........................ 3-3/8"
SPINDLE SPEEDS (VARIABLE) ............. 60 TO 4200 RPM
SPINDLE FEEDS ......................... .0015, .003, .006 IPR
MAXIMUM TABLE CAPACITY ................ 1500 LBS
DEPTH OF THROAT ....................... 6" MIN, 23" MAX
CHROME TABLE WAYS ..................... YES
DIGITAL READOUTS ...................... YES
1 SHOT LUBE ........................... YES
MOTOR ................................. 2 HORSEPOWER
