Machine Information

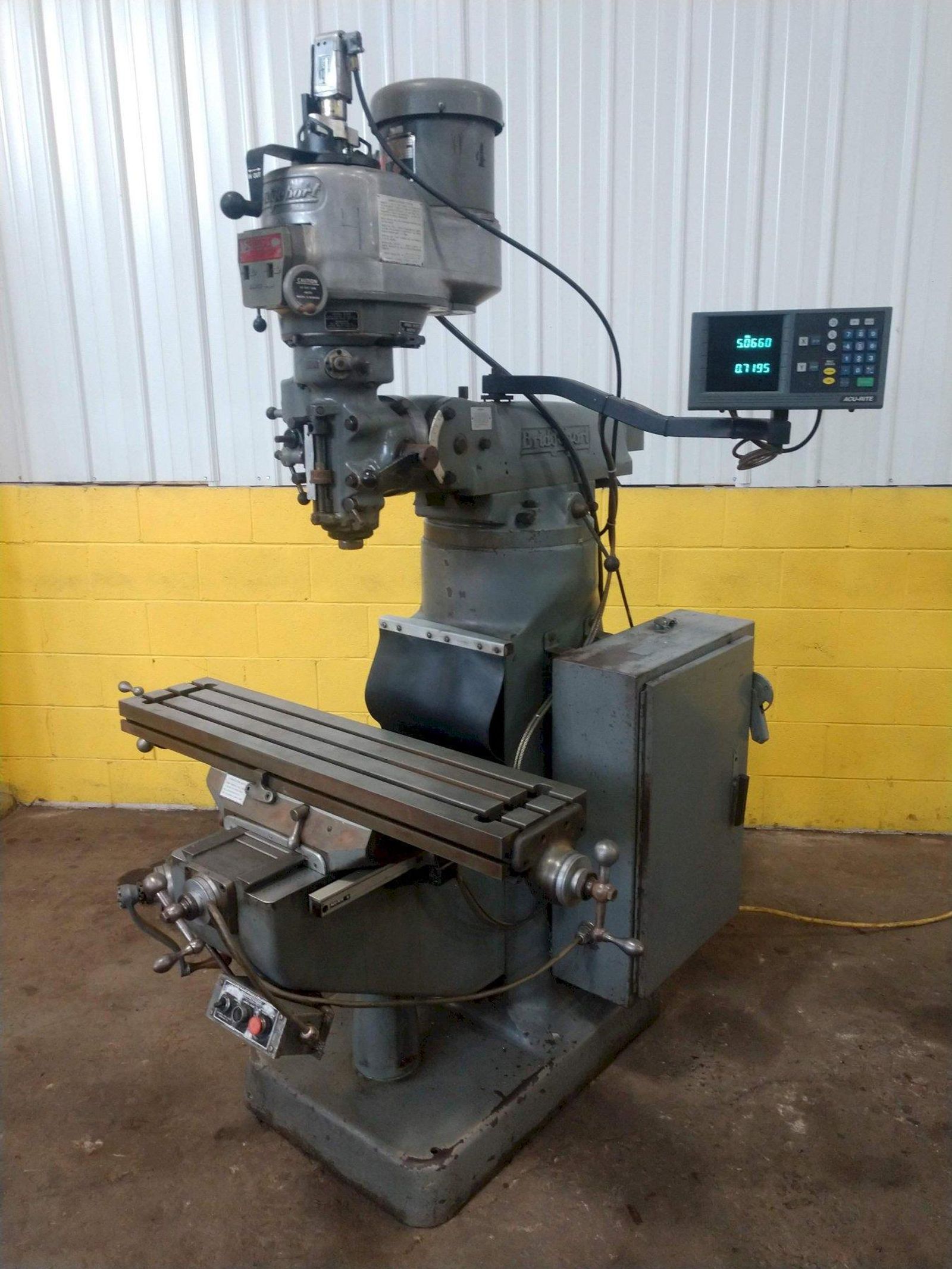

2 HP BRIDGEPORT SERIES I VERTICAL RAM TYPE MILL: STOCK 13743

Stock #: 13743

Equipped With

HEAD SERIAL ...................... J206365
BODY SERIAL ...................... 12BR195748

MODEL ............................ SERIES 1
AREA OF TABLE .................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ......... 60 TO 4200 RPM
SPINDLE FEEDS .................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........ 30"
CROSS TRAVEL ..................... 12"
VERTICAL KNEE TRAVEL ............. 16"
QUILL TRAVEL ..................... 5"
RAM TRAVEL ....................... 12"
DEPTH OF THROAT .................. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ................. R8
HEAD TILTS, FRONT/BACK ........... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ......... 90 DEGREE EITHER WAY
2 AXIS DIGITAL READ OUT .......... ACU RITE
CHROME KNEE WAYS ................. YES
1 SHOT LUBE ...................... YES
POWER DRAW BAR ................... YES

MOTOR ............................ 2 HORSEPOWER

Buy Machines

2 HP BRIDGEPORT SERIES I VERTICAL RAM TYPE MILL: STOCK 13743

Stock # 13743

Share Machine
Print Details

Machine Specifications

HEAD SERIAL ...................... J206365
BODY SERIAL ...................... 12BR195748

MODEL ............................ SERIES 1
AREA OF TABLE .................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ......... 60 TO 4200 RPM
SPINDLE FEEDS .................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........ 30"
CROSS TRAVEL ..................... 12"
VERTICAL KNEE TRAVEL ............. 16"
QUILL TRAVEL ..................... 5"
RAM TRAVEL ....................... 12"
DEPTH OF THROAT .................. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ................. R8
HEAD TILTS, FRONT/BACK ........... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ......... 90 DEGREE EITHER WAY
2 AXIS DIGITAL READ OUT .......... ACU RITE
CHROME KNEE WAYS ................. YES
1 SHOT LUBE ...................... YES
POWER DRAW BAR ................... YES

MOTOR ............................ 2 HORSEPOWER

Videos
Specifications
Weight 2050 pounds
