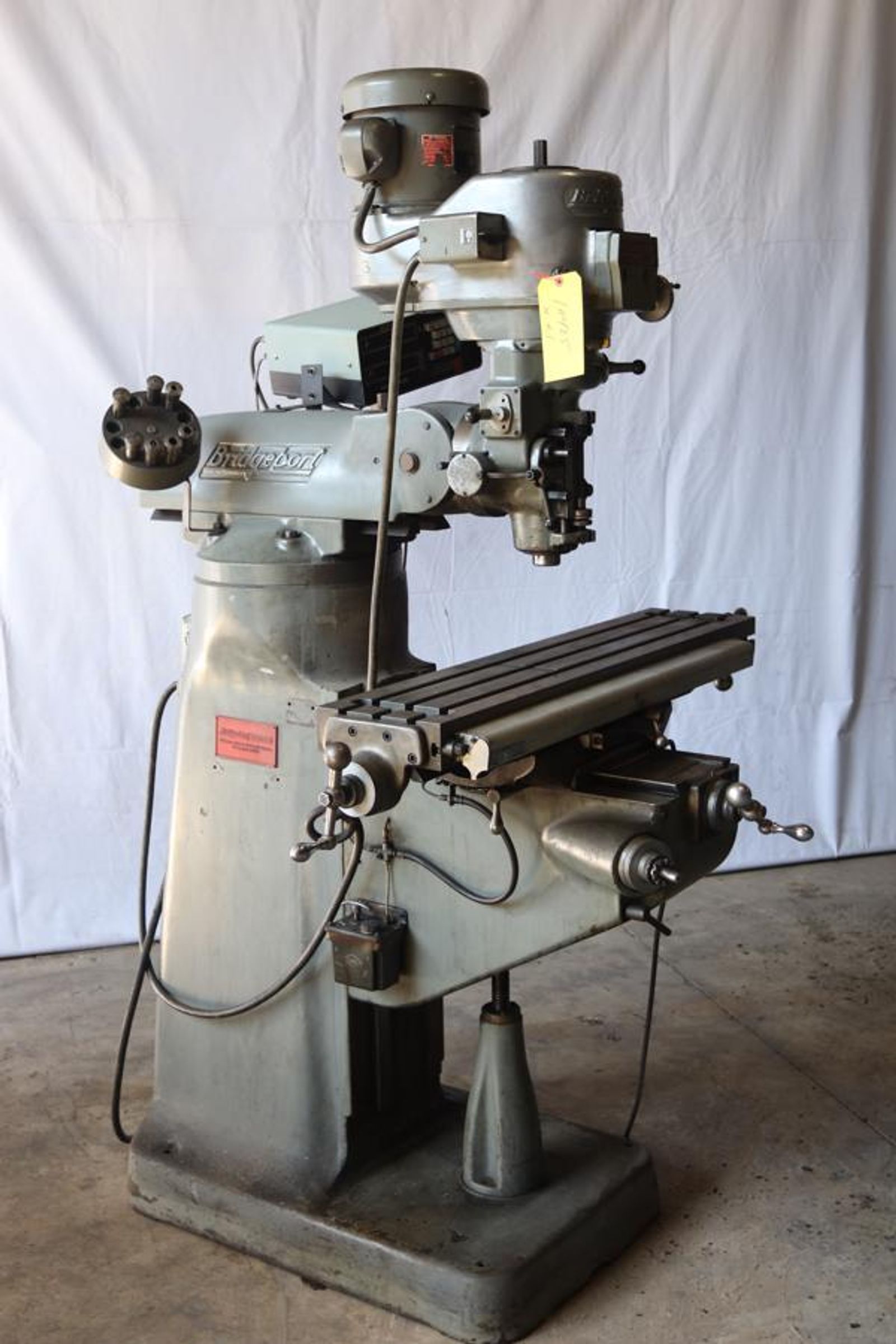

SERIAL ........................... 36
MODEL ............................ SERIES 1
AREA OF TABLE .................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ......... 60 TO 4200 RPM
SPINDLE FEEDS .................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........ 30"
CROSS TRAVEL ..................... 12"
VERTICAL KNEE TRAVEL ............. 16"
QUILL TRAVEL ..................... 5"
RAM TRAVEL ....................... 12"
DEPTH OF THROAT .................. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ................. R8
HEAD TILTS, FRONT/BACK ........... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ......... 90 DEGREE EITHER WAY
2 AXIS DIGITAL READ OUT .......... ACU RITE II
CHROME KNEE WAYS ................. YES
1 SHOT LUBE ...................... YES
MOTOR ............................ 2 HORSEPOWER
| Specifications | ||
|---|---|---|
| Table-W | 9 inches | |
| Table-L | 42 inches | |
| Power | 2 horsepower | |
| RPM | 4200 | |
| CNC Control | yes | |
| Dimensions | 52 X 62 X 87 | |
| Weight | 2200 pounds | |
Brand
BRIDGEPORT
Type
Milling & Drilling Machines (Combo)
Stock No.
10425
 |
419-269-2000 |
Stock #: 10425
SERIAL ........................... 36
MODEL ............................ SERIES 1
AREA OF TABLE .................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ......... 60 TO 4200 RPM
SPINDLE FEEDS .................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........ 30"
CROSS TRAVEL ..................... 12"
VERTICAL KNEE TRAVEL ............. 16"
QUILL TRAVEL ..................... 5"
RAM TRAVEL ....................... 12"
DEPTH OF THROAT .................. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ................. R8
HEAD TILTS, FRONT/BACK ........... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ......... 90 DEGREE EITHER WAY
2 AXIS DIGITAL READ OUT .......... ACU RITE II
CHROME KNEE WAYS ................. YES
1 SHOT LUBE ...................... YES
MOTOR ............................ 2 HORSEPOWER
