Machine Information

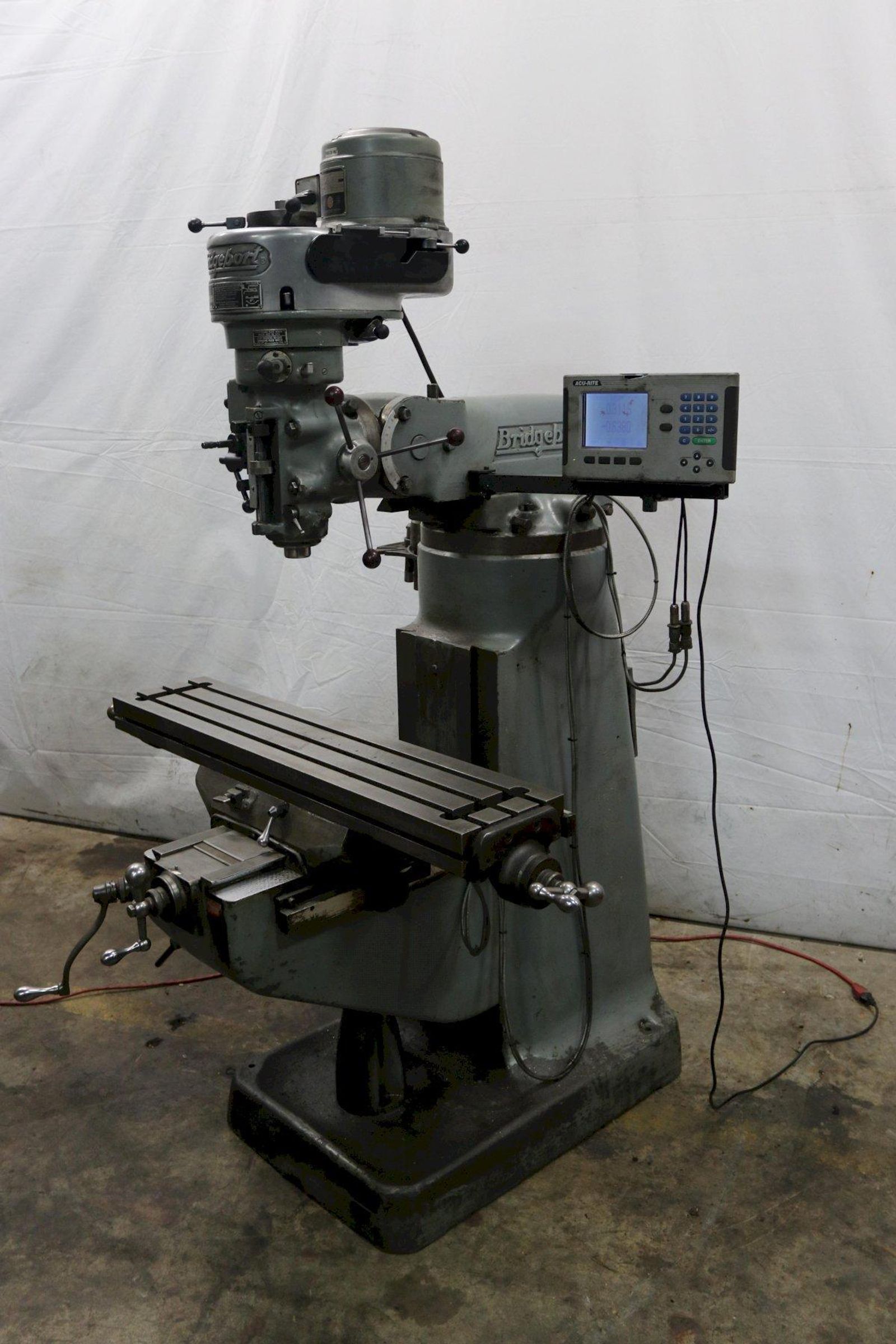

1 HP BRIDGEPORT J HEAD RAM TYPE VERTICAL MILL: STOCK #12082

Stock #: 12082

Equipped With

SERIAL ............................. J-132414
MODEL .............................. J - TYPE
AREA OF TABLE ...................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ........... 80 TO 2720 RPM
SPINDLE FEEDS ...................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL .......... 30"
CROSS TRAVEL ....................... 12"
VERTICAL KNEE TRAVEL ............... 16"
QUILL TRAVEL ....................... 5"
DEPTH OF THROAT .................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ................... R8
HEAD TILTS, FRONT/BACK ............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ........... 90 DEGREE EITHER WAY
CHROME KNEE WAYS ................... YES
1 SHOT LUBE ........................ YES
READ OUT ........................... YES ACU RITE
MOTOR .............................. 1 HORSEPOWER
