Machine Information

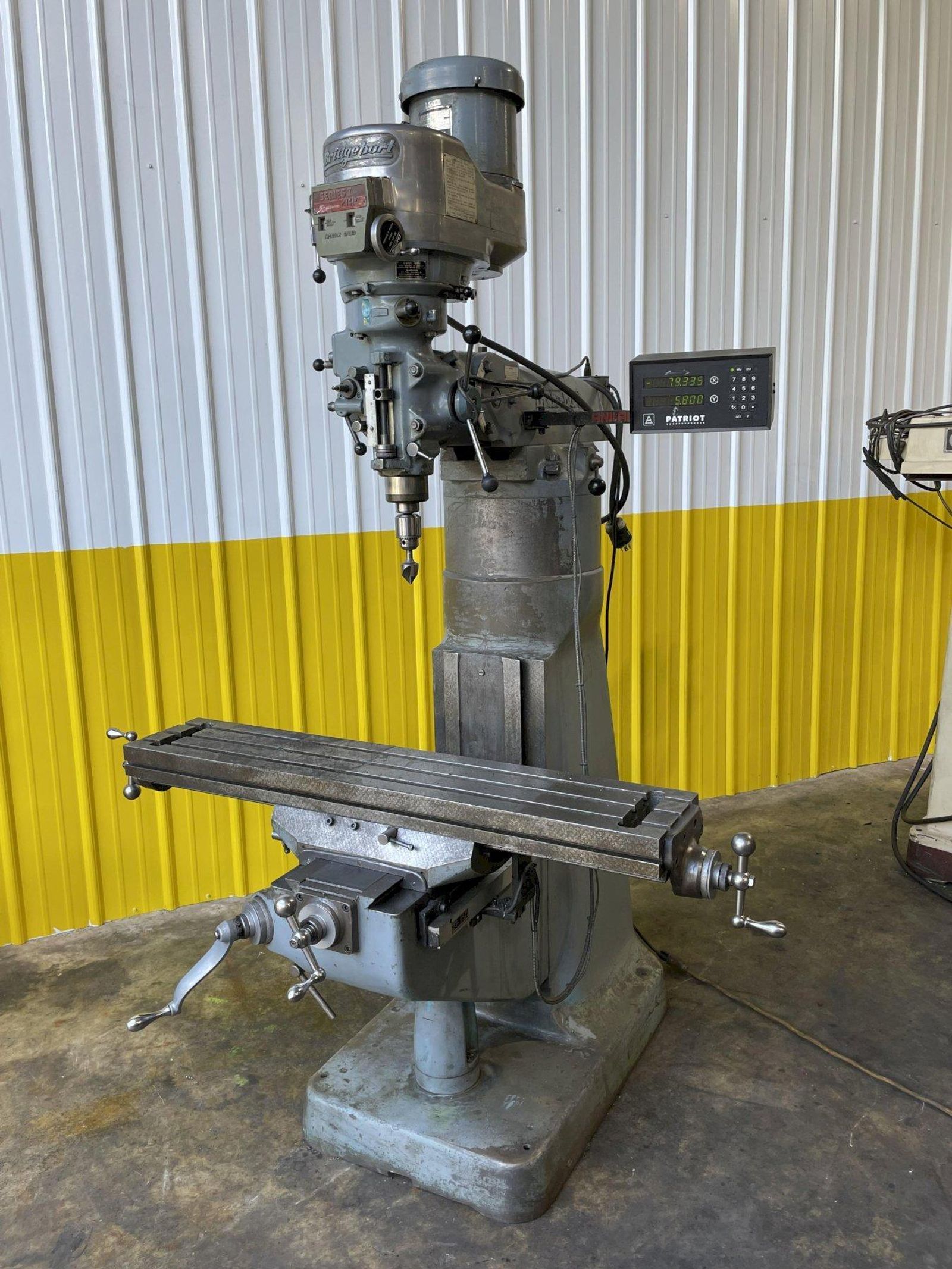

2 HP BRIDGEPORT SERIES 1 VERTICAL KNEE MILL: STOCK #14933

Stock #: 14933

Equipped With

SERIAL .............................. 2J-92072-2
MODEL ............................... SERIES I
AREA OF TABLE ....................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ............ 60 TO 4200 RPM
SPINDLE FEEDS ....................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........... 30"
CROSS TRAVEL ........................ 12"
VERTICAL KNEE TRAVEL ................ 16"
QUILL TRAVEL ........................ 5"
RAM TRAVEL .......................... 12"
DEPTH OF THROAT ..................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE .................... R8
HEAD TILTS, FRONT/BACK .............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ............ 90 DEGREE EITHER WAY
PATRIOT DIGITAL READ OUT ............ YES
CHROME WAYS ......................... YES
1 SHOT LUBE ......................... YES
MOTOR ............................... 2 HORSEPOWER


Buy Machines

2 HP BRIDGEPORT SERIES 1 VERTICAL KNEE MILL: STOCK #14933

Stock # 14933

Share Machine
Print Details

Machine Specifications

SERIAL .............................. 2J-92072-2
MODEL ............................... SERIES I
AREA OF TABLE ....................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ............ 60 TO 4200 RPM
SPINDLE FEEDS ....................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........... 30"
CROSS TRAVEL ........................ 12"
VERTICAL KNEE TRAVEL ................ 16"
QUILL TRAVEL ........................ 5"
RAM TRAVEL .......................... 12"
DEPTH OF THROAT ..................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE .................... R8
HEAD TILTS, FRONT/BACK .............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ............ 90 DEGREE EITHER WAY
PATRIOT DIGITAL READ OUT ............ YES
CHROME WAYS ......................... YES
1 SHOT LUBE ......................... YES
MOTOR ............................... 2 HORSEPOWER
